Detector Assembly - Minelab gpz 7000 Getting Started Manual

Detector Assembly

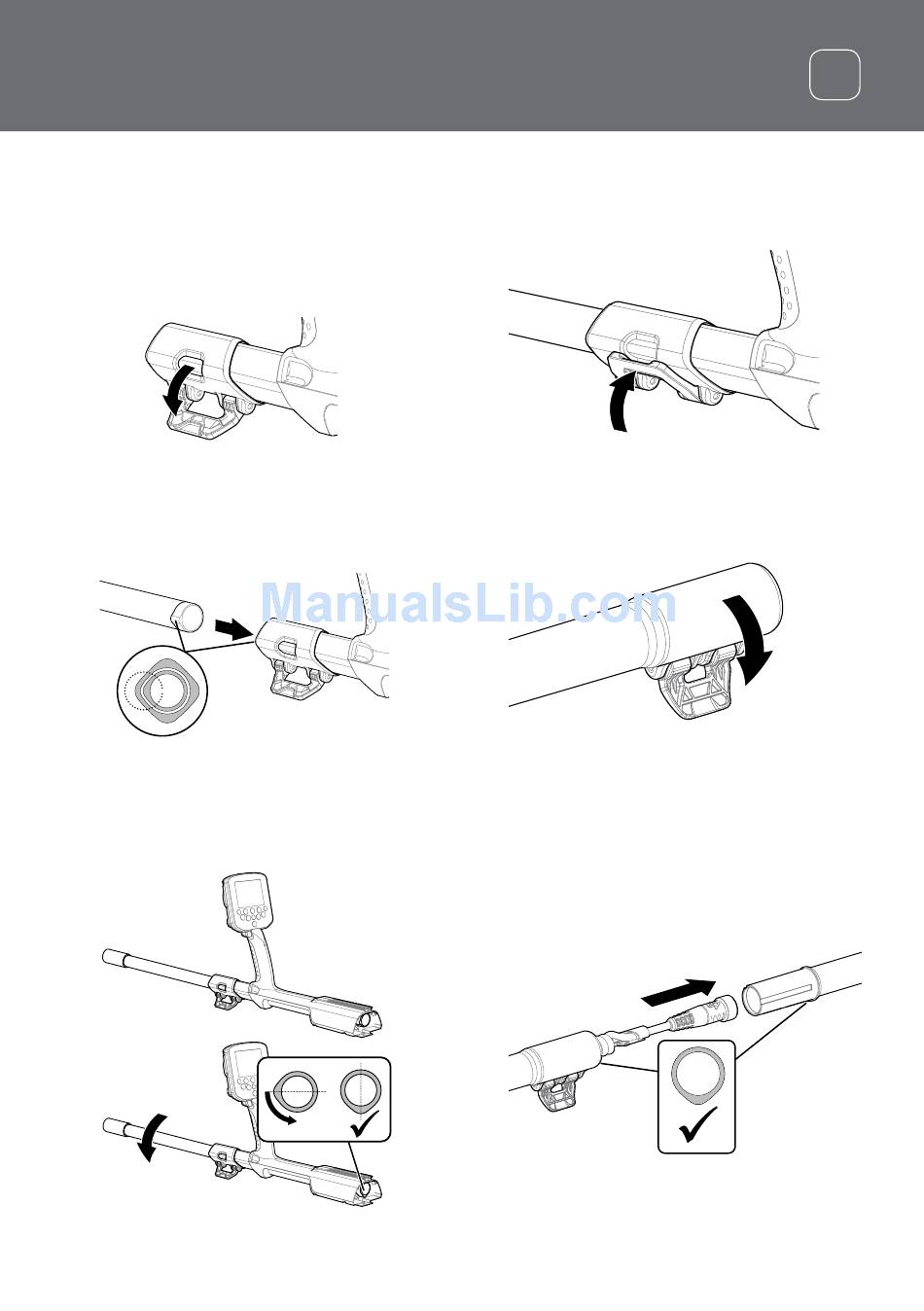

Attach mid shaft to upper shaft
1. Release the cam lock on the upper shaft
by pulling the lever away from the shaft.
2. The mid shaft can only be inserted into
the upper shaft in one orientation. Ensure
that the key stop on the mid shaft is
aligned to the upper shaft.
3. Slide the mid shaft into the upper shaft
until the key stop appears at the top.
4. Rotate the mid shaft 90° so that the key
stop is oriented as shown.
Detector Assembly
5. Lock the cam lock by pushing the lever
towards the shaft
Attach coil and lower shaft to mid shaft
1. Release the camlock on the lower shaft by
pulling the lever away from the shaft.
2. Thread the coil cable up the centre of the
mid shaft.
3. Insert the mid shaft into the lower shaft.
The lower shaft can only be inserted into
the mid shaft in one orientation. Ensure
that the key stop on the mid shaft is
aligned to the upper shaft.
