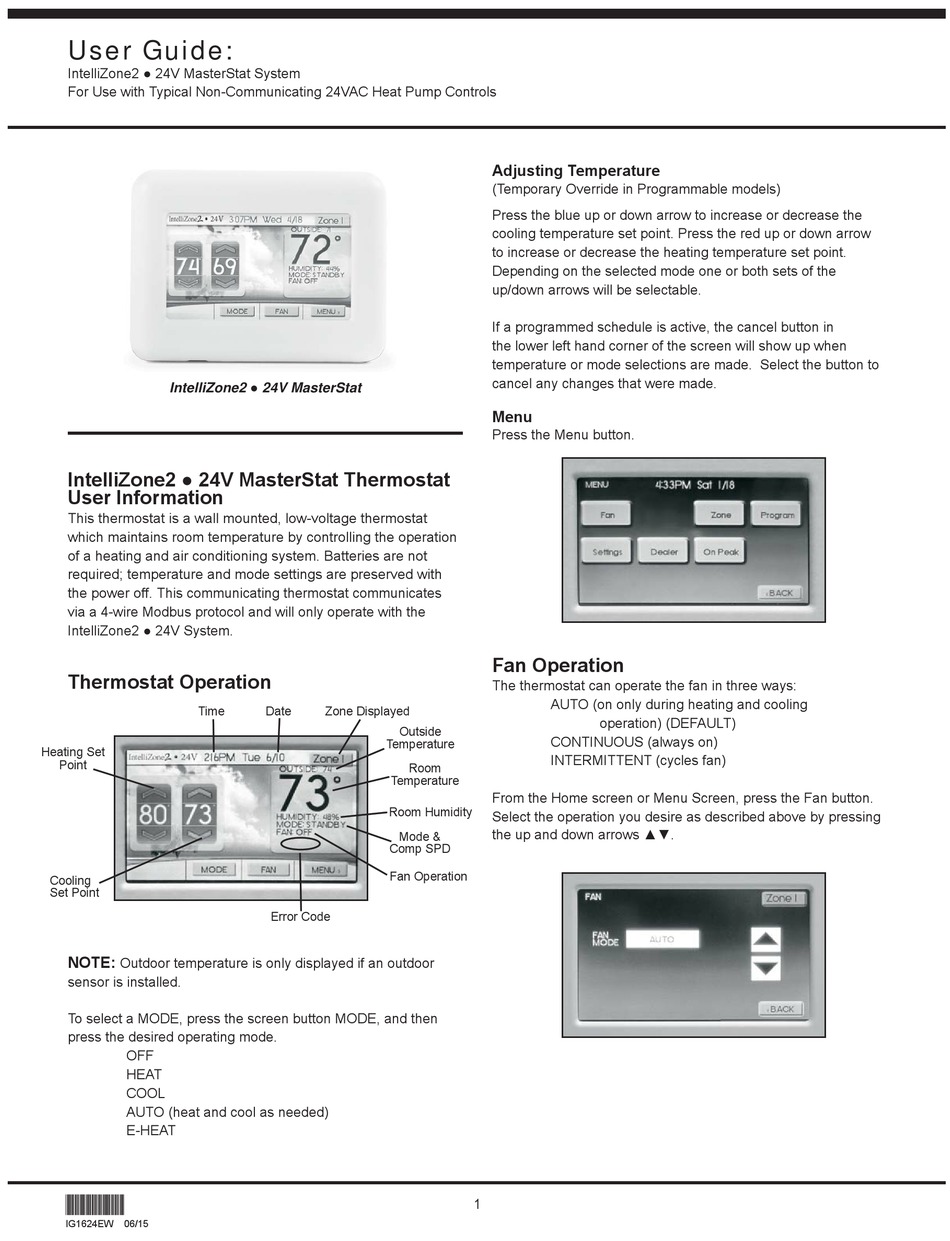

User Guide:

IntelliZone2 ● 24V MasterStat System
For Use with Typical Non-Communicating 24VAC Heat Pump Controls
IntelliZone2 ● 24V MasterStat

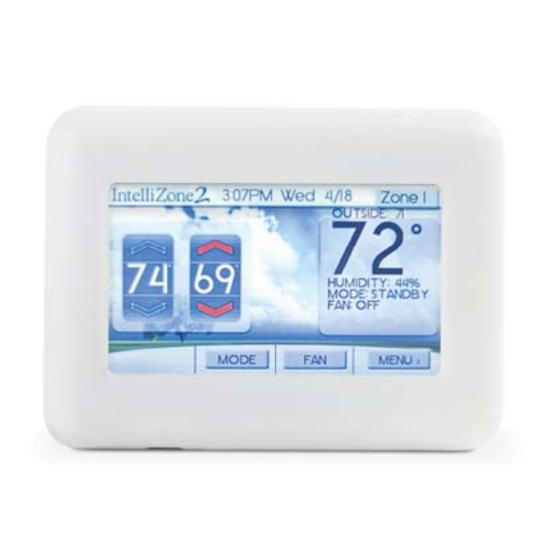

IntelliZone2 ● 24V MasterStat Thermostat

User Information

This thermostat is a wall mounted, low-voltage thermostat
which maintains room temperature by controlling the operation
of a heating and air conditioning system. Batteries are not
required; temperature and mode settings are preserved with
the power off. This communicating thermostat communicates
via a 4-wire Modbus protocol and will only operate with the
IntelliZone2 ● 24V System.

Thermostat Operation

Time
Heating Set
Point
Cooling
Set Point
NOTE:
Outdoor temperature is only displayed if an outdoor
sensor is installed.
To select a MODE, press the screen button MODE, and then
press the desired operating mode.
OFF
HEAT
COOL
AUTO (heat and cool as needed)
E-HEAT
*IG1624EW*
IG1624EW
06/15
USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT
Date
Zone Displayed
Outside
Temperature
Room
Temperature
Room Humidity
Mode &
Comp SPD

Fan Operation

Error Code
Adjusting Temperature
(Temporary Override in Programmable models)
Press the blue up or down arrow to increase or decrease the
cooling temperature set point. Press the red up or down arrow
to increase or decrease the heating temperature set point.
Depending on the selected mode one or both sets of the
up/down arrows will be selectable.
If a programmed schedule is active, the cancel button in
the lower left hand corner of the screen will show up when
temperature or mode selections are made. Select the button to
cancel any changes that were made.

Menu

Press the Menu button.
Fan Operation
The thermostat can operate the fan in three ways:
AUTO (on only during heating and cooling
operation) (DEFAULT)
CONTINUOUS (always on)
INTERMITTENT (cycles fan)
From the Home screen or Menu Screen, press the Fan button.
Select the operation you desire as described above by pressing
the up and down arrows ▲▼.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IntelliZone2 Masterstat and is the answer not in the manual?

Questions and answers

Summary of Contents for Water Furnace IntelliZone2 Masterstat

  • Page 1: User Guide

    User Guide: USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT IntelliZone2 ● 24V MasterStat System For Use with Typical Non-Communicating 24VAC Heat Pump Controls Adjusting Temperature (Temporary Override in Programmable models) Press the blue up or down arrow to increase or decrease the cooling temperature set point.
  • Page 2: Programming Your Thermostat

    USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT Intermittent Fan Temperature conditions can vary widely between the thermostat location and the extremities of the space the thermostat serves. This air stratification problem can be especially pronounced during mild outdoor conditions when long periods elapse between space conditioning demands from the thermostat.
  • Page 3: Security Lockout

    USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT Copying a Program From One Day to Another Backlight In the PROGRAM menu, there is an option to COPY. The option Press the up and down arrows ▲▼ to adjust desired backlight can be used to copy the program from one day to another day.
  • Page 4 USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT ZoneStat User Information Vacation From the MENU, press the Vacation button to set vacation starting date, time, and desired temperature, return date, time. To cancel this setting, press the CANCEL button. Press the OK to return to the previous menu.
  • Page 5 USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT Heat Mode Display - When Heating mode is active the triangle next to the HEAT icon is flashing. The HOLD icon is energized if a temperature override or a fan override is active. A temperature override is set if the set point is adjusted from the schedule set point in programmable mode.
  • Page 6 USER GUIDE: INTELLIZONE2 MASTERSTAT COMMUNICATING THERMOSTAT ©2015 WaterFurnace International, Inc., 9000 Conservation Way, Fort Wayne, IN 46809-9794. WaterFurnace has a policy of continual product research and development and reserves the right to change design and specifi cations without notice. *IG1624EW*...
