Instruction Guide:

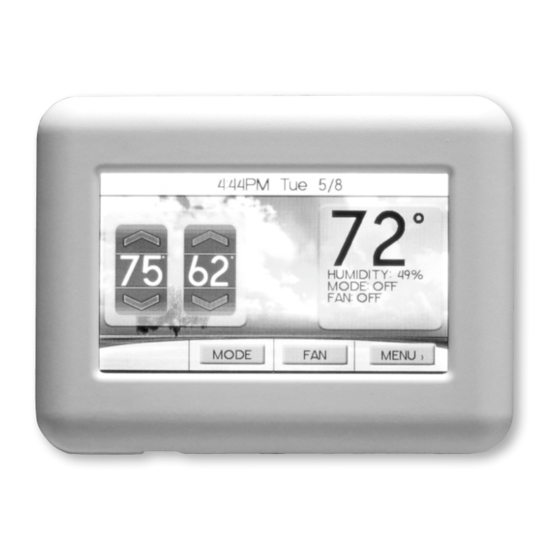

Color Touchscreen Communicating with Humidity Control Thermostat
TPCC32U01
Color Touchscreen Communicating with Humidity Control
TPCC32U01
Heat Pump Thermostat User Information
This communicating thermostat communicates via a 4-wire
Modbus protocol and will only operate with the Aurora Control
System.
Thermostat Operation
Adjusting Temperature
(Temporary Override in Programmable models)
NOTE: Outdoor temperature is only displayed if an outdoor
sensor is installed.
1.
To select a MODE, press the screen button MODE, and
then press the desired operating mode.
2.
Press the blue up or down arrow to increase or decrease the
cooling temperature set point. Press the red up or down arrow
to increase or decrease the heating temperature set point.
IG1601EW
06/12

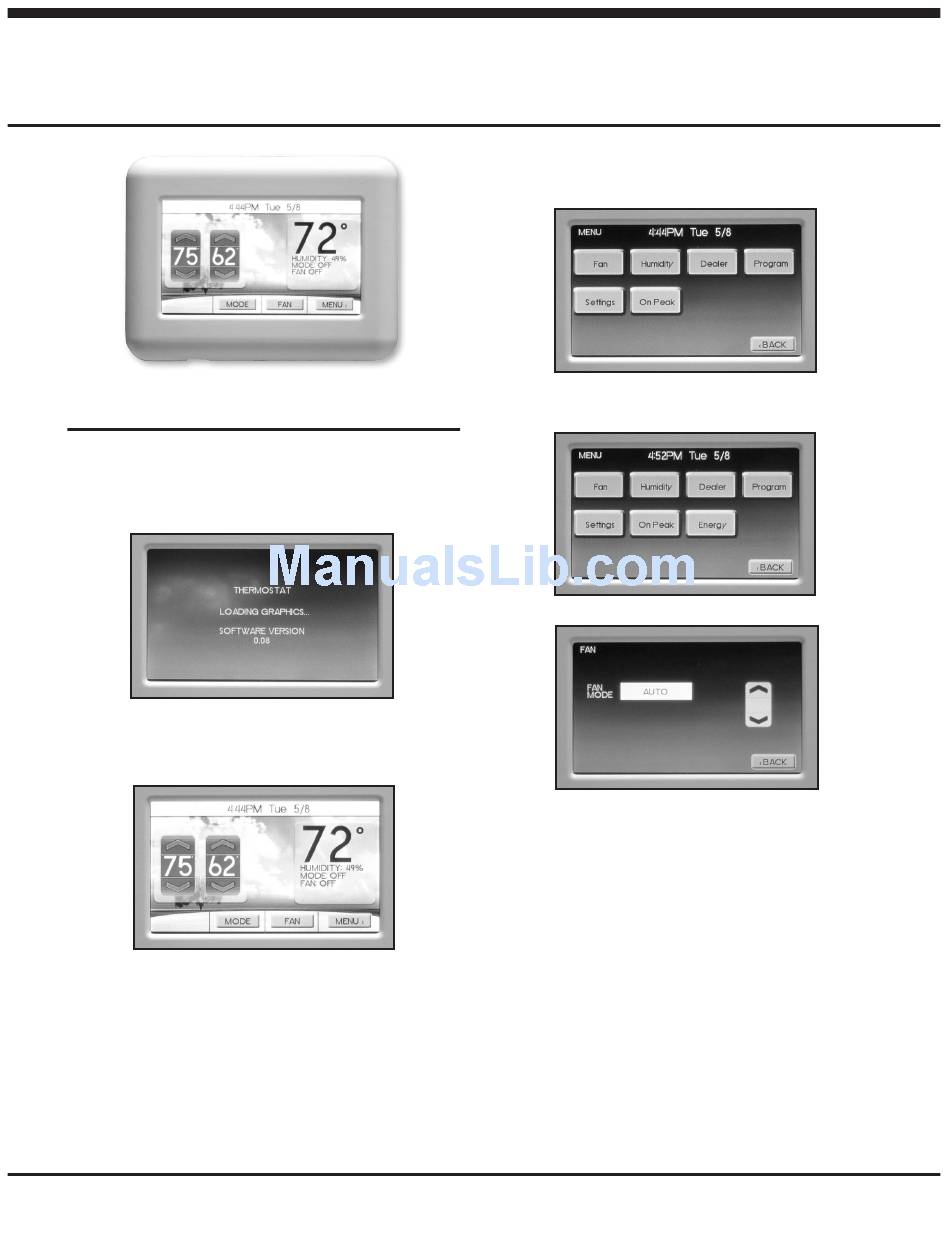

INSTRUCTION GUIDE: COLOR TOUCHSCREEN COMMUNICATING THERMOSTAT
Menu
Press the Menu button.
If your heat pump has Energy Monitor installed, the screen shall
be this:
Fan Operation
The thermostat can operate the fan in three ways:
1.
From the Home screen or Menu, press the Fan button.
2.
Select the operation you desire as described above by
pressing the up and down arrows ▲▼.
Intermittent Fan
Temperature conditions can vary widely between the thermostat
location and extremities of the space the thermostat serves.
This air stratification problem can be especially pronounced
during mild outdoor conditions when long periods elapse
between space conditioning demands from the thermostat. This
intermittent fan operation can also improve the performance of
air cleaning or special filtration systems that locate the cleaning
or filtration media at the return air side of the fan.
1
AUTO (on only during heating and cooling calls)
ON (always on)
INTERMITTENT (cycles fan)
997-012330-3-R
