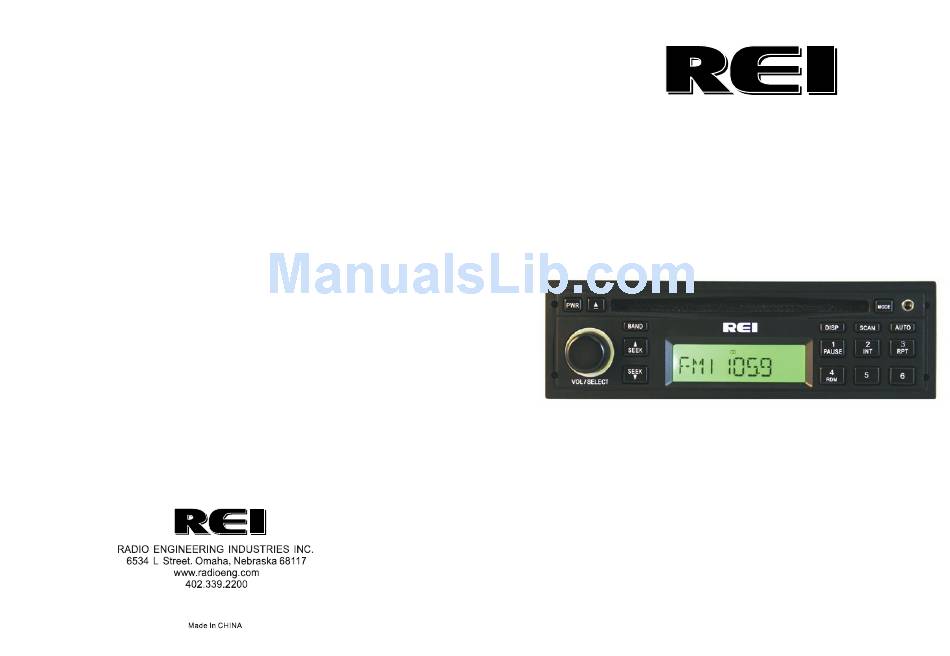

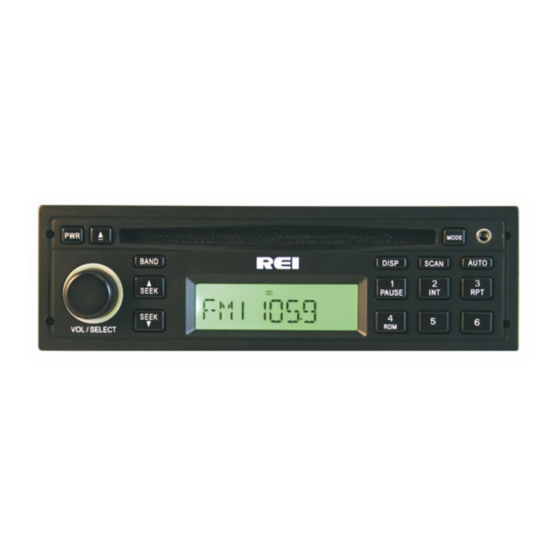

- Page 1 RADIO ENGINEERING INDUSTRIES INC. Heavy-duty AM/FM Stereo Receiver, CD/MP3 Player with 40s Anti-skip Mechanism, & Front-Panel Auxiliary Input Instructions 50 W X 4 R-805...
- Page 2 REI Audio System Thank you for purchasing this AM/FM/CD/MP3 Stereo Receiver from REI. This product is designed and tested to withstand temperature and vibration extremes. Please read the owners manual carefully before attempting to install this unit. IF ADDITIONAL INSTALLATION COMPONENTS ARE NECESSARY,...
- Page 3 REI Audio System REI Audio System SPECIFICATIONS AUDIO SECTION Power supply voltage (negative ground) … … …… ………12V DC (11V-16V) Nominal Current Consumption … …… …… …… … … …… ……less than 2.5A Max Current Consumption …… ……… …… …… …………… … … ………10A Speaker impedance ………...
- Page 4 REI Audio System REI Audio System ELECTRICAL CONNECTIONS CONTROLS AND INDICATORS Follow this easy wiring diagram to install new or existing Radio and Speakers. Warning: **Shorting or grounding any of the speaker wires can damage the radio and is not covered by warranty.
- Page 5 REI Audio System REI Audio System THE DIGITAL RADIO INSTALLING THE RADIO (1) Power On/Off Button 1. First put the DIN collar in the hole opening,then, use the screwdriver to bend Press the Power Button to turn ON or OFF the unit.
- Page 6 REI Audio System REI Audio System (9) Auto Button (13) Preset Memory/Recall Buttons Press and hold this button to auto memorize the next available stations into the Under Radio Mode, preset memory buttons. This function will erase previous memorized stations and Press these buttons momentarily to select the preset stations.
