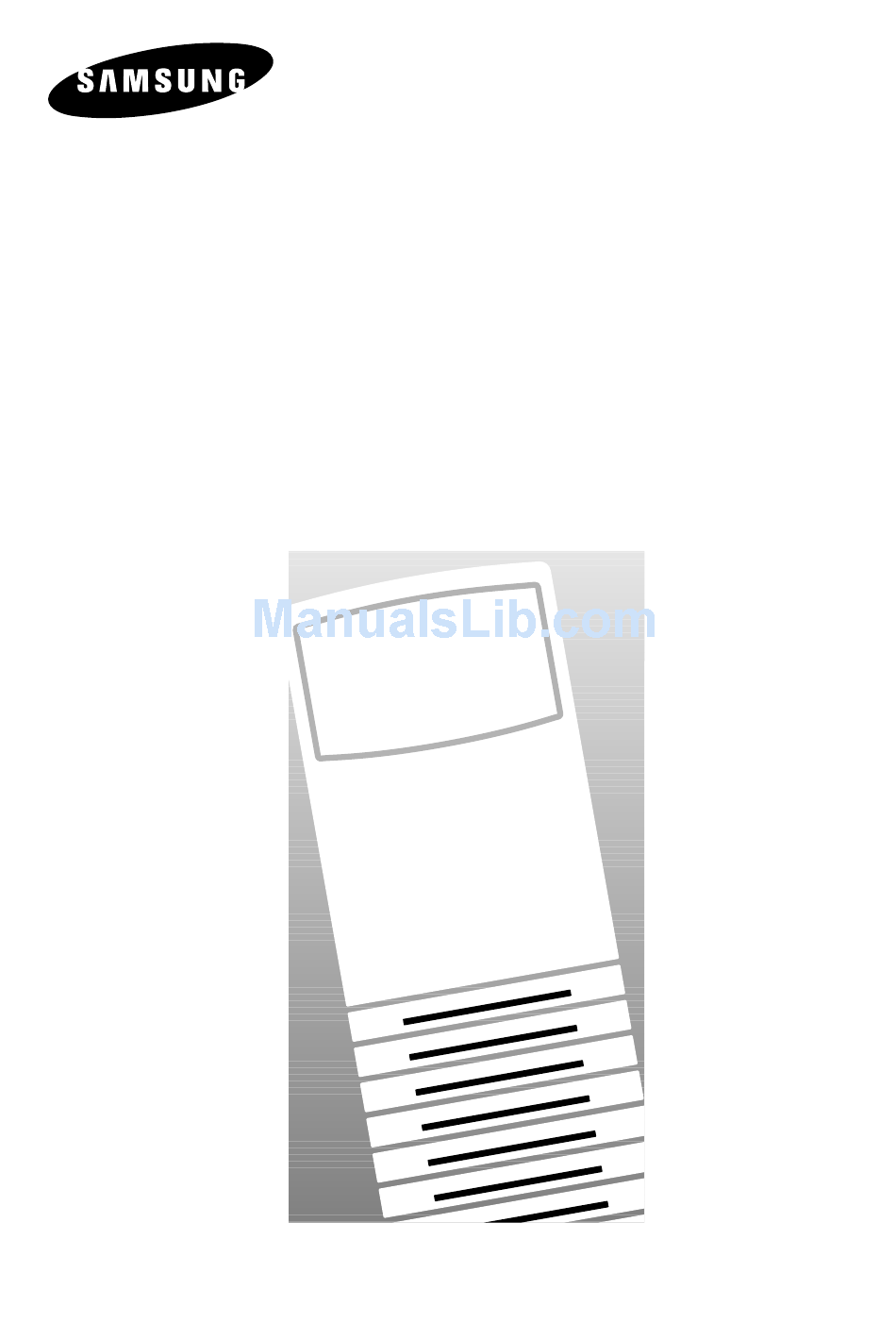

- Page 1 OWNER'S INSTRUCTIONS & INSTALLATION MANUAL AP-3607BR FLOOR STANDING TYPE AIR CONDITIONER (Cool) ⒺⓈ DB68-00052A(2)
-
Page 2: Table Of Contents
Contents ◆ REPARING ONDITIONER ■ Getting Started ■ Remote Control - Buttons and Display ■ Inserting the Remote Control Batteries ■ Keeping the Remote Control ■ Indoor Unit ■ Outdoor Unit ■ Control panel ■ Setting the Time ◆ PERATING ONDITIONER ■... -
Page 3: Getting Started
Getting Started You have just purchased a packaged air conditioner and it has been installed by your installation specialist. Your Owner's Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of the unit's features. -
Page 4: Remote Control - Buttons And Display
Remote Control - Buttons and Display Operating mode/Temperature display : Setting display -Mode indicators : AUTO, COOL, DRY, -Indicator : TURBO, MILD, Q.TIMER, Transmission, Battery discharge. Setting display : -Fan speed -Air flow direction Time/Timer display -Current time -Timer settings Q.Timer adjustment ON/OFF Button Turbo setting... -
Page 5: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when: ◆ You purchase the air conditioner The remote control does not work correctly ◆ Use two LR03 1.5V batteries. Do not use old batteries, or IMPORTANT different kinds of batteries together. -
Page 6: Indoor Unit
Indoor Unit AIR FLOW(DIRECTION) ADJUSTING BLADE AIR OUTLET AUTO SHUTTER Each time you can press the ON/OFF( )button, it open or close automatically. REMOTE CONTROL CASE CONTROL PANEL REMOTE CONTROL SENSOR AIR INLET GRILLE To disassemble the air inlet grille. Loosen two fixing screws of left and right. -
Page 7: Outdoor Unit
Outdoor Unit ELECTRIC PARTS BOX AIR OUTLET CONNECTION VALVE Control Panel Open the control panel by pushing a part of it. ON/OFF Button Temperature adjustment Temperature display Operating Light Fan Light Operating Light Turbo setting Mild setting(Automatic stop) Operating Mode Selection Fan Speed adjustment... -
Page 8: Setting The Time
Setting the Time Your air conditioner contains a clock used to start or stop the unit automatically at a given time. You must set the time when you: ◆ Purchase the air conditioner Replace the batteries ◆ Be sure to change the time in an area where summertime NOTE is applied. -
Page 9: Operating Preparation
Operating Preparation Look around the indoor and outdoor units. Confirm if any obstacles that may prevent the air flow are present near the air conditioner. Turn the power switch on. Result: The POWER light on the indoor unit switches on. To operate the unit, the power switch is fitted to the wall IMPORTANT must be set to ON... -
Page 10: Selecting The Auto Operating Mode
Selecting the Auto Operating Mode You can start the air conditioner in AUTO mode If necessary, press the ON/OFF button. Result: ◆ The OPER. light on indoor unit switches on. ◆ The operation mode previously set is displayed. ◆ The indoor unit beeps twice. ◆... -
Page 11: Starting To Cool
Starting to Cool You must select the COOL mode if you wish to adjust the: ◆ Cooling temperature ◆ Fan speed when cooling If necessary, press the ON/OFF button. Result: ◆ The OPER. light on the indoor unit switches on. ◆... -
Page 12: Selecting The Turbo Operating Mode
Selecting the Turbo Operating Mode The turbo cooling operation function provides heavy duty cooling for 30 minutes regardless of the set temperature. Therefore, you can instantly get cool in this operation mode when you feel it is very hot in the room after returning home from outside. After 30 minutes turbo operation, the unit returns automatically to the operation mode previously set. -
Page 13: Removing Excess Humidity
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature excessively. If necessary, press the ON/OFF button. Result: ◆ The OPER. light on the indoor unit switches on. ◆... -
Page 14: Ventilating Your Room
Ventilating Your Room If the atmosphere in your room is stale, you can ventilate it using the Fan feature. If necessary, press the ON/OFF button. Result: ◆ The OPER. light on the indoor unit switches on. The operation mode previously set is displayed. ◆... -
Page 15: Adjusting The Air Flow Direction Horizontally
Adjusting the Air Flow Direction Horizontally Depending on the position of the indoor unit, you can adjust the position of the air flow blades on the top of the unit, thus increasing the efficiency of the air conditioner. Press the L/R SWING button on the remote control. Result: The blades are moved between right and left. -
Page 16: Setting The Timer
Setting the Timer You can turn the air conditioner on or off automatically. Example: You wish to start cooling your room before you return from work; you decide to: Set the air conditioner going at 5:30 p.m. ◆ Switch it off at 11:30 p.m. ◆... -
Page 17: Setting The Quick Timer
Setting the Quick Timer The quick timer function allows reserved operation using only one button. Therefore, it is very convenient especially for children and elderly people to make reserved operation using this function. When the reserved operation is too complex presenting difficulty in use. You can set reservation in the range of thirty minutes - one hour - two hours - three hours - five hours. -
Page 18: Cancelling The Timer
Cancelling the Timer If you no longer wish to use the timer that you have set, you can cancel it at any time. To cancel the start time, press TIMER ON. Result: The ON indicators flash. Press the TIMER-CANCEL Result: ◆... -
Page 19: Operating Recommendations
Operating Recommendations Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Power failure If a power failure occurs while the air conditioner is operating, it is switched off. When the power returns, you must press ON/OFF to restart it. -
Page 20: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges, within which the air conditioner can be used. Mode Outdoor Temperature Indoor Temperature Indoor Humidity Cooling 21˚C to 43˚C approx. 18˚C to 32˚C approx. 80% or less (70˚F to 109˚F approx.) (65˚F to 90˚F approx.) If the unit is used for long periods at a high humidity... -
Page 21: Before Calling The After-Sales Service
Before Calling the After-Sales Service Before calling for service, make a few simple checks as follows. Problem Explanation/Solution The air conditioner does ◆ Check that the power switch is turned ON. not operate at all ◆ Check that the OPER. light on the indoor unit is on;... -
Page 22: Technical Specifications
Technical Specifications Indoor unit Outdoor unit MODEL ITEM AP-3607BR AP-3607BRX Cooling Capacity BTU/h 36000 Moisture Removal Pts/h Performance 10.85 Ratings Indoor Air Flow (High) 776.3 Sound rating Power Source ø/V/Hz 1/208-230/60 Power Consumption 3800 Electrical Data Operating Current Max. TD Fuse/Breaker... - Page 23 MEMO...
- Page 24 THIS AIR CONDITIONER IS MANUFACTURED BY: Printed in Korea...
- Page 25 ETHOD NSTALLATION Be sure to read the installation manual carefully to ensure sufficient realization of the excellent performance of the unit. Be sure to drill a hole in the wall necessary for installation before attempting to install the unit. After completion of installation, be sure to perform a test operation of the unit to check for any problem, and then deliver the unit to the customer if the test results are acceptable.
-
Page 26: Connection Parts
ACCESSORY PARTS LIST ACCESSORY PARTS LIST ACCESSORY PARTS LIST ACCESSORY PARTS LIST ACCESSORY PARTS LIST Connection Parts Others Part Name Remarks Q'ty Remarks Part Name Q'ty Drain hose Hand bolt Connection piping Leg Holder for outdoor unit 3/8" Ø9.52mm( Connection piping Foot Holder 5/8"... -
Page 27: Outdoor Unit
SELECTION OF INSTALLATION PLACE SELECTION OF INSTALLATION PLACE Indoor Unit ●Install the unit at a place close to the wall facing the outside as Top view it is necessary to perform piping connection with the outdoor unit. - It is effective to install the unit at a window side to ensure uniform distribution of indoor temperature. -
Page 28: Electrical Work
※Avoid octopus-type wiring as it can cause a drop in voltage, thus resulting in poor performance of the automatic control circuit. ●Be sure to install the electric leakage breaker(separately purchased by the user). ●Be sure to connect the grounding wire. Electric Power Spec AP-3607BR Power Single phase 208~230V,60Hz Sub switch Fuse... -
Page 29: Installation Method
1.Fix the unit on a flat, rigid floor using the anchor bolt. Unit : mm(inch) (Anchor bolt : M10 x 4 points - separately purchased) Model AP-3607BR 660(26) 335(13 5) When using the leg holder of the outdoor unit 1. Insert the foot holder (4EA). -
Page 30: Installation Procedures
INSTALLATION METHOD Installation Procedures 1. Open the inlet grille, and remove the flare nut. 2. Bend the connection pipe to an appropriate length using the spring bender depending upon the installation place. - Allowable pipe length : Maximum 25m (82ft) - Allowable pipe drop distance : Maximum 15m (49ft) - Make no more than ten bending points on the pipe ※When the pipe length is in excess of the standard pipe length of 5m (16ft 5in), add the refrigerant... -
Page 31: Connection Of Refrigerant Piping
INSTALLATION METHOD INSTALLATION METHOD Connection of Refrigerant Piping Flare Processing 1. Cut the pipe using the pipe cutter. Oblique Roughness Burr 2. Insert the flare nut into the pipe, and then perform the flare processing. Outer Diameter Ø9.52mm(3/8” ) 1.8mm(7/100” ) Ø15.8mm(5/8”... -
Page 32: Drilling A Hole In The Wall
INSTALLATION METHOD Drilling a Hole in the Wall ● Drill a hole of 60mm in diameter to the outside. ● The drilling should be done at a distance of less than 150mm from the floor facing the indoor unit. Less than Ø60mm 150mm 2 inch) - Page 33 AIR PURGE AIR PURGE ● Be sure to perform the air purge of the indoor unit, and piping using the refrigerant of the outdoor unit at the time of installation. 1. Connect the charging hose of low pressure side of manifold gauge to the packed valve having a service port (5/8”...
-
Page 34: Air Purge
AIR PURGE/REFRIGERANT CHARGING REFRIGERANT CHARGING REFRIGERANT CHARGING Air purge(at the time of new installation only) Close the gas pipe side valve by turning it clockwise. Connect the pressure gauge to the low pressure side service valve, and then open the gas pipe side valve again. Connect it to the refrigerant filling tank. - Page 35 CHECK AND TEST OPERATION CHECK AND TEST OPERATION Check ● Be sure to check the following again after completion of installation. 1. Check the piping connection area for any gas leakage. Indoor connection area Outdoor connection area 2. Is the drain hose properly connected? 3.
-
Page 36: Check And Test Operation
CHECK AND TEST OPERATION Test Operation ● After checking, read the owner's instructions carefully, and perform a test operation. Then deliver the unit to the customer. (When delivering the unit, be sure to read carefully and follow the contents of the owner's instructions.) Caution 1.
