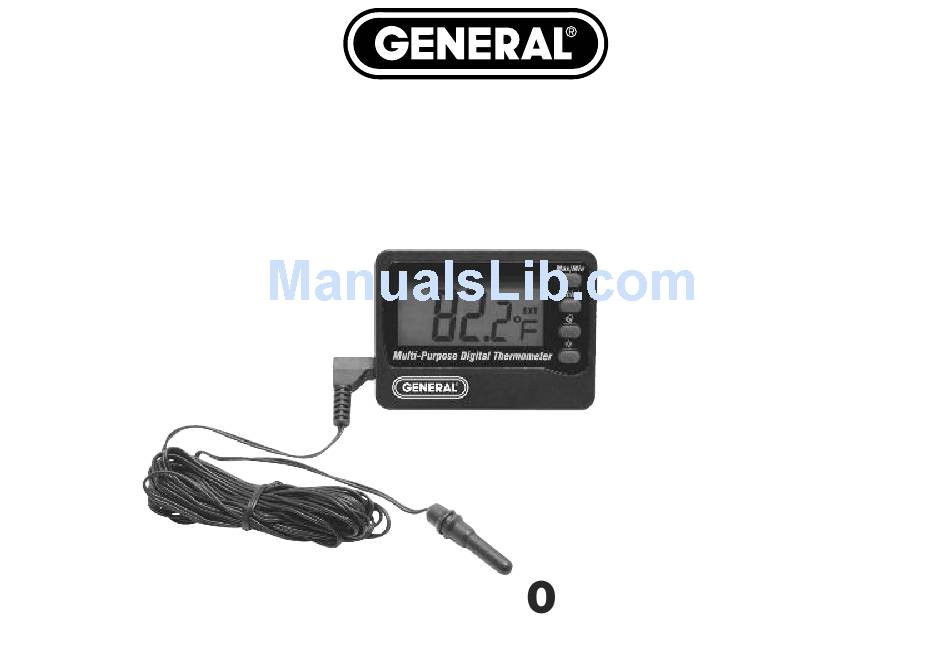

- Page 1 IN/OUT THERMOMETER WITH WATERPROOF PROBE USER’S MANUAL AQ15 Please read this manual carefully and thoroughly before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ............3 Key Features . -
Page 3: Introduction
Probe. Please read this user’s manual carefully and thoroughly before using the product. The AQ150 has two separate temperature sensors: one inside the display unit and the other inside a remote probe at the end of a 10 ft. (3m) long detachable cable. The remote circuit can be configured to sound an alarm when the temperature it senses rises above or falls below a set limit. -
Page 4: Key Features
KEY FEATURES • Displays ambient or remote (INT or EXT) temperature • Tracks MAX and MIN temperatures • High and low temperature alarms for remote circuit • ºC/ºF button • Backlit LCD and detachable cable of remote probe • Foldaway stand and magnets on back of display unit •... -
Page 5: Product Overview
PRODUCT OVERVIEW Fig. 1 shows the LCD and controls on the front of the AQ150. Fig. 2 shows the key areas and components on the back of the unit. Fig. 1. The controls and indicators on the front of the AQ150 1. -
Page 6: Setup Instructions
Fig. 2. The back of the AQ150 7. Foldaway stand for table or desktop mounting 8. Display unit Velcro mounting area 9. Mounting magnets 10. °C /°F button. Used to select displayed temperature unit and set high and low temperature alarm limits 11. -
Page 7: Choose A Temperature Unit
To activate the thermometer, open the battery compartment in the back of the unit (Fig. 2, Callout 12) by lifting the left side of the hinged door with your fingertip. Remove the battery activation tab. The beeper will sound quickly four times. Discard the tab and swing the battery compartment cover shut. CHOOSE A TEMPERATURE UNIT Before proceeding, remove the protective plastic film covering the display. -
Page 8: Extend And Secure The Probe
To detach the unit (to change the battery, change the temperature unit, or reset the high and/or low alarm limits), grab it and pull until the two Velcro strips separate. EXTEND AND SECURE THE PROBE Remove the twist tie keeping the probe cable in a bundle. Extend the probe cable to the desired length. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS DISPLAYING REAL-TIME TEMPERATURE To display the ambient temperature at the display unit, press the Ext/Int button until INT appears at button the right of the readout. To display the temperature sensed by the probe, press the Ext/Int until replaces INT. -
Page 10: Setting High And Low Temperature Alarms
SETTING HIGH AND LOW TEMPERATURE ALARMS Temperature alarms can only be set for the sensor in the external probe. You cannot set alarms with the display unit mounted on a wall or frame because setting alarm levels requires access to the °C /°F button on the back of the unit. - Page 11 3. To set the low temperature alarm limit, follow the instructions in Step 2 on previous page, subtituting “low” for “high” and “decreases/decreasing” for “increases/increasing.” 4. When the desired low and/or high temperature alarm level(s) is/are displayed, press the button to store the setting(s). Once you have stored the high and/or low alarm temperature level(s), the display will stop flashing and resume showing the Int Ext temperature it was showing when the alarm setting process began.
-
Page 12: Specifications
SPECIFICATIONS Ambient Temperature Range: 14° to 122°F (-10° to 50°C) Remote Temperature Range: -58° to 158°F (-50° to 70°C) Measurement Accuracy: ±1°F (0.5°C) from -4° to 122°F (-20° to 50°C); ±1.8°F (±1°C) outside this range Display Resolution: 0.1° (C or F) Sampling Period: 10 seconds Probe Cord Length:... -
Page 13: Maintenance Tips
Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. In no event shall General be liable for any incidental, special, consequential or punitive damages, or for any cost, attorneys’ fees, expenses, or losses alleged to be a consequence of any damage due to failure of, or defect in any product including, but not limited to, any claims for loss of profits. -
Page 14: Return For Repair Policy
Customer Service to obtain an RGA (Return Goods Authorization) number before forwarding the unit via prepaid freight to the attention of our at this address: General Tools & Instruments 75 Seaview Drive Secaucus, NJ 07094... - Page 15 NOTES ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
- Page 16 FAX (212) 431-6499 TOLL FREE (800) 697-8665 e-mail: sales@generaltools.com www.generaltools.com AQ150 User’s Manual Specifications subject to change without notice ©2015 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN#AQ150 07/09/15 General Tools & Instruments GeneralToolsNYC...
