1. Introduction

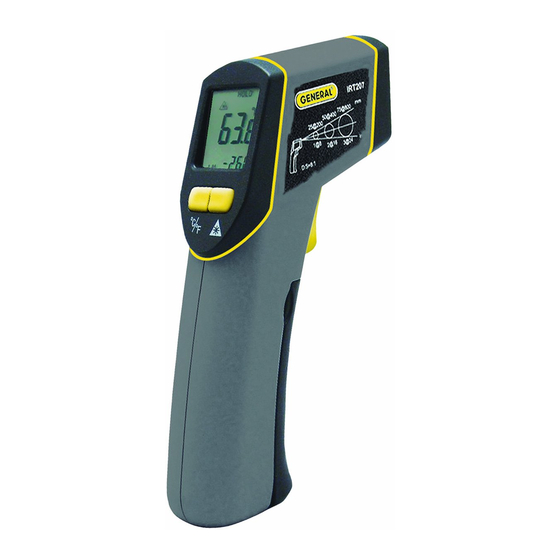

Congratulations on your purchase of the new IRT207
Heat Seeker TM InfraRed Thermometer (IRT). This IRT is
an 8:1 non-contact temperature measuring instrument
using infrared technology and laser sighting. Features
include a 4 digit backlit LCD, scan/hold function and
auto power off (7 secs). To measure a temperature,
point the unit at the object, pull the measuring trigger
and hold. Make sure the target area is larger than the
unit's spot size.

2. Safety Information

Read the following safety information carefully before
attempting to operate or service the IRT. Only qualified
personnel should perform repairs or servicing not
covered in these instructions.
2-1 Cautions!
• DO NOT submerge the unit in water.
• This product is not designed for use in medical
evaluations. The product can only be used to
measure body temperature simply for reference.
The IRT is meant for industrial and commercial uses.
LASER WARNING NOTE!
Do not point laser directly at eye.
Use caution around reflective surfaces.
Keep out of reach of children.
2-2 Safety symbols
Dangerous, refer to this manual before using
the meter.
CE Certification.
This instrument conforms to the following standards:
EN61326: Electrical equipment for measurement, control
and laboratory use.
IEC61000-4-2: Electrostatic discharge immunity test.
IEC61000-4-3: Radiated, radio-frequency,
electromagnetic field immunity test.
IEC61000-4-8: Power frequency magnetic field immunity
test.
Tests were conducted using a frequency range of
80-1000MHz with the instrument in three orientations.
The average error for the three orientations is ±1.0ºF
(±0.5ºC) at 3V/m throughout the spectrum. However,
between 781-1000MHz at 3V/m, the instrument may
not meet its stated accuracy.

5. Maintenance

Cleaning the lens: Blow off loose particles using clean
compressed air. Gently brush remaining debris away
with a camel's hair brush. Carefully wipe the surface
with a moist cotton swab. The swab may be moistened
with water.
12/23/09 12:56 PM
IRT207
Heat Seeker
©2010 GENERAL TOOLS & INSTRUMENTS New York, NY 10013
Page 1
TM Infrared Thermometer

3. Specifications

Temperature Range -4º to 605ºF (-20º to 320ºC)
Accuracy ±2% of reading or ±2ºC
whichever is greater
Field of View 8:1
Thermopile 5~14 µm
Repeatability ±1ºC (±2ºF)
Response Time 500 ms.
Operation Temp. 32º to 122ºF (0º to 50ºC), 10~90% RH
Auto Power Off Automatically after 7 sec.
Emissivity Fixed at 0.95
Storage Temp. 14º to 140ºF (-10º to 60ºC)
ºF/ºC Switchable YES
Backlight YES
Laser Sight Switchable YES
Battery Type "9V" battery (included)
Battery Life 16 hrs
Dimension 6" x 4.6" x 1.3" (152 x 118 x 32 mm)
Weight 6 oz. (170g) Approx.
Accessory "9V" battery, Instruction manual

4. Operation of Instrument

4-1 Quick Start
To measure a temperature, point the unit at the target you
want to measure, pull the trigger and hold. Be sure to
consider the target area inside the angle of vision of this
instrument ie a 1" measuring spot at a distance of 8".
The single spot of laser is used for aiming purposes only.
The unit is powered by "9V" battery and displays
temperatures in either ºF or ºC.
Replace the battery when the battery voltage drops
below the voltage for reliable operation and the low
battery symbol appears.

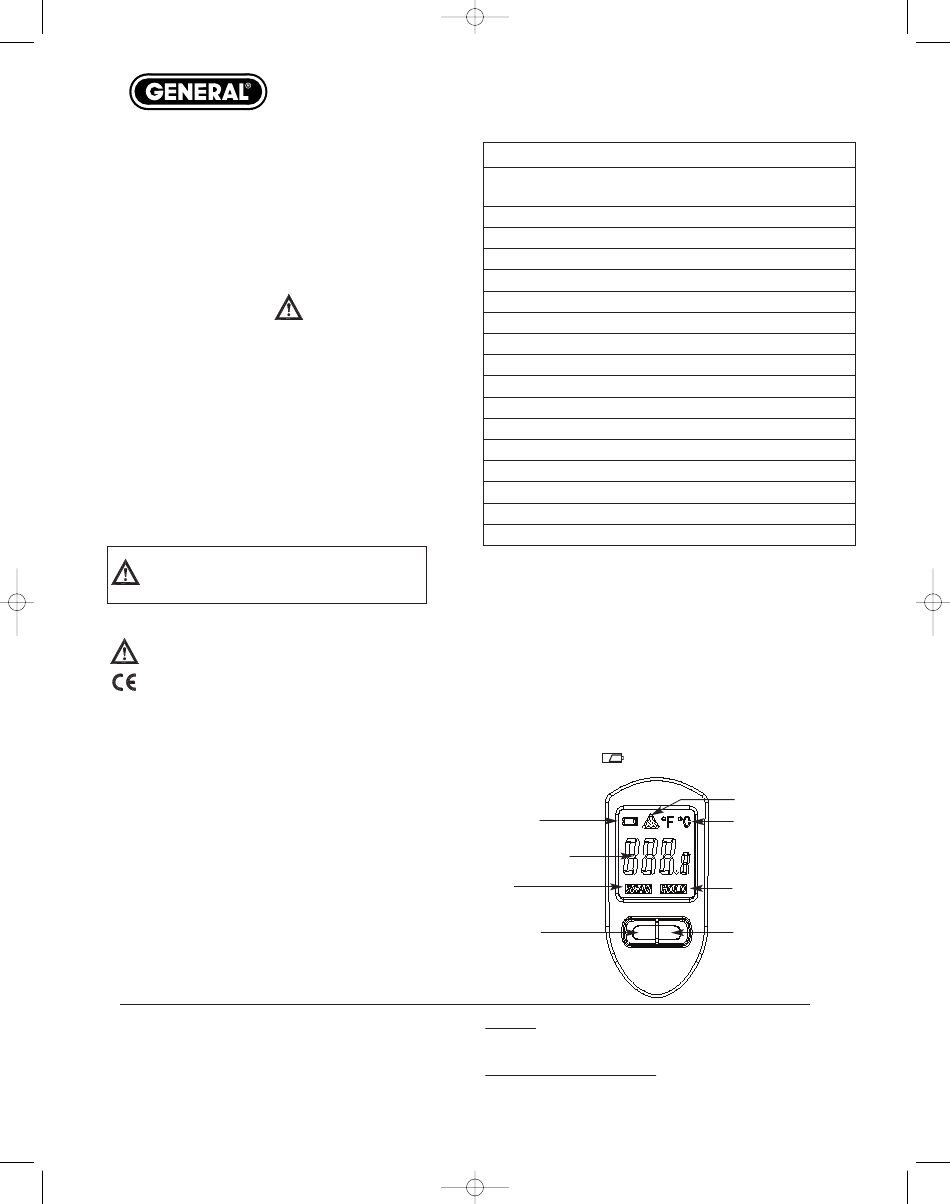

Battery Low
Temperature Display
SCAN
ºF/ºC Switch
NOTE:
DO NOT use solvents to clean the glass lens.
Cleaning the housing:
Use soap and water on a damp sponge or soft cloth.
Montreal, Canada H9R 1E1
Laser ON/OFF Indication
ºF/ºC Switch Indication
HOLD
Laser ON/OFF Switch
