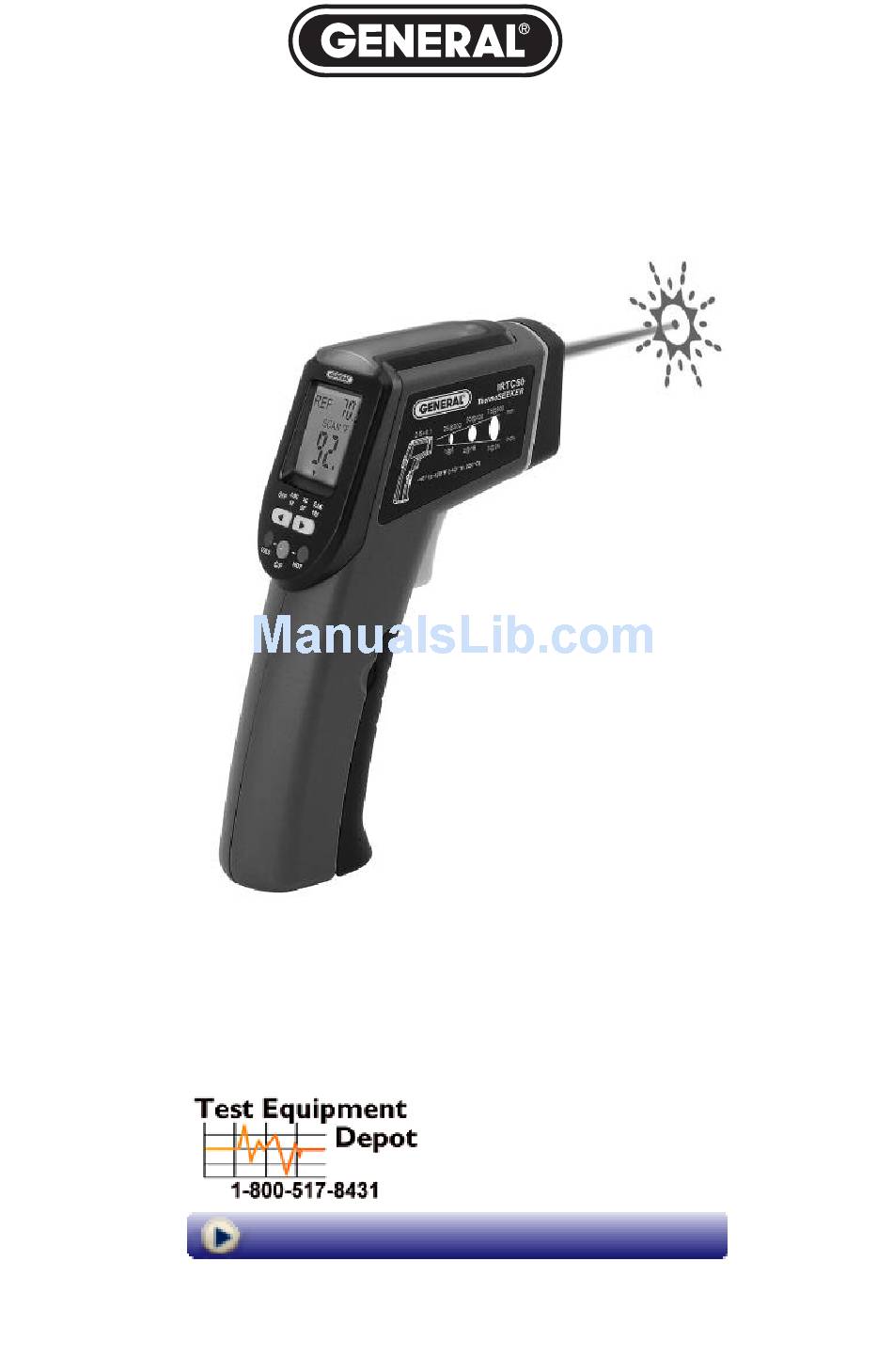

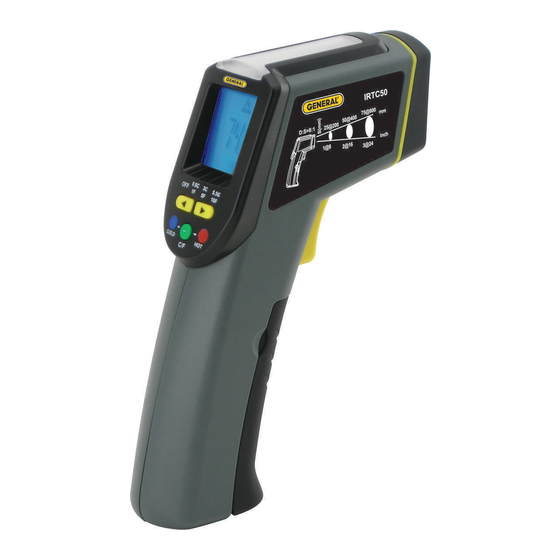

SCANNING IR THERMOMETER WITH
STAR BURST LASER TARGETING
USER'S MANUAL
IRTC50
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Please read this manual carefully and thoroughly before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRTC50 and is the answer not in the manual?

Questions and answers

Summary of Contents for General IRTC50

  • Page 1 SCANNING IR THERMOMETER WITH STAR BURST LASER TARGETING USER’S MANUAL IRTC50 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Please read this manual carefully and thoroughly before using this product.
  • Page 2: Table Of Contents

    Warranty Information ........9 General’s Return for Repair Policy ......9 Manual del Usuario en Español .
  • Page 3: Introduction

    What the IRTC50 does extremely well and quickly is place scanned targets into one of three color-coded categories: green for targets within a temperature band (or...
  • Page 4: Key Features & Benefits

    CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result indangerous radiation exposure. The IRTC50 is a Class 3R laser product that emits less than 3mW of radiation. Avoid looking directly at the laser pointer. U.S. law prohibits pointing a laser beam at aircraft;...
  • Page 5: Product Overview

    PRODUCT OVERVIEW Fig. 1 shows all of the controls, indicators and physical features of the IRTC50. Fig. 2 shows all of the icons and text that may appear on the LCD. Familiarize yourself with the locations and functions of the controls and the meanings of the display icons before moving on to the Setup Instructions and Operating Instructions.
  • Page 6: Setup Instructions

    OPERATING INSTRUCTIONS SCAN MODE 1. Point the IRTC50 at an interior wall of the room you are in. (If the LCD does not illuminate, the battery is dead and must be replaced; see above for instructions.) 2. Squeeze and hold the yellow measurement trigger for more than three seconds, until the light panel on the top of the unit glows green.
  • Page 7: Conventional Irt Mode

    OPERATING TIPS The first few times you use the IRTC50 in Scan mode, don’t be too concerned about which setpoint bandwidth to choose. With experience you will learn whether a narrow (1°F), normal (5°F) or wide (10°F) setpoint bandwidth is best for your particular application.
  • Page 8: Specifications

    When the ambient temperature falls below the IRT’s minimum operating temperature (32°F/0°C), the instrument will beep slowly (at 1 Hz) and the display will show the following error message: ErAL. When the temperature of a target exceeds the specified maximum (428°F/220°C), the beeper will sound quickly and the display will show the following error message: ErOH.
  • Page 9: Maintenance Tips

    Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. In no event shall General be liable for any incidental, special, consequential or punitive damages, or for any cost, attorneys’ fees, expenses, or losses alleged to be a consequence of damage due to failure of, or defect in any product including, but not limited to, any claims for loss of profits.
  • Page 10: Manual Del Usuario En Español

    Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Specifications subject to change without notice ©2015 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN# IRTC50 5/26/15 General Tools & Instruments GeneralToolsNYC...
