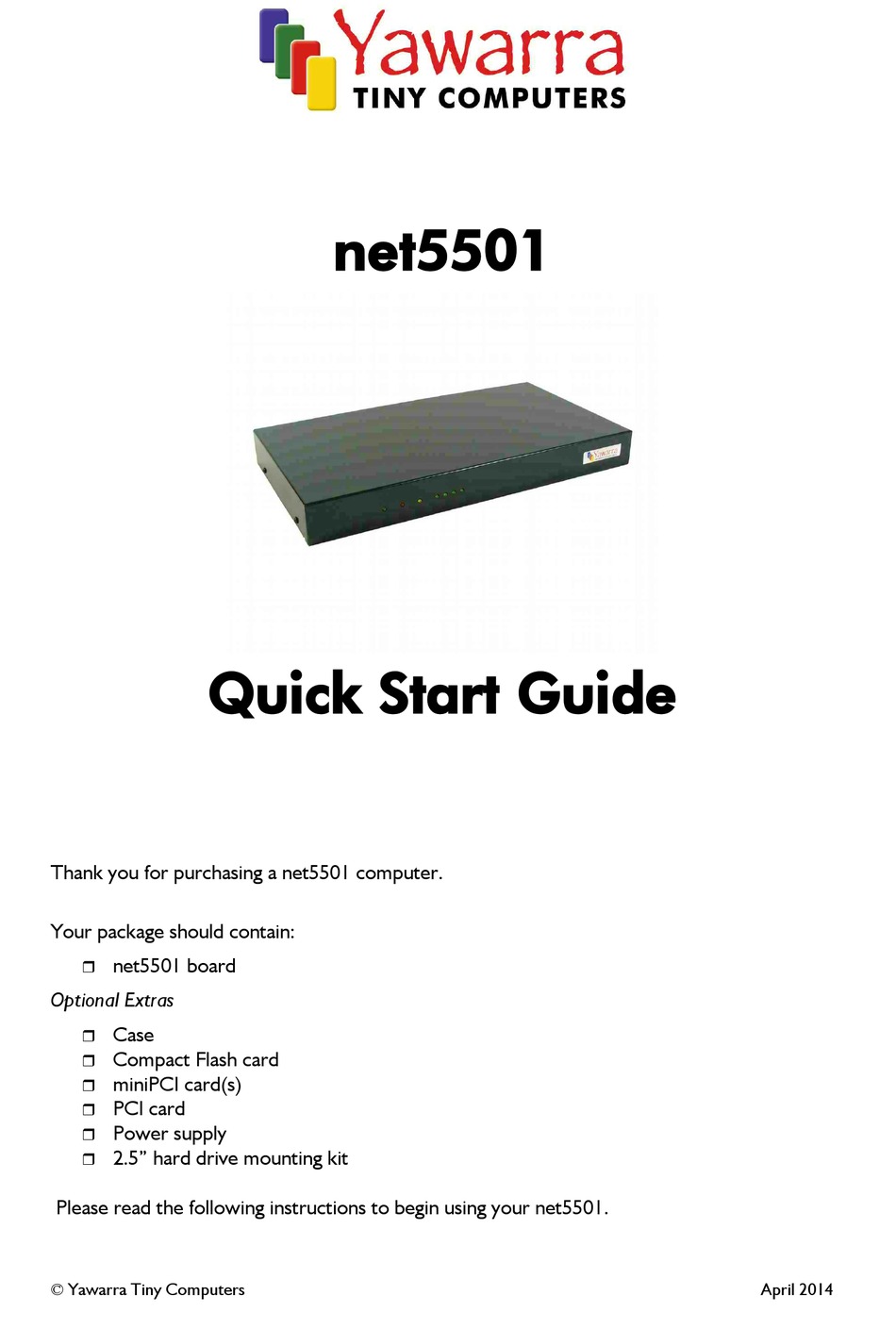

Quick Start Guide
Thank you for purchasing a net5501 computer.
Your package should contain:
net5501 board
Optional Extras
Case
Compact Flash card
miniPCI card(s)
PCI card
Power supply
2.5" hard drive mounting kit
Please read the following instructions to begin using your net5501.
© Yawarra Tiny Computers
net5501
April 2014
Advertisement
Table of Contents
Related Manuals for Yawarra net5501
Summary of Contents for Yawarra net5501
-
Page 1: Quick Start Guide
Optional Extras Case Compact Flash card miniPCI card(s) PCI card Power supply 2.5” hard drive mounting kit Please read the following instructions to begin using your net5501. © Yawarra Tiny Computers April 2014... - Page 2 Configure and install a Compact Flash card (optional) To use your net5501, you will need to have either a CF card with a suitable operating system installed in the CF socket on the net5501 board, or a 2.5” hard drive installed (Step 5).
- Page 3 Install a 2.5” hard drive (optional) If you want to install a hard drive in your net5501, you will need to use a net5501 hard drive mounting kit. Please note that you will need to remove the hard drive to access the miniPCI slot on the net5501 board.
-
Page 4: More Information
DC, and uses up to 18W at 12V (including a hard drive). You'll need a power supply with a 2.1mm internal, 5.5mm external, centre positive plug. The net5501 will go through its boot up cycle, which you can watch if you are connected to the serial console. Your net5501 is ready to use!
