Summary of Contents for TK-STAR TK 2000

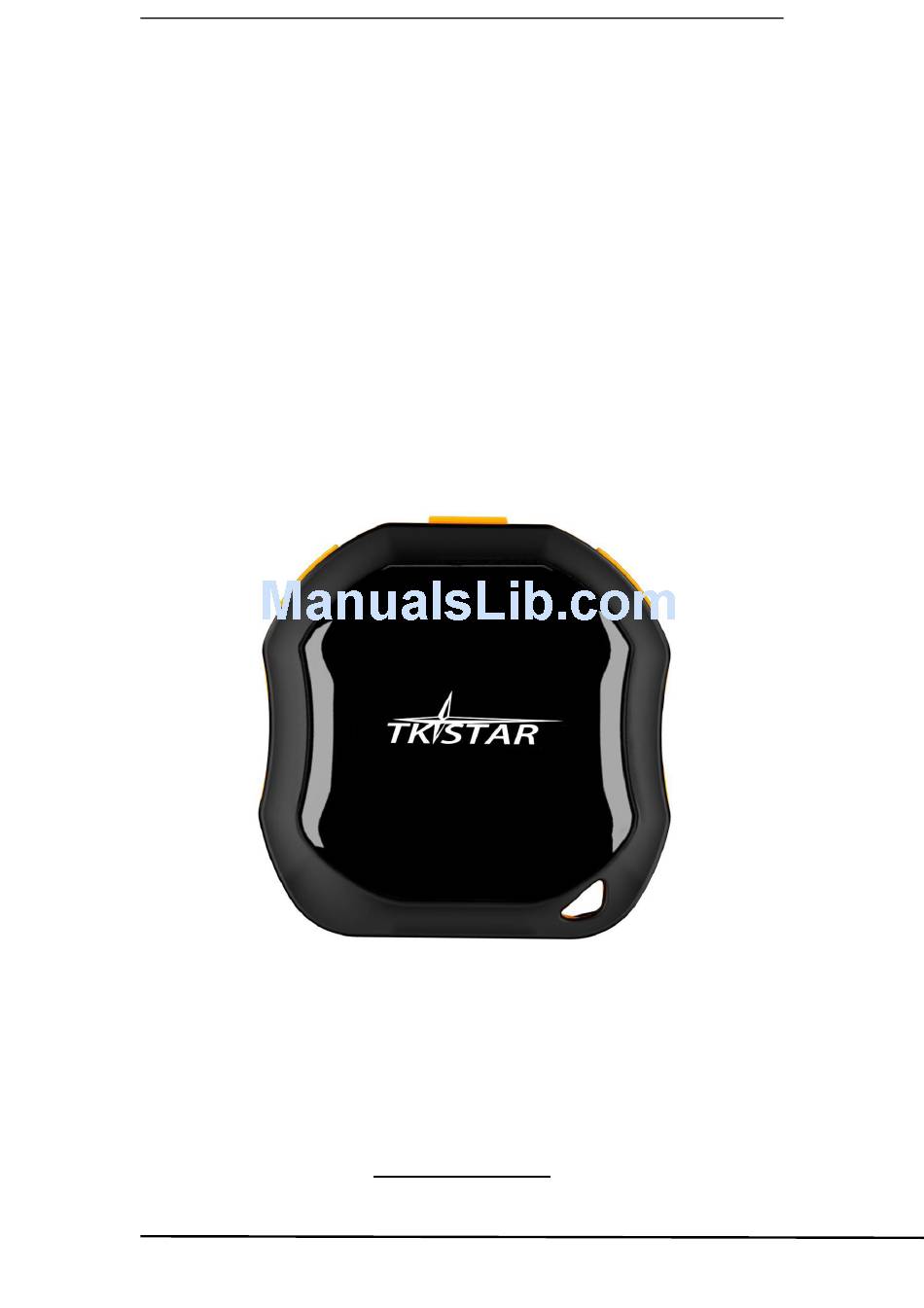

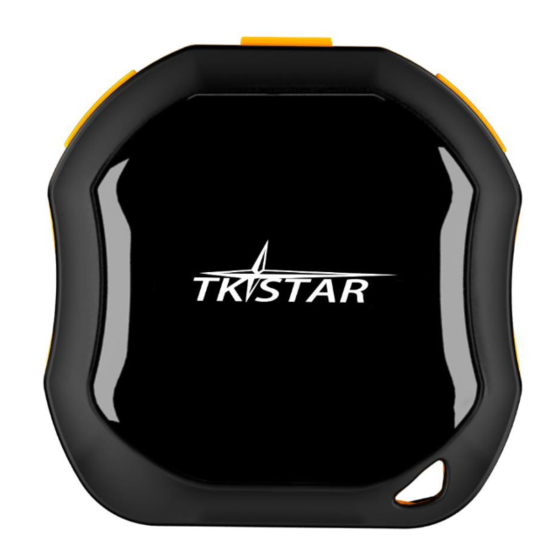

- Page 1 TK-STAR GPS TRACKER USER MANUAL TK 2000 PREFACE...
- Page 2 Thank you for purchasing the GPS tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release.
-
Page 3: Led Indicator Status
LED INDICATOR STATUS MEANING Left-GREEN-Continuously lit No GPRS signal. Left-GREEN-Flashing GPRS communication established. Center-RED-Not lit Fully charged. Center-RED-Solid red Charging. Right-BLUE-Continuously lit Searching for GPS signal. Right-BLUE-Flashing GPS location successful. 2. INSTALLATION 2. 1 SIM-CARD INSTALLATION Once the SIM card has been purchased and credit added, unscrew the tracker using the screwdriver to remove the 4 small screws in each corner. - Page 4 Then, insert the SIM card into the SIM card holder by push the metal piece forward and lifting it up, Place the SIM-card into the card slot, Press the metal piece back into its original position and push the metal piece back into place. If you have purchased a MICRO SIM , you will need to use the Micro SIM adapter enclosed, like this: Ensure you place the SIM card with the chip face down and the right way...
-
Page 5: Sms Tracking
3 seconds when the unit has received the signals. When this unit receives GPS signals normally, you can use it and do any setting as the instructions of this manual. 2.3 EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE 1. Google Maps link: This is the link to the Google map showing the position of the tracker unit.When click the link, if a map is displayed, there is GPS information for the unit. - Page 6 INSTRUCTION COMMAND REPLY Reboot the device begin123456 begin ok Set authorized number admin123456 phone number admin ok Cancel authorized number noadmin123456 phone number noadmin ok Set SOS phone number sos123456 phone number sos number ok Cancel sos number nosos123456 phone number nosos ok SMS Track G123456#...
-
Page 7: Online Tracking
3.2 ONLINE TRACKING 3.2.1 Turn on GPRS function by sending comand “ gprs123456 ” to the tracker, and set the apn for tracker, then online tracking will work . APN information is from sim card carrier ,every sim card carrier has different APN information, there are two ways to find APN out: check sim card carrier on internet or put sim card into own cell phone to find check APN 3.2.2 COMMAND INSTRUCTION TO SET THE ACCES POINT NAME (APN) - Page 8 Platform : 2.tkstargps.net/ IMEI No. : On the back side of cover Password: 123456 3.2.3 APPLICATIONS FOR ANDROID/iOS Search “TKSTAR“ in the Apple App Store/Google Play Store or Scan the QR Code to install the applications on your cell phone. Select “Log in by IMEI”...
- Page 9 SMS with "V:V", it means no GPS Signal; If reply one SMS, with "V:A", it means device in sleep model; (Note: We advice use Shock Sleep Model when driving)
