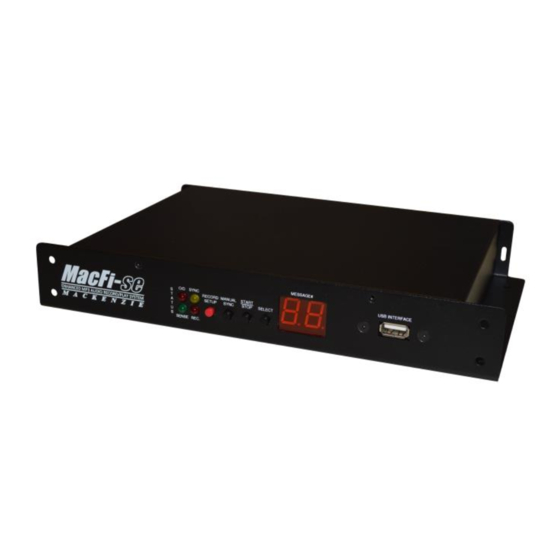

MP3 DIGITAL AUDIO RECORD/PLAY SYSTEM
User's Manual
Version 1.0 Revised 12, June 2015
Doc 99-20-204 - $25.00
MACKENZIE LABORATORIES, INC.
1163 Nicole Court
Glendora, CA 91740 USA
Tel: (909) 394-9007 Fax: (909) 394-9411
Email: info@macklabs.com
Web: www.macklabs.com

Advertisement

Table of Contents
loading

Related Manuals for Mackenzie MacFi-se

Summary of Contents for Mackenzie MacFi-se

  • Page 1 --------------------------------------------------------------------------------------------------------------- OTHER MACKENZIE PRODUCT LINES Message On Hold & Storecasting - Mackenzie's full line of digital Message-On- Hold systems, turn your telephone into a powerful marketing tool. The DYNAVOX series offers maintenance free digital playback with tape, modem or satellite download.
  • Page 2 Warranty & Registration Card for the General Safety Instructions MacFi-se - MP3 Digital Audio Record/Play System Always follow these basic safety precautions when using the Date:________________________ Serial No.: _______________________ system: Purchaser: ___________________________________________________ 1. Read carefully and understand all instructions. 2. Follow all warnings and instructions marked on the product.

  • Page 3: Table Of Contents

    __________________________________________________________________ Playing-Remote Control ............. 21 Memory Clear/Test ..............22 __________________________________________________________________ Erase Message ................22 MacFi-se Serial Port ................ 23 RS-232 (Serial) Command List ..........23 __________________________________________________________________ WARRANTY, SERVICE & RETURNS ..........24 Warranty Coverage: ..............24 What we ask you to do: .............. 25 __________________________________________________________________ What this warranty does not cover: ..........
  • Page 4 MacFi-se system to the factory, include your name, address, phone number, proof of date of purchase, and ▪ MacFi-se; 99 messages, 17 hours + of MP3 playback / recording, a description of the operating problem. After repairing or...

  • Page 5: Overview

    If our inspection shows that the trouble was caused by defective material or workmanship, we will repair or replace The MacFi-se offers up to 99 messages and hours of MP3 audio. the equipment without charge and return prepaid. Repairs MP3 supports up to 15 kHz bandwidth and 80 dB of dynamic made necessary by abuse, improper use, unauthorized range.

  • Page 6: General Specifications

    4. MacFi-se SERIAL PORT CONTROL The MacFi-se version also includes the following features: The MacFi-se includes an RS-232 (Serial) control port allowing the unit to be manually or automatically controlled via ASCII RS-232 (Serial) control of recording and playback commands.
  • Page 7 10" W x 8" D x 1.5" H Material: 18 gauge cold rolled steel chassis; black The MacFi-se will ignore an input which corresponds to an painted finish, white silkscreen empty or corrupt message location. The Play relay contact will Rack mount(option): 1U adapter be maintained for the duration of play sequence.

  • Page 8: Installation & Configuration

    3.4 Playing-Remote Control 2.2 Hardware Configuration Remote Control playback is achieved through the I/O connections located on the rear side of the MacFi-se unit. This process is only 2.2.1. Power Connector applicable to the first eight messages on the system. Please reference the Hardware Configuration section of this manual for Two terminal pluggable connector.

  • Page 9: Configuration Switches

    Local recording is achieved through the LED’s and buttons 8 position DIP Switch: UP ( ) position is OFF. located on the top of the MacFi-se unit. Please reference the DOWN ( ) position is ON. Manual Button & LED Configuration section of this manual for additional information on functions.
  • Page 10 3.mp3 or 3.wav will be placed in message position 3. time. The MacFi-se will wait for the input to go inactive for 100ms 99.mp3 or 99.wav will be placed in message position 99.
  • Page 11 This mode does not support queuing. MacFi-se. See the table below for an explanation of the different modes of the display.

  • Page 12: Main Interface Connector

    This push button configures the MacFi-se for record mode. Pressing this button will cause the record LED to blink, verifying the MacFi-se is in record setup mode. Depressing this button while still in record setup mode will exit this mode and turn off 12 position pluggable terminal strip.

  • Page 13: Expansion Interface Connector

    Upload folder, and no other folders, all audio files will Microphone input for recording messages. Mono. 1/8” mini jack. be copied from the MacFi-se into this folder on the memory key. Up to 1.5k ohm impedance. This specification is compatible with...
