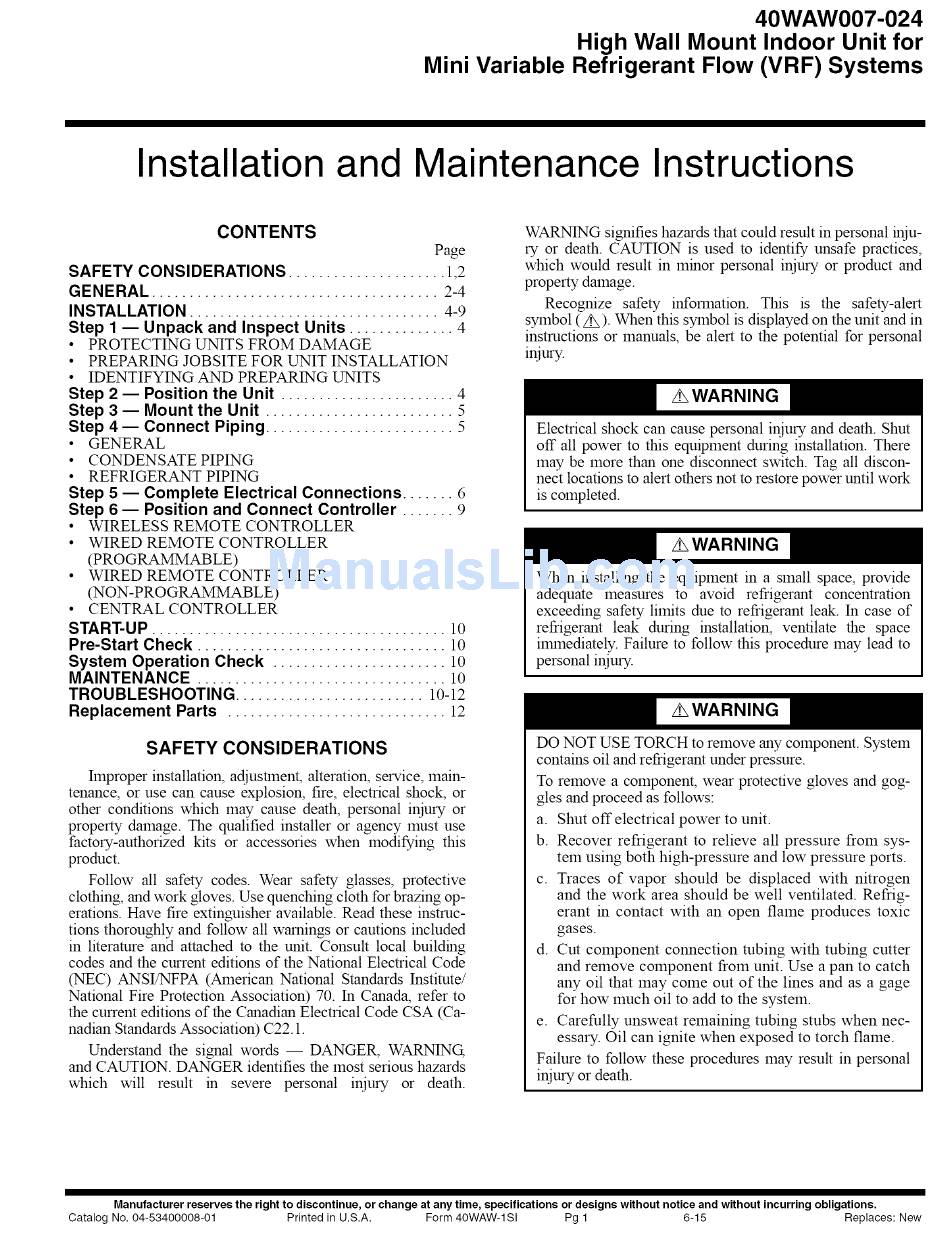

Carrier 40WAW007 Installation And Maintenance Instructions Manual

40WAW007-024
High Wall Mount Indoor Unit for
Mini Variable Refrigerant Flow (VRF) Systems
Installation and Maintenance Instructions
CONTENTS
Page
SAFETY CONSIDERATIONS ..................... 1,2
GENERAL ...................................... 2-4
INSTALLATION ................................. 4-9
Step 1 -- Unpack and Inspect Units .............. 4
• PROTECTING UNITS FROM DAMAGE
• PREPARING JOBSITE FOR UNIT INSTALLATION
• IDENTIFYING AND PREPARING UNITS
Step 2 -- Position the Unit ....................... 4
Step 3 -- Mount the Unit ......................... 5
Step 4- Connect Piping ......................... 5
• GENERAL
• CONDENSATE PIPING
• REFRIGERANT PIPING
Step 5 -- Complete
Electrical
Connections
....... 6
Step 6 -- Position and Connect Controller ....... 9
• WIRELESS REMOTE CONTROLLER
• WIRED REMOTE CONTROLLER
(PROGRAMMABLE)
• WIRED REMOTE CONTROLLER
(NON-PROGRAMMABLE)
• CENTRAL CONTROLLER
START-UP
....................................... 10
Pre-Start Check ................................. 10
System Operation Check ....................... 10
MAINTENANCE ................................. 10
TROUBLESHOOTING ......................... 10-12
Replacement Parts ............................. 12
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, main-
tenance, or use can cause explosion, fire, electrical shock, or
other conditions which may cause death, personal injury or
property damage. The qualified installer or agency must use
factory-authorized kits or accessories when modifying this
product.
Follow all safety codes. Wear safety glasses, protective
clothing, and work gloves. Use quenching cloth for brazing op-
erations. Have fire extinguisher available. Read these instruc-
tions thoroughly and follow all warnings or cautions included
in literature and attached to the unit. Consult local building
codes and the current editions of the National Electrical Code
(NEC) ANSI!NFPA (American National Standards Institute/
National Fire Protection Association) 70. In Canada, refer to
the current editions of the Canadian Electrical Code CSA (Ca-
nadian Standards Association) C22.1.
Understand the signal words -- DANGER. WARN1NG,
and CAUTION. DANGER identifies the most serious hazards
which will result in severe personal injury or death.
WARN1NG signifies hazards that could result in personal inju-
ry or death. CAUTION is used to identify unsafe practices,
which would result in minor personal injury or product and
property damage.
Recognize safety information. This is the safety-alert
symbol (z_)- When this symbol is displayed on the unit and in
instructions or manuals, be alert to the potential for personal
injury.
Electrical shock can cause personal injury and death. Shut
off all power to this equipment during installation. There
may be more than one disconnect switch. Tag all discon-
nect locations to alert others not to restore power until work
is completed.
When installing the equipment in a small space, provide
adequate measures to avoid refrigerant concentration
exceeding safety limits due to refrigerant leak. In case of
refrigerant leak during installation, ventilate the space
ilmnediately. Failure to follow this procedure may lead to
personal injury.
DO NOT USE TORCH to remove any component. System
contains oil and refrigerant under pressure.
To remove a component, wear protective gloves and gog-
gles and proceed as follows:
a. Shut off electrical power to unit.
b. Recover refrigerant to relieve all pressure from sys-
tem using both high-pressure and low pressure ports.
c. Traces of vapor should be displaced with nitrogen
and the work area should be well ventilated. Refrig-
erant in contact with an open flame produces toxic
gases.
d. Cut component connection tubing with tubing cutter
and remove component from unit. Use a pan to catch
any oil that may come out of the lines and as a gage
for how much oil to add to the system.
e. Carefully unsweat remaining tubing stubs when nec-
essary. Oil can ignite when exposed to torch flame.
Failure to follow these procedures may result in personal
injury or death.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53400008-01 Printed in U.S.A. Form 40WAW-1SI Pg 1 6-15 Replaces: New
