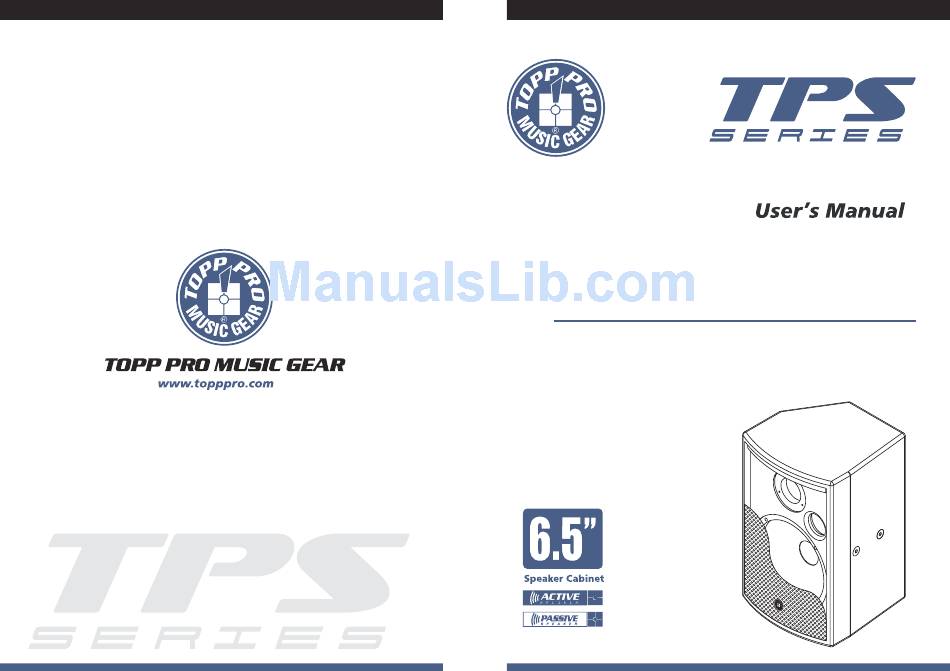

- Page 1 TPS 16P / 16A.UB / 16AM.UB...
- Page 3 Notas Introduction Features Control Element Installation Description Connection Diagram Frequency Response Diagram Block Diagram Presets List Wire Connections Technical Specification WARRANTY Notas...
-
Page 4: Warranty
WARRANTY Thank you for choosing TOPP PRO. The new TOPP PRO MUSIC GEAR series cabinets have been designed to provide a cost effective high grade solution while maintaining high quality cabinet construction and optimum components. The TPS series, depending on the model, can be used for all types of applications including, but not limited to, churches, conference centers and discos. -
Page 5: Technical Specification
Technical Specification TPS 16A.UB ACTIVE SPEAKER CABINET Model Active TPS 16AM.UB 1. AC POWER SOCKET WITH MAIN FUSE System Type 2-Way 6.5" Vented Active Speaker Cabinet Power Handling RMS-140Watts Program-280Watts 2. POWER SWITCH This switch is used to turn the TPS 16A.UB Frequency Response 75Hz-20KHz (-6dB) active speaker ON OR OFF. -
Page 6: Phantom Power Switch
Only Condenser microphones need Phantom Power, so switch it OFF when you use dynamic microphones. 3- TAPE IN/3.5mm jack Model Active TPS 16P Here you can connect a stereo Line Level via RCA sockets. Usually System Type 2-Way 6.5" Vented PASSIVE Speaker Cabinet this stereo channel will be used to connect into the TPS 16AM.UB... -
Page 7: Wire Connections
Wire Connections 7 CHANNEL EQ Each Input channel has its own 2-band equalizer with an adjustable range of +/-15dB. The HIGH control creates a shelving filter that will boost/cut all the frequencies above 12kHz. You can use it to eliminate high frequency noise and hiss (such as those produced by Tape Recorders) or to boost and make crispier the cymbals or certain harmonics of the human voice. -
Page 8: Power Led
Presets List 15- MONITOR Via this Control, you can adjust the signal Level applied to MONITOR OUT sockets. Preset Description 16- POWER LED Chorus/room 1 Chorus with reverb for guitars, synths, and pianos. This LED will blink when your TPS 16AM.UB is switched ON. Chorus/room 2 Auto-wah guitar effect with reverb for lead instruments. -
Page 9: Block Diagram
Block Diagram USB PLAYER ( ) a (a) Insert a standard microSD card (b) Insert USB player (c) Aux Input (d) Play the last song or decrease the volume after pressing 2 seconds (e) Press this key to start playing or Press this key to pause (f) Play the next song or increase the volume after pressing 2 seconds (g) PLAY MODE In the opening or playing state, press this key to select the three circling... -
Page 10: Connection Diagram
Connection Diagram Frequency Response Diagram TPS 16P Headphone iPOD ,CD Player. MP3 Tape Recorder Laptop Computer TPS 16A.UB This will be typical setting for a Business Presentation making use of Power Point slides and background music/effects generated by CD player, iPOD or other sources such as Mp3 Players.
