Summary of Contents for Topp Music Gear KS-CS 8A

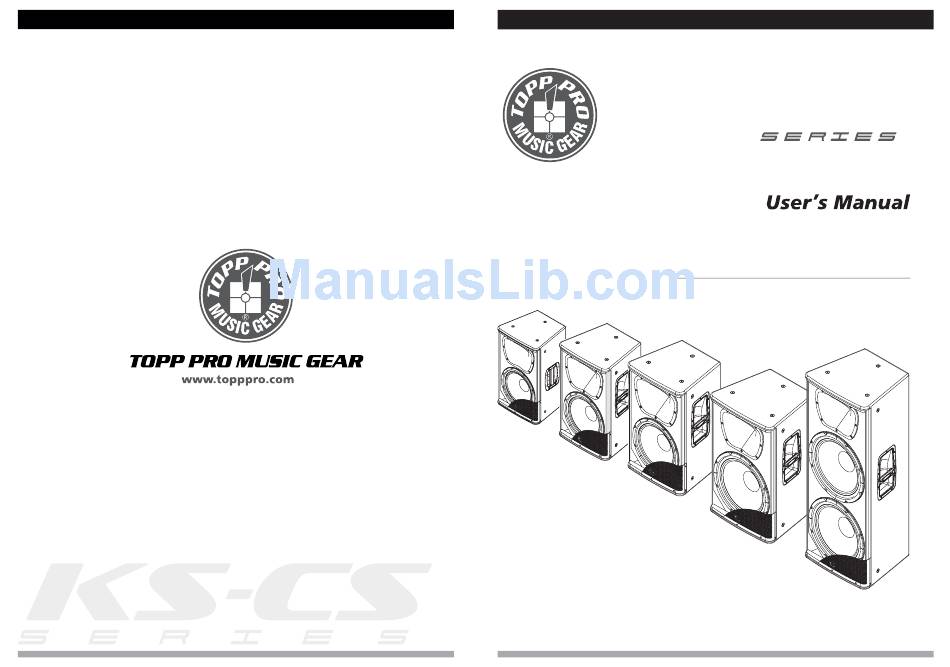

- Page 1 KS-CS ACTIVE SPEAKER CABINET KS-CS 8A/10A/12A/15A/215A NF03968-1.0...
- Page 3 9. GUARANTEE....................................10. NOTES * KS-CS 8A, KS-CS 10A are Active Speakers for professional use, they can be used in following electromagnetic environment: residential, commercial and light industrial, urban outdoors. They are the apparatus Not intended for rack mounting.
- Page 4 The KS-CS series is designed light weight powered loudspeaker systems and all new class D power amplifiers. The KS-CS 8A and KS-CS 10A use 800Watt continuous class D+AB power module and the KS-CS 12A, KS-CS 15A and KS-CS 215A use 1000Watt continuous class D power module. This series also breaks from the traditional loudspeaker paradigm, every model is fit with the identical 1.75"...
- Page 5 ACTIVE FULL-RANGE SPEAKER KS-CS 8A/10A/12A/15A/215A INPUT SENS LOUDNESS SIGNAL/LIMIT FLAT USER LINE DSP PRESETS POWER INPUT LINK VOLUME FRONT LED SHIELD KS-CS SERIES 2-Way Active Speaker Power Amplification BI-AMP. Processor IP Control IP Control PC With WiFi MADE IN CHINA "WARNING"...
- Page 6 KS-CS8A/CS10A /CS12A/CS15A KS-CS8A/CS10A/CS12A/CS15A Tripod Tripod Tripod Tripod mount mount mount mount KS-CS215A KS-CS215A...
- Page 7 Two Active Subwoofers & Two Active Satellite Speakers 1)Make your initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely. Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT, and the other side of the cable into the LINE INPUT of your active subwoofers.
- Page 11 Model Active KS-CS 8A System Type 2-Way Active Loudspeaker with DSP Transducer Low 8" Woofer, 2"voice coil 1" Compression Driver, 1.75" Voice Coil Transducer Driver Frequency Response (-6dB) 60Hz-20KHz Crossover Frequency At 1.8K Hz with 24db filter slope, Linkwitz-Riley Type Max.
- Page 12 Model Active KS-CS 12A System Type 2-Way Active Loudspeaker with DSP 12" Woofer, 3"voice coil Transducer Low 1" Compression Driver , 1.75" Voice Coil Transducer Driver Frequency Response (-6dB) 50Hz-20KHz Crossover Frequency At 1.6KHz with 24db filter slope, Linkwitz-Riley Type Max.
- Page 13 Model Active KS-CS 215A System Type 2-Way Active Loudspeaker with DSP Transducer Low 2*15" Woofer, 3"voice coil Transducer Driver 1" Compression Driver , 1.75" Voice Coil Frequency Response (-6dB) 45Hz-20KHz Crossover Frequency At 1.5KHz with 24db filter slope, Linkwitz-Riley Type Max.
- Page 16 KS-CS...
