3. Open a browser on the computer and enter "192.168.168.168" into the address bar. A dialog box Authentication Required will appear requesting both user
name and password enter the default values here. Click on the button labeled Log In.
4. The status page of the eBridge4SPT will appear. This page displays the real time status and health of each device connected to the eBridge4SPT.
Click on the tab labeled Network Settings. This will open the Network Setting screen. In this screen the MAC Address of the eBridge4SPT module will be found
along with the programming fields for the Network Settings, Trap Receiver Settings, SNMP Port Settings and Email Settings.
Network Settings: In the IP Address Method field select the method that the IP Address for the eBridge4SPT will be obtained "Static" or "DHCP"
then follow the appropriate steps.
STATIC (Fig. 2a, pg. 4):
1. IP Address: Enter the IP address assigned to the eBridge4SPT by the network
administrator.
2. Subnet Mask: Enter the Subnet of the network.
3. Gateway: Enter the TCP/IP gateway of the network access point (router)
being used.
Note: Gateway configuration is required to properly receive emails
from the device.
4. HTTP Port: Enter the HTTP port number assigned to the eBridge4SPT
module by the network administrator to allow remote access and monitoring.
The default inbound port setting is 80. HTTP is not encrypted and unsecure.
Even though HTTP can be used for remote access it is recommended
primarily for use with LAN connections.
5. HTTPS Port: Enter the HTTPS port number assigned to the eBridge4SPT
module by the network administrator to allow remote access and monitoring.
The default inbound port setting is 443. Being encrypted and more secure,
HTTPS is highly recommended for remote access.
6. Click the button labeled Submit Network Settings. A dialog box will display
"New network settings will take effect after the server is rebooted". Click OK.
DHCP (Fig. 2a, pg. 4):
1. After selecting DHCP in the IP Address Method field click the button labeled
Submit Network Settings. A dialog box will display "New network settings will
take effect after the server is rebooted". Click OK. Next click on the button
labeled Reboot Server. After rebooting the eBridge4SPT will be set in the
DHCP mode. The IP address will be assigned by the router when the
eBridge4SPT is connected to the network. It is recommended to have the
assigned IP Address reserved to ensure continued access (see the network
administrator).
2. Subnet Mask: When operating in DHCP the router will assign the subnet mask values.
3. Gateway: TCP/IP gateway of the network access point (router) being used will be displayed.
- 4 -

Network Setup:

File Setup Help

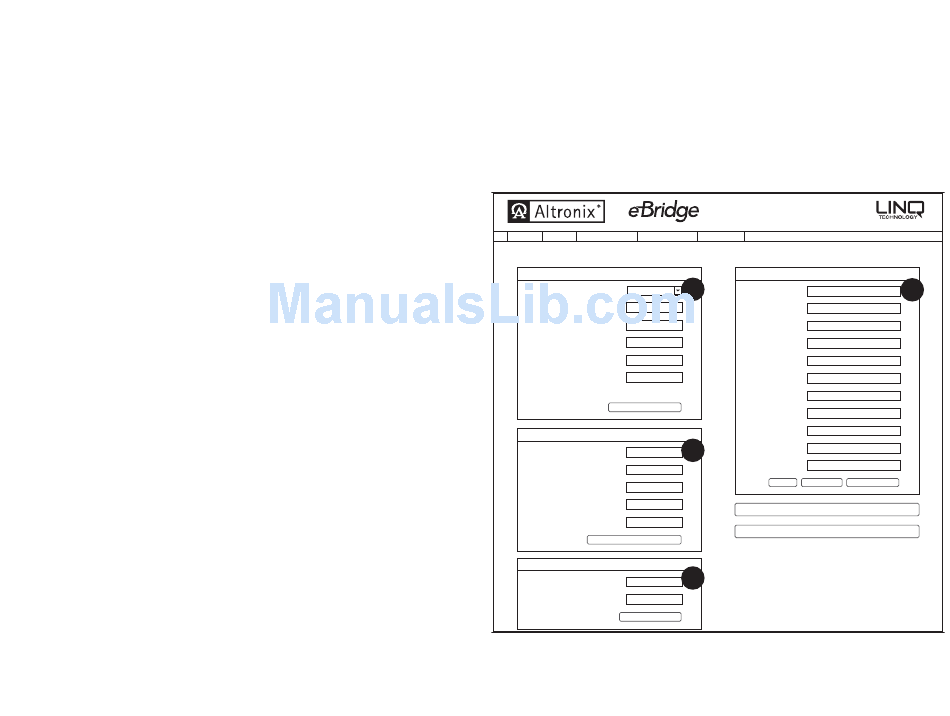

Fig. 2
DEVICE NAVIGATION PANEL
Dashboard
Linq
Lab Linq2 "A"
Lab Linq2 "B"
Netway
Netway16M
Status
Netway4ES
Netway8M
eBridge4SPT
Netway1DWPM
Site ID: RJ Sports Wear
FireSwitch
FireSwitch
Network Settings:
eBridge
eBridge4SPT
eBridge200WPM
eBridge16PCRX
Trap Receiver Settings:
SNMP Port Settings:
LOG
> eBridge16PCRX [50.74.149.196:2717] added.
> eBridge200WPM [50.74.149.196:2712] added.
> eBridge4SPT [50.74.149.196:2713] added.
> FireSwitch [ 50.74.149.196:2710 ] added.
> Netway1DWPM [ 50.74.149.196:2716 ] added.
> NetWay8M [ 50.74.149.196:2715 ] added.
> Netway4ES [ 50.74.149.196:2714 ] added.
> Netway16M [ 50.74.149.196:2707 ] added.
> Lab Linq2 "B" [ 50.74.149.196:2703 ] added.
Ethernet adapter detected. Trap receiver Port: 162
WEBVIEW INTERFACE
Management Interface
Setup Network Settings Security Settings Events Log
a.
IP Address Method: STATIC
IP Address: 10.0.0.113
Subnet Mask:
255.255.255.0
Gateway: 10.0.0.1
HTTP Port: 2713
HTTPS Port: 443
MAC Address: BC:34:00:30:00:B3
Submit Network Settings
b.
Trap Receiver IP Address 1: 10.0.0.102
Trap Receiver IP Address 2: 10.0.0.56
Trap Receiver IP Address 3: 62.19.75.80
Trap Receiver IP Address 4: 45.165.245.146
50.74.175.125
Trap Receiver IP Address 5:
Submit Trap Receiver IP Settings
c.
SNMP Port: 161
Trap Message Port: 162
Submit Port Settings
v1.99.22
Network Settings
Site ID: RJ Sports Wear
Email Settings:
d.
From: event.report@linqinfo.com
Subject:
Username: event.report
Password: ••••••••
SMTP Server: smtp.gmail.com
SMTP Server Port: 587
Outgoing Email 1: mike@jrsport.com
Outgoing Email 2: steve@jrsport.com
Outgoing Email 3: amy@jrsport.com
Outgoing Email 4: scott@jrsport.com
Outgoing Email 5: maria@jrsport.com
Test Email Restore Default Submit Email Settings
Restore Factory Settings
Reboot Server
eBridge4SK
