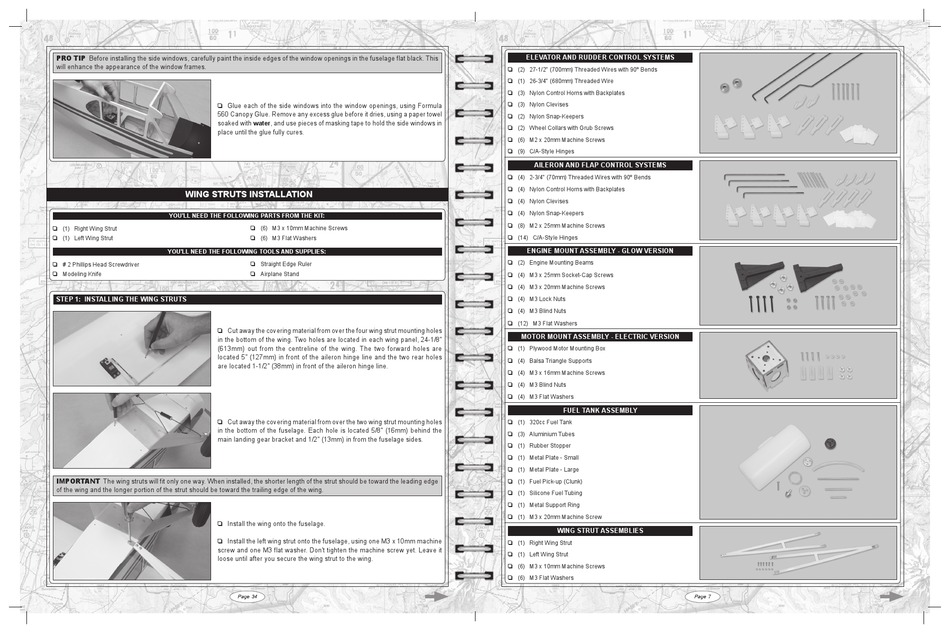

Model Tech Super Cub ARF Assembly Instructions Manual page 7

PRO TIP Before installing the side windows, carefully paint the inside edges of the window openings in the fuselage flat black. This
will enhance the appearance of the window frames.
q Glue each of the side windows into the window openings, using Formula
560 Canopy Glue. Remove any excess glue before it dries, using a paper towel
soaked with water, and use pieces of masking tape to hold the side windows in
place until the glue fully cures.
WiNG STruTS iNSTAllATioN
you'll NeeD The FolloWiNG PArTS FroM The KiT:
q (1) Right Wing Strut
q (1) Left Wing Strut
you'll NeeD The FolloWiNG ToolS AND SuPPlieS:
q # 2 Phillips Head Screwdriver
q Modeling Knife
STeP 1: iNSTAlliNG The WiNG STruTS
q Cut away the covering material from over the four wing strut mounting holes
in the bottom of the wing. Two holes are located in each wing panel, 24-1/8"
(613mm) out from the centreline of the wing. The two forward holes are
located 5" (127mm) in front of the aileron hinge line and the two rear holes
are located 1-1/2" (38mm) in front of the aileron hinge line.
q Cut away the covering material from over the two wing strut mounting holes
in the bottom of the fuselage. Each hole is located 5/8" (16mm) behind the
main landing gear bracket and 1/2" (13mm) in from the fuselage sides.
IMPORTANT The wing struts will fit only one way. When installed, the shorter length of the strut should be toward the leading edge
of the wing and the longer portion of the strut should be toward the trailing edge of the wing.
q Install the wing onto the fuselage.
q Install the left wing strut onto the fuselage, using one M3 x 10mm machine
screw and one M3 flat washer. Don't tighten the machine screw yet. Leave it
loose until after you secure the wing strut to the wing.
q (6) M3 x 10mm Machine Screws
q (6) M3 Flat Washers
q Straight Edge Ruler
q Airplane Stand
Page 34
eleVATor AND ruDDer CoNTrol SySTeMS
q (2) 27-1/2" (700mm) Threaded Wires with 90º Bends
q (1) 26-3/4" (680mm) Threaded Wire
q (3) Nylon Control Horns with Backplates
q (3) Nylon Clevises
q (2) Nylon Snap-Keepers
q (2) Wheel Collars with Grub Screws
q (6) M2 x 20mm Machine Screws
q (9) C/A-Style Hinges
AileroN AND FlAP CoNTrol SySTeMS
q (4) 2-3/4" (70mm) Threaded Wires with 90º Bends
q (4) Nylon Control Horns with Backplates
q (4) Nylon Clevises
q (4) Nylon Snap-Keepers
q (8) M2 x 25mm Machine Screws
q (14) C/A-Style Hinges
eNGiNe MouNT ASSeMbly - GloW VerSioN
q (2) Engine Mounting Beams
q (4) M3 x 25mm Socket-Cap Screws
q (4) M3 x 20mm Machine Screws
q (4) M3 Lock Nuts
q (4) M3 Blind Nuts
q (12) M3 Flat Washers
MoTor MouNT ASSeMbly - eleCTriC VerSioN
q (1) Plywood Motor Mounting Box
q (4) Balsa Triangle Supports
q (4) M3 x 16mm Machine Screws
q (4) M3 Blind Nuts
q (4) M3 Flat Washers
Fuel TANK ASSeMbly
q (1) 320cc Fuel Tank
q (3) Aluminium Tubes
q (1) Rubber Stopper
q (1) Metal Plate - Small
q (1) Metal Plate - Large
q (1) Fuel Pick-up (Clunk)
q (1) Silicone Fuel Tubing
q (1) Metal Support Ring
q (1) M3 x 20mm Machine Screw
WiNG STruT ASSeMblieS
q (1) Right Wing Strut
q (1) Left Wing Strut
q (6) M3 x 10mm Machine Screws
q (6) M3 Flat Washers
