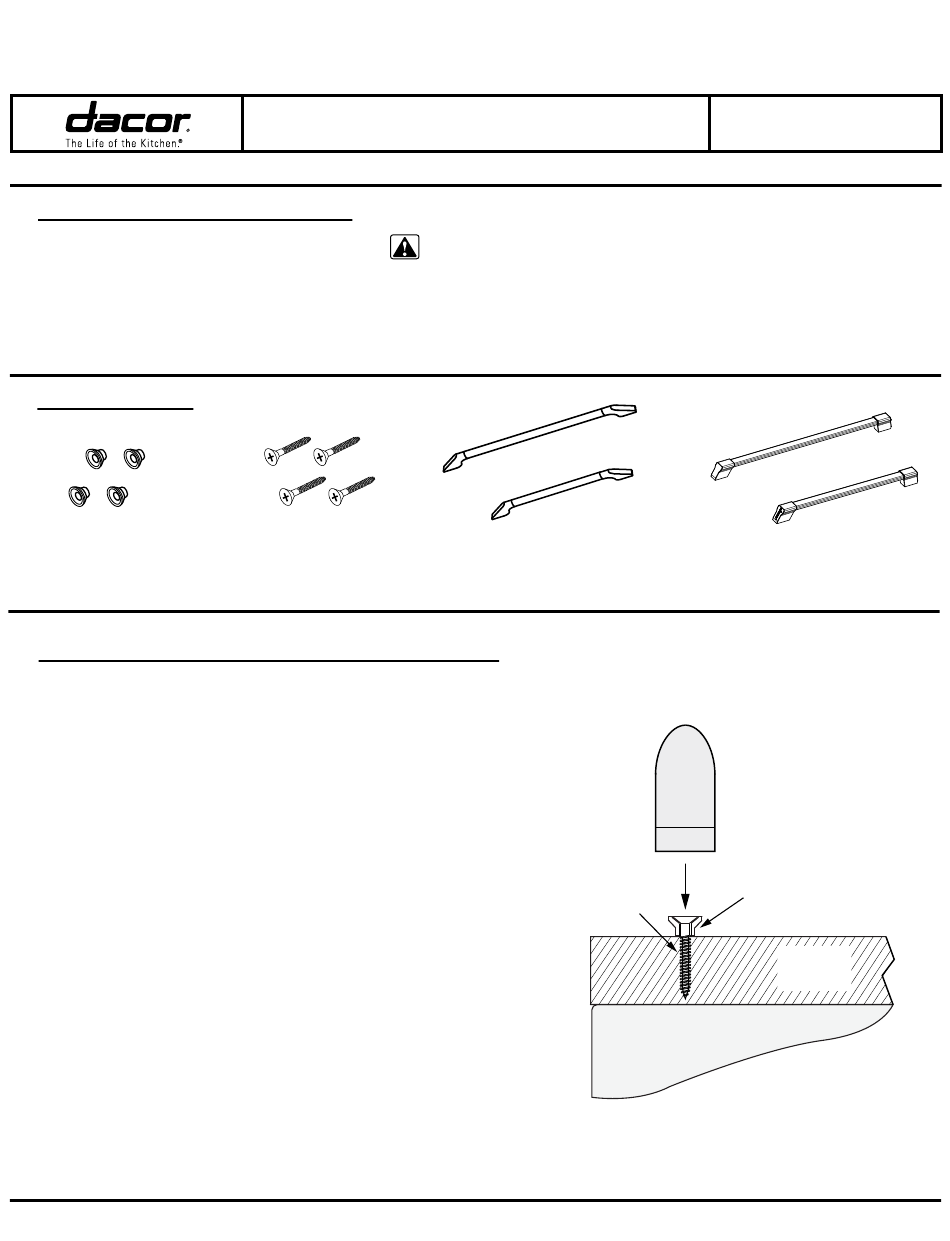

Dacor DYF30BFBPL Installation Instructions

MODELS: DYF30BFBPL, DYF30BFBPR, DYF30BFBSL, DYF30BFBSR, DYF30BFTSL, DYF30BFTSR,
DYF36BFBPL, DYF36BFBPR, DYF36BFBSL, DYF36BFBSR, DYF36BFTSL, DYF36BFTSR

Tools and Materials Required

The following items are not provided with the
kit and are required for proper installation.
• 3/32" hex wrench
• Electric drill with 3/32" drill bit

Parts Included

Handle Mounting
Studs** (4)
** Required for model DYF30BFBPL, DYF30BFBPR DYF36BFBPL and DYF36BFBPR refrigerators only

Installation notes for custom panel models

Models DYF30BFBPL, DYF30BFBPR DYF36BFBPL and DYF36BFBPR
Before installing the custom panels, you need to install the handle
studs included with this kit using the included #10 screws. See
the refrigerator installation instructions for complete custom panel
construction information. The screws included with the kit are
designed to accommodate the panels thicknesses specified in the
refrigerator installation instructions ( 3/4" to 1 1/8"). See diagram.
Epicure and Pro Style Refrigerator
®
Handle Kits, PN ADYFxxH2y*
* xx = refrigerator width (30" or 36"), y = handle style E for Epicure P for Pro
#10 Wood Screws** (4)
CAUTION: To avoid damage to the refrigerator or handle
components, use power tools only for drilling pilot holes
in the custom panel . Use hand tools only for handle dis-
assembly and assembly.
Epicure style
Handles, 1 Long, 1 Short
Wood
screw
INSTALLATION
INSTRUCTIONS
OR
Handle
Mounting
stud
Custom
Appliance
door/drawer
Stud Mounting, Custom Panel Style
Refrigerators - Top View
Part No. 108873 Rev. B
Pro style
panel
