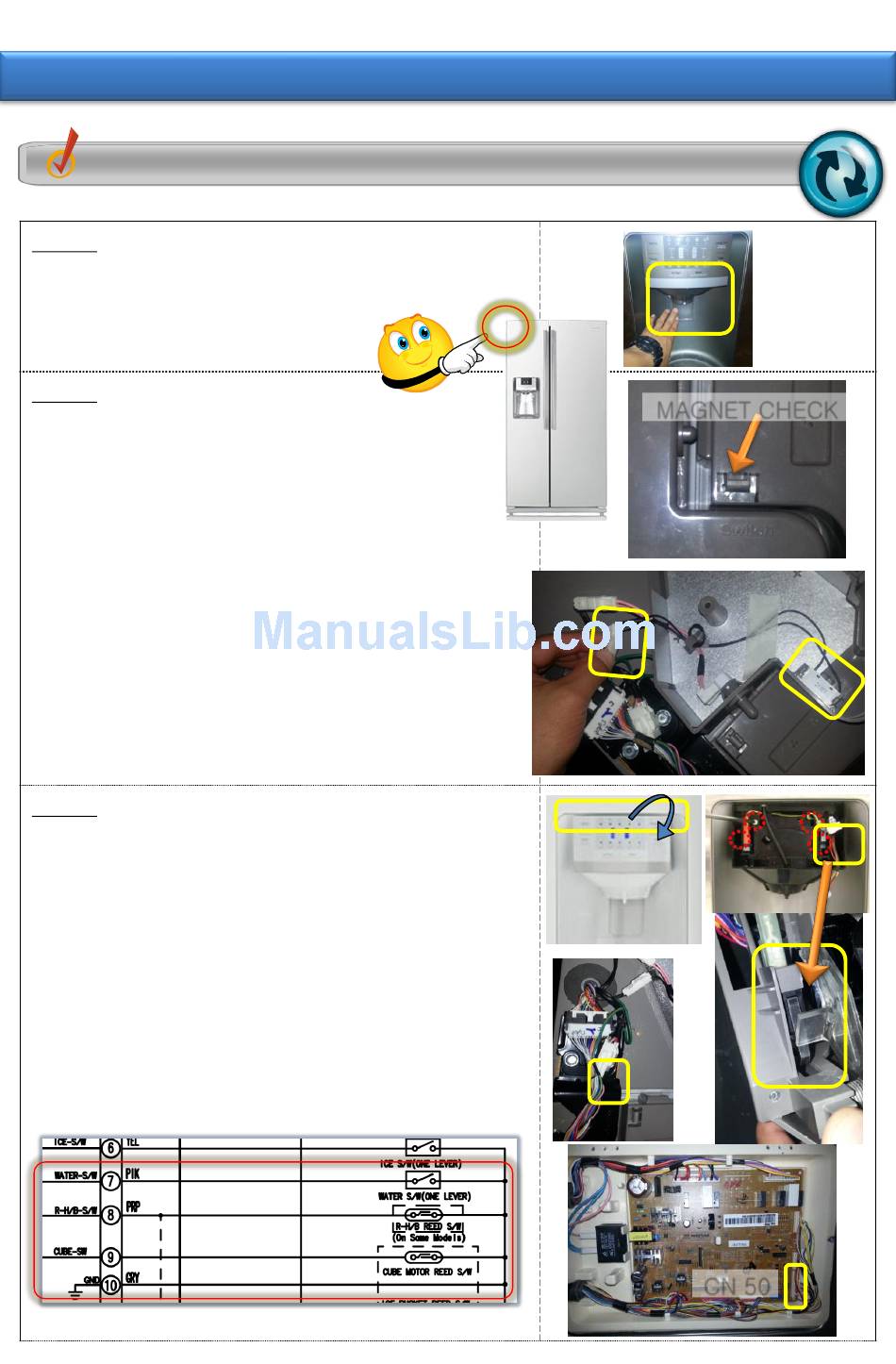

Tip 3-3. Inspect WATER Lever S/W operation
Check Point
Step 1
① After select DISPENSER WATER and check
water coming with pressing LEVER
Step 2
① Inspect F DOOR UPP MAGNET existence
② Inspect disassembled HINGE-UPP COVER
DOOR S/W &WIRE CONNECTOR OPEN
※ Not operation when DOOR S/W is
failure
Step 3
① After disassemble Display, check left micro
S/W pressing to press Lever.
※Check non-pressing, damage
② After disassemble HINGE-UPP COVER and
check WIRE HARNESS connection
- Inspect PINK & GRAY Wire
③ Inspect Main PBA Connector
- Inspect CN50
Inspect Dispenser Lever S/W operation.
No.7(PIK)and 10(GRAY) Wire
- 20/47 -
MAGNET CHECK
CN 50
