MicroNet SP5100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
SP5100
Internet IP Telephone
Website:
http://www.micronet.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP5100 and is the answer not in the manual?

Questions and answers

Related Manuals for MicroNet SP5100

Summary of Contents for MicroNet SP5100

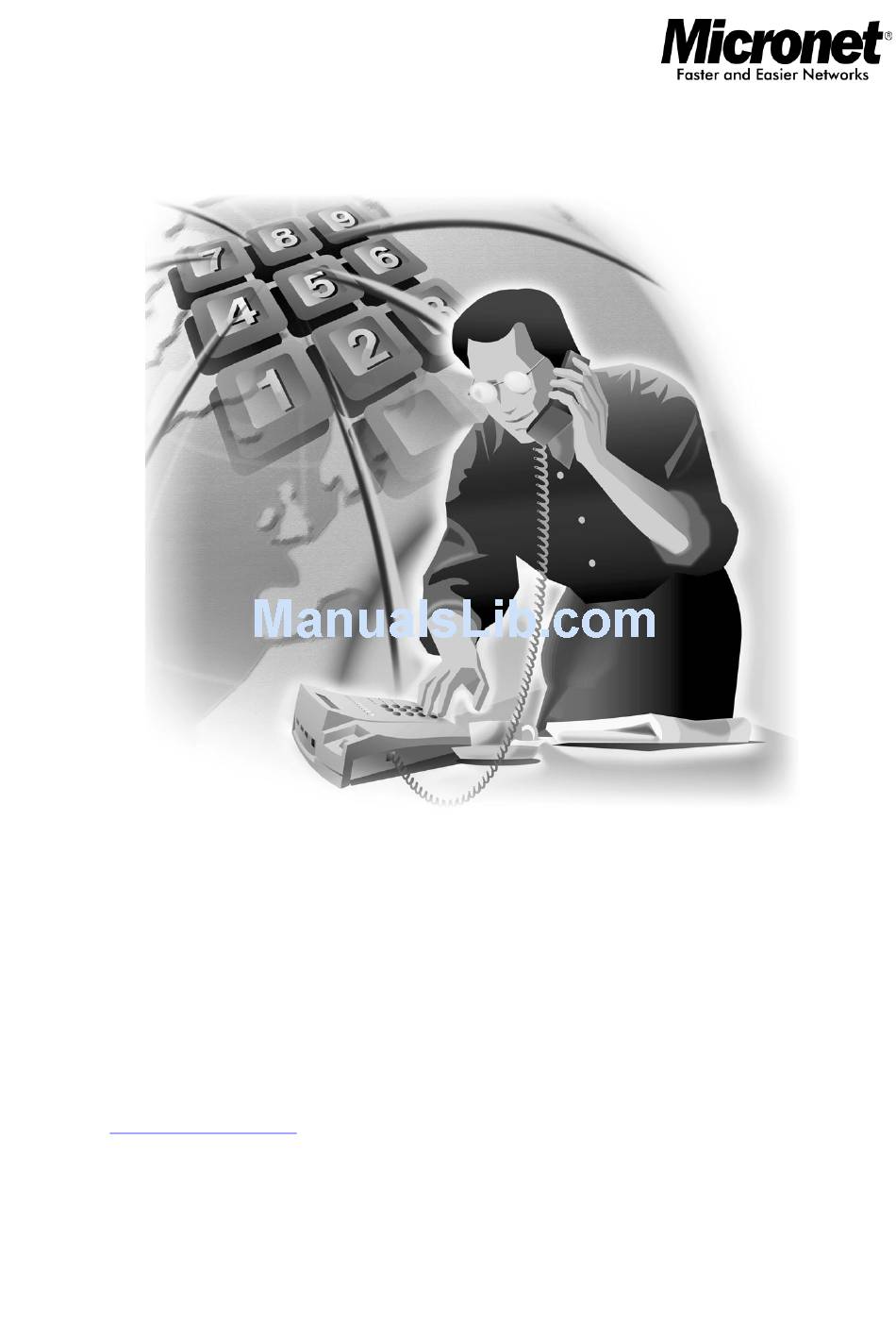

  • Page 1 User’s Manual SP5100 Internet IP Telephone Website: http://www.micronet.com.tw...

  • Page 2: Table Of Contents

    11. [h323] command ......................16 12. [voice] command ......................17 13. [tone] command (FXO function, not available) ..............18 14. [bureau] command ......................18 15.[rom] command ........................19 16.[passwd] command ......................20 Chapter 4 Upgrade the SP5100 IP Phone ..................21 1.LCD Panel Control......................21 2.Remote Control: Telnet.......................22...

  • Page 3: Chapter 1 Introduction

    LAN or any IP based environment. By using IP environment for voice communication, company or individual can save lots of expenses and make data and voice network converged. SP5100 IP Phone also supports PSTN analog line connection. Therefore, it can perform as the same as traditional POTS (Plain Old Telephone Service).
  • Page 4 Provide Call Progress Tone: Dial tone, busy tone, call-holding tone and ring-back tone Firmware Update: Firmware version displayed on LCD. Two ways to update firmware: - Download by KEYPAD configuration. - Download by telnet. Management Features: Two easy ways for system configuration TELNET SP5100 IP Phone KEYPAD...

  • Page 5: Appearance

    MUTE: Mute the voice while user is in communication. ♦ PSTN: Press PSTN to switch SP5100 IP Phone as PSTN or IP Phone Mode. In PSTN mode, “PSTN” characters will be displayed on LCD left bottom side, then users can dial out as if standard telephone set in PSTN ;...

  • Page 6: Back Panel

    book data (please refer to LCD configuration-Phone Address Book or Advanced Configurations via Telnet-[pbook] command ). ♦ FORWARD: Forward a incoming call to another IP device by H.450 forward function. (please refer to LCD configuration-Indicate Forward Type) ♦ MESSAGE and its indicated LED light: When missing the incoming calls, the message LED will be flashing.

  • Page 7: Chapter 2 Lcd Display Configuration

    System initializing 2. Wait around one minute until the SP5100 IP Phone finishes application program initialization. 3. The main LCD screen would be shown as similar as above. The “GK”means the SP5100 IP Phone is in GateKeeper Mode. Micronet SP5100 12:10:20 AM 4.

  • Page 8: Lcd Configuration

    Reboot in the selection 10 “Reboot”. 1. Quick Setup(mandatory) If it is the first time for user to configure SP5100 IP Phone , suggest use this command to complete overall configuration .After finish each step please press ok button , system will save configuration and jump to next step.
  • Page 9 Please enter LINE NAME: User has to identify one ID name for the SP5100 IP Phone to register to the Gatekeeper. If you don’t use Gatekeeper, skip this setting. Please enter TFTP IP: User has to offer one TFTP/FTP server IP Address and set this IP Address via keypad.
  • Page 10 There are three types for SP5100 IP Phone to connect to the other devices. They are GK, P2P and FXO. The default mode should be in GK mode. When user would like to connect via P2P mode, the SP5100 IP Phone must change as well.
  • Page 11 Note: The number that user prepares to forward to is E.164 number which is registered on the Gatekeeper. 6. Message Box If there is an unanswered IP call, it will be kept in message box. MESSAGE LED will be flashing until user press MESSAGE to check miss call and re-press MESSAGE to return to main screen.
  • Page 12 Note: Download via LCD command can only upgrade new application rom file. 9. Hardware Test SP5100 IP Phone supports self-test for the all functions buttons. Please follow the direction from LCD panel to operate and verify it. 10. Reboot (mandatory) It is necessary and important for user to reboot it after any configurations has been made to the SP5100 IP Phone.

  • Page 13: Chapter 3 Advanced Configurations Via Telnet

    Chapter 3 Advanced Configurations via Telnet After initializing the SP5100 IP Phone IP Address setting (please refer to LCD Configuration: 1. Connect Configuration), user can enter into configuration mode via telnet. There are 15 commands listed below. Note: User who changes any configuration needs to do the commit command then reboot command.

  • Page 14: Commit] Command

    2. -dhcp: When DHCP function enables (ifaddr –dhcp 1), SP5100 IP Phone will automatically search DHCP server after execute the commit and reboot command. 3. -sntp: When sntp server is available, enable SP5100 IP Phone SNTP function and point to...

  • Page 15: Time] Command

    IP address. (ifaddr –sntp 1 “xxx.xxx.xxx.xxx”) 7. [time] command When sntp server is established as well as the sntp function of SP5100 IP Phone is enabled, type time command should show the current time what is retrieved from the assigned sntp server.

  • Page 16: Pbook] Command

    9. [pbook] command The command is for Peer-to-Peer Mode use only. Therefore, Micronet VoIP products such as SP5100 IP Phone that support Peer-to-Peer Mode are also available to be addressed on the SP5100 IP Phone phone book. 1.-print: display phone book data. User can print all data in phone book by command (pbook –print).

  • Page 17: Sysconf] Command

    Usage:h323 –mode 0/1(0 for GateKeeper mode ,1 for Peer-to-Peer mode) 3. –gk: set GateKeeper IP address(h323 –gk “xxx.xxx.xxx.xxx”) 4. –e164: identify one number for the SP5100 IP Phone to register to the Gatekeeper (h323 –e164 “X”). 5. –alias: identify ID for the SP5100 IP Phone to register to the Gatekeeper(h323 –alias “X”)..

  • Page 18: Voice] Command

    12. [voice] command The voice command is associated with the voice codec setting information. There are four voice codecs included in SP5100 IP Phone: G.723.1, G.711u, G.711A,G.729A. 1. -print: display voice codec information and configuration. 2. -send: three voice packet size can be configured as 20 ms, 40 ms or 60 ms.(only 30 and 60 ms for G..723)

  • Page 19: Tone] Command (Fxo Function, Not Available)

    13. [tone] command (FXO function, not available) SP5100 IP Phone is configurable if the bureau line is connected with the extension line of PBX. Therefore, the value of all kinds of tones from PBX such as busy tone, ring tone and dial tone, can be precisely set on the SP5100 IP Phone.

  • Page 20: Rom] Command

    15.[rom] command 1. -print: show versions of all rom files. 2. -app, -dsptest, -dspcore, -dspapp, -rbpcm and -htpcm: update main application code, DSP testing code, DSP kernel code, DSP application code, Ring Back Tone PCM file and Hold Tone . 3.

  • Page 21: Passwd] Command

    Command rom –print to show current version installed in SP5100 IP Phone. 16.[passwd] command For security protection, user has to input the password before entering application user/config mode. Two configurations of login username/password are supported by the system. User who requests authorization to execute all configuration commands needs to login with username = “root”.

  • Page 22: Chapter 4 Upgrade The Sp5100 Ip Phone

    SP5100 IP Phone supports two methods to upgrade the new version released from Micronet Computer Co. Both methods are necessary to prepare the TFTP program on the host PC as TFTP server. After installing TFTP program on one PC and connecting to network, SP5100 IP Phone is ready to be updated.

  • Page 23: Remote Control: Telnet

    2.Remote Control: Telnet Associated with the Chapter 3.15 [rom] command: 1. -print: show versions of all rom files. 2. -app, -dsptest, -dspcore, -dspapp, -rbpcm and -htpcm: update main application code, DSP testing code, DSP kernel code, DSP application code, Ring Back Tone PCM file and Hold Tone .
