Hazard: Improper use or failure to follow instructions can result in explosive failure causing serious eye
or other injury. For safe use of this product you must read and follow all instructions. Do not leave a pressur-
ized sprayer in the hot sun. Heat can cause pressure build-up. Do not store or
Always wear goggles, gloves, long sleeve shirt, long pants and full foot protection when spraying. Never use
any tool to remove pump if there is pressure in sprayer. Never stand with face or body over
pumping or loosening pump to prevent ejecting pump assembly and/or solution from striking and injuring
you. Never pressurize sprayer by any means other than the original pump. Do not attempt to modify or repair
this product except with original manufacturer's parts. Never spray flammable materials or heat, pressure, or
gas producing chemicals. Always read and follow manufacturer's instructions before filling this sprayer as
some chemicals may be hazardous when used with this sprayer.
WARNING:
Handling the brass parts of this product will expose you to lead,
a chemical known to the State of California to cause birth defects and other
reproductive harm. Wash hands after handling.

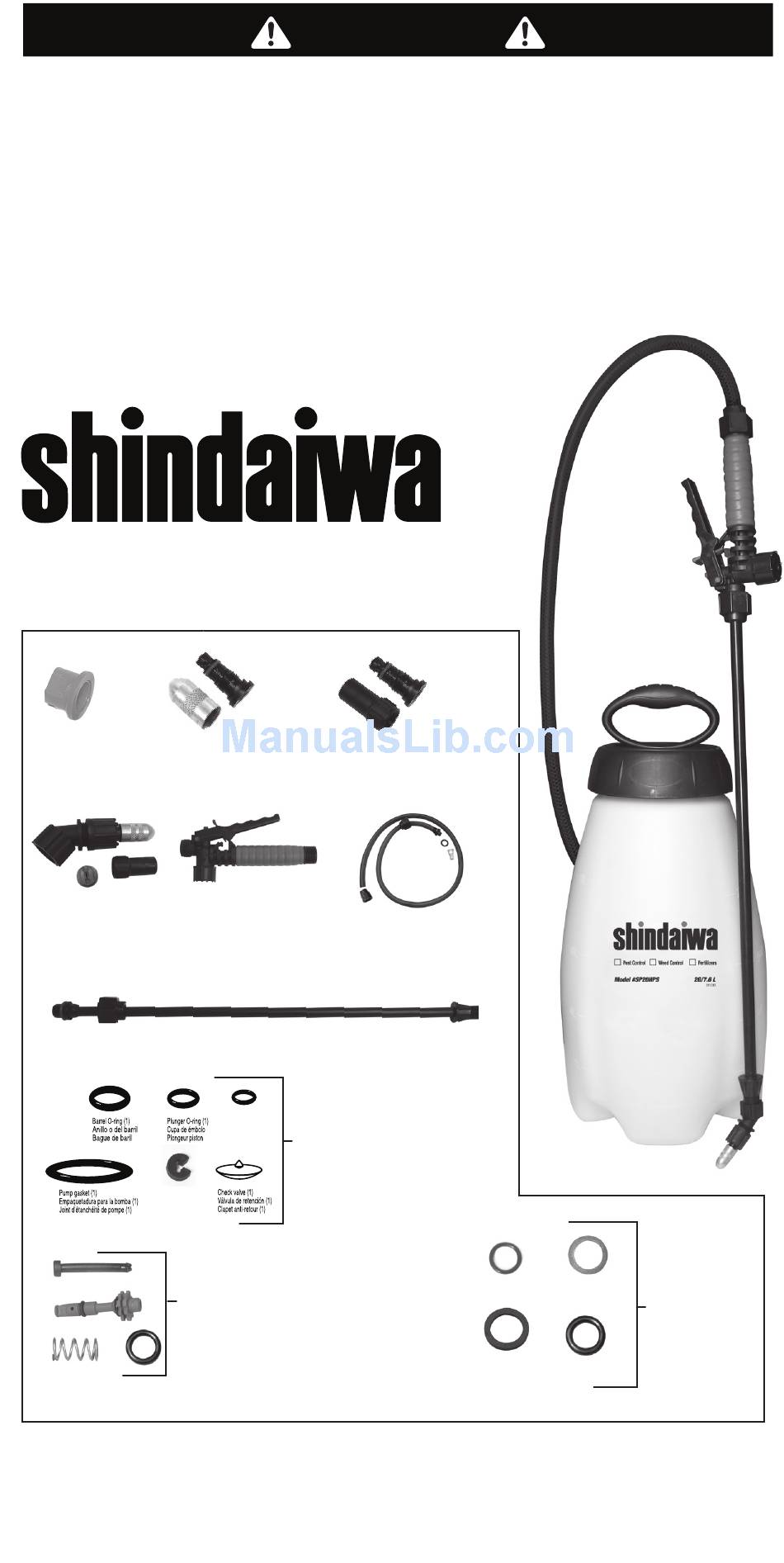

Parts, Piezas, Pièces
569012
Flat Fan Nozzle
Tobera
Buse
569013
Nozzle Kit
Tobera
Buse
569008
Extension wand, Vara de extensión, Lance de rallonge
"C" Clip
Clip de "C"
Clip de « C »
Note: Your particular sprayer may not include all parts pictured above.
Nota: Es posible que este pulverizador en particular no incluya todas las partes que se ilustran arriba.
Remarque : Votre pulvérisateur particulier pourrait ne pas inclure toutes les pièces illustrées plus haut.
WARNING!
569011
Brass Adjustable Nozzle
Tobera
Buse
569006
Shut-off Assembly
Unidad de cierre
Assemblage d'arrêt
O-ring (1)
Anillo en "o" (1)
569015
Anneau torique (1)
Repair Kit
Juego de reparación
Kit de réparation
569005
Shut-off Valve Repair Kit
Kit de reparación para la válvula de cierre.
Trousse de réparation de robinet d'arrêt.
569010
Poly Adjustable Nozzle
Tobera
Buse
569007
Hose Assembly
Ensamblaje de la manguera
Assemblage de boyau
Elbow O-ring
Nozzle Gasket
leave solution in tank after use.
top of tank when
Model# SP20HPS
Hose Washer
569014
O-ring Kit
Kit del anillo "O"
Trousse de
joint torique
Wand O-ring
011311 (A) R0910
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shindaiwa SP20HPS
Summary of Contents for Shindaiwa SP20HPS
- Page 1 569008 Extension wand, Vara de extensión, Lance de rallonge O-ring (1) Anillo en “o” (1) 569015 Anneau torique (1) Repair Kit Model# SP20HPS Juego de reparación Kit de réparation “C” Clip Clip de “C” Clip de « C » 569005...
- Page 2 1. Hose to Tank Discharge Outlet Assembly Outlet Tube Tube Outlet Tube Adapter Outlet Tube Adapter Tab/ Retaining Nut - Tank Notch Securely tightened. Adapter Discharge/ Assembly • Make sure white outlet tube is attached to outlet tube adapter (Fig. 1A). •...
- Page 3 4. Fatigue-free spraying LOCK-OFF POSITION LOCK-ON POSITION NEUTRAL POSITION Handle Locking Mechanism Down Handle For safety lock-off feature (no-spraying), pull up on handle and move red locking mechanism into lock-off position as shown in fig. 4a. To disengage, push down on handle and return red locking mechanismto neutral position as in fig. 4c. For lock-on feature (continuous spraying), push down on handle and move red locking mechanism into lock-on position as shown in fig.
- Page 4 ADVERTENCIA! Peligro: El uso inapropiado o el no seguir las instrucciones puede resultar en una falla explosiva y causar serias lesiones oculares o de otro tipo. Para el uso seguro de este producto, usted debe leer y seguir todas las instrucciones. No deje el pulverizador presurizado expuesto al sol. El calor puede causar el aumento de la presión.
- Page 5 6. Cómo llenar 1) Sí: Gire la manija de la bomba en sentido contrario a las agujas del reloj y retire la bomba 2) Sí: Prepare la solución del pulverizador siguiendo todas las pautas y advertencias de seguridad que aparecen en la etiqueta del producto químico.
- Page 6 AVERTISSEMENT! Danger : Une mauvaise utilisation ou ne pas suivre les instructions peut mener à une défaillance explosive provoquant de graves lésions oculaires ou autres. Pour utiliser ce produit sans danger, vous devez lire et compren- dre toutes les instructions.. Ne pas laisser de pulvérisateur sous pression au soleil. La chaleur peut provoquer une accumulation de pression.
- Page 7 5) Oui : Huilez régulièrement la pompe en y mettant 10 à 12 gouttes d’huile légère dans la tige de la pompe par l’ouverture dans le couvercle. Shindaiwa 400 Oakwood Road, Lake Zurich, IL 60047 www.shindaiwa.com Shindaiwa is a registered trademark of Echo, Inc. Specifications subject to change without notice. 011311 (B) R0910...
