High Resolution Bullet Camera
OPERATION INSTRUCTIONS
PRODUCT FEATURES
• 1/3" Sony CCD
• 480 TVL
• 3.6mm Fixed Lens
• 12VDC
• Weather-Proof
• Light weight
SAFETY PRECAUTIONS
•
The installation should be made by a qualified service person and should be
complied with all local codes.
•
Only use class 2 regulated power supply as 12VDC power source.
•
To prevent fire or electrical shock, UL listed class 2 wiring should be used for the
power supply.
•
Make sure the ceiling / wall is strong enough to support the weight of the camera.
•
Do not attempt to disassemble the camera. There are no user-serviceable parts
inside. The warranty will be avoided if the seal is broken.
•
Do not attempt to aim the camera directly at the sun or other extremely bright
objects. This can damage the CCD.
•
Do not place the camera under the following locations.
1. Extremely high or low temperatures
(Operating temperature: -10°C to +50°C [10°F to 122°F])
2. High levels of humidity and dust
(Operating humidity: max 85% no condensation)
3. Locations where there are large amounts of water vapor and steam.
•
Avoid strong impacts or shocks. The camera could be damaged by improper
handling or storage.
•
Be sure to use the proper screws to mount the camera on the wall or ceiling.
CONTENT LIST
• TCY-H36FI12
1 pc
• Power Supply (12VDC) 1 pc
• Pigtail Cable
1 pc
Model:
TCY-H36FI12
• Mounting Bracket
1 pc
• Screws
4 pc
• Operating Instruction
1 pc
Version: 20090204

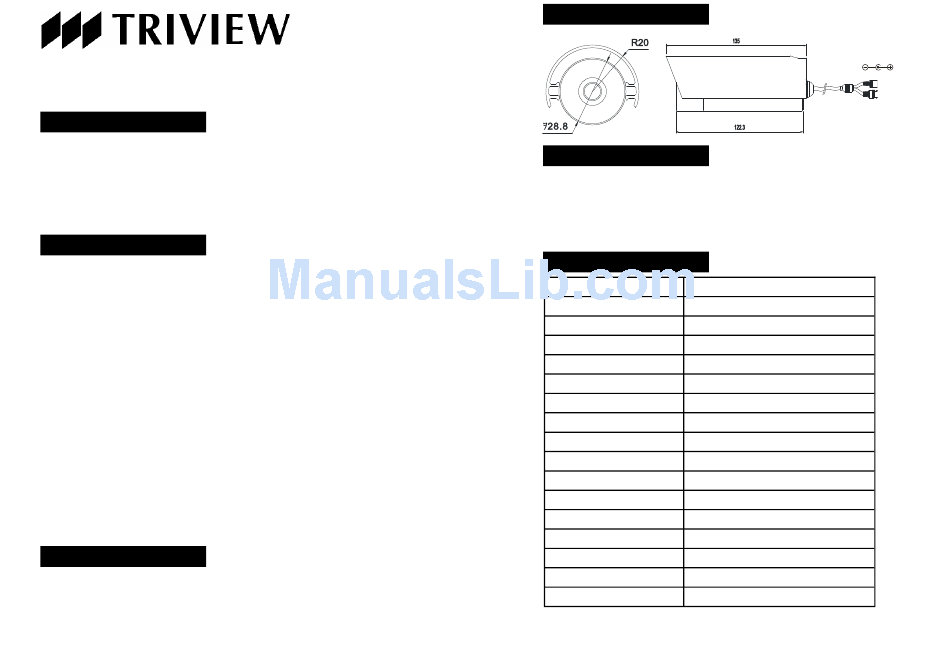

DIMENSION (unit: mm)
INSTALLATION
1. Fasten the camera body to the bracket.
2. Mount the bracket to the wall with the supplied screws.
3. Connect the BNC video output to a monitor and 12VDC power
source to the power input socket.
4. Adjust the camera direction
SPECIFICATIONS
Image Sensor
Effective Pixels
Resolution
Sensitivity
S/N Ratio
Horizontal Frequency
Vertical Frequency
Power Supply
Power Consumption
Synchronization
Electronic Shutter
Video Output
Lens
Operating Temperature
Operating Humidity
Dimensions:
29mm (DIA) x 122mm (Length)
Weight:
Note: Design and specifications are subject to change without notice.
POWER I NPUT
VI DEO OUTOUT
1/3" Sony CCD
768 (H) x 494 (V)
480TVL
0.8 Lux
48dB
15.734k Hz
59.94 Hz
12VDC regulated
140mA
Internal
Up to 1/100,000 sec
1.0 Vpp, 75Ω
3.6mm / F2.0
-10ºC to +50ºC
max 85% RH (NC)
220g
