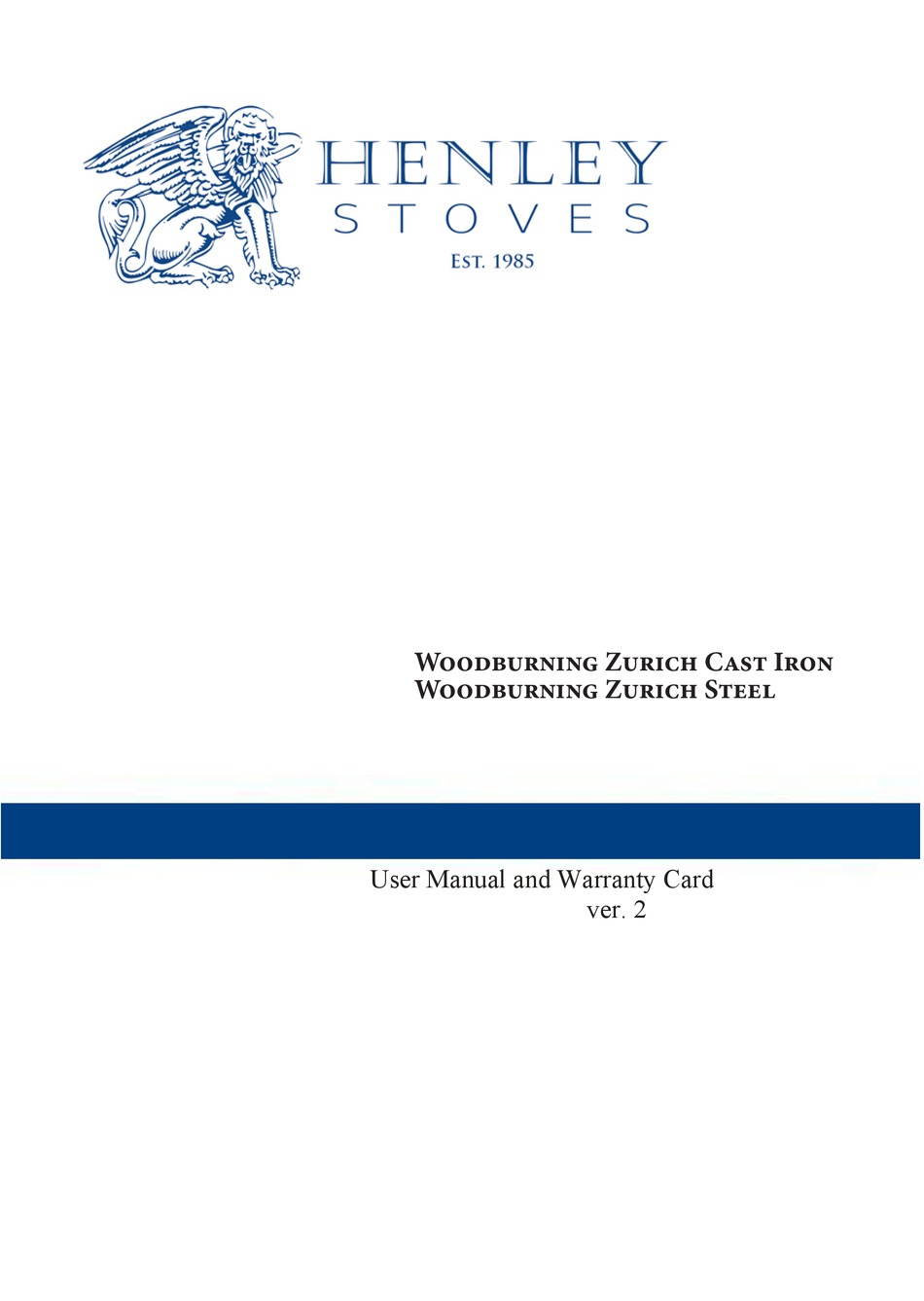

- Page 1 Woodburning Zurich Cast Iron WOODBURNINNG AB Woodburning Zurich Steel WOODBURNING AB/S User Manual and Warranty Card ver. 2...
- Page 2 Woodburning Zurich Cast Iron WOODBURNING AB Dimensions of the oven - Woodburning AB...
- Page 3 Woodburning Zurich Steel WOODBURNING AB/S...
- Page 4 General Information WARNING! To avoid the fire hazard, the device must be installed in accordance with the applicable standards and technical regulations, which are mentioned in the further part of the manual. The installation must be performed by a professional and qualified staff. The device complies with the EN 13240 standard and has the CE certificate.
- Page 5 CNC and rolled. The body is welded using a welding robot, in the shield of noble gas, what provides good quality of welds. Woodburning Zurich Cast Iron List of steel elements WOODBURNING AB: List of steel elements WOODBURNING AB/S:...
- Page 6 Spare parts If, after many years, it is necessary to replace some parts, contact with the seller or with any representative of our company. When ordering spare parts, you should provide information from the nameplate located on the back of the warranty card, which should be kept even after the expiration of guarantee. With these data and our factory documentation, the seller will be able to provide all spare parts in a short time.
- Page 7 It is forbidden to burn any types of garbage and wood waste. Burning the stove with unacceptable materials can cause its damage and threat to the life and health of users (poisonous fumes of chemical substances). Air circulation in the free-standing stove AB Woodburning Zurich Cast Iron Hearth airing regulation Open...
- Page 8 Combustion chamber airing can be realised from the room or from the outside. The stove has a built-in air intake from the outside – intake nozzle fi 100mm. Primary air regulation for the grate takes place using one mechanism (regulator) located at the door. The furnace has a triple system of airing the combustion chamber, primary and secondary air.
- Page 9 Important: Before lighting up a big fire, you should light up a small one two or three times. This will allow the furnace structure for the proper embedding, and the paint to harden. Normal burning and extinguishing the furnace To prevent the extraction of exhaust gases during the operation of the heater, the door should be closed all the time, except during ignition, fuelling and removing ash.
- Page 10 Removing ash Regular emptying of the furnace from ash prevents the leakage of ash outside. You should not allow for the ash to spill out the fence. Ash should be removed from a cold stove. WARRANTY CONDITIONS The buyer is obliged to read the user manual and warranty conditions written in the warranty card/user manual at the time of purchase of the product.
- Page 11 Woodburning Zurich Cast Iron Exhaust connector pipe woodburning stove AB Flue outlet connection Upper cover of the furnace The end cap in the rear wall of the housing Top plate of the hearth body Exhaust outlet cap The end cap of the top plate...
- Page 12 3. Cut a hole end cap in the rear steel casing of the stove. 4. Remove the cap of the exhaust outlet at the back of the hearth body. 5. Insert the flue outlet plug and screw it to the top plate of the hearth body.
- Page 13 6. Screw the flue outlet connector to the back of the hearth body (in place where the exhaust outlet end cap has been previously located). 7. Place the top cover on the chimney, and the additional element – the top cover end cap (it is not the part of the stove equipment).
- Page 14 8. The flue outlet connection after the insertion from the top flue exhaust to the rear.
- Page 15 SELLER Name: Stamp and signature of the seller; Address: Tel/fax: Date of sale: BUYER OF THE STOVE A free-standing stove should be installed according to the Date and legible signature of applicable regulations and provisions in the given country, The buyer; with the provisions of the user manual by the installer who has the appropriate permissions.
- Page 16 REGISTER OF THE SMOKE OUTLET MAINTENANCE Overview during the installation of the furnace Overview during the installation of the furnace Overview during the installation of the furnace Overview during the installation of the furnace Overview during the installation of the furnace Overview during the installation of the furnace Overview during the installation of the furnace Overview during the installation of the furnace...
