PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
For safety reasons it is essential that your stove is correctly installed and operated.
Henley Stoves cannot accept responsibility for any fault or consequential problems
arising through incorrect installation or operation.
Important: – This product must be installed by a suitably qualified installer.
The Heating Specialists
"Every Home Deserves A Henley"

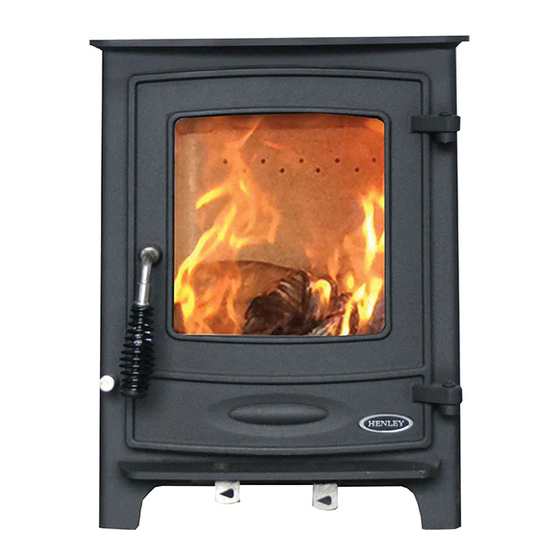

Yale 4.5/8kW
Installation and Operating Manual
Advertisement
Table of Contents
Related Manuals for Henley Stoves Yale 4.5kW
Summary of Contents for Henley Stoves Yale 4.5kW
- Page 1 PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Henley Stoves cannot accept responsibility for any fault or consequential problems arising through incorrect installation or operation. Important: – This product must be installed by a suitably qualified installer.
-
Page 2: Table Of Contents
Size D Size E Size F Maintenance - Removing The Ashpan Yale 4.5kw Maintenance - Replacing The Fire Rope Around Your Stove Door Yale 8kw Maintenance - Replacing The Baffel Plate In Your Stove Maintenance - Replacing The Glass In Your Stove Door All sizes in MM ***All sizes are correct at time of publish but are subject to change without prior notice. -
Page 3: Stove Commissioning Checklist
Henley Henley The Heating Specialists The Heating Specialists Stoves Stoves “Every Home Deserves A Henley” “Every Home Deserves A Henley” Stove Commissioning Checklist Installation Instructions Please complete the form below as it will be of great assistance in the unlikely event that there is a problem with 1. -
Page 4: Ventilation
Henley Henley The Heating Specialists The Heating Specialists Stoves Stoves “Every Home Deserves A Henley” “Every Home Deserves A Henley” Flue Positions Ventilation This appliance requires a constant supply of air to maintain proper combustion and effective flue performance. These positions are defined by Document J of the Building Regulations. Seek specialist advice if installing An inadequate air supply can result in poor combustion and smoke entering the room which is potentially in a dwelling with a thatched roof... -
Page 5: Height Over Roof
Henley Henley The Heating Specialists The Heating Specialists Stoves Stoves “Every Home Deserves A Henley” “Every Home Deserves A Henley” Height Over Roof Flue Options - Top/Rear Option 1 - Flue out the rear of stove Option 2 - Flue out the top of stove Place collar at rear of stove Place collar at top of stove Seal top outlet... - Page 6 Henley Henley The Heating Specialists The Heating Specialists Stoves Stoves “Every Home Deserves A Henley” “Every Home Deserves A Henley” Central Heating Without Domestic Hot Water System Using Four Boiler Tapings Central Heating Without Domestic Hot Water System Using Four Boiler Tapings Central Heating Without Domestic Hot Water System using four boiler tapings.
-
Page 7: The Clean Air Act 1993 And Smoke Control Areas
Henley Henley The Heating Specialists The Heating Specialists Stoves Stoves “Every Home Deserves A Henley” “Every Home Deserves A Henley” The Clean Air Act 1993 And Smoke Control Areas Lighting The Stove We recommend that you have two or three small fires before you operate your stove to its maximum heat output. Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a This is to allow the paint to cure in steadily and to give a long service life of the paint finish. -
Page 8: Operation With Door Left Open
Henley Henley The Heating Specialists The Heating Specialists Stoves Stoves “Every Home Deserves A Henley” “Every Home Deserves A Henley” Operation With Door Left Open Maintenance - Replacing The Fire Rope Around Your Stove Door Periodically visually check over the door rope seal for any Operation with the door open can cause excess smoke. -
Page 9: Maintenance - Replacing The Glass In Your Stove Door
Air Control Replacing the glass in your stove door Henley Stoves appliances have air systems providing cleaner burning, and greater efficiency and control, please In the event of the door glass being broken it can easily be see the diagram to view where the various air controls are located on your Henley Stove. -
Page 10: Warranty
• Leave to dry for 8 hours and refit the door glass etc. • Burn slowly for the first 4 hours, then build up heat gradually to cure the paint. Note: Use only genuine Henley Stoves spray paint as some paints interact and spoil the stove finish and invalidate the warranty. -
Page 11: Safety
Some types of fire cement are caustic and should not be allowed to come into contact with the skin. In case of you are experiencing issues with draught in your chimney. Please note issues with flue draught is out of the control of Henley Stoves skin contact, wash immediately with plenty of water. -
Page 12: Warranty Form
Please note for boiler stoves, please consult with a heating specailist to determine the correct BTU’s for your heating requirements. If you are experiencing an issue with the plumbing such as no hot water being pushed to the radiators, Henley Stoves can only offer advice. We can recommend an independent service engineer to determine if there is an issue with the stove or the plumbing. -
Page 13: Www.henleystoves.com
Henley Stoves The Heating Specialists “Every Home Deserves A Henley” Henley Stoves, Curraheen, Tralee, Co. Kerry, Ireland Tel: 066 7119788 | Fax: 066 7124200 | Email: info@henleystoves.com | www.henleystoves.com...
