ITEM: #22090
1
Your SkyProdigy includes:
optical tube, fork arm, pre-assembled
tripod, Computerized Hand Control,
hand control holder, star diagonal,
two eyepieces, StarPointer finderscope,
accessory tray, battery holder,
documentation, including an owner's
manual, and The SkyX First Light Edition
astronomy software.
4
All three legs should be the same
length to provide a level platform for
the telescope. A bubble level is in-
cluded (inset) to assist in leveling.
7
Hold the telescope fork arm and
place the bottom of the base inside
the tripod mounting platform as
shown.
2
Assemble tripod by spreading the
legs out until the center leg brace is
fully extended.
5
Place accessory tray on top of
center leg brace by lining up the
grooves on the tray to the post on the
brace.
8
Thread the coupling screw into
the hole at the bottom of the fork arm
base. Tighten screw to secure the
fork arm.
102

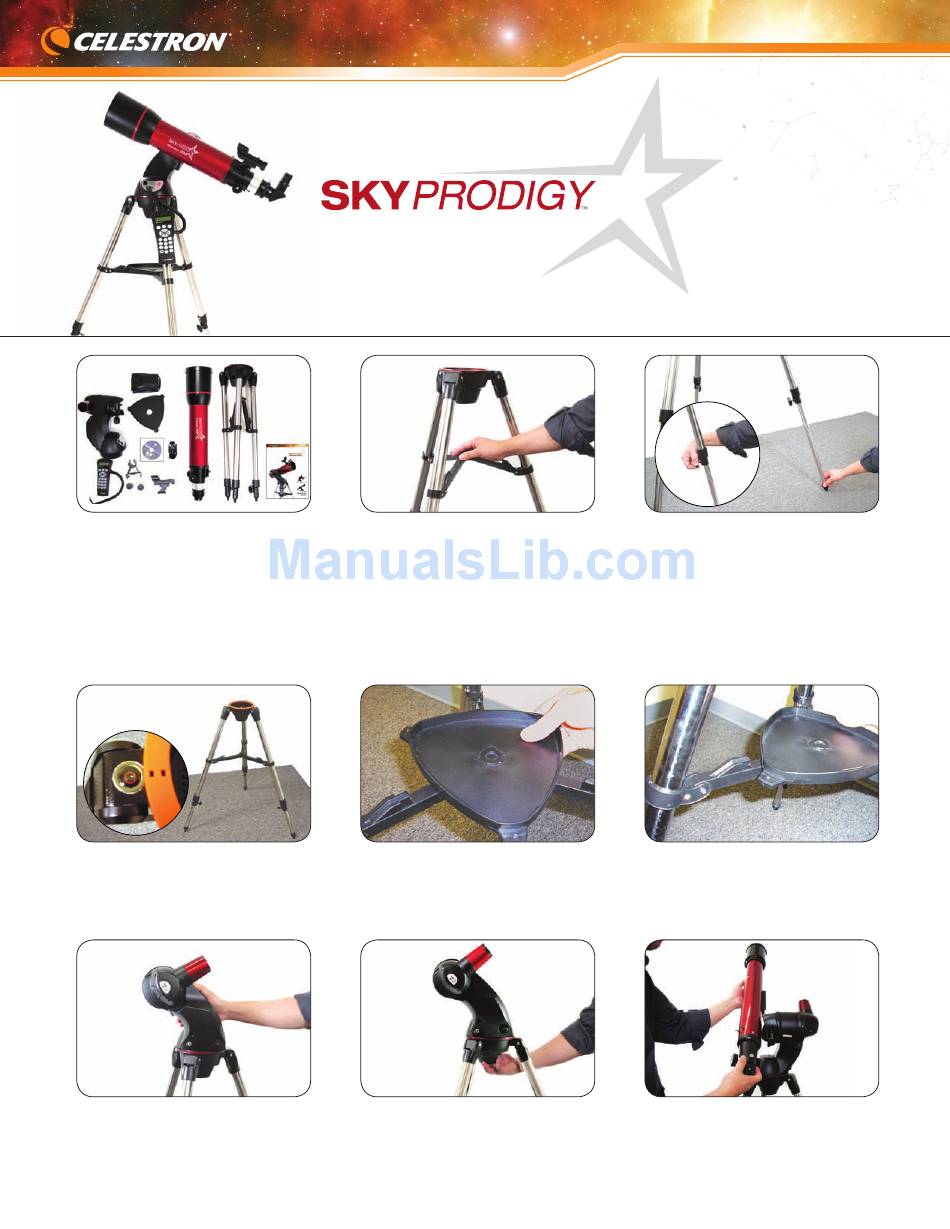

QUICK SET-UP GUIDE
3
Extend tripod legs 6 to 8 inches by
loosening the tripod leg locking knob,
pulling the leg to desired length and
retightening knob.
6
Once grooves are aligned, turn
accessory tray until it snaps into clips
on each leg brace.
9
Rotate the tube clamp so that the
camera is pointed straight up.
