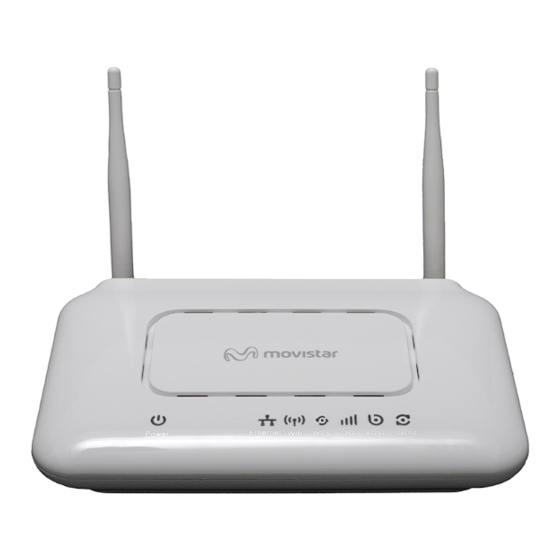

- Page 1 Home Station ADSL Freedom in a box Installation guide...
-
Page 3: Package Contents
This guide describes the process of setting up your Internet connection. You will enjoy your connection in a easy, simple and quick way. Please follow the guides’ instructions carefully step by step. The documentation CD includes a video file in digital format with a animated graphic help of the installation and configuration of your Internet connection: (AyudaGrafica.exe). - Page 4 Step 1. Locate the telephone socket where later In the “microfilter with double output” (4) there will be placed “Home Station ADSL” (1). Try to is one unused socket with the ADSL label: find one near the place where you use Internet Plug there the grey telephone cable (5) included Step 2.
- Page 5 4. Switch on the router Power on the router “Home Station ADSL” by pressing the switch in the back side to the ON position. Wait a few minutes until the LEDs stay green as in the table below: Light Current status Description Lit when there is power supply.
- Page 6 Start using your ADSL... 5. Connect the computer to the router. You can connect your computer to the router using an Ethernet cable if they are sufficiently close to each other (option B) or by means of a wireless network (option A). Furthermore, you can simultaneously have some connected by cable and others through wireless A.
- Page 7 Connecting using WPS button Connecting with wireless client Windows XP To use this method, the adapter you have in your computer must support In Windows XP, please click with the right mouse WPS. It usually has a button labeled button on the icon of "wireless network "WPS"...
- Page 8 Connecting with wireless client Connecting with wireless client Windows Vista Windows 7 In Windows 7, please click with the left mouse In Windows Vista, please click on the icon button on the icon of "internet access", as "internet access", and select "connect or shown in the next picture.
- Page 9 B. Ethernet cable connection Connect the yellow wire (6) to the computer's Ethernet card and then to one of the router's yellow connectors labeled Eth 1-4. Finally turn on your computer. The light "Ethernet" will turn to green after a few seconds. This indicator flashes when there is activity.
- Page 10 Once you are connected to the ADSL service we strongly recommend you to protect your PC against Internet viruses or attacks. If you wish to do so, you can contract these services (Antivirus PC, Anti- trojan PC, Security pack PC, etc.) at www.movistar.es, calling 1004 or through your usual channel.
- Page 11 Internet and advanced configuration of ADSL service. Advanced Configuration Portal: The equipment supplied by Movistar doesn’t require any additional configuration but, if you wish to, you can change advanced parameters when you are connected to the “Home Station”.
-
Page 12: Advanced Configuration Options
Advanced configuration options There are several possibilities for setting the advanced configuration options of the equipment “Home Station ADSL”: • By using the remote configuration web portal of Movistar accessible via the address www.movistar.es/configuramirouter • By accessing the web portal of the router, in the address http://192.168.1.1... - Page 13 Solution of common problems (FAQ) Problem Reason Solution Check that there is a microfilter installed between each telephony The connection drops when There is no microfilter between device (phones, faxes...) and services using the telephone line (alarms, the phone is off hook. the phone and the phone socket etc.) and the phone socket (see step 1 of section “Start using your ADSL...”...
- Page 14 Solution of common problems (FAQ) Problem Reason Solution I do not have any icon of Your wireless client is not Make sure that you have a wireless client correctly installed and wireless client in Windows. correctly installed or configured enabled (either USB or integrated). More information in the manual of the device The client management application of wireless...
-
Page 15: Customer Care
The customer care service is available via telephone as well as via Internet. For further information, please refer to chapter 6 in the user’s manual. All the information about ADSL can be found in the “Internet” section at movistar.es: www.movistar.es/adsl Movistar technical customer care centers. -
Page 16: Additional Information
Additional information Telefónica de España, S.A.U. Environmental recycling informs Do not dispose of this Home Station ADSL We thank you the trust to have acquired a with your normal household waste. Ask Movistar product and we inform you that your local authorities about the opportunities... - Page 17 Address Jose Bardasano Baos ,9 ,4ºC 28016- Madrid (España). Phone 91 384 7697 91384 6487 B85227544 Declare under its own responsibility that the product Product Home Station ADSL ZTE Brand Name Telefónica Model H108N Manufacturing Country China Manufacturer ZTE Corporation Is conformity with the technical specifications that are applicable on the day of the date by R &...
- Page 18 Antivirus: Fixed / Dynamic addressing: An application that detects and removes It Indicates how Movistar assigns the IP any computer virus and other malicious address to your line. If every time that programs. your router starts a session it can be...
- Page 19 Glossary TCP/IP (Transmission Control Protocol/ Microfilter: Internet Protocol): It is an element which filters the ADSL It is a set of network protocols upon which signal and separate it from the phone the Internet is based and which allow data signal, so that it is possible to make phone to be transmitted between computer calls and surf at the same time without...
- Page 20 Discover more 1004 (from fix or mobile phone) +34 699 991 004 (From abroad) Movistar Shops www.movistar.es Version: 1.0 Equipment supplied by: C.I.F.: B-85227544 Nº Registry REI-RAEE: 003078...
