Summary of Contents for movistar Home Station VDSL2

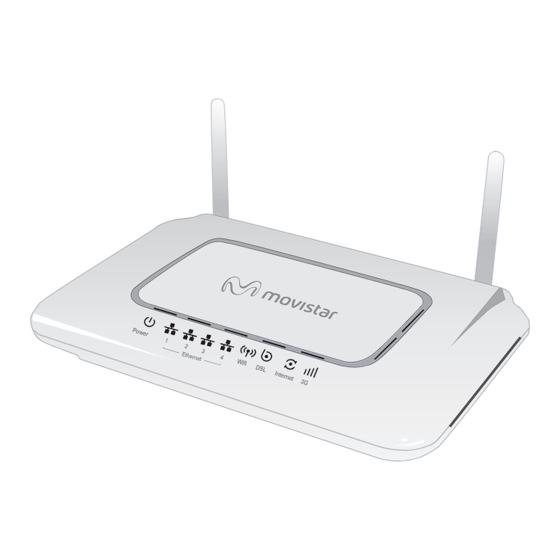

- Page 1 Home Station VDSL2 Libertad en una caja. User’s guide...
-
Page 3: Package Contents
Documentation CD includes a video file in electronic format with detail graphical expla- nation about the start up process for your Internet connection (Ayuda-Grafica.exe). Package contents (3) Telephone line cable (1) Home Station VDSL2 (2) Power adapter VDSL2 (4) Ethernet cable... -
Page 4: Telephone Line Connection
Start using your VDSL... 1. Telephone line connection Connect the grey telephony line cable ( to the telephone line socket and to the connector of the Home Station VDSL2 labeled as DSL. Reset ON/OFF Wifi/WPS Eth1 Eth2 Eth3 Eth4 2. Power adapter connection... - Page 5 Internet without any need for installations or configurations. Movistar can make a remote update of your equipment to offer you a better service. During this update proccess the power, Ethernet, DSL, and 3G indicators will flash in green while Wifi...
- Page 6 Start using your VDSL... 4. Connecting the computer to the router. Two options are available You may either connect your computer to the router using an Ethernet cable if they are sufficiently close to each other or by means of a wireless network. Furthermore, you can simultaneously have certain items of equipment connected to the router using the Ether- net cable and others as portable through the wireless network.
- Page 7 Connection using Windows wireless If you are equipped with an client external wireless device (PCM- CIA or USB adapter), install it When configuring your wireless device in Windows XP SP2, Vista or Windows 7 you with the aid of the CD that is can use the wireless client management provided with it.
- Page 8 IMPORTANT. The wireless security key Search the available wireless networks. You can update this list with the button for the router is of the WPA/PSK type and “Refresh network list” or by clicking the its format is alphanumerical. Make sure you enter that security key exactly as it button appears on the label.
- Page 9 B. Connection using Ethernet cable Connect the yellow Ethernet cable (4) to the Ethernet card on the PC and to one of the router’s connectors labeled as Eth1 to Eth4. Eth1 Eth2 Eth3 Eth4 Reset ON/OFF Wifi/WPS Eth1 Eth2 Eth3 Eth4 Reset ON/OFF...
- Page 10 Activate your free e-mail accounts and your website with the Internet access service contracted. Once you have accessed www.movistar.es, you can activate your mail account. After ty- ping in the initial identificador (user) and contraseña (password) provided in the letter with...
-
Page 11: Advanced Configuration Options
By the Remote configuration portal accesing from: www.movistar.es/configuramirouter • Through the device’s Movistar web portal accesing from the Internet browser pointing to the device’s ip address, by default it will be http://192.168.1.1 Further information about native web configurator and Remote configuration portal please refer to the guides on the documentation CD. - Page 12 Solutions to frequent problems Problem Reason Solution The Ethernet cable is not Verify that the Ethernet cable is correctly connected to the correctly connected. (This is only The Ethernet led does not Ethernet connector and to the Ethernet card of your desktop PC a problem if you have decided light up.
- Page 13 Solutions to frequent problems Problem Reason Solution Check to make sure that you are using the same network Your network identifier (SSID) identifier (SSID) throughout the network. Remember that it is is not being correctly indicated case sensitive, i.e. a distinction is made between capital and small when you connect to it.
-
Page 14: Customer Care
The customer care service is available via telephone as well as via Internet. For further information, please refer to chapter 6 in the user’s manual. All the information about VDSL can be found in the “Internet” section at movistar.es: www.movistar.es/adsl/descarga and search in the VDSL section of your equipment. -
Page 15: Additional Information
• Business care center (900 12 09 00) All offenders will be penalised or otherwise Where you will be attended by our consul- punished by Law. tants or, if you prefere, visit Movistar web page: Cardboard boxes, the plastic part of the www.movistar.es... -
Page 16: Declaration Of Conformity
Declares under its own responsability that the Device Type: Router Manufactured by: ZyXEL Communications Corp. In : Taiwán Brand: Telefónica Model: Home Station VDSL2 P8701T Complying with the standards listed below: ITU.T G.993.1 VDSL1 ITU.T G.993.2 VDSL2 VDSL band plan, Annex A, Annex B, 997, 998 Multi-Mode ADSL standard ANSI T1.413 issue 2... - Page 17 Glossary Antivirus: to the Internet. An application that detects and removes PCMCIA: any computer virus and other malicious programs. It is a hardware element that is normally used in laptop computers to expand their DHCP (Dynamic Host Configuration capacities. The most common case is that Protocol): of wireless network adapters, which are of A protocol that allows the hosts of a...
- Page 18 The best-known example of the use of URLs is for the addresses of web pages on Internet, such as: http://www.movistar.es Web browser or web explorer: It is an application that enables the user to access and view hypertext document, commonly in HTML format, that is availa- ble on the Internet.
- Page 20 For getting further information: 1004 +34 699 991 004 Your Movistar shop www.movistar.es Version: 1.0 Equipment supplied by: C.I.F.: A-28669844 REI-RAEE Code: 000577...
