Adhesive Application &
Laminating System

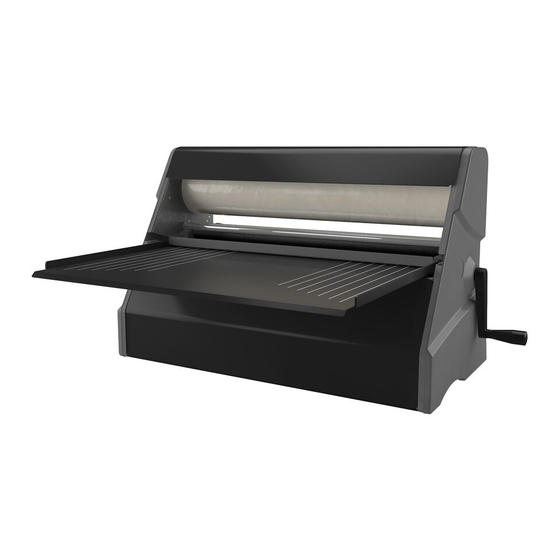

The XM2500 is an economical and easy to use document finishing system. This
versatile and non-electric system has been designed to laminate or apply mount-
ing adhesive to a variety of media. The same system is capable of laminating, selec-
tively applying adhesive or laminating and applying adhesive at the same time.
With the XM2500, documents are easily laminated or can be transformed into signs,
stickers or labels instantly. The machine and supplies are compatible with all types
of computer-printed media including laser, inkjet, color and thermal in a wide
range of material sizes and thickness.
