advanced scale models A-26 invader Assembly Instructions Manual page 7

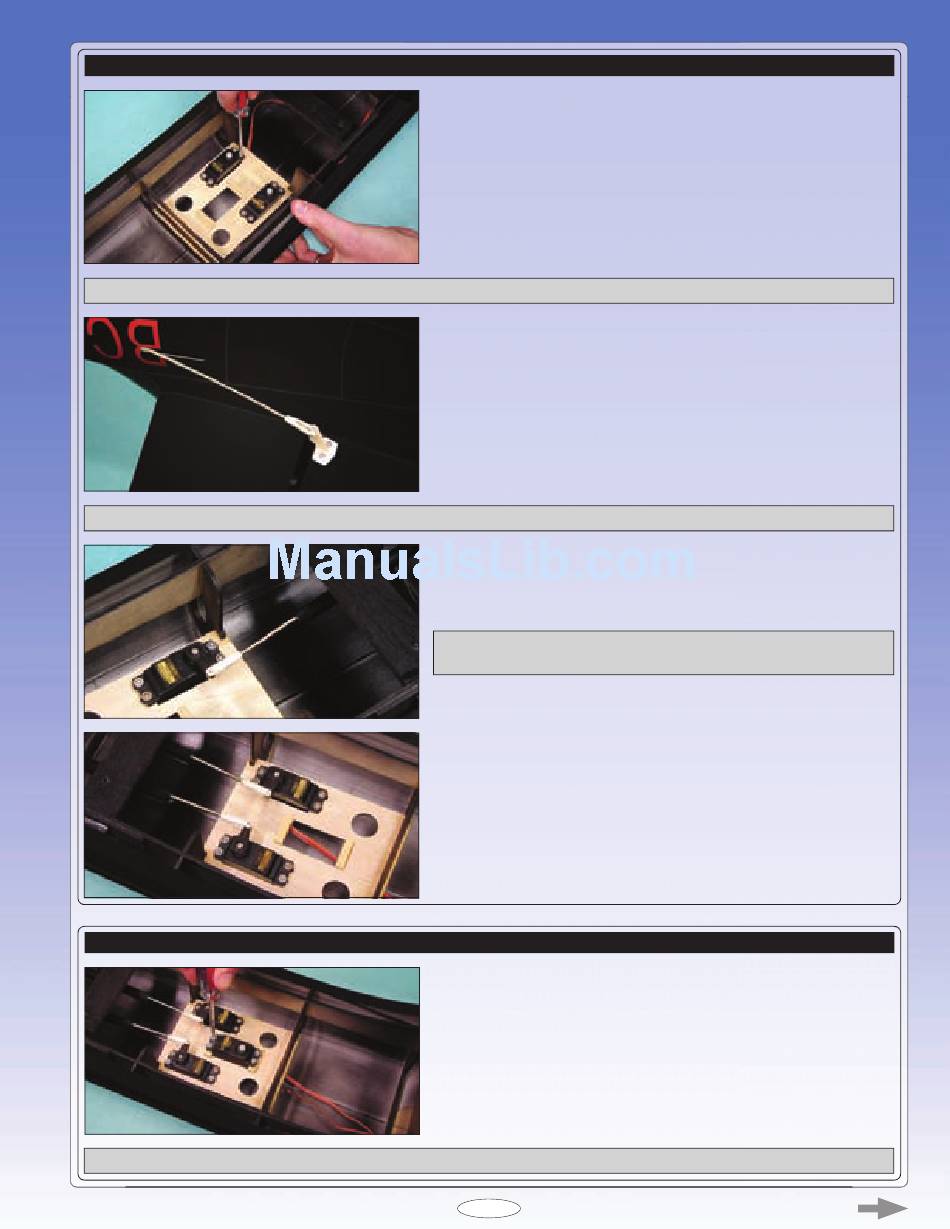

STEp 8: inSTALLinG THE ELEvAToR SERvoS And conTRoL LinkAGES
IMPORTANT Both servo output shafts should be toward the back of the fuselage.
IMPORTANT Install the clevis into the fifth hole up from the base of the control horn.
STEp 9: inSTALLinG THE RuddER SERvo And conTRoL LinkAGE
IMPORTANT The servo output shaft should be toward the front of the fuselage.
q Install one elevator servo into each of the two elevator servo mounting
holes in the servo tray.
q Install one elevator pushrod into the fuselage, using one control horn, two
wood screws and one clevis provided. The control horn should be positioned
even with the inside edge of the elevator half (at the hinge line) and it should
be angled toward the fuselage to line up better with the pushrod wire.
q Connect the pushrod to the servo on the same side of the fuselage as
the control horn, using one clevis provided.
IMPORTANT Install the clevis into the hole that is 9mm (3/4") out from
the centre of the servo horn.
q Repeat the previous procedures to install the second elevator control
linkage assembly.
q Install the rudder servo onto the servo mounting blocks.
Page 7
