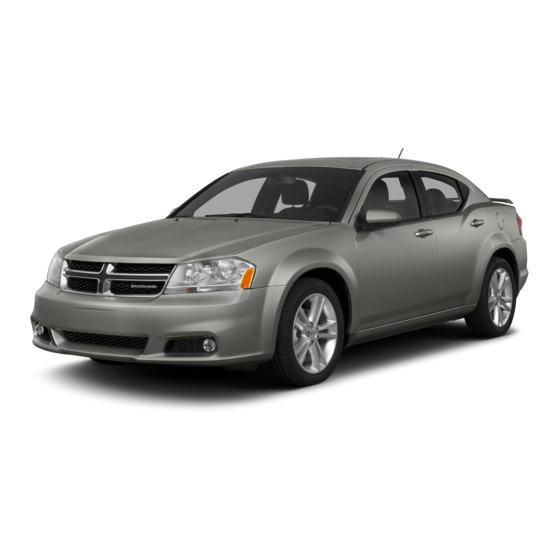

Dodge Avenger 2013 Owner's Manual

Dodge Avenger 2013 Owner's Manual

Hide thumbs Also See for Avenger 2013:

Owner's manual (631 pages)

,

User manual (140 pages)

,

Information (5 pages)

Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual

Avenger

2 0 1 3

O W N E R ' S M A N U A L

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the Avenger 2013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dodge Avenger 2013

Page 1 Avenger 2 0 1 3 O W N E R ’ S M A N U A L...
Page 2 VEHICLES SOLD IN CANADA This manual illustrates and describes the operation of fea- With respect to any Vehicles Sold in Canada, the name Chrysler tures and equipment that are either standard or optional on Group LLC shall be deemed to be deleted and the name Chrysler this vehicle.
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE INTRODUCTION ............. 3 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE .
Page 5: Introduction
INTRODUCTION CONTENTS INTRODUCTION ......4 VEHICLE IDENTIFICATION NUMBER ..6 HOW TO USE THIS MANUAL ....4 VEHICLE MODIFICATIONS/ALTERATIONS .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION When it comes to service, remember that your authorized dealer knows your vehicle best, has factory-trained techni- Congratulations on selecting your new Chrysler Group cians and genuine parts, and cares about your satisfaction. LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all HOW TO USE THIS MANUAL essentials that are traditional to our vehicles.
Page 7 INTRODUCTION 5...
Page 8: Vehicle Identification Number
6 INTRODUCTION WARNINGS AND CAUTIONS This Owners Manual contains WARNINGS against oper- ating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against procedures that could result in damage to your vehicle. If you do not read this entire Owners Manual, you may miss important information.
Page 9: Vehicle Modifications/Alterations
INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a collision resulting in serious injury or death. Stamped VIN Location NOTE: It is illegal to remove or alter the VIN.
Page 11 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS ▫ To Arm The System ....20 A WORD ABOUT YOUR KEYS ... . .12 ▫...
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ Transmitter Battery Replacement ...27 ▫ Window Lockout Switch ....40 ▫...
Page 13 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 ▫ Seat Belt Pretensioners ....55 ▫ Event Data Recorder (EDR) ....74 ▫...
Page 14: A Word About Your Keys
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The authorized dealer that sold you your new vehicle has the key code numbers for your vehicle locks. These numbers can be used to order duplicate keys from your authorized dealer.
Page 15: Ignition Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 Ignition Key Removal Automatic Transaxle Place the shift lever in PARK. Turn the ignition switch to the ACC position, push the key and cylinder inward, rotate the key to the LOCK position, and remove the key. Ignition Switch Positions 1 —...
Page 16 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • For vehicles equipped with the Electronic Vehicle Infor- NOTE: mation Center (EVIC), the power window switches, • If you try to remove the key before you place the shift radio, hands–free system (if equipped), and power lever in PARK, the key may become trapped tempo- outlets will remain active for up to 10 minutes after the rarily in the ignition switch lock cylinder.
Page 17: Key-In-Ignition Reminder
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 Key-In-Ignition Reminder WARNING! (Continued) Opening the driver’s door when the key is in the ignition • Never leave children alone in a vehicle, or with sounds a signal to remind you to remove the key. access to an unlocked vehicle.
Page 18: Sentry Key
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE SENTRY KEY® During normal operation, after turning the ignition switch, the Vehicle Security Light will turn on for three The Sentry Key® Immobilizer System prevents unau- seconds for a bulb check. If the Vehicle Security Light thorized vehicle operation by disabling the engine.
Page 19: Replacement Keys
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 Replacement Keys CAUTION! NOTE: Only keys that have been programmed to the • Always remove the Sentry Key® from the vehicle vehicle electronics can be used to start the vehicle. Once and lock all doors when leaving the vehicle unat- a Sentry Key®...
Page 20: Customer Key Programming
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Customer Key Programming 4. Insert a blank Sentry Key® into the ignition switch. Turn the ignition switch to the ON/RUN position You can program new keys to the system if you have two within 60 seconds.
Page 21: General Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 NOTE: If a programmed key is lost, see your authorized VEHICLE SECURITY ALARM — IF EQUIPPED dealer to have all remaining keys erased from the sys- The Vehicle Security Alarm monitors the doors and trunk tems memory.
Page 22: Rearming The System
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Rearming The System 3. The Vehicle Security Light in the instrument cluster will flash for 16 seconds. This shows that the Vehicle If something triggers the alarm, and no action is taken to Security Alarm is arming.
Page 23: To Disarm The System
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 To Disarm The System of the previously described arming sequences has oc- curred, the Vehicle Security Alarm will arm regardless of Either press the UNLOCK button on the RKE transmitter whether you are in the vehicle or not. If you remain in the or insert a valid Sentry Key®...
Page 24: Illuminated Entry - If Equipped
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The Illuminated Entry system will not operate if the ILLUMINATED ENTRY — IF EQUIPPED dimmer control is in the “Dome defeat” position The courtesy lights will turn on when you press the (extreme bottom position).
Page 25: To Unlock The Doors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 Remote Key Unlock, Driver Door/All Doors First Press This feature lets you program the system to unlock either the driver’s door or all doors on the first press of the UNLOCK button on the RKE transmitter. To change the current setting, proceed as follows: •...
Page 26 24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Release both buttons at the same time. Flash Lights With Lock The feature will cause the turn signal lights to flash when 3. Test the feature while outside of the vehicle by press- the doors are locked or unlocked with the RKE transmit- ing the LOCK/UNLOCK buttons on the RKE trans- ter.
Page 27: To Lock The Doors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 2. Release both buttons at the same time. equipped with EVIC. For details, refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings 3. Test the feature while outside of the vehicle by press- (Customer-Programmable Features)”...
Page 28: To Unlatch The Trunk
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • For vehicles not equipped with the EVIC, perform the Opening a door with the alarm activated will cause the following steps: alarm to sound. Press the UNLOCK button to deactivate the Vehicle Security Alarm. 1.
Page 29: Programming Additional Transmitters
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 NOTE: You may need to be close to the vehicle when using the RKE transmitter to turn off the Panic Alarm due to the Radio Frequency (RF) noises emitted by the system. Programming Additional Transmitters Refer to Sentry Key®...
Page 30: General Information
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE General Information If your RKE transmitter fails to operate from a normal distance, check for these two conditions: This device complies with part 15 of FCC rules and with 1. Weak battery in the RKE transmitter. The expected life RS-210 of Industry Canada.
Page 31: How To Use Remote Start
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 • System not disabled from previous remote start event How To Use Remote Start • Vehicle theft alarm not active All of the following conditions must be met before the engine will remote start: WARNING! •...
Page 32 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Remote Start Abort Message On Electronic Vehicle To Enter Remote Start Mode Information Center (EVIC) — If Equipped Press and release the REMOTE START button on The following messages will display in the EVIC if the the RKE transmitter twice within five seconds.
Page 33 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 Remote start will also cancel if any of the following occur: NOTE: To avoid unintentional shut downs, the system will disable the one-time press of the Remote Start button • The engine stalls or RPM exceeds 2500 for two seconds after receiving a valid remote start •...
Page 34: Door Locks
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE DOOR LOCKS WARNING! Manual Door Locks • For personal security and safety in the event of an To lock each door, push the door lock knob on each door collision, lock the vehicle doors as you drive as trim panel downward.
Page 35: Power Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 Power Door Locks WARNING! (Continued) A door lock switch is located on the driver and passenger • Do not leave the Key Fob in or near the vehicle, or door panel. Press this switch to lock or unlock the doors. in a location accessible to children.
Page 36 34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Automatic Door Locks — If Equipped 4. The driver door is opened. The auto door lock feature default condition is enabled. 5. The doors were not previously unlocked. When enabled, the door locks will lock automatically 6.
Page 37: Child-Protection Door Lock System - Rear Doors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 2. Cycle the ignition switch between LOCK and ON/ Child-Protection Door Lock System — RUN and then back to LOCK four times, ending up in Rear Doors the LOCK position. To provide a safer environment for children riding in the rear seat, the rear doors of your vehicle have a Child- 3.
Page 38 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Child-Protection Door Locks are located inside the WARNING! rear edge of the door. Insert the tip of the ignition key or similar flat-bladed object into the lock and rotate clock- Avoid trapping anyone in a vehicle in a collision. wise approximately one-quarter turn to the lock position Remember that the rear doors can only be opened or counter clockwise to the unlock position (as indicated...
Page 39: Power Windows
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 POWER WINDOWS There is a single window control on the front and rear passenger’s door trim panel, which operates the front Power Window Switches and rear passenger door windows. The window controls The control on the driver’s door has up/down switches will operate when the ignition switch is turned to the that give you fingertip control of all four power windows.
Page 40: Auto Window Down - If Equipped
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Auto Window Down — If Equipped For vehicles equipped with EVIC, the power window switches will remain active for up to 10 minutes after the The front window controls on the driver and passenger ignition switch is turned off.
Page 41 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 To close the window part way, lift the window switch to WARNING! the first detent and release it when you want the window to stop. When the window is almost closed, there is no anti-pinch protection.
Page 42: Window Lockout Switch
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Window Lockout Switch Wind Buffeting The window lockout switch on the driver’s door allows Wind buffeting can be described as the perception of you to disable the window control on the other doors. To pressure on the ears or a helicopter-type sound in the disable the window controls on the other doors, press the ears.
Page 43: Trunk Release
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 TRUNK RELEASE With the ignition switch in the LOCK position or with the key out, the word “dECK” will display until the trunk is Use the Remote Keyless Entry (RKE) closed. transmitter to open the trunk from outside the vehicle.
Page 44: Trunk Internal Emergency Release
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Trunk Internal Emergency Release OCCUPANT RESTRAINTS As a security measure, a Trunk Internal Emergency Release Some of the most important safety features in your vehicle lever is built into the trunk latching mechanism. In the are the restraint systems: event of an individual being locked inside the trunk, the •...
Page 45 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 • An energy-absorbing steering column and steering Please pay close attention to the information in this wheel section. It tells you how to use your restraint system properly, to keep you and your passengers as safe as •...
Page 46 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Here are some simple steps you can take to minimize the child restraints or belt-positioning booster seats should risk of harm from a deploying air bag: ride properly buckled up in the rear seat. Never allow children to slide the shoulder belt behind them or under 1.
Page 47 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 4. Do not lean against the door or window. If your WARNING! (Continued) vehicle has side air bags, and deployment occurs, the • Being too close to the steering wheel or instrument side air bags will inflate forcefully into the space panel during Advanced Front Air Bag deployment between you and the door.
Page 48: Lap/Shoulder Belts
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Research has shown that seat belts save lives, and they WARNING! (Continued) can reduce the seriousness of injuries in a collision. Some • In a collision, you and your passengers can suffer of the worst injuries happen when people are thrown much greater injuries if you are not properly buck- from the vehicle.
Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 WARNING! WARNING! (Continued) • Two people should never be belted into a single • Be sure everyone in your vehicle is in a seat and seat belt. People belted together can crash into one using a seat belt properly.
Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest you.
Page 51 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 WARNING! • A belt that is worn under your arm is dangerous. Your body could strike the inside surfaces of the vehicle in a collision, increasing head and neck injury. A belt worn under the arm can cause inter- nal injuries.
Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. Position the lap belt across your thighs, below your WARNING! abdomen. To remove slack in the lap belt portion, pull • A lap belt worn too high can increase the risk of up on the shoulder belt.
Page 53 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 6. To release the belt, push the red button on the buckle. Lap/Shoulder Belt Untwisting Procedure The belt will automatically retract to its stowed posi- Use the following procedure to untwist a twisted lap/ tion.
Page 54: Adjustable Upper Shoulder Belt Anchorage
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Adjustable Upper Shoulder Belt Anchorage As a guide, if you are shorter than average, you will prefer a lower position, and if you are taller than average, In the front seat, the shoulder belt can be adjusted you will prefer a higher position.
Page 55: Automatic Locking Retractor Mode (Alr) - If Equipped
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 Restraints” section. The chart below defines the type of to retract completely in this case and then carefully pull feature for each seating position. out only the amount of webbing necessary to comfort- ably wrap around the occupant’s mid-section.
Page 56: Energy Management Feature
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE How To Engage The Automatic Locking Mode WARNING! 1. Buckle the combination lap and shoulder belt. • The belt and retractor assembly must be replaced if the seat belt assembly Automatic Locking Retractor 2.
Page 57: Seat Belt Pretensioners
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 Seat Belt Pretensioners Supplemental Active Head Restraints (AHR) The seat belts for both front seating positions are These head restraints are passive, deployable compo- equipped with pretensioning devices that are designed to nents, and vehicles with this equipment cannot be readily remove slack from the seat belt in the event of a collision.
Page 58 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE This system is designed to help prevent or reduce the extent of injuries to the driver and front passenger in certain types of rear impacts. NOTE: The Active Head Restraints (AHR) may or may not deploy in the event of a front or side impact.
Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 1. Grasp the deployed AHR from the rear seat. CAUTION! All occupants, including the driver, should not oper- ate a vehicle or sit in a vehicle’s seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of a collision.
Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Pull down then rearward towards the rear of the vehicle then down to engage the locking mechanism. 3 — Final Downward Movement To Engage Locking Mechanism 4. The AHR front soft foam and trim half should lock 1 —...
Page 61: Enhanced Seat Belt Use Reminder System (Beltalert®)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 Enhanced Seat Belt Use Reminder System (BeltAlert®) BeltAlert® is a feature intended to remind the driver and front passenger (if equipped with front passenger BeltAlert®) to fasten their seat belts. The feature is active whenever the ignition is on.
Page 62: Seat Belts And Pregnant Women
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE unbuckled while traveling at speeds greater than 5 mph Seat Belts And Pregnant Women (8 km/h), BeltAlert® will provide both audio and visual We recommend that pregnant women use the seat belts notification.
Page 63: Supplemental Restraint System (Srs) - Air Bags
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 WARNING! Using a seat belt extender when not needed can increase the risk of injury in a collision. Only use when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions.
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The Driver and Front Passenger Advanced Front This vehicle is equipped with Supplemental Side Air Bag Air Bags are certified to the new Federal regulations for Inflatable Curtains (SABIC) to protect the driver, front, Advanced Air Bags.
Page 65: Air Bag System Components
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 • Front and Side Impact Sensors Air Bag System Components • Front Seat Belt Pretensioners, Seat Belt Buckle Switch, Your vehicle may be equipped with the following air bag system components: and Seat Track Position Sensors •...
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Seat-Mounted Side Air Bags (SAB) WARNING! Supplemental Seat-Mounted Side Air Bags (SAB) may • No objects should be placed over or near the air bag provide enhanced protection to help protect an occupant on the instrument panel, because any such objects during a side impact.
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 When the air bag deploys, it opens the seam between the front and side of the seat’s trim cover. Each air bag deploys independently; a left side impact deploys the left air bag only and a right-side impact deploys the right air bag only.
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The system includes side impact sensors that are cali- WARNING! (Continued) brated to deploy the side air bags during impacts that • Your vehicle is equipped with SABIC air bags, do require air bag occupant protection. not have any accessory items installed which will alter the roof, including adding a sunroof to your WARNING!
Page 69: Air Bag Deployment Sensors And Controls
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Always sit upright as possible with your back against the The ORC determines if deployment of the front and/or seat back, use the seat belts properly, and use the appro- side air bags in a frontal or side collision is required. priate sized child restraint, infant restraint or booster seat Based on the impact sensor’s signals, a central electronic recommended for the size and weight of the child.
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE On the other hand, depending on the type and location of position, in the ACC position, or not in the ignition, the impact, Advanced Front Air Bags may deploy in crashes air bag system is not on and the air bags will not inflate. with little vehicle front-end damage but that produce a The ORC contains a backup power supply system that severe initial deceleration.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 When the ORC detects a collision requiring the Ad- WARNING! vanced Front Air Bags, it signals the inflator units. A large quantity of non-toxic gas is generated to inflate the Ignoring the Air Bag Warning Light in your instru- Advanced Front Air Bags.
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Seat-Mounted Side Air Bag (SAB) Supplemental Side Air Bag Inflatable Curtain Inflator Units (SABIC) Inflator Units The Supplemental Seat-Mounted Side Air Bags (SAB) are During collisions where the impact is confined to a designed to activate only in certain side collisions.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 • Turn on the interior lights, which remain on as long as Because air bag sensors estimate deceleration over time, vehicle speed and damage are not good indicators of the battery has power or until the ignition key is whether or not an air bag should have deployed.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you do have a collision, which deploys the air bags, any irritation, rinse the area with cool water. For nose or or all of the following may occur: throat irritation, move to fresh air. If the irritation continues, see your doctor.
Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Maintaining Your Air Bag System WARNING! (Continued) • Do not attempt to modify any part of your air bag WARNING! system. The air bag may inflate accidentally or may • Modifications to any part of the air bag system not function properly if modifications are made.
Page 76: Event Data Recorder (Edr)
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Air Bag Warning Light NOTE: If the speedometer, tachometer, or any engine related gauges are not working, the Occupant Restraint You will want to have the air bags ready to Controller (ORC) may also be disabled. The air bags may inflate for your protection in a collision.
Page 77 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 vehicle dynamics and safety systems for a short period of NOTE: EDR data are recorded by your vehicle only if a time, typically 30 seconds or less. The EDR in this vehicle non-trivial crash situation occurs;...
Page 78: Child Restraints
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Child Restraints Before buying any restraint system, make sure that it has a label certifying that it meets all applicable Safety Everyone in your vehicle needs to be buckled up at all Standards.
Page 79 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight or Age Recommended Type of Child Restraint Infants and Toddlers Children who are two years old or Either an Infant Carrier or a Convertible younger and who have not reached Child Restraint, facing rearward in the the height or weight limits of their...
Page 80 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Infants And Child Restraints their infant carrier but are still less than at least two years old. Children should remain rearward-facing until they Safety experts recommend that children ride rearward- reach the highest weight or height allowed by their facing in the vehicle until they are two years old or until convertible child seat.
Page 81 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 Older Children And Child Restraints seat. The child and belt-positioning booster seat are held in the vehicle by the seat belt. Children who are two years old or who have outgrown their rear-facing convertible child seat can ride forward- WARNING! facing in the vehicle.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Children Too Large For Booster Seats 4. Is the lap part of the belt as low as possible, touching the child’s thighs and not their stomach? Children who are large enough to wear the shoulder belt comfortably, and whose legs are long enough to bend 5.
Page 83 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 Recommendations For Attaching Child Restraints Restraint Type Combined Use any attachment method shown with an “X” Below Weight of the LATCH – Seat Belt Only LATCH – Seat Belt + Top Child + Child Lower Anchors Lower Anchors Tether Anchor...
Page 84 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lower Anchors and Tethers for Children (LATCH) Your vehicle is equipped with the child restraint anchor- Restraint System age system called LATCH, which stands for Lower Anchors and Tethers for CHildren. The LATCH system has three vehicle anchor points for installing LATCH- equipped child seats.
Page 85 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 LATCH Positions For Installing Child Restraints In This Vehicle • Lower Anchorage Symbol 2 anchorages per seat- ing position • Top Tether Anchorage Symbol...
Page 86 84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE What is the weight limit (child’s weight + 65 lbs (29.5 kg) Use the LATCH anchorage system until weight of the child restraint) for using the the combined weight of the child and the LATCH anchorage system to attach the child restraint is 65 lbs (29.5 kg).
Page 87 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 Can two child restraints be attached using Never “share” a LATCH anchorage with a common lower LATCH anchorage? two or more child restraints. If the center position does not have dedicated LATCH lower anchorages, use the seat belt to in- stall a child seat in the center position next to a child seat using the LATCH anchor-...
Page 88 86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Locating The LATCH Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback, below the anchorage sym- bols on the seatback. They are just visible when you lean into the rear seat to install the child restraint.
Page 89 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87 tether strap. The tether strap will have a hook at the end to attach to the top tether anchorage and a way to tighten the strap after it is attached to the anchorage. Center Seat LATCH Do not install child restraints with rigid lower attach- ments in the center seating position.
Page 90 88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Loosen the adjusters on the lower straps and on the WARNING! (Continued) tether strap of the child seat so that you can more seat belt for installing child seats in the outboard easily attach the hooks or connectors to the vehicle positions.
Page 91 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89 6. Tighten all of the straps as you push the child restraint the child’s reach. If the buckled seat belt interferes with rearward and downward into the seat. Remove slack the child restraint installation, instead of buckling it in the straps according to the child restraint manufac- behind the child restraint, route the seat belt through the turer’s instructions.
Page 92 90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing Child Restraints Using The Vehicle Seat Lap/Shoulder Belt Systems for Installing Child Belt Restraints in this Vehicle The seat belts in the passenger seating positions are equipped with either a Switchable Automatic Locking Retractor (ALR) or a cinching latch plate or both.
Page 93 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91 What is the weight limit (child’s weight + Weight limit of the Always use the tether anchor when using weight of the child restraint) for using the Child Restraint the seat belt to install a forward facing Tether Anchor with the seat belt to attach a child restraint, up to the recommended forward facing child restraint?
Page 94 92 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing A Child Restraint with a Switchable back into the retractor. As the webbing retracts, you Automatic Locking Retractor (ALR) will hear a clicking sound. This means the seat belt is now in the Automatic Locking mode. 1.
Page 95 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 93 9. Test that the child restraint is installed tightly by 3. Slide the latch plate into the buckle until you hear a pulling back and forth on the child seat at the belt “click.”...
Page 96 94 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Any seat belt system will loosen with time, so check the Installing Child Restraints Using The Top Tether belt occasionally, and pull it tight if necessary. Anchorage If the buckle or the cinching latch plate is too close to the 1.
Page 97: Transporting Pets
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 95 between the two posts. If not possible, lower the head 4. Attach the tether strap hook of the child restraint to restraint and pass the tether strap around the outboard the top tether anchorage as shown in the diagram. side of the head restraint.
Page 98: Engine Break-In Recommendations
96 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS The engine oil installed in the engine at the factory is a high-quality energy conserving type lubricant. Oil changes A long break-in period is not required for the engine and should be consistent with anticipated climate conditions drivetrain (transmission and axle) in your vehicle.
Page 99: Safety Tips
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 97 SAFETY TIPS Exhaust Gas Transporting Passengers WARNING! NEVER TRANSPORT PASSENGERS IN THE CARGO Exhaust gases can injure or kill. They contain carbon AREA. monoxide (CO), which is colorless and odorless. Breathing it can make you unconscious and can even- WARNING! tually poison you.
Page 100: Safety Checks You Should Make Inside The Vehicle
98 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The best protection against carbon monoxide entry into Safety Checks You Should Make Inside The the vehicle body is a properly maintained engine exhaust Vehicle system. Seat Belts Whenever a change is noticed in the sound of the exhaust Inspect the belt system periodically, checking for cuts, system, when exhaust fumes can be detected inside the frays, and loose parts.
Page 101 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 99 Air Bag Warning Light Floor Mat Safety Information The light should come on and remain on for Always use floor mats designed to fit the footwell of your four to eight seconds as a bulb check when the vehicle.
Page 102 100 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • Never place or install floor mats or other floor • Always make sure that objects cannot fall into the coverings in the vehicle that cannot be properly driver footwell while the vehicle is moving.
Page 103: Periodic Safety Checks You Should Make Outside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 101 Periodic Safety Checks You Should Make Outside Door Latches The Vehicle Check for positive closing, latching, and locking. Tires Fluid Leaks Examine tires for excessive tread wear and uneven wear Check area under vehicle after overnight parking for fuel, patterns.
Page 105: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS MIRRORS ......107 Uconnect® Phone — IF EQUIPPED ..112 ▫...
Page 106 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Commands ......144 TO OPEN AND CLOSE THE HOOD ..163 ▫...
Page 107 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 ▫ Daytime Running Lights (DRL) — ▫ To Activate ......179 If Equipped .
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Troubleshooting Tips ....189 ELECTRICAL POWER OUTLETS ...194 ▫...
Page 109: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical mirror adjustment. Adjust the mirror to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
Page 110: Automatic Dimming Mirror - If Equipped
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pressing the button at the base of the mirror. A light to the left of the button will illuminate to indicate when the dimming feature is activated.
Page 111: Outside Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 Outside Mirrors Power Mirrors To receive maximum benefit, adjust the outside mirrors The power mirror controls are located on the driver’s to center on the adjacent lane of traffic and a slight door trim panel. overlap of the view obtained from the inside mirror.
Page 112: Adjusting Side View Mirrors
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To adjust a mirror, turn the control toward the left or right Adjusting Side View Mirrors mirror positions indicated. Tilt the control in the direction Outside Mirror — Driver Side you want the mirror to move. Adjust the outside mirror to center on the adjacent lane of traffic, with a slight overlap of the view obtained on the inside mirror.
Page 113: Exterior Mirrors Folding Feature
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Illuminated Vanity Mirrors — If Equipped WARNING! (Continued) An illuminated vanity mirror is on each sun visor. To use when judging the size or distance of a vehicle seen in the mirror, rotate the sun visor down and swing the the passenger side convex mirror.
Page 114: Uconnect® Phone - If Equipped
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect® Phone — IF EQUIPPED Uconnect® Phone allows you to transfer calls between the system and your mobile phone as you enter or exit Uconnect® Phone is a voice-activated, hands-free, in- your vehicle and enables you to mute the system’s vehicle communications system.
Page 115 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 Voice Command Button WARNING! Actual button location may vary with the radio. Any voice commanded system should be used only The individual buttons are described in the in safe driving conditions following all applicable “Operation”...
Page 116: Operation
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • For each feature explanation in this section, only the Operation compound form of the voice command is given. You Voice commands can be used to operate the Uconnect® can also break the commands into parts and say each Phone and to navigate through the Uconnect®...
Page 117 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 Help Command Pair (Link) Uconnect® Phone To A Mobile Phone If you need assistance at any prompt, or if you want to To begin using your Uconnect® Phone, you must pair know your options at any prompt, say “Help” following your compatible Bluetooth®...
Page 118 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • You will be asked to say a four-digit Personal Identi- and priority five phones are present in the vehicle, the fication Number (PIN), which you will later need to Uconnect® Phone will use the priority three mobile enter into your mobile phone.
Page 119 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Call By Saying A Name Phonebook Download – Automatic Phonebook Transfer From Mobile Phone • Press the button to begin. If equipped and specifically supported by your phone, • After the “Ready” prompt and the following beep, say Uconnect®...
Page 120 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Depending on the maximum number of entries down- Add Names To Your Uconnect® Phonebook loaded, there may be a short delay before the latest NOTE: Adding names to the Uconnect® Phonebook is downloaded names can be used.
Page 121 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 • You will then be asked for the name of the phonebook After you are finished adding an entry into the phone- book, you will be given the opportunity to add more entry that you wish to edit. phone numbers to the current entry or to return to the •...
Page 122 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Note that only the phonebook entry in the current Delete Uconnect® Phonebook Entry language is deleted. NOTE: Editing phonebook entries is recommended • Automatic downloaded phonebook entries cannot be when the vehicle is not in motion. deleted or edited.
Page 123: Phone Call Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 List All Names In The Uconnect® Phonebook Phone Call Features • Press the button to begin. The following features can be accessed through the Uconnect® Phone if the feature(s) are available on your •...
Page 124 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Answer Or Reject An Incoming Call — call. The first call will be on hold while the second call is Call Currently In Progress in progress. To go back to the first call, refer to “Toggling Between Calls”...
Page 125 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 Conference Call is a call on hold, it will become the new active call. If the active call is terminated by the phone far end, a call on When two calls are in progress (one active and one on hold may not become active automatically.
Page 126: Uconnect® Phone Features
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Call Continuation Uconnect® Phone Features Call continuation is the progression of a phone call on the Language Selection Uconnect® Phone after the vehicle ignition has been To change the language that the Uconnect® Phone is using: switched to OFF.
Page 127 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 Emergency Assistance NOTE: • The emergency number dialed is based on the country If you are in an emergency and the mobile phone is reachable: where the vehicle is purchased (911 for the U.S. and Canada and 060 for Mexico).
Page 128 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE for the U.S., say 1-800-363-4869 for Canada, say 55-14- 3454 WARNING! for Mexico City and 1-800-712-3040 for outside Mexico City To use you Uconnect® Phone System in an emergency, in Mexico. your mobile phone must be: Paging •...
Page 129 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 You can use your Uconnect® Phone to access a voice mail You can also send stored Uconnect® phonebook entries system or an automated service, such as a paging service as tones for fast and easy access to voice mail and pager or automated customer service line.
Page 130 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Barge In — Overriding Prompts Phone And Network Status Indicators The “Voice Command” button can be used when you If available on the radio and/or on a premium display wish to skip part of a prompt and issue your voice such as the instrument panel cluster, and supported by command immediately.
Page 131: Advanced Phone Connectivity
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 NOTE: Certain brands of mobile phones do not send the Advanced Phone Connectivity dial ring to the Uconnect® Phone to play it on the vehicle Transfer Call To And From Mobile Phone audio system, so you will not hear it. Under this situa- The Uconnect®...
Page 132 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • You can also press the List Paired Mobile Phone Names button at any time while the list is being played, and then choose the phone that • Press the button to begin. you wish to select.
Page 133: Things You Should Know About Your Uconnect® Phone
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 Things You Should Know About Your Uconnect® You can either press the Uconnect® Phone button to restore Phone the factory setting or repeat the words and phrases when prompted by the Uconnect® Phone. For best results, the Uconnect®...
Page 134 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Even though the system is designed for users speaking Voice Command in North American English, French, and Spanish ac- • For best performance, adjust the rearview mirror to cents, the system may not always work for some. provide at least ½...
Page 135 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 • Even though international dialing for most number • Performance, such as audio clarity, echo, and loudness combinations is supported, some shortcut dialing to a large degree rely on the phone and network, and number combinations may not be supported.
Page 136 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Read Messages: Send Messages: If you receive a new text message while your phone is You can send messages using Uconnect® Phone. To send connected to Uconnect® Phone, an announcement will a new message: be made to notify you that you have a new text message.
Page 137 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 List of Preset Messages: 11. See You in 15 minutes 1. Yes 12. I am on my way 2. No 13. I’ll be late 3. Where are you? 14. Are you there yet? 4.
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turn Voice Text Reply Incoming Announcement ON/ Bluetooth® Communication Link Mobile phones have been found to lose connection to the Uconnect® Phone. When this happens, the connection Turning the Voice Text Reply Incoming Announcement can generally be reestablished by switching the phone OFF will stop the system from announcing the new off/on.
Page 139 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137...
Page 140 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 141 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139...
Page 142 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Voice Commands Primary Alternate (s) Primary Alternate (s) zero call cancel three confirmation prompts four continue five delete dial seven download eight edit nine emergency star (*) English plus (+) erase all pound (#) Espanol add location...
Page 143 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 Voice Commands Voice Commands Primary Alternate (s) Primary Alternate (s) help previous home record again language redial list names return to main menu return or main menu list phones select phone select mobile send mute set up...
Page 144: General Information
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE General Information VOICE COMMAND — IF EQUIPPED This device complies with Part 15 of the FCC rules and Voice Command System Operation RSS 210 of Industry Canada. Operation is subject to the The Uconnect® Voice Command system allows following conditions: you to control your AM, FM radio, disk player, •...
Page 145 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 Pressing the Voice Command button while the WARNING! system is speaking is known as “barging in.” The system will be interrupted, and after the beep, you can add or Any voice commanded system should be used only change commands.
Page 146: Commands
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To hear the first available Menu, press the Voice Com- Main Menu mand button and say “Help” or “Main Menu”. Start a dialogue by pressing the Voice Command button. You may say “Main Menu” to switch to the Commands main menu.
Page 147 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 • “Menu Radio” (to switch to the radio menu) Radio AM • “Main Menu” (to switch to the main menu) To switch to the AM band, say “AM” or “Radio AM”. In this mode, you may say the following commands: Satellite Radio •...
Page 148 146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Disc Mode Bluetooth® Streaming (BT) Mode To switch to the disc mode, say “Disc”. In this mode, you To switch to Bluetooth® Streaming (BT) mode, say may say the following commands: “Bluetooth Streaming”. In this mode, you may say the following commands: •...
Page 149 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 • “Main menu setup” or – “Continue” (to continue recording) – “Delete” (to delete the recording) • “Switch to setup” • “Play Memos” (to play previously recorded memos) — In this mode, you may say the following commands: During the playback you may press the Voice Com- •...
Page 150: Voice Training
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Training SEATS For users experiencing difficulty with the system recog- Seats are a part of the Occupant Restraint System of the nizing their voice commands or numbers the Uconnect® vehicle. Voice “Voice Training” feature may be used. WARNING! 1.
Page 151: Power Seats - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 Power Seats — If Equipped The power seat switches are on the outboard side of the seat near the floor. Use the seat control switch to move the seat up, down, forward, rearward, or to tilt the seat. Use the seatback control to adjust the angle of the seatback.
Page 152 150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! CAUTION! • Adjusting a seat while driving may be dangerous. Do not place any article under a power seat or Moving a seat while driving could result in loss of impede its ability to move as it may cause damage to control which could cause a collision and serious the seat controls.
Page 153 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 Adjusting The Seat Up Or Down Reclining The Seatback The height of the seats can be adjusted up or down. Pull The angle of the seatback can be adjusted forward or upward or push downward on the seat switch, the seat rearward.
Page 154: Heated Seats - If Equipped
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Heated Seats — If Equipped WARNING! (Continued) There are two heated seat switches that allow the driver • Do not ride with the seatback reclined so that the and passenger to operate the seats independently. The shoulder belt is no longer resting against your chest.
Page 155 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 NOTE: Once a heat setting is selected, heat will be felt WARNING! within two to five minutes. • Persons who are unable to feel pain to the skin When the HIGH-level setting is selected, the heater will because of advanced age, chronic illness, diabetes, provide a boosted heat level during the first four minutes spinal cord injury, medication, alcohol use, exhaus-...
Page 156: Manual Front Seat Adjustments
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Front Seat Adjustments WARNING! The adjusting bar is located at the front of the seats, near Adjusting a seat while the vehicle is moving is the floor. Pull the bar upward to move the seat to the dangerous.
Page 157: Driver Seat Manual Height Adjuster - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 Driver Seat Manual Height Adjuster — Reclining Seats If Equipped The recliner control is on the side of the seat. To recline, A lever style height adjustment feature enhances comfort lean forward slightly before lifting the lever, then lean for petite as well as tall drivers.
Page 158: Lumbar Support - If Equipped
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Lumbar Support — If Equipped WARNING! This feature allows you to increase or decrease the • Adjusting a seat while the vehicle is moving is amount of lumbar support. The control lever is located dangerous.
Page 159: Fold-Flat Front Passenger Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 Fold-Flat Front Passenger Seat The hard seatback features a work surface and a molded rim for retaining items stored on the seatback panel. The recline handle on the front passenger seat also releases the seatback to fold forward. Fold-Flat Front Passenger Seat Seatback Adjustment...
Page 160: Head Restraints
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Head Restraints Active Head Restraints — Front Seats Head restraints are designed to reduce the risk of injury Active Head Restraints are passive, deployable compo- by restricting head movement in the event of a rear nents, and vehicles with this equipment cannot be readily impact.
Page 161 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 To raise the head restraint, pull upward on the head For comfort the Active Head Restraints can be tilted restraint. To lower the head restraint, press the push forward and rearward. To tilt the head restraint closer to button, located at the base of the head restraint, and push the back of your head, pull forward on the bottom of the downward on the head restraint.
Page 162 160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • In the event of deployment of an Active Head Re- straint, refer to “Occupant Restraints/Resetting Active Head Restraints (AHR)” in “Things to Know Before Starting Your Vehicle” for further information. WARNING! • Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players.
Page 163: Folding Rear Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 Folding Rear Seat WARNING! (Continued) To provide additional storage area, the rear seatback can • Active Head Restraints may be deployed if they are be folded forward. Pull on the loops shown in the picture struck by an object such as a hand, foot or loose to fold down either or both seatbacks.
Page 164: Folding Rear Seat Center Armrest
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Folding Rear Seat Center Armrest WARNING! The rear seat is equipped with a folding armrest with • Be certain that the seatback is securely locked into cupholders. position. If the seatback is not securely locked into position the seat will not provide the proper stabil- ity for child seats and/or passengers.
Page 165: To Open And Close The Hood
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 TO OPEN AND CLOSE THE HOOD 2. Lift the secondary latch located under the front edge of the hood, near the center and raise the hood. To open the hood, two latches must be released. 1.
Page 166 164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Use the hood prop rod to secure the hood in the open CAUTION! position. Place the upper end of the prop rod in the hole on the left underside of the hood. To prevent possible damage, do not slam the hood to close it.
Page 167: Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 LIGHTS Multifunction Lever The multifunction lever controls the operation of the parking lights, headlights, headlight beam selection, passing light, fog lights, instrument panel light dimming and turn signals. The multifunction lever is located on the left side of the steering column.
Page 168: Headlights And Parking Lights
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlights And Parking Lights Automatic Headlights — If Equipped Turn the end of the multifunction lever to the first detent Turning the end of the multifunction lever to the third for parking light operation. Turn to the second detent for detent (AUTO), will activate the automatic headlight headlight operation.
Page 169: Headlights With Wipers (Available With Automatic Headlights Only)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 With the engine running and the multifunction lever in Headlight Time Delay the AUTO position, the headlights will turn on and turn There is also a feature that delays turning off the vehicle off based on the surrounding light levels.
Page 170: Turn Signals
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turn Signals NOTE: If either light remains on and does not flash, or there is a very fast flash rate, check for a defective outside Move the multifunction lever up or down and the arrows light bulb.
Page 171: Flash-To-Pass
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 Flash-To-Pass You can signal another vehicle with your headlights by lightly pulling the multifunction lever toward you. This will turn on the high beam headlights until the lever is released. NOTE: If the multifunction lever is held in the flash-to- pass position for more than 15 seconds, the high beams will shut off.
Page 172: Daytime Running Lights (Drl) - If Equipped
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Daytime Running Lights (DRL) — If Equipped Instrument Panel Dimmer The headlights on your vehicle will illuminate when the Rotate the center portion of the lever to the extreme engine is started and the transmission is in any gear bottom position to fully dim the instrument panel lights except PARK.
Page 173: Map/Reading/Interior Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 aimed at a specific spot, if desired. The lights will remain on until the switch is pressed a second time, so be sure they have been turned off before leaving the vehicle. They will not turn off automatically.
Page 174: Battery Saver Feature
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE There is a second light located midway back in the WINDSHIELD WIPERS AND WASHERS headliner. The wipers and washers are operated by a switch To protect the battery, the interior lights will turn off on the control lever.
Page 175 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 Rotate the end of the lever to the LO position for NOTE: The wipers will automatically return to the park low-speed wiper operation, or to the HI position for position if you turn the ignition switch OFF while they high-speed wiper operation.
Page 176: Intermittent Wiper System
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Intermittent Wiper System Use the intermittent wiper system when weather condi- tions make a single wiping cycle with a variable pause between cycles desirable. Rotate the end of the wind- shield wiper/washer control lever to the first detent, and then turn the end of the lever to select the desired delay interval.
Page 177: Windshield Washers
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 Windshield Washers WARNING! To use the washer, pull the windshield wiper/washer Sudden loss of visibility through the windshield control lever toward you and hold it for as long as could lead to a collision. You might not see other washer spray is desired.
Page 178: Headlights With Wipers Feature (Available With Automatic Headlights Only)
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: The mist feature does not activate the washer Headlights With Wipers Feature (Available With pump; therefore, no washer fluid will be sprayed on the Automatic Headlights Only) windshield. The wash function must be used in order to When this feature is active, the headlights will turn on spray the windshield with washer fluid.
Page 179: Tilt/Telescoping Steering Column
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177 TILT/TELESCOPING STEERING COLUMN To unlock the steering column, pull the control handle down. To tilt the steering column, move the steering This feature allows you to tilt the steering column wheel upward or downward as desired. To lengthen or upward or downward.
Page 180: Electronic Speed Control - If Equipped
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ELECTRONIC SPEED CONTROL — IF EQUIPPED When engaged, the Electronic Speed Control takes over accelerator operations at speeds greater than 25 mph (40 km/h). The Electronic Speed Control buttons are located on the right side of the steering wheel.
Page 181: To Activate
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179 NOTE: In order to ensure proper operation, the Elec- WARNING! tronic Speed Control System has been designed to shut down if multiple Speed Control functions are operated at Leaving the Electronic Speed Control system on the same time.
Page 182: To Deactivate
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Deactivate increase until the button is released, then the new set speed will be established. A soft tap on the brake pedal, pushing the CANCEL button, or normal brake pressure while slowing the Pressing the RES (+) button once will result in a 1 mph vehicle will deactivate Electronic Speed Control without (1.6 km/h) increase in set speed.
Page 183: To Accelerate For Passing
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 To Accelerate For Passing WARNING! Press the accelerator as you would normally. When the Electronic Speed Control can be dangerous where the pedal is released, the vehicle will return to the set speed. system cannot maintain a constant speed.
Page 184: Garage Door Opener - If Equipped
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE GARAGE DOOR OPENER — IF EQUIPPED HomeLink® replaces up to three hand-held transmitters that operate devices such as garage door openers, motor- ized gates, lighting or home security systems. The HomeLink® unit is powered by your vehicles 12 Volt battery.
Page 185: Before You Begin Programming Homelink
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 Before You Begin Programming HomeLink® Be sure that your vehicle is parked outside of the garage before you begin programming. For more efficient programming and accurate transmis- sion of the radio-frequency signal it is recommended that a new battery be placed in the hand-held transmitter of the device that is being programmed to the HomeLink®...
Page 186: Programming A Rolling Code
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: • Erasing all channels should only be performed when programming HomeLink® for the first time. Do not erase channels when programming additional buttons. • If you have any problems, or require assistance, please call toll-free 1–800–355–3515 or, on the Internet at www.HomeLink.com for information or assistance.
Page 187 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185 1. Cycle the ignition to the ON/RUN position. attached to the garage door opener/device motor. Firmly press and release the “LEARN” or “TRAIN- 2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm) ING”...
Page 188: Programming A Non-Rolling Code
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Reprogramming A Single HomeLink® Button 3. Simultaneously press and hold both the HomeLink® button you want to program and the hand-held trans- To reprogram a channel that has been previously trained, mitter button. follow these steps: 4.
Page 189: Canadian/Gate Operator Programming
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187 Reprogramming A Single HomeLink® Button Canadian radio frequency laws require transmitter sig- nals to time-out (or quit) after several seconds of trans- To reprogram a channel that has been previously trained, mission – which may not be long enough for HomeLink® follow these steps: to pick up the signal during programming.
Page 190: Using Homelink
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE successfully accepted the frequency signal. The indi- Reprogramming A Single HomeLink® Button cator light will flash slowly and then rapidly when To reprogram a channel that has been previously trained, fully trained. follow these steps: 4.
Page 191: Security
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189 • Did you unplug the device for programming and Security remember to plug it back in? It is advised to erase all channels before you sell or turn in your vehicle. If you have any problems, or require assistance, please call toll-free 1–800–355–3515 or, on the Internet at To do this, press and hold the two outside buttons for www.HomeLink.com for information or assistance.
Page 192: General Information
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: WARNING! (Continued) • The transmitter has been tested and it complies with or, on the Internet at www.HomeLink.com for FCC and IC rules. Changes or modifications not ex- safety information or assistance. pressly approved by the party responsible for compli- •...
Page 193: Power Sunroof - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191 POWER SUNROOF — IF EQUIPPED WARNING! The sunroof controls are mounted between the dome/ • Never leave children alone in a vehicle, or with reading lights. access to an unlocked vehicle. Never leave the key fob in or near the vehicle.
Page 194: Opening Sunroof - Express
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Opening Sunroof — Express position. The sunroof will close fully and stop automati- cally. This is called “Express Close”. During Express Press the switch rearward and release it within one-half Close operation, any movement of the switch will stop second.
Page 195: Venting Sunroof - Express
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193 NOTE: If three consecutive sunroof close attempts re- Wind Buffeting sult in Pinch Protect reversals, the fourth close attempt Wind buffeting can be described as the perception of will be a Manual Close movement with Pinch Protect pressure on the ears or a helicopter-type sound in the disabled.
Page 196: Ignition Off Operation
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Ignition Off Operation ELECTRICAL POWER OUTLETS For Vehicles Not Equipped With The Electronic Vehicle There are two 12 Volt (13 Amp) electrical power outlets on this vehicle. Both of the power outlets are protected by Information Center (EVIC) a fuse.
Page 197 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195 Instrument Panel Power Outlet Center Console Power Outlet NOTE: To preserve the heating element, do not hold the The center console power outlet is powered directly from lighter in the heating position. the battery (power available at all times). Items plugged into this power outlet may discharge the battery and/or A second power outlet is located inside the center console.
Page 198 196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: To ensure proper operation a MOPAR® knob and element must be used. CAUTION! • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded the fuse protecting the system will need to be replaced.
Page 199 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197 WARNING! CAUTION! • Many accessories that can be plugged in draw To avoid serious injury or death: • Only devices designed for use in this type of outlet power from the vehicle’s battery, even when not in should be inserted into any 12 Volt outlet.
Page 200: Cigar Lighter And Ash Receiver - If Equipped
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CIGAR LIGHTER AND ASH RECEIVER — CUPHOLDERS IF EQUIPPED There are two cupholders located in the center console An optional ash receiver is available from your autho- for the front passengers. rized dealer and will fit in the center console front cupholder.
Page 201: Rear Seat Bottle Holder
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199 Rear Seat Bottle Holder WARNING! There are built-in bottle holders located in both rear door If containers of hot liquid are placed in the bottle trim panels. holder, they can spill when the door is closed, burn- ing the occupants.
Page 202: Storage
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE STORAGE Pull on the handle to open the glovebox. Glovebox Storage Compartment The glovebox storage compartment is located on the right side of the instrument panel. Opened Glovebox Glovebox Storage Compartment...
Page 203: Console Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201 CONSOLE FEATURES Storage The center console is located between the front driver and passenger seats. The center console armrest slides forward from design position to provide added user comfort. The center console can be used for storage and is also equipped with an electrical power outlet.
Page 204 202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: • A notch in the front of the console base allows for use of a cellular phone while it is plugged into the power outlet with the armrest latched down. • The power outlet can also energize the cigar lighter in the optional cup holder ash receiver.
Page 205: Cargo Area Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203 CARGO AREA FEATURES WARNING! The 60/40 split-folding rear seat provides cargo-carrying • Be certain that the seatback is securely locked into versatility. The seatbacks fold down easily by pulling position. If the seatback in not securely locked into nylon tabs between the seatbacks and the bolsters.
Page 206: Ski Pass-Through
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Ski Pass-Through WARNING! (Continued) There is a ski pass-through door located behind the rear • The weight and position of cargo and passengers seat armrest that allows longer items, such as snow skis, can change the vehicle center of gravity and vehicle to be stored in the rear cargo area.
Page 207: Rear Window Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205 REAR WINDOW FEATURES CAUTION! Rear Window Defroster Failure to follow these cautions can cause damage to The rear window defroster button is located on the heating elements: the climate control (Mode) knob. Press this button •...
Page 209 UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS ▫ ELECTRONIC VEHICLE INFORMATION INSTRUMENT PANEL FEATURES ..210 CENTER (EVIC) Main Menu ... . .233 INSTRUMENT CLUSTER ....211 ▫...
Page 210 208 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ Operation Instructions — CD MODE for Uconnect® 730N/430/430N CD/DVD/ HDD/NAV — If Equipped ....242 CD and MP3 Audio Play ....258 ▫...
Page 211 UNDERSTANDING YOUR INSTRUMENT PANEL 209 ▫ Play Mode ......270 CD/DVD DISC MAINTENANCE ...277 ▫...
Page 212: Instrument Panel Features
210 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlet 5 — Passenger Airbag 9 — Power Outlet 2 — Side Window Demister Outlet 6 — Glove Compartment 10 — Climate Controls 3 — Instrument Cluster 7 — Heated Seat Switch — If Equipped 11 —...
Page 213: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 211 INSTRUMENT CLUSTER...
Page 214: Instrument Cluster - R/T
212 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER — R/T...
Page 215: Instrument Cluster Descriptions
UNDERSTANDING YOUR INSTRUMENT PANEL 213 INSTRUMENT CLUSTER DESCRIPTIONS removes this heat. You can also turn the Temperature control to maximum heat, the Mode control to Floor and 1. Temperature Gauge the Fan control to High. This allows the heater core to act The temperature gauge shows engine coolant tempera- as a supplement to the radiator and aids in removing heat ture.
Page 216 214 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Low Fuel Light If jump starting is required, refer to “Jump Starting Procedures” in “What To Do In Emergencies”. When the fuel level drops to approximately 7. Air Bag Warning Light 2.0 gallons (7.6 Liters), the fuel symbol will light and a single chime will sound.
Page 217 UNDERSTANDING YOUR INSTRUMENT PANEL 215 belt remains unbuckled, the Seat Belt Warning Light will 10. Engine Temperature Warning Light flash or remain on continuously. Refer to “Occupant This light warns of an overheated engine condi- Restraints” in “Things To Know Before Starting Your tion.
Page 218 216 UNDERSTANDING YOUR INSTRUMENT PANEL 11. Brake Warning Light If brake failure is indicated, immediate repair is necessary. This light monitors various brake functions, WARNING! including brake fluid level and parking brake application. If the brake light turns on it may Driving a vehicle with the brake light on is danger- indicate that the parking brake is applied, that ous.
Page 219 UNDERSTANDING YOUR INSTRUMENT PANEL 217 off unless the parking brake is applied or a brake fault is NOTE: You must apply the brakes before shifting from detected. If the light does not illuminate, have the light PARK. inspected by an authorized dealer. 14.
Page 220 218 UNDERSTANDING YOUR INSTRUMENT PANEL The two trip odometers show individual trip mileage. To switch from odometer to trip odometers, press and CHANgE OIL ....Oil Change Required release the Trip Odometer button.
Page 221 UNDERSTANDING YOUR INSTRUMENT PANEL 219 HOTOIL If the problem continues, the message will appear the next time the vehicle is started. See your authorized When this message is displayed there is a engine oil dealer service center as soon as possible. over-temperature condition.
Page 222 220 UNDERSTANDING YOUR INSTRUMENT PANEL the oil change indicator system (after performing the 15. Cruise Indicator — If Equipped scheduled maintenance) perform the following procedure: This indicator shows that the Electronic Speed 1. Turn the ignition switch to the ON/RUN position (do Control System is ON.
Page 223 UNDERSTANDING YOUR INSTRUMENT PANEL 221 17. Electronic Throttle Control (ETC) Indicator Light 18. Park/Headlight ON Indicator — If Equipped This light informs you of a problem with the This indicator will illuminate when the park Electronic Throttle Control (ETC) system. If a lights or headlights are turned on.
Page 224 222 UNDERSTANDING YOUR INSTRUMENT PANEL 21. Vehicle Security Light — If Equipped (kilometers) at speeds greater than 30 mph (48 km/h), see your authorized dealer as soon as possible to have the This light will flash rapidly for approximately problem diagnosed and corrected. 16 seconds when the alarm system is arming.
Page 225 UNDERSTANDING YOUR INSTRUMENT PANEL 223 23. Front Fog Light Indicator — If Equipped Accordingly, when the low tire pressure telltale illumi- nates, you should stop and check your tires as soon as This indicator will illuminate when the front fog possible, and inflate them to the proper pressure.
Page 226 224 UNDERSTANDING YOUR INSTRUMENT PANEL illuminated. This sequence will continue upon subse- CAUTION! (Continued) quent vehicle start-ups as long as the malfunction exists. equipped on your vehicle. Undesirable system opera- When the malfunction indicator is illuminated, the sys- tion or sensor damage may result when using re- tem may not be able to detect or signal low tire pressure placement equipment that is not of the same size, as intended.
Page 227 UNDERSTANDING YOUR INSTRUMENT PANEL 225 Certain conditions, such as a loose or missing gas cap, WARNING! poor fuel quality, etc., may illuminate the light after engine start. The vehicle should be serviced if the light A malfunctioning catalytic converter, as referenced stays on through several of your typical driving cycles.
Page 228 226 UNDERSTANDING YOUR INSTRUMENT PANEL If the ABS light remains on or comes on during driving, 27. Transmission Temperature Warning Light — it indicates that the Anti-Lock portion of the brake system If Equipped is not functioning and that service is required, however, This light indicates that the transmission fluid the conventional brake system will continue to operate temperature is running hot.
Page 229: Mini-Trip Computer - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 227 MINI-TRIP COMPUTER — IF EQUIPPED WARNING! The Mini-Trip Computer is located in the instrument If you continue operating the vehicle when the cluster and features a driver-interactive trip information Transmission Temperature Warning Light is illumi- and temperature display.
Page 230: Control Buttons
228 UNDERSTANDING YOUR INSTRUMENT PANEL Control Buttons RESET Button To reset the display shown, turn the ignition switch to the ON position, then press and hold the RESET button located on the steering wheel. The following displays can be reset or changed: •...
Page 231: Electronic Vehicle Information Center (Evic) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 229 ELECTRONIC VEHICLE INFORMATION CENTER The EVIC consists of the following: (EVIC) — IF EQUIPPED • Compass Heading Display (N, S, E, W, NE, NW, SE, SW) The Electronic Vehicle Information Center (EVIC) fea- • Mileage (Avg/MPG) tures a driver-interactive display that is located in the •...
Page 232 230 UNDERSTANDING YOUR INSTRUMENT PANEL The system allows the driver to select information by MENU Button pressing the following buttons mounted on the steering Press and release the MENU button to advance wheel: the display to each of the EVIC Main Menu features.
Page 233: Electronic Vehicle Information Center (Evic) Displays
UNDERSTANDING YOUR INSTRUMENT PANEL 231 • RKE (Remote Keyless Entry) Battery Low (with a SELECT Button single chime) Press and release the SELECT Button to accept • Personal Settings Not Avail – Vehicle Not In PARK a selection. The SELECT Button also resets various Trip Functions.
Page 234: Oil Change Required - If Equipped
232 UNDERSTANDING YOUR INSTRUMENT PANEL • Remote start aborted — Door ajar Oil Change Required — If Equipped • Remote start aborted — Hood ajar Your vehicle is equipped with an engine oil change indicator system. The Oil Change Required message will •...
Page 235: Electronic Vehicle Information Center (Evic) Main Menu
UNDERSTANDING YOUR INSTRUMENT PANEL 233 • Audio Information (if radio is on) display 2. Fully depress the accelerator pedal slowly three times within 10 seconds. • Average Fuel Economy 3. Turn the ignition switch to the LOCK position. • Distance to Empty NOTE: If the indicator message illuminates when you •...
Page 236: Compass Display
234 UNDERSTANDING YOUR INSTRUMENT PANEL When the SELECT button is pressed, the selected feature NOTE: The system will display the last known outside will reset and RESET ALL will display next to the temperature when starting the vehicle and may need to SELECT button graphic.
Page 237 UNDERSTANDING YOUR INSTRUMENT PANEL 235 NOTE: A good calibration requires a level surface and an 4. Press and release the SELECT button and the “CAL” environment free from large metallic objects such as indicator will start flashing. buildings, bridges, underground cables, railroad tracks, 5.
Page 238 236 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: Magnetic and battery powered devices, (such as To Change Compass Variance: cell phones, iPod’s, radar detectors, PDA’s and laptops) 1. Turn the ignition switch to the ON position. Leave the should be kept away from the top of the instrument panel. shift lever in PARK.
Page 239: Average Fuel Economy
UNDERSTANDING YOUR INSTRUMENT PANEL 237 Average Fuel Economy NOTE: Significant changes in driving style or vehicle loading will greatly affect the actual drivable distance of Shows the average fuel economy since the last reset. the vehicle, regardless of the DTE display value. Average Fuel Economy can be reset by pressing and holding the SELECT button (as prompted in the EVIC When the DTE value is less than 30 miles (48 km)
Page 240: Tire Psi
238 UNDERSTANDING YOUR INSTRUMENT PANEL Tire PSI Elapsed Time Press and release the MENU button until Tire PSI is Shows the total elapsed time of travel since the last reset. displayed. Elapsed time will increment when the ignition switch is in the RUN or START position.
Page 241: Evic Units Selection (Units In Display)
UNDERSTANDING YOUR INSTRUMENT PANEL 239 EVIC Units Selection (UNITS IN Display) Personal Settings (Customer-Programmable Features) Displays the units used for the Outside Temperature, Average Fuel Economy, Distance to Empty and Tire Personal Settings allows the driver to set and recall Pressure features.
Page 242 240 UNDERSTANDING YOUR INSTRUMENT PANEL Auto Unlock on Exit Sound Horn with Lock When ON is selected and the transaxle is in the PARK or When ON is selected, a short horn sound will occur when NEUTRAL position, all doors will unlock when the the RKE transmitter LOCK button is pressed.
Page 243 UNDERSTANDING YOUR INSTRUMENT PANEL 241 when exiting the vehicle. To make your selection, press Key-Off Power Delay the SELECT button until 0, 30, 60, or 90 seconds appears. When this feature is selected, the power window switches, radio, Uconnect® phone (if equipped), and Headlamps With Wipers (Available with Auto power outlets will remain active for up to 10 minutes Headlights Only)
Page 244: Uconnect® 730N/430/430N Cd/Dvd/Hdd/Nav - If Equipped
242 UNDERSTANDING YOUR INSTRUMENT PANEL Display Units In Uconnect® 730N/430/430N CD/DVD/HDD/NAV — If Equipped The EVIC and odometer can be changed between English and Metric units of measure. To make your selection, Refer to your Uconnect® 730N, 430 or 430N user’s press and release the SELECT button until “U.S.”...
Page 245: Uconnect® 130
UNDERSTANDING YOUR INSTRUMENT PANEL 243 Uconnect® 130 Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio. Power Switch/Volume Control (Rotary) Push the ON/VOLUME control knob to turn on the radio.
Page 246 244 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons 3. After adjusting the hours, press the right side TUNE/ SCROLL control knob to set the minutes. The minutes Press and release the SEEK buttons to search for the next will begin to blink. listenable station in AM/FM mode.
Page 247 UNDERSTANDING YOUR INSTRUMENT PANEL 245 Setting the Tone, Balance, and Fade Push the rotary TUNE/SCROLL control knob a fifth time and FADE will display. Turn the TUNE/SCROLL control Push the rotary TUNE/SCROLL control knob and BASS knob to the left or right to adjust the sound level between will display.
Page 248: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
246 UNDERSTANDING YOUR INSTRUMENT PANEL is not selected within five seconds after pressing the Buttons 1 - 6 SET/RND button, the station will continue to play but These buttons tune the radio to the stations that you commit will not be stored into pushbutton memory. to pushbutton memory (12 AM and 12 FM stations).
Page 249 UNDERSTANDING YOUR INSTRUMENT PANEL 247 Inserting Compact Disc(s) CAUTION! (Continued) Gently insert one CD into the CD player with the CD • Do not use adhesive labels. These labels can peel label facing up. The CD will automatically be pulled into away and jam the player mechanism.
Page 250 248 UNDERSTANDING YOUR INSTRUMENT PANEL A disc can be ejected with the radio and ignition OFF. RW/FF Press and hold the FF (Fast Forward) button and the CD NOTE: Ejecting with the ignition OFF is not allowed on player will begin to fast forward until FF is released, or convertible or soft-top models (if equipped).
Page 251: Notes On Playing Mp3 Files
UNDERSTANDING YOUR INSTRUMENT PANEL 249 Notes on Playing MP3 Files The radio uses the following limits for file systems: • Maximum number of folder levels: 8 The radio can play MP3 files; however, acceptable MP3 file recording media and formats are limited. When •...
Page 252 250 UNDERSTANDING YOUR INSTRUMENT PANEL Multisession disc formats are supported by the radio. Sampling MPEG Multisession discs may contain combinations of normal Frequency Bit Rate (kbps) Specification CD audio tracks and computer files (including MP3 files). (kHz) Discs created with an option such as keep disc open after MPEG-1 Audio 48, 44.1, 32 320, 256, 224,...
Page 253: Operation Instructions - Auxiliary Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 251 Playback of MP3 Files Operation Instructions - Auxiliary Mode When a medium containing MP3 data is loaded, the The auxiliary (AUX) jack is an audio input jack, which radio checks all files on the medium. If the medium allows the user to plug in a portable device, such as an contains a lot of folders or files, the radio will take more MP3 player, or iPod®, and utilize the vehicle’s audio...
Page 254: Uconnect® 130 With Satellite Radio
252 UNDERSTANDING YOUR INSTRUMENT PANEL Uconnect® 130 WITH SATELLITE RADIO Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON/RUN or ACC position to operate the radio. Power Switch/Volume Control (Rotary) Push the ON/VOLUME control knob to turn on the radio.
Page 255 UNDERSTANDING YOUR INSTRUMENT PANEL 253 SEEK Buttons If your vehicle is not equipped with or this feature is not available on your vehicle, a “Not Equipped With Uconnect Press and release the SEEK buttons to search for the next Phone” message will display on the radio screen. listenable station in AM/FM mode.
Page 256 254 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Adjust the minutes using the right side TUNE/ RW/FF SCROLL control knob. Press the TUNE/SCROLL con- Pressing the RW (Rewind) or FF (Fast Forward) buttons trol knob to save time change. causes the tuner to search for the next frequency in the direction of the arrows.
Page 257 UNDERSTANDING YOUR INSTRUMENT PANEL 255 Push the rotary TUNE/SCROLL control knob a third MUSIC TYPE Button time and TREBLE will display. Turn the TUNE/SCROLL Pressing this button once will turn on the Music Type control knob to the right or left to increase or decrease the mode for five seconds.
Page 258 256 UNDERSTANDING YOUR INSTRUMENT PANEL 16-Digit Character 16-Digit Character Program Type Program Type Display Display College College Soft Soft Country Country Soft Rock Soft Rck Foreign Language Language Soft Rhythm and Blues Soft R&B Information Inform Sports Sports Jazz Jazz Talk Talk News...
Page 259 UNDERSTANDING YOUR INSTRUMENT PANEL 257 SETUP Button button. The symbol SET 1 will now show in the display window. Select the button (1–6) you wish to lock onto this Pressing the SETUP button allows you to select between station and press and release that button. If a button is the following items: not selected within five seconds after pressing the SET/ •...
Page 260: Operation Instructions - Cd Mode For
258 UNDERSTANDING YOUR INSTRUMENT PANEL Buttons 1 - 6 Inserting Compact Disc(s) These buttons tune the radio to the stations that you commit Gently insert one CD into the CD player with the CD to pushbutton memory (12 AM and 12 FM stations). label facing up.
Page 261 UNDERSTANDING YOUR INSTRUMENT PANEL 259 A disc can be ejected with the radio and ignition OFF. CAUTION! (Continued) NOTE: Ejecting with the ignition OFF is not allowed on • Do not use adhesive labels. These labels can peel convertible or soft-top models (if equipped). away and jam the player mechanism.
Page 262: Notes On Playing Mp3 Files
260 UNDERSTANDING YOUR INSTRUMENT PANEL RW/FF Notes On Playing MP3 Files Press and hold FF (Fast Forward) and the CD player will The radio can play MP3 files; however, acceptable MP3 file begin to fast forward until FF is released or RW or recording media and formats are limited.
Page 263 UNDERSTANDING YOUR INSTRUMENT PANEL 261 The radio uses the following limits for file systems: Multisession disc formats are supported by the radio. Multisession discs may contain combinations of normal • Maximum number of folder levels: 8 CD audio tracks and computer files (including MP3 files). •...
Page 264 262 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3 Files Sampling MPEG Frequency Bit Rate (kbps) When a medium containing MP3 data is loaded, the Specification (kHz) radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more MPEG-1 Audio 48, 44.1, 32 320, 256, 224,...
Page 265: List Button (Cd Mode For Mp3 Play)
UNDERSTANDING YOUR INSTRUMENT PANEL 263 LIST Button (CD Mode for MP3 Play) Press and hold the INFO button for three seconds or more and the radio will display song titles for each file. Pressing the LIST button will bring up a list of all folders on the disc.
Page 266: Operating Instructions (Uconnect® Phone) - If Equipped
264 UNDERSTANDING YOUR INSTRUMENT PANEL TIME Button (Auxiliary Mode) System Activation Press this button to change the display to time of day. The Sirius Satellite Radio service is pre-activated, and you time of day will display for five seconds (when the may begin listening immediately to the one year of audio ignition is OFF).
Page 267 UNDERSTANDING YOUR INSTRUMENT PANEL 265 To access the ESN/SID, refer to the following steps: decreased performance. Larger luggage items such as bikes should be placed as far rearward as possible, within ESN/SID Access the loading design of the rack. Do not place items directly With the ignition switch in the ON/RUN or ACC posi- on or above the antenna.
Page 268 266 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions - Uconnect® Multimedia INFO Button (Satellite) Mode Pressing the INFO button will cycle the display informa- tion between Artist, Song Title, and Composer (if avail- NOTE: The ignition switch must be in the ON/RUN or able).
Page 269 UNDERSTANDING YOUR INSTRUMENT PANEL 267 MUSIC TYPE Button SETUP Button Pressing this button once will turn on the Music Type Pressing the SETUP button allows you to select the mode for five seconds. Pressing the MUSIC TYPE button following items: or turning the TUNE/SCROLL control knob within five •...
Page 270: Ipod®/Usb/Mp3 Control - If Equipped
268 UNDERSTANDING YOUR INSTRUMENT PANEL You may add a second channel to each pushbutton by iPod®/USB/MP3 CONTROL — IF EQUIPPED repeating the above procedure with this exception: Press This feature allows an iPod® or external USB device to be the SET button twice and SET 2 will show in the display plugged into the USB port, located in the center of the window.
Page 271: Connecting The Ipod® Or External Usb Device
UNDERSTANDING YOUR INSTRUMENT PANEL 269 Connecting The iPod® Or External USB Device Once the audio device is connected and synchronized to the vehicle’s iPod®/USB/MP3 control system (iPod® or Use the connection cable to connect an iPod® or external external USB device may take a few minutes to connect), USB device to the vehicle’s USB connector port which is the audio device starts charging and is ready for use by located in the center of the instrument panel below the...
Page 272: Controlling The Ipod® Or External Usb Device Using Radio Buttons
270 UNDERSTANDING YOUR INSTRUMENT PANEL • The audio device can be controlled using the radio mode. In Play mode, the following buttons on the radio buttons to Play, Browse, and List the iPod® contents. faceplate may be used to control the iPod® or external USB device and display data: •...
Page 273 UNDERSTANDING YOUR INSTRUMENT PANEL 271 • A single press backward << RW or forward FF>> will • Press the SCAN button to use iPod®/USB/MP3 de- jump backward or forward respectively, for five sec- vice scan mode, which will play the first 10 seconds of onds.
Page 274: List Or Browse Mode
272 UNDERSTANDING YOUR INSTRUMENT PANEL • During all List modes, the iPod® displays all lists in List Or Browse Mode “wrap-around” mode. So if the track is at the bottom During Play mode, pressing any of the buttons described of the list, just turn the wheel backward (counter- below, will bring up List mode.
Page 275: Bluetooth Streaming Audio (Btsa)
UNDERSTANDING YOUR INSTRUMENT PANEL 273 • LIST button: The LIST button will display the top CAUTION! (Continued) level menu of the iPod® or external USB device. Turn • Placing items on the iPod® or external USB device, the TUNE control knob to list the top-menu item to be or connections to the iPod®...
Page 276 274 UNDERSTANDING YOUR INSTRUMENT PANEL Controlling BTSA Using Radio Buttons 3. Say the name of the audio device or ask the Uconnect® phone system to list the audio devices. To enter BTSA mode, press either “AUX” button on the radio or press the VR button and say “Bluetooth Stream- Next Track ing Audio”.
Page 277: Steering Wheel Audio Controls - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 275 STEERING WHEEL AUDIO CONTROLS — The remote sound system controls are located on the rear IF EQUIPPED surface of the steering wheel, at the three and nine o’clock positions. The right-hand rocker switch has a pushbutton in the center, and controls the volume and mode of the sound system.
Page 278: Right-Hand Switch Functions
276 UNDERSTANDING YOUR INSTRUMENT PANEL Right-Hand Switch Functions Left-Hand Switch Functions For Media (i.e., CD) Operation • Press the top of the switch to increase the volume. • Press the top of the switch once to listen to the next •...
Page 279: Cd/Dvd Disc Maintenance
UNDERSTANDING YOUR INSTRUMENT PANEL 277 CD/DVD DISC MAINTENANCE NOTE: If you experience difficulty in playing a particular disc, it may be damaged (i.e., scratched, reflective coating To keep a CD/DVD in good condition, take the following removed, a hair, moisture or dew on the disc) oversized, precautions: or have protection encoding.
Page 280: Climate Controls
278 UNDERSTANDING YOUR INSTRUMENT PANEL CLIMATE CONTROLS The Manual Temperature Controls consist of a series of outer rotary dials and inner push knobs. The air conditioning and heating system is designed to make you comfortable in all types of weather. Blower Control Manual Heating And Air Conditioning Rotate this control to regulate the...
Page 281 UNDERSTANDING YOUR INSTRUMENT PANEL 279 Temperature Control Air Conditioning Control Press this button to engage the Air Rotate this control to regulate the tem- Conditioning. A light will illuminate perature of the air inside the passenger when the Air Conditioning system is compartment.
Page 282 280 UNDERSTANDING YOUR INSTRUMENT PANEL • ECONOMY MODE NOTE: The center instrument panel outlets can be aimed so that they are directed toward the rear seat passengers If economy mode is desired, press the A/C button to turn for maximum airflow to the rear. OFF the indicator light and the A/C compressor.
Page 283 UNDERSTANDING YOUR INSTRUMENT PANEL 281 • Mix • Recirculation Control Air is directed through the floor, defrost, and side Pressing the Recirculation Control button will window demist outlets. This setting works best in temporarily put the system in recirculation cold or snowy conditions that require extra heat to the mode.
Page 284: Automatic Temperature Control (Atc) - If Equipped
282 UNDERSTANDING YOUR INSTRUMENT PANEL • The A/C will engage automatically to prevent fogging Automatic Temperature Control (ATC) — when the recirculation button is pressed and the mode If Equipped control is set to panel or Bi-Level. • Recirculated air is not allowed in Defrost modes. If the Recirculation button is pressed while in Defrost mode, the LED indicator will flash several times then go out.
Page 285 UNDERSTANDING YOUR INSTRUMENT PANEL 283 Automatic Operation You will experience the greatest efficiency by simply allowing the system to function automatically. Selecting The Automatic Temperature Control system automati- the “O” (OFF) position on the blower control stops the cally maintains the climate in the cabin of the vehicle at system completely and closes the outside air intake.
Page 286 284 UNDERSTANDING YOUR INSTRUMENT PANEL • If your air conditioning performance seems lower than Manual Operation expected, check the front of the A/C condenser located This system offers a full complement of manual override in front of the radiator for an accumulation of dirt or features, which consist of Blower Preferred Automatic, insects.
Page 287 UNDERSTANDING YOUR INSTRUMENT PANEL 285...
Page 288 286 UNDERSTANDING YOUR INSTRUMENT PANEL The operator can override the AUTO mode setting to This feature gives improved comfort during sunny but change airflow distribution by rotating the Mode Control cool conditions. knob (on the right) to one of the following positions. •...
Page 289 UNDERSTANDING YOUR INSTRUMENT PANEL 287 • Air Conditioner Control NOTE: • When the ignition switch is turned to the LOCK Press this button to turn on the air conditioning during manual operation position, the recirculation feature will be cancelled. only. When the air conditioning is •...
Page 290: Operating Tips
288 UNDERSTANDING YOUR INSTRUMENT PANEL • Most of the time, when in Automatic Operation, you Blower Control can temporarily put the system into Recirculation For full automatic operation or for Mode by pressing the Recirculation button. However, automatic blower operation, turn the under certain conditions, while in Automatic Mode, knob to the AUTO position.
Page 291 UNDERSTANDING YOUR INSTRUMENT PANEL 289 Summer Operation conditioning system at idle for about five minutes in the fresh air and high blower settings. This will ensure The engine cooling system must be protected with a adequate system lubrication to minimize the possibility high-quality antifreeze coolant to provide proper corro- of compressor damage when the system is started again.
Page 292 290 UNDERSTANDING YOUR INSTRUMENT PANEL Side Window Demisters A/C Air Filter — If Equipped A side window demister outlet is located at each end of The A/C Filter prevents most dust and pollen from the instrument panel. These non-adjustable outlets direct entering the cabin.
Page 293 UNDERSTANDING YOUR INSTRUMENT PANEL 291 Control Setting Suggestions for Various Weather Conditions...
Page 295 STARTING AND OPERATING CONTENTS ▫ Brake/Transmission Shift Interlock System . . .305 STARTING PROCEDURES ....298 ▫ Automatic Transmission ....298 ▫...
Page 296 294 STARTING AND OPERATING ▫ Brake Assist System (BAS) ....334 DRIVING ON SLIPPERY SURFACES ..323 ▫ Acceleration ......323 ▫...
Page 297 STARTING AND OPERATING 295 ▫ All Season Tires – If Equipped ... .353 TIRE CHAINS (TRACTION DEVICES) ..360 ▫ Summer Or Three Season Tires – If Equipped . . .353 TIRE ROTATION RECOMMENDATIONS .
Page 298 296 STARTING AND OPERATING ▫ Fuel System Cautions....373 ADDING FUEL ......379 ▫...
Page 299 STARTING AND OPERATING 297 ▫ Trailer Towing Weights (Maximum Trailer RECREATIONAL TOWING Weight Ratings) ..... .386 (BEHIND MOTORHOME, ETC.) ... .395 ▫...
Page 300: Starting Procedures
298 STARTING AND OPERATING STARTING PROCEDURES WARNING! (Continued) Before starting your vehicle, adjust your seat, adjust the • Do not leave the key fob in or near the vehicle, or inside and outside mirrors, fasten your seat belt, and if in a location accessible to children, and do not present, instruct all other occupants to buckle their seat leave the ignition of a vehicle equipped with...
Page 301: Normal Starting
STARTING AND OPERATING 299 Normal Starting CAUTION! NOTE: Normal starting of either a cold or a warm Damage to the transmission may occur if the follow- engine is obtained without pumping or pressing the ing precautions are not observed: accelerator pedal. •...
Page 302: Extreme Cold Weather (Below -20°F Or −29°C)
300 STARTING AND OPERATING to start, the starter will disengage automatically in 10 sec- WARNING! (Continued) onds. If this occurs, turn the ignition switch to the LOCK • Do not attempt to push or tow your vehicle to get it position, wait 10 to 15 seconds, then repeat the “Normal started.
Page 303 STARTING AND OPERATING 301 Without Tip Start If the engine shows no sign of starting after two 15-second periods of cranking with the accelerator pedal held to the If the engine fails to start after you have followed the floor, repeat the “Normal Starting” or “Extreme Cold “Normal Starting”...
Page 304: After Starting
302 STARTING AND OPERATING The engine block heater must be plugged in at least one CAUTION! hour to have an adequate warning effect on the engine. To prevent damage to the starter, wait 10 to 15 seconds The engine block heater cord is bundled under the hood before trying again.
Page 305: Automatic Transmission
STARTING AND OPERATING 303 AUTOMATIC TRANSMISSION NOTE: You MUST press and hold the brake pedal while shifting out of PARK. CAUTION! WARNING! Damage to the transmission may occur if the follow- • It is dangerous to shift out of PARK or NEUTRAL ing precautions are not observed: •...
Page 306 304 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Unintended movement of a vehicle could injure • Never leave children alone in a vehicle, or with those in and near the vehicle. As with all vehicles, access to an unlocked vehicle. Allowing children to you should never exit a vehicle while the engine is be in a vehicle unattended is dangerous for a running.
Page 307: Key Ignition Park Interlock
STARTING AND OPERATING 305 Key Ignition Park Interlock Brake/Transmission Shift Interlock System This vehicle is equipped with a Key Ignition Park Inter- This vehicle is equipped with a Brake Transmission Shift lock which requires the shift lever to be placed in PARK Interlock system (BTSI) that holds the shift lever in PARK before the ignition switch can be turned to the LOCK/ unless the brakes are applied.
Page 308: Gear Ranges
306 STARTING AND OPERATING The electronically-controlled transmission provides a PARK precise shift schedule. The transmission electronics are This range supplements the parking brake by locking the self-calibrating; therefore, the first few shifts on a new transmission. The engine can be started in this range. vehicle may be somewhat abrupt.
Page 309 STARTING AND OPERATING 307 WARNING! WARNING! (Continued) someone or something. Only shift into gear when • Never use the PARK position as a substitute for the the engine is idling normally and your foot is parking brake. Always apply the parking brake firmly pressing the brake pedal.
Page 310 308 STARTING AND OPERATING WARNING! (Continued) CAUTION! • When leaving the vehicle, always remove the igni- • Before moving the shift lever out of PARK, you must tion key and lock your vehicle. Never leave children start the engine, and also press the brake pedal. alone in a vehicle, or with access to an unlocked Otherwise, damage to the shift lever could result.
Page 311 STARTING AND OPERATING 309 • Look at the shift lever position display and verify that WARNING! it indicates the PARK position. Do not coast in NEUTRAL and never turn off the • With brake pedal released, verify that the shift lever ignition to coast down a hill.
Page 312 310 STARTING AND OPERATING DRIVE During cold temperatures, transmission operation may be modified depending on engine and transmission This range should be used for most city and highway temperature as well as vehicle speed. This feature im- driving. It provides the smoothest upshifts and down- proves warm up time of the engine and transmission to shifts, and the best fuel economy.
Page 313 STARTING AND OPERATING 311 will improve performance and extend transmission life PARK, REVERSE, and NEUTRAL will continue to oper- ate. The Malfunction Indicator Light (MIL) may be illu- by reducing excessive shifting and heat build-up. The 3 minated. Limp Home Mode allows the vehicle to be range should also be used when descending steep grades driven to an authorized dealer for service without dam- to avoid brake system distress.
Page 314 312 STARTING AND OPERATING • the engine coolant has reached an adequate tempera- NOTE: Even if the transmission can be reset, we recom- mend that you visit your authorized dealer at your ture, earliest possible convenience. Your authorized dealer has •...
Page 315: Six-Speed Automatic Transmission (62Te) - If Equipped
STARTING AND OPERATING 313 the engine speed is higher when the torque converter The electronically-controlled transmission provides a clutch is not engaged, it may seem as if the transmission precise shift schedule. The transmission electronics are is not shifting into Overdrive when cold. This is normal. self-calibrating;...
Page 316: Gear Ranges
314 STARTING AND OPERATING (below the Drive position) activates AutoStick® mode, Gear Ranges providing manual shift control and displaying the cur- DO NOT race the engine when shifting from PARK or rent gear in the instrument cluster. NEUTRAL into another gear range. NOTE: After selecting any gear range, wait a moment to allow the selected gear to engage before accelerating.
Page 317 STARTING AND OPERATING 315 When parking on a hill, apply the parking brake before WARNING! (Continued) shifting the transmission to PARK, otherwise the load on • Your vehicle could move and injure you and others the transmission locking mechanism may make it diffi- if it is not completely in PARK.
Page 318 316 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Unintended movement of a vehicle could injure or others could be seriously or fatally injured. Chil- those in or near the vehicle. As with all vehicles, dren should be warned not to touch the parking you should never exit a vehicle while the engine is brake, brake pedal or the shift lever.
Page 319 STARTING AND OPERATING 317 The following indicators should be used to ensure that NEUTRAL you have engaged the transmission into the PARK posi- Use this range when the vehicle is standing for prolonged tion: periods with the engine running. The engine may be •...
Page 320 318 STARTING AND OPERATING When frequent transmission shifting occurs (such as CAUTION! when operating the vehicle under heavy loading condi- tions, in hilly terrain, traveling into strong head winds, or Towing the vehicle, coasting, or driving for any other while towing heavy trailers), use the AutoStick® shift reason with the transmission in NEUTRAL can cause control (refer to “AutoStick®”...
Page 321 STARTING AND OPERATING 319 Clutch” in this section). During extremely cold tempera- In the event of a momentary problem, the transmission tures (-16°F [-27°C] or below), operation may briefly be can be reset to regain all forward gears by performing the limited to third gear only.
Page 322 320 STARTING AND OPERATING If the transmission cannot be reset, authorized dealer Torque Converter Clutch service is required. A feature designed to improve fuel economy has been included in the automatic transmission on your vehicle. Overdrive Operation A clutch within the torque converter engages automati- The automatic transmission includes an electronically cally at calibrated speeds.
Page 323: Autostick® - If Equipped
STARTING AND OPERATING 321 AUTOSTICK® – IF EQUIPPED In AutoStick® mode, the transmission will shift up or down when the driver moves the shift lever to the right AutoStick® is a driver-interactive transmission feature (+) or left (-), unless an engine lugging or overspeed providing manual shift control, giving you more control condition would result.
Page 324 322 STARTING AND OPERATING • If a requested downshift would cause the engine to To disengage AutoStick® mode, return the shift lever to over-speed, that shift will not occur. the DRIVE position. You can shift in or out of the AutoStick®...
Page 325: Driving On Slippery Surfaces
STARTING AND OPERATING 323 DRIVING ON SLIPPERY SURFACES Traction When driving on wet or slushy roads, it is possible for a Acceleration wedge of water to build up between the tire and road Rapid acceleration on snow covered, wet, or other slip- surface.
Page 326: Driving Through Water
324 STARTING AND OPERATING DRIVING THROUGH WATER Shallow Standing Water Driving through water more than a few inches/ Although your vehicle is capable of driving through centimeters deep will require extra caution to ensure shallow standing water, consider the following Caution safety and prevent damage to your vehicle.
Page 327 STARTING AND OPERATING 325 CAUTION! (Continued) WARNING! • Driving through standing water may cause damage • Driving through standing water limits your vehi- to your vehicle’s drivetrain components. Always cle’s traction capabilities. Do not exceed 5 mph inspect your vehicle’s fluids (i.e., engine oil, trans- (8 km/h) when driving through standing water.
Page 328: Power Steering
326 STARTING AND OPERATING POWER STEERING This is due to the cold, thick fluid in the steering system. This noise should be considered normal, and it The standard power steering system will give you good does not in any way damage the steering system. vehicle response and increased ease of maneuverability in tight spaces.
Page 329: Power Steering Fluid Check
STARTING AND OPERATING 327 Power Steering Fluid Check WARNING! Checking the power steering fluid level at a defined Fluid level should be checked on a level surface and service interval is not required. The fluid should only be with the engine off to prevent injury from moving checked if a leak is suspected, abnormal noises are parts and to ensure accurate fluid level reading.
Page 330: Parking Brake
328 STARTING AND OPERATING PARKING BRAKE The parking brake lever is located in the center console. To apply the parking brake, pull the lever up as firmly as Before leaving the vehicle, make sure that the parking possible. To release the parking brake, pull the lever up brake is fully applied.
Page 331 STARTING AND OPERATING 329 When parking on a hill, it is important to turn the front WARNING! (Continued) wheels toward the curb on a downhill grade and away • Never leave children alone in a vehicle, or with from the curb on an uphill grade. Apply the parking access to an unlocked vehicle.
Page 332: Anti-Lock Brake System (Abs)
330 STARTING AND OPERATING computer to modulate the hydraulic pressure to prevent WARNING! (Continued) wheel lock-up and avoid skidding on slippery surfaces. • Do not leave the key fob in or near the vehicle, or in a location accessible to children. A child could WARNING! operate power windows, other controls, or move •...
Page 333 STARTING AND OPERATING 331 If the “Anti-Lock Brake Warning Light” is on, the brake WARNING! (Continued) system should be serviced as soon as possible to restore • The capabilities of an ABS-equipped vehicle must the benefits of anti-lock brakes. If the “Anti-Lock Brake never be exploited in a reckless or dangerous Warning Light”...
Page 334: Electronic Brake Control System
332 STARTING AND OPERATING ABS is activated during braking under certain road or WARNING! stopping conditions. ABS-inducing conditions can in- The Anti-Lock Brake System contains sophisticated clude ice, snow, gravel, bumps, railroad tracks, loose electronic equipment that may be susceptible to debris, or panic stops.
Page 335: Anti-Lock Brake System (Abs)
STARTING AND OPERATING 333 Control (ESC). All systems work together to enhance WARNING! (Continued) vehicle stability and control in various driving conditions very slippery surfaces, or hydroplaning. The capa- and are commonly referred to as ESC. bilities of an ABS-equipped vehicle must never be Anti-Lock Brake System (ABS) exploited in a reckless or dangerous manner which could jeopardize the user’s safety or the safety of...
Page 336: Brake Assist System (Bas)
334 STARTING AND OPERATING This feature remains active even if TCS and ESC are in WARNING! the “Partial Off” mode. Refer to “Electronic Stability • The BAS cannot prevent the natural laws of phys- Control (ESC)” in this section of this manual. ics from acting on the vehicle, nor can it increase Brake Assist System (BAS) braking efficiency beyond that afforded by the...
Page 337: Electronic Stability Control (Esc)
STARTING AND OPERATING 335 Electronic Stability Control (ESC) WARNING! This system enhances directional control and stability of Electronic Stability Control (ESC) cannot prevent the the vehicle under various driving conditions. ESC cor- natural laws of physics from acting on the vehicle, rects for over/under steering of the vehicle by applying nor can it increase the traction afforded by prevailing the brake of the appropriate wheel to assist in counter-...
Page 338 336 STARTING AND OPERATING ESC Operating Modes will be illuminated. All other stability features of ESC function normally, with the exception of engine power All ESC equipped vehicles can choose the following ESC reduction. This mode is intended to be used if the vehicle operating modes: is in deep snow, sand, or gravel conditions and more ESC On...
Page 339: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
STARTING AND OPERATING 337 To turn ESC on again, momentarily press the “ESC Off” mode by pressing the “ESC Off” switch. Once the situa- switch. This will restore the normal “ESC On” mode of tion requiring ESC to be switched to the “Partial Off” operation.
Page 340 338 STARTING AND OPERATING If this light remains on after several ignition cycles, and NOTE: the vehicle has been driven several miles (kilometers) at • The “ESC Off Indicator Light” and the “ESC speeds greater than 30 mph (48 km/h), see your autho- Activation/Malfunction Indicator Light”...
Page 341: Tire Safety Information
STARTING AND OPERATING 339 TIRE SAFETY INFORMATION NOTE: • P (Passenger) - Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
Page 342 340 STARTING AND OPERATING • Temporary spare tires are spares designed for tempo- • High flotation tire sizing is based on U.S. design rary emergency use only. Temporary high pressure standards and it begins with the tire diameter molded compact spare tires have the letter “T” or “S” molded into the sidewall.
Page 343 STARTING AND OPERATING 341 EXAMPLE: 10.5 = Section width in inches (in) R = Construction code — R means radial construction — D means diagonal or bias construction 15 = Rim diameter in inches (in) Service Description: 95 = Load Index —...
Page 344: Tire Identification Number (Tin)
342 STARTING AND OPERATING EXAMPLE: Load Identification: ..blank..= Absence of any text on the sidewall of the tire indicates a Standard Load (SL) tire Extra Load (XL) = Extra load (or reinforced) tire Light Load (LL) = Light load tire C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure Maximum Load—...
Page 345 STARTING AND OPERATING 343 EXAMPLE: DOT MA L9 ABCD 0301 DOT = Department of Transportation — This symbol certifies that the tire is in compliance with the U.S. Department of Transportation tire safety standards and is approved for highway use MA = Code representing the tire manufacturing location (two digits) L9 = Code representing the tire size (two digits) ABCD = Code used by the tire manufacturer (one to four digits)
Page 346: Tire Terminology And Definitions
344 STARTING AND OPERATING Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is the structural member of the body located behind the front door. Cold tire inflation pressure is defined as the tire pressure after the vehicle has Cold Tire Inflation Pressure not been driven for at least 3 hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 347: Tire Loading And Tire Pressure
STARTING AND OPERATING 345 Tire Loading And Tire Pressure Tire And Loading Information Placard Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door.
Page 348 346 STARTING AND OPERATING To determine the maximum loading conditions of your 3) tire size designed for your vehicle vehicle, locate the statement “The combined weight of 4) cold tire inflation pressures for the front, rear, and occupants and cargo should never exceed XXX lbs or spare tires.
Page 349 STARTING AND OPERATING 347 4. The resulting figure equals the available amount of NOTE: cargo and luggage load capacity. For example, if • The following table shows examples on how to calcu- “XXX” amount equals 1,400 lbs (635 kg) and there will late total load, cargo/luggage, and towing capacities be five 150 lb (68 kg) passengers in your vehicle, the of your vehicle with varying seating configurations...
Page 350 348 STARTING AND OPERATING...
Page 351: Tires - General Information
STARTING AND OPERATING 349 Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.
Page 352: Tire Inflation Pressures
350 STARTING AND OPERATING Ride Comfort And Vehicle Stability WARNING! (Continued) Proper tire inflation contributes to a comfortable ride. • Unequal tire pressures from one side of the vehicle Over-inflation produces a jarring and uncomfortable to the other can cause the vehicle to drift to the ride.
Page 353 STARTING AND OPERATING 351 At least once a month: 1 mile (1.6 km) after a three hour period. The cold tire inflation pressure must not exceed the maximum infla- • Check and adjust tire pressure with a good quality tion pressure molded into the tire sidewall. pocket-type pressure gauge.
Page 354: Radial Ply Tires
352 STARTING AND OPERATING Tire Pressures For High Speed Operation Radial Ply Tires The manufacturer advocates driving at safe speeds and WARNING! within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high Combining radial ply tires with other types of tires speeds, maintaining correct tire inflation pressure is very on your vehicle will cause your vehicle to handle...
Page 355: All Season Tires - If Equipped
STARTING AND OPERATING 353 Consult an authorized tire dealer for tire repairs and on ice. Summer tires will not contain the all season additional information. designation or mountain/snowflake symbol on the tire sidewall. Use summer tires only in sets of four; failure to Damaged Run Flat tires, or Run Flat tires that have do so may adversely affect the safety and handling of experienced a loss of pressure should be replaced imme-...
Page 356: Spare Tire Matching Original Equipped Tire And Wheel - If Equipped
354 STARTING AND OPERATING original equipment or an authorized tire dealer for Compact Spare Tire – If Equipped recommended safe operating speeds, loading and cold The compact spare is for temporary emergency use only. tire inflation pressures. You can identify if your vehicle is equipped with a While studded tires improve performance on ice, skid compact spare by looking at the spare tire description on and traction capability on wet or dry surfaces may be...
Page 357: Full Size Spare - If Equipped
STARTING AND OPERATING 355 Do not install more than one compact spare tire and to the tread wear indicators, the temporary use full size wheel on the vehicle at any given time. spare tire needs to be replaced. Since it is not the same as your original equipment tire, replace (or repair) the WARNING! original equipment tire and reinstall on the vehicle at the...
Page 358: Tire Spinning
356 STARTING AND OPERATING Tire Spinning WARNING! When stuck in mud, sand, snow, or ice conditions, do not Limited-use spares are for emergency use only. In- spin your vehicle’s wheels above 30 mph (48 km/h) or stallation of this limited-use spare tire affects vehicle for longer than 30 seconds continuously without stop- handling.
Page 359: Tread Wear Indicators
STARTING AND OPERATING 357 Tread Wear Indicators These indicators are molded into the bottom of the tread grooves. They will appear as bands when the tread depth Tread wear indicators are in the original equipment tires becomes 1/16 in (2 mm). When the tread is worn to the to help you in determining when your tires should be tread wear indicators, the tire should be replaced.
Page 360: Replacement Tires
358 STARTING AND OPERATING “Tread Wear Indicators”. Refer to the Tire and Loading WARNING! Information placard or the Vehicle Certification Label for the size designation of your tire. The Load Index and Tires and the spare tire should be replaced after six Speed Symbol for your tire will be found on the original years, regardless of the remaining tread.
Page 361 STARTING AND OPERATING 359 WARNING! WARNING! (Continued) • Never use a tire with a smaller load index or • Do not use a tire, wheel size or rating other than capacity, other than what was originally equipped that specified for your vehicle. Some combinations on your vehicle.
Page 362: Starting And Operating
360 STARTING AND OPERATING TIRE CHAINS (TRACTION DEVICES) These effects can be reduced by timely rotation of tires. The benefits of rotation are especially worthwhile with Due to limited clearance, tire chains or traction devices aggressive tread designs such as those on all season type are not recommended.
Page 363: Tire Pressure Monitor System (Tpms)
STARTING AND OPERATING 361 The tire pressure will vary with temperature by about 1 psi (7 kPa) for every 12°F (6.5°C). This means that when the outside temperature decreases, the tire pressure will de- crease. Tire pressure should always be set based on cold inflation tire pressure.
Page 364 362 STARTING AND OPERATING The TPM System will continue to warn the driver of low pressure to approximately 23 psi (158 kPa). This tire tire pressure as long as the condition exists, and will not pressure is sufficiently low enough to turn ON the “Tire turn off until the tire pressure is at or above the recom- Pressure Monitoring Telltale Light.”...
Page 365 STARTING AND OPERATING 363 • Driving on a significantly under-inflated tire causes CAUTION! (Continued) the tire to overheat and can lead to tire failure. type, and/or style. Aftermarket wheels can cause Under-inflation also reduces fuel efficiency and tire sensor damage. Do not use aftermarket tire sealants tread life, and may affect the vehicle’s handling and or balance beads if your vehicle is equipped with a stopping ability.
Page 366: Base System
364 STARTING AND OPERATING Base System Tire Pressure Monitoring Low Pressure Warnings The Tire Pressure Monitor System (TPMS) uses wireless The “Tire Pressure Monitoring Telltale Light” will technology with wheel rim mounted electronic sensors to illuminate in the instrument cluster, a LOW monitor tire pressure levels.
Page 367 STARTING AND OPERATING 365 Check TPMS Warning 4. Using tire chains on the vehicle. The “Tire Pressure Monitoring Telltale Light” will flash 5. Using wheels/tires not equipped with TPM sensors. on and off for 75 seconds and then remain on solid when NOTE: a system fault is detected.
Page 368: Premium System - If Equipped
366 STARTING AND OPERATING 3. After driving the vehicle for up to 20 minutes above Premium System – If Equipped 15 mph (24 km/h), the “Tire Pressure Monitoring The Tire Pressure Monitor System (TPMS) uses wireless Telltale Light” will flash on and off for 75 seconds and technology with wheel rim mounted electronic sensors to then remain on solid.
Page 369 STARTING AND OPERATING 367 • Various Tire Pressure Monitoring System Messages, placard pressure value. Once the system receives the which display in the Electronic Vehicle Information updated tire pressures, the system will automatically Center (EVIC) update, the graphic display in the EVIC will stop flash- ing, and the “Tire Pressure Monitoring Telltale Light”...
Page 370 368 STARTING AND OPERATING If the ignition key is cycled, this sequence will repeat, 4. Using tire chains on the vehicle. providing the system fault still exists. If the system fault 5. Using wheels/tires not equipped with TPM sensors. no longer exists, the “Tire Pressure Monitoring Telltale Light”...
Page 371 STARTING AND OPERATING 369 NOTE: 4. For each subsequent ignition key cycle, a chime will sound, the “Tire Pressure Monitoring Telltale Light” 1. The compact spare tire (if so equipped) does not have will flash on and off for 75 seconds and then remain on a tire pressure monitoring sensor.
Page 372: General Information
370 STARTING AND OPERATING General Information FUEL REQUIREMENTS This device complies with part 15 of the FCC rules and This engine is designed to meet all emis- RSS 210 of Industry Canada. Operation is subject to the sions regulations and provide excellent fuel following conditions: economy and performance when using high-quality unleaded “regular”...
Page 373: Reformulated Gasoline
STARTING AND OPERATING 371 Over 40 auto manufacturers worldwide have issued and Gasoline/Oxygenate Blends endorsed consistent gasoline specifications (the World- Some fuel suppliers blend unleaded gasoline with oxy- wide Fuel Charter, WWFC) which define fuel properties genates such as Ethanol. Fuels blended with oxygenates necessary to deliver enhanced emissions, performance, may be used in your vehicle.
Page 374: E-85 Usage In Non-Flex Fuel Vehicles
372 STARTING AND OPERATING E-85 Usage In Non-Flex Fuel Vehicles To fix a Non-FFV vehicle inadvertently fueled once with E-85 perform the following: Non-FFV vehicles are compatible with gasoline contain- • drain the fuel tank (see your authorized dealer) ing 10% ethanol (E10). Gasoline with higher ethanol content may void the New Vehicle Limited Warranty.
Page 375: Materials Added To Fuel
STARTING AND OPERATING 373 beyond gasoline of the same octane number without Fuel System Cautions MMT. Gasoline blended with MMT reduces spark plug life and reduces emissions system performance in some CAUTION! vehicles. The manufacturer recommends that gasoline Follow these guidelines to maintain your vehicle’s without MMT be used in your vehicle.
Page 376: Carbon Monoxide Warnings
374 STARTING AND OPERATING Carbon Monoxide Warnings CAUTION! (Continued) • The use of fuel additives, which are now being WARNING! sold as octane enhancers, is not recommended. Carbon monoxide (CO) in exhaust gases is deadly. Most of these products contain high concentrations Follow the precautions below to prevent carbon of methanol.
Page 377: Flexible Fuel (3.6L Engine Only) - If Equipped
STARTING AND OPERATING 375 WARNING! (Continued) • Guard against carbon monoxide with proper main- tenance. Have the exhaust system inspected every time the vehicle is raised. Have any abnormal conditions repaired promptly. Until repaired, drive with all side windows fully open. FLEXIBLE FUEL (3.6L ENGINE ONLY) —...
Page 378: Ethanol Fuel (E-85)
376 STARTING AND OPERATING WARNING! Ethanol vapors are extremely flammable and could cause serious personal injury. Never have any smok- ing materials lit in or near the vehicle when remov- ing the fuel filler tube cap (gas cap) or filling the tank.
Page 379: Selection Of Engine Oil For Flexible Fuel Vehicles (E-85) And Gasoline Vehicles
STARTING AND OPERATING 377 • Some additives used in regular gasoline are not fully When you do switch fuel types it is recommended that: compatible with E-85 and may form deposits in your • you do not add less than 5 gallons (19 Liters) when engine.
Page 380: Starting
378 STARTING AND OPERATING Starting Replacement Parts The characteristics of E-85 fuel make it unsuitable for use Many components in your Flexible Fuel Vehicle (FFV) are when ambient temperatures fall below 0°F (-18°C). In the designed to be compatible with ethanol. Always be sure range of 0°F (-18°C) to 32°F (0°C), you may experience an that your vehicle is serviced with correct ethanol com- increase in the time it takes for your engine to start, and...
Page 381: Adding Fuel
STARTING AND OPERATING 379 ADDING FUEL After removing the gas cap, place the gas cap tether cable over a hook on the inside of the fuel door. This keeps the Fuel Filler Cap (Gas Cap) gas cap suspended away from and protects the vehicle’s The gas cap is behind the fuel filler door, on the left rear surface.
Page 382 380 STARTING AND OPERATING CAUTION! WARNING! (Continued) • Never add fuel when the engine is running. This is • Damage to the fuel system or emission control in violation of most state and federal fire regula- system could result from using an improper fuel tions and doing so may cause the MIL to turn on.
Page 383: Loose Filler Cap Message
STARTING AND OPERATING 381 Loose Filler Cap Message The label contains the following information: • Name of manufacturer If the vehicles diagnostic system determines that the fuel filler cap in loose, improperly installed, or damaged, a • Month and year of manufacture “gASCAP”...
Page 384: Gross Axle Weight Rating (Gawr)
382 STARTING AND OPERATING Gross Axle Weight Rating (GAWR) The best way to figure out the total weight of your vehicle is to weigh it when it is fully loaded and ready for The GAWR is the maximum capacity of the front and rear operation.
Page 385: Trailer Towing
STARTING AND OPERATING 383 driving. If weighing the loaded vehicle shows that you Common Towing Definitions have exceeded either GAWR, but the total load is within The following trailer towing related definitions will assist the specified GVWR, you must redistribute the weight. you in understanding the following information: Improper weight distribution can have an adverse effect Gross Vehicle Weight Rating (GVWR)
Page 386 384 STARTING AND OPERATING Gross Combination Weight Rating (GCWR) Tongue Weight (TW) The GCWR is the total permissible weight of your vehicle The tongue weight is the downward force exerted on the and trailer when weighed in combination. hitch ball by the trailer. In most cases it should not be less than 10% of the trailer load.
Page 387: Trailer Hitch Classification
STARTING AND OPERATING 385 Trailer Hitch Classification Trailer Hitch Classification Definitions The following chart provides the industry standard for Refer to the “Trailer Towing Weights (Maximum the maximum trailer weight a given trailer hitch class can Trailer Weight Ratings)” chart for the Maximum tow and should be used to assist you in selecting the Gross Trailer Weight (GTW) towable for your given correct trailer hitch for your intended towing condition.
Page 388: Trailer Towing Weights (Maximum Trailer Weight Ratings)
386 STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Max. Gross Trailer Wt. Max. Trailer Tongue Wt. Engine/Transmission Max. Frontal Area (GTW) (See Note 1) 2.4L/Auto 11 sq.ft.
Page 389: Trailer And Tongue Weight
STARTING AND OPERATING 387 Trailer And Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle.
Page 390: Towing Requirements
388 STARTING AND OPERATING NOTE: Remember that everything put into or on the CAUTION! (Continued) trailer adds to the load on your vehicle. Also, additional • Then, during the first 500 miles (805 km) that a factory-installed options or dealer-installed options must trailer is towed, do not drive over 50 mph (80 km/h) be considered as part of the total load on your vehicle.
Page 391 STARTING AND OPERATING 389 WARNING! (Continued) WARNING! (Continued) • When hauling cargo or towing a trailer, do not • Total weight must be distributed between the tow overload your vehicle or trailer. Overloading can vehicle and the trailer such that the following four cause a loss of control, poor performance, or dam- ratings are not exceeded: age to brakes, axle, engine, transmission, steering,...
Page 392 390 STARTING AND OPERATING Towing Requirements – Tires Towing Requirements – Trailer Brakes • Do not interconnect the hydraulic brake system or • Do not attempt to tow a trailer while using a compact vacuum system of your vehicle with that of the trailer. spare tire.
Page 393 STARTING AND OPERATING 391 CAUTION! WARNING! (Continued) • Towing any trailer will increase your stopping If the trailer weighs more than 1,000 lbs (454 kg) distance. When towing you should allow for addi- loaded, it should have its own brakes and they tional space between your vehicle and the vehicle should be of adequate capacity.
Page 394 392 STARTING AND OPERATING The electrical connections are all complete to the vehicle, but you must mate the harness to a trailer connector. Refer to the following illustrations. 1 — Battery 5 — Ground 2 — Backup Lamps 6 — Left Stop/Turn 3 —...
Page 395: Towing Tips
STARTING AND OPERATING 393 Towing Tips If you REGULARLY TOW a trailer for more than 45 minutes of continuous operation, then change the auto- Before setting out on a trip, practice turning, stopping, matic transmission fluid and filter as specified for “po- and backing up the trailer in an area located away from lice, taxi, fleet, or frequent trailer towing.”...
Page 396 394 STARTING AND OPERATING • Use speed control in flat terrain and with light loads to AutoStick® – If Equipped maximize fuel efficiency. – When using the AutoStick® shift control, select the highest gear that allows for adequate performance and Cooling System avoids frequent downshifts.
Page 397: Recreational Towing (Behind Motorhome, Etc.)
STARTING AND OPERATING 395 RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheels OFF the Ground All Models Flat Tow NONE NOT ALLOWED Dolly Tow Front Rear NOT ALLOWED On Trailer 3. Firmly apply the parking brake. Place the transmis- Recreational Towing –...
Page 398 396 STARTING AND OPERATING CAUTION! • DO NOT flat tow this vehicle. Damage to the drivetrain will result. • Towing this vehicle in violation of the above requirements can cause severe transmission dam- age. Damage from improper towing is not covered under the New Vehicle Limited Warranty.
Page 399: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS HAZARD WARNING FLASHERS ...398 JUMP-STARTING ..... . .412 ▫...
Page 400: Hazard Warning Flashers
398 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHERS IF YOUR ENGINE OVERHEATS The Hazard Warning flasher switch is located on the In any of the following situations, you can reduce the instrument panel, below the radio. potential for overheating by taking the appropriate action. •...
Page 401: Engine Oil Overheating (2.4L Engine Only) - If Equipped
WHAT TO DO IN EMERGENCIES 399 NOTE: There are steps that you can take to slow down WARNING! (Continued) an impending overheat condition: do not open the hood until the radiator has had time • If your air conditioner (A/C) is on, turn it off. The A/C to cool.
Page 402: Jacking And Tire Changing
400 WHAT TO DO IN EMERGENCIES JACKING AND TIRE CHANGING WARNING! (Continued) • The jack is designed to be used as a tool for WARNING! changing tires only. The jack should not be used to • Do not attempt to change a tire on the side of the lift the vehicle for service purposes.
Page 403: Preparations For Jacking
WHAT TO DO IN EMERGENCIES 401 Spare Tire Removal Preparations For Jacking Lift up the load floor cover and remove the hold down. 1. Park the vehicle on a firm, level surface. Avoid ice or slippery areas. WARNING! Do not attempt to change a tire on the side of the vehicle close to moving traffic, pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.
Page 404: Jacking Instructions
402 WHAT TO DO IN EMERGENCIES 5. Turn OFF the ignition. Jacking Instructions 6. Block both the front and rear of the wheel diagonally WARNING! opposite the jacking position. For example, if changing the right front Carefully follow these tire changing warnings to tire, block the left rear wheel.
Page 405 WHAT TO DO IN EMERGENCIES 403 WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a jack. • Do not get under the vehicle when it is on a jack. If you need to get under a raised vehicle, take it to a Jack Warning Label service center where it can be raised on a lift.
Page 406 404 WHAT TO DO IN EMERGENCIES 1. Remove the scissors jack and lug wrench from the spare wheel as an assembly. Turn the jack screw to the left to loosen the lug wrench, and remove the wrench from the jack assembly. NOTE: The jack handle attaches to the side of the jack with two attachment points.
Page 407 WHAT TO DO IN EMERGENCIES 405 3. There is a front and rear jacking location on each side CAUTION! of the vehicle. The plastic trim has been cut away to expose the jacking locations on the body. Do not attempt to raise the vehicle by jacking on locations other than those indicated in Step 3.
Page 408 406 WHAT TO DO IN EMERGENCIES jack head is properly engaged to the jacking location on the wheel to be changed. Do not raise the vehicle until you are sure the jack is securely engaged. Rear Jacking Location 4. Turn the jack screw to the left until the jack can be placed under the jacking location.
Page 409 WHAT TO DO IN EMERGENCIES 407 5. Raise the vehicle by turning the jack screw to the right, using the swivel wrench. Raise the vehicle only until the tire just clears the surface and enough clearance is obtained to install the spare tire. Minimum tire lift provides maximum stability.
Page 410 408 WHAT TO DO IN EMERGENCIES WARNING! • To avoid the risk of forcing the vehicle off the jack, do not tighten the lug nuts fully until the vehicle has been lowered. Failure to follow this warning may result in personal injury. •...
Page 411: Road Tire Installation
WHAT TO DO IN EMERGENCIES 409 9. Remove the wheel blocks and lower the jack until it is Road Tire Installation free. Release the parking brake before driving the Vehicles Equipped With Wheel Covers vehicle. Reassemble the lug wrench to the jack assem- bly and stow it in the spare tire area.
Page 412 410 WHAT TO DO IN EMERGENCIES 3. Align the valve notch in the wheel cover with the valve stem on the wheel. Install the cover by hand, snapping the cover over the two lug nuts. Do not use a hammer or excessive force to install the cover. 4.
Page 413 WHAT TO DO IN EMERGENCIES 411 6. Finish tightening the lug nuts. Push down on the WARNING! wrench while at the end of the handle for increased To avoid the risk of forcing the vehicle off the jack, leverage. Tighten the lug nuts in a star pattern until do not tighten the wheel nuts fully until the vehicle each nut has been tightened twice.
Page 414: Jump-Starting
412 WHAT TO DO IN EMERGENCIES JUMP-STARTING WARNING! If your vehicle has a discharged battery it can be jump- Do not attempt jump-starting if the battery is frozen. started using a set of jumper cables and a battery in It could rupture or explode and cause personal injury. another vehicle or by using a portable battery booster pack.
Page 415 WHAT TO DO IN EMERGENCIES 413 WARNING! • Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is ON. You can be injured by moving fan blades. • Remove any metal jewelry such as rings, watch bands and bracelets that could make an inadvertent electrical contact.
Page 416: Jump-Starting Procedure
414 WHAT TO DO IN EMERGENCIES 3. Remove the protective cover over the remote positive 4. If using another vehicle to jump-start the battery, park (+) battery post. To remove the cover, press the locking the vehicle within the jumper cables reach, set the tab and pull upward on the cover.
Page 417 WHAT TO DO IN EMERGENCIES 415 CAUTION! WARNING! Failure to follow these procedures could result in Do not connect the cable to the negative post (-) of the damage to the charging system of the booster vehicle discharged battery. The resulting electrical spark could cause the battery to explode and could result in or the discharged vehicle.
Page 418: Freeing A Stuck Vehicle
416 WHAT TO DO IN EMERGENCIES 8. Disconnect the opposite end of the positive (+) jumper CAUTION! (Continued) cable from the positive (+) post of the booster battery. plugged in long enough without engine operation, 9. Disconnect the positive (+) end of the jumper cable the vehicle’s battery will discharge sufficiently to from the remote positive (+) post of the discharged degrade battery life and/or prevent the engine from...
Page 419 WHAT TO DO IN EMERGENCIES 417 CAUTION! CAUTION! • When “rocking” a stuck vehicle by shifting between Racing the engine or spinning the wheels may lead to transmission overheating and failure. Allow the en- DRIVE and REVERSE, do not spin the wheels faster gine to idle with the transmission in NEUTRAL for at than 15 mph (24 km/h), or drivetrain damage may least one minute after every five rocking-motion...
Page 420: Shift Lever Override
418 WHAT TO DO IN EMERGENCIES 3. Remove the rubber cupholder liner. Squeeze one side WARNING! (Continued) of the liner’s center to expose its edge and facilitate explode and injure someone. Do not spin your vehi- removal. cle’s wheels faster than 30 mph (48 km/h) or for 4.
Page 421: Towing A Disabled Vehicle
WHAT TO DO IN EMERGENCIES 419 TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial wrecker service. Towing Condition Wheels OFF the Ground All Models Flat Tow NONE If transmission is operable: • Transmission in NEUTRAL Wheel Lift Or Dolly Tow Rear •...
Page 422 420 WHAT TO DO IN EMERGENCIES • The transmission must be in NEUTRAL. CAUTION! • The towing distance must not exceed 15 mi (24 km). • Do not use sling type equipment when towing. • The towing speed must not exceed 25 mph (40 km/h). Damage to the fascia will occur.
Page 423: Without The Ignition Key
WHAT TO DO IN EMERGENCIES 421 Without The Ignition Key Special care must be taken when the vehicle is towed with the ignition in the LOCK/OFF position. Flatbed towing is the preferred towing method. However, if a flatbed towing vehicle is not available, wheel lift towing equipment may be used.
Page 425: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS ▫ Engine Oil Filter ..... .434 ENGINE COMPARTMENT — 2.4L ..425 ▫...
Page 426 424 MAINTAINING YOUR VEHICLE ▫ Brake System ......450 BULB REPLACEMENT ....469 ▫...
Page 427: Engine Compartment - 2.4L
MAINTAINING YOUR VEHICLE 425 ENGINE COMPARTMENT — 2.4L 1 — Engine Coolant Reservoir 6 — Air Cleaner Filter 2 — Power Steering Fluid Reservoir 7 — Engine Oil Fill 3 — Brake Fluid Reservoir 8 — Coolant Pressure Cap 4 — Power Distribution Center (Fuses) 9 —...
Page 428: Engine Compartment - 3.6L
426 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 3.6L 1 — Engine Coolant Reservoir 5 — Air Cleaner Filter 2 — Power Steering Fluid Reservoir 6 — Engine Oil Dipstick 3 — Brake Fluid Reservoir 7 — Engine Oil Fill 4 — Integrated Power Module (Fuses) 8 —...
Page 429: Onboard Diagnostic System - Obd Ii
MAINTAINING YOUR VEHICLE 427 ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard • Prolonged driving with the MIL on could cause diagnostic system called OBD II. This system monitors further damage to the emission control system. It the performance of the emissions, engine, and automatic could also affect fuel economy and driveability.
Page 430: Emissions Inspection And Maintenance Programs
428 MAINTAINING YOUR VEHICLE the gas cap is properly tightened. Press the trip odometer Normally, the OBD II system will be ready. The OBD II “Reset” button to turn off the message. If the problem system may not be ready if your vehicle was recently persists, the message will appear the next time the serviced, recently had a dead battery or a battery replace- vehicle is started.
Page 431: Replacement Parts
MAINTAINING YOUR VEHICLE 429 4. Approximately 15 seconds later, one of two things will Regardless of whether your vehicle’s OBD II system is happen: ready or not, if the MIL is illuminated during normal vehicle operation you should have your vehicle serviced •...
Page 432: Dealer Service
430 MAINTAINING YOUR VEHICLE DEALER SERVICE MAINTENANCE PROCEDURES Your authorized dealer has the qualified service person- The pages that follow contain the required maintenance nel, special tools, and equipment to perform all service services determined by the engineers who designed your operations in an expert manner.
Page 433: Engine Oil
MAINTAINING YOUR VEHICLE 431 check the engine oil level is about five minutes after a CAUTION! (Continued) fully warmed engine is shut off. Do not check oil level • Your vehicle has been built with improved fluids before starting the engine after it has sat overnight. that protect the performance and durability of your Checking engine oil level when the engine is cold will vehicle and also allow extended maintenance inter-...
Page 434 432 MAINTAINING YOUR VEHICLE Engine Oil Selection CAUTION! For best performance and maximum protection under all Do not overfill the engine. Overfilling the engine types of operating conditions, the manufacturer only will cause oil aeration, which can lead to loss of oil recommends engine oils that are API Certified and meet pressure and an increase in oil temperature.
Page 435 MAINTAINING YOUR VEHICLE 433 Engine Oil Viscosity – 3.6L Engine CAUTION! SAE 5W-20 engine oil is recommended for all operating Do not use chemical flushes in your engine oil as the temperatures. This engine oil improves low temperature chemicals can damage your engine. Such damage is starting and vehicle fuel economy.
Page 436: Engine Oil Filter
434 MAINTAINING YOUR VEHICLE Materials Added To Engine Oil Engine Oil Filter The manufacturer strongly recommends against the ad- The engine oil filter should be replaced with a new filter dition of any additives (other than leak detection dyes) to at every engine oil change.
Page 437: Maintenance-Free Battery
MAINTAINING YOUR VEHICLE 435 Maintenance-Free Battery WARNING! Your vehicle is equipped with a maintenance-free battery. The air induction system (air cleaner, hoses, etc.) can You will never have to add water, nor is periodic main- provide a measure of protection in the case of engine tenance required.
Page 438 436 MAINTAINING YOUR VEHICLE WARNING! CAUTION! • Battery fluid is a corrosive acid solution and can • It is essential when replacing the cables on the burn or even blind you. Do not allow battery fluid battery that the positive cable is attached to the to contact your eyes, skin, or clothing.
Page 439: Air Conditioner Maintenance
MAINTAINING YOUR VEHICLE 437 Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner • Use only refrigerants and compressor lubricants should be checked and serviced by an authorized dealer approved by the manufacturer for your air condi- at the start of each warm season. This service should tioning system.
Page 440: A/C Air Filter - If Equipped
438 MAINTAINING YOUR VEHICLE Refrigerant Recovery And Recycling A/C Air Filter – If Equipped R-134a Air Conditioning Refrigerant is a hydrofluoro- Refer to the “Maintenance Schedule” for the proper carbon (HFC) that is endorsed by the Environmental maintenance intervals. Protection Agency and is an ozone-saving product. How- ever, the manufacturer recommends that air conditioning WARNING! service be performed by authorized dealer or other...
Page 441 MAINTAINING YOUR VEHICLE 439 3. Disconnect the glove box door dampener from the slot on the side of the box. This is done by grasping the dampener connector (on the outside of the box) and the end of the connector pin (on the inside of the box) with your thumb and forefinger and pulling outward while lightly lifting upward on the door with your other hand.
Page 442: Body Lubrication
440 MAINTAINING YOUR VEHICLE 7. Install the A/C Air Filter with the arrow on the filter MOPAR® Spray White Lube to assure quiet, easy opera- pointing toward the floor. When installing the filter tion and to protect against rust and wear. Prior to the cover, make sure the retaining tabs fully engage the application of any lubricant, the parts concerned should cover.
Page 443: Adding Washer Fluid
MAINTAINING YOUR VEHICLE 441 Operation of the wipers on dry glass for long periods reservoir with windshield washer solvent (not radiator may cause deterioration of the wiper blades. Always use antifreeze) and operate the system for a few seconds to washer fluid when using the wipers to remove salt or dirt flush out the residual water.
Page 444: Exhaust System
442 MAINTAINING YOUR VEHICLE Exhaust System WARNING! The best protection against carbon monoxide entry into • Exhaust gases can injure or kill. They contain the vehicle body is a properly maintained engine exhaust carbon monoxide (CO), which is colorless and system.
Page 445 MAINTAINING YOUR VEHICLE 443 Under normal operating conditions, the catalytic con- CAUTION! verter will not require maintenance. However, it is im- • The catalytic converter requires the use of un- portant to keep the engine properly tuned to assure proper catalyst operation and prevent possible catalyst leaded fuel only.
Page 446: Cooling System
444 MAINTAINING YOUR VEHICLE To minimize the possibility of catalytic converter dam- Cooling System age: WARNING! • Do not shut off the engine or interrupt the ignition, when the transmission is in gear and the vehicle is in • When working near the radiator cooling fan, dis- motion.
Page 447 MAINTAINING YOUR VEHICLE 445 Coolant Checks Cooling System – Drain, Flush, And Refill Check engine coolant (antifreeze) protection every If the engine coolant (antifreeze) is dirty or contains visible 12 months (before the onset of freezing weather, where sediment, have an authorized dealer clean and flush with applicable).
Page 448 446 MAINTAINING YOUR VEHICLE CAUTION! (Continued) CAUTION! (Continued) • This vehicle has not been designed for use with Organic Additive Technology (OAT) engine cool- propylene glycol-based engine coolant (antifreeze). ant is different and should not be mixed with Hybrid Organic Additive Technology (HOAT) en- Use of propylene glycol-based engine coolant (anti- freeze) is not recommended.
Page 449 MAINTAINING YOUR VEHICLE 447 Please review these recommendations for using Organic Please note that it is the owner’s responsibility to main- Additive Technology (OAT) engine coolant (antifreeze) tain the proper level of protection against freezing ac- that meets the requirements of Chrysler Material Stan- cording to the temperatures occurring in the area where dard MS-12106.
Page 450 448 MAINTAINING YOUR VEHICLE rules for your community. To prevent ingestion by ani- WARNING! mals or children, do not store ethylene glycol-based • The warning words “DO NOT OPEN HOT” on the engine coolant in open containers or allow it to remain in puddles on the ground.
Page 451 MAINTAINING YOUR VEHICLE 449 The radiator normally remains completely full, so there is If an examination of your engine compartment shows no no need to remove the radiator cap unless checking for evidence of radiator or hose leaks, the vehicle may be engine coolant (antifreeze) freeze point or replacing cool- safely driven.
Page 452: Brake System
450 MAINTAINING YOUR VEHICLE • Make sure that the coolant expansion bottle overflow WARNING! hoses are not kinked or obstructed. Riding the brakes can lead to brake failure and • Keep the front of the radiator clean. If your vehicle is possibly a collision.
Page 453 MAINTAINING YOUR VEHICLE 451 Clean the top of the master cylinder area before removing WARNING! the cap. If necessary, add fluid to bring the fluid level up • Use only manufacturer’s recommended brake fluid. to the requirements described on the brake fluid reser- voir.
Page 454: Automatic Transmission
452 MAINTAINING YOUR VEHICLE Automatic Transmission WARNING! (Continued) Selection Of Lubricant the air resulting in a lower boiling point. This may cause it to boil unexpectedly during hard or pro- It is important to use the proper transmission fluid to longed braking, resulting in sudden brake failure.
Page 455 MAINTAINING YOUR VEHICLE 453 CAUTION! (Continued) CAUTION! shudder, and will require more frequent fluid and Do not use chemical flushes in your transmission as filter changes. Refer to “Fluids, Lubricants, and Genu- the chemicals can damage your transmission compo- ine Parts” in this section for fluid specifications. nents.
Page 456 454 MAINTAINING YOUR VEHICLE 4. Place the shift lever momentarily into each gear posi- Note that the holes in the dipstick will be full of fluid tion (allowing time for the transmission to fully en- if the actual level is at or above the hole. gage in each position), ending with the transmission in •...
Page 457 MAINTAINING YOUR VEHICLE 455 Routine fluid level checks are not required, therefore the CAUTION! transmission filler tube is capped and no dipstick is • Using a transmission fluid other than the manufac- provided. Your authorized dealer can check your trans- turer’s recommended fluid may cause deterioration mission fluid level using a special service dipstick.
Page 458: Appearance Care And Protection From Corrosion
456 MAINTAINING YOUR VEHICLE Fluid And Filter Changes The following maintenance recommendations will enable you to obtain maximum benefit from the corrosion Refer to the Maintenance Schedule for the proper resistance built into your vehicle. maintenance intervals. In addition, change the fluid and filter if the transmission is disassembled for any reason.
Page 459 MAINTAINING YOUR VEHICLE 457 Washing CAUTION! • Wash your vehicle regularly. Always wash your ve- • Do not use abrasive or strong cleaning materials hicle in the shade using MOPAR® Car Wash, or a mild such as steel wool or scouring powder that will car wash soap, and rinse the panels completely with scratch metal and painted surfaces.
Page 460 458 MAINTAINING YOUR VEHICLE • If you detect any stone chips or scratches in the paint, Wheel And Wheel Trim Care touch them up immediately. The cost of such repairs is • All wheels and wheel trim, especially aluminum and considered the responsibility of the owner.
Page 461 MAINTAINING YOUR VEHICLE 459 Cleaning Headlights Stain Repel Fabric Cleaning Procedure – If Equipped Your vehicle is equipped with plastic headlights and fog lights (if equipped) that are lighter and less susceptible to Stain Repel seats may be cleaned in the following man- stone breakage than glass headlights.
Page 462 460 MAINTAINING YOUR VEHICLE Interior Care Cleaning Leather Upholstery Instrument Panel Cover MOPAR® Total Clean or equivalent is specifically recom- mended for leather upholstery. The instrument panel cover has a low glare surface, which minimizes reflections in the windshield. Do not Your leather upholstery can be best preserved by regular use protectants or other products, which may cause cleaning with a damp soft cloth.
Page 463 MAINTAINING YOUR VEHICLE 461 When cleaning the rear view mirror, spray cleaner on the WARNING! towel or rag that you are using. Do not spray cleaner directly on the mirror. Do not use volatile solvents for cleaning purposes. Many are potentially flammable, and if used in Cleaning Plastic Instrument Cluster Lenses closed areas they may cause respiratory harm.
Page 464: Cleaning Center Console Cupholders
462 MAINTAINING YOUR VEHICLE Seat Belt Maintenance Let soak for approximately one hour. After one hour pull the liner from the water and dip it back into the water Do not bleach, dye, or clean the belts with chemical about six times. This will loosen any remaining debris. solvents or abrasive cleaners.
Page 465 MAINTAINING YOUR VEHICLE 463 Car- Mini Cavity tridge Description Fuse Fuse — 20 Amp Brake Vacuum Yellow Pump — 10 Amp Center High Mounted Stop Light (CHMSL)/Brake Switch — 10 Amp Ignition Switch Integrated Power Module — 20 Amp Trailer Tow – Yellow If Equipped Car-...
Page 466 464 MAINTAINING YOUR VEHICLE Car- Car- Mini Mini Cavity tridge Description Cavity tridge Description Fuse Fuse Fuse Fuse — 30 Amp Ignition Off Draw — 20 Amp — Green (IOD) Sense 1 Yellow — 30 Amp Ignition Off Draw — 20 Amp Ignition/Cigar Green...
Page 467 MAINTAINING YOUR VEHICLE 465 Car- Car- Mini Mini Cavity tridge Description Cavity tridge Description Fuse Fuse Fuse Fuse 40 Amp — Auto Shutdown — 25 Amp Sunroof – Green (ASD) Relay Natural If Equipped — 20 Amp Audio Amplifier – —...
Page 468 466 MAINTAINING YOUR VEHICLE Car- Car- Mini Mini Cavity tridge Description Cavity tridge Description Fuse Fuse Fuse Fuse — 10 Amp Ignition Run — 30 Amp — Auto Shutdown Occupant Pink (ASD) Relay 1 Classification — 10 Amp Switch Bank/ Module (OCM)/ Diagnostic Link Occupant Restraint...
Page 469 MAINTAINING YOUR VEHICLE 467 Car- CAUTION! Mini Cavity tridge Description Fuse • When installing the Integrated Power Module Fuse cover, it is important to ensure the cover is properly 40 Amp — Anti-Lock Brakes positioned and fully latched. Failure to do so may Green (ABS) Module –...
Page 470: Vehicle Storage
468 MAINTAINING YOUR VEHICLE VEHICLE STORAGE REPLACEMENT BULBS If you will not be using your vehicle for more than 21 days, All the inside bulbs are brass or glass wedge base. you may want to take steps to preserve your battery. Aluminum base bulbs are not approved and should not be used for replacement.
Page 471: Bulb Replacement
MAINTAINING YOUR VEHICLE 469 Bulb Number Bulb Number Shift Indicator Lamp A6220 Center High Mounted LED (Serviced at Stop (CHMSL) Lamp Authorized Dealer) Rear Compartment IKLE14140 (Trunk) Lamp Rear Tail/Stop/Turn LED (Serviced at Signal Lamp Authorized Dealer) NOTE: For lighted switches, see your authorized Backup Lamp dealer for replacement.
Page 472: Headlamp
470 MAINTAINING YOUR VEHICLE Headlamp 1. Raise the hood and locate the connector behind the headlamp. NOTE: It may be necessary to remove the air cleaner filter housing and position the totally integrated power module aside prior to replacing the low beam headlamp on the driver’s side of the vehicle.
Page 473 MAINTAINING YOUR VEHICLE 471 5. If the bulb comes in contact with any oily surface, CAUTION! clean the bulb with rubbing alcohol. Do not touch the new bulb with your fingers. Oil 6. Reinsert the bulb and socket assembly and rotate contamination will severely shorten bulb life.
Page 474: Fog Lamps
472 MAINTAINING YOUR VEHICLE Fog Lamps Backup Lamps 1. Access to the lamps through the lower fascia cutout is 1. Open the trunk and gently pull back the trunk liner limited. behind the tail lamp. 2. Turn the steering wheel to allow access and remove 2.
Page 475: License Plate Lamp
MAINTAINING YOUR VEHICLE 473 3. Grasp the tail lamp and pull firmly outward pushing License Plate Lamp gently on the studs from inside to disengage the lamp 1. Remove two retaining screws holding the light lens in housing. place. 2. Gently pry the lamp assembly loose. 3.
Page 476: Fluid Capacities
474 MAINTAINING YOUR VEHICLE FLUID CAPACITIES U.S. Metric Fuel (Approximate) All Engines — (Except 2.4L PZEV) 16.9 Gallons 64 Liters 2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons 70 Liters Engine Oil With Filter 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters 3.6L Engine (SAE 5W-20, API Certified)
Page 477: Fluids, Lubricants And Genuine Parts
MAINTAINING YOUR VEHICLE 475 FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology). Engine Oil – 2.4L Engine We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.
Page 478: Chassis
476 MAINTAINING YOUR VEHICLE Component Fluid, Lubricant, or Genuine Part Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]). Fuel Selection 87 Octane * PZEV = Partial Zero Emission Vehicle Chassis Component Fluid, Lubricant, or Genuine Part Automatic Transmission Use only ATF+4®...
Page 479: Maintenance Schedules
MAINTENANCE SCHEDULES CONTENTS ▫ Maintenance Chart.....480 MAINTENANCE SCHEDULE ... . .478...
Page 480 478 MAINTENANCE SCHEDULES MAINTENANCE SCHEDULE Your authorized dealer will reset the oil change indicator message after completing the scheduled oil change. If a Your vehicle is equipped with an automatic oil change scheduled oil change is performed by someone other than indicator system.
Page 481 MAINTENANCE SCHEDULES 479 • Check the fluid levels of the coolant reservoir, brake At Every Oil Change Interval As Indicated By Oil master cylinder, power steering and transmission as Change Indicator System: needed • Inspect automatic transmission fluid if equipped •...
Page 482 480 MAINTENANCE SCHEDULES Maintenance Chart Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Inspections Inspect the CV joints. Inspect front suspension, tie rod ends, boot seals and replace if necessary. Inspect the brake linings, replace as necessary.
Page 483 MAINTENANCE SCHEDULES 481 Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Maintenance Replace engine air filter. Replace cabin/air conditioning filter. Replace spark plugs (2.4L Engine). ** Replace spark plugs (2.4L PZEV Engine Only). ** Replace spark plugs (3.6L Engine). ** Flush and replace the engine coolant at 10 years or 150,000 miles (240,000 km) whichever comes first.
Page 484 482 MAINTENANCE SCHEDULES Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Change automatic transmission fluid and filter if using your vehicle for any of the following: police, taxi, fleet, or frequent trailer towing. Change automatic transmission fluid and filter.
Page 485 MAINTENANCE SCHEDULES 483 WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent me- chanic.
Page 487 IF YOU NEED CONSUMER ASSISTANCE CONTENTS ▫ Customer Assistance For The Hearing Or SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE ....487 Speech Impaired (TDD/TTY) ... . .489 ▫...
Page 488 486 IF YOU NEED CONSUMER ASSISTANCE ▫ Traction Grades ..... . .494 PUBLICATION ORDER FORMS ... .492 ▫...
Page 489: Suggestions For Obtaining Service For Your Vehicle
IF YOU NEED CONSUMER ASSISTANCE 487 SUGGESTIONS FOR OBTAINING SERVICE FOR Be Reasonable With Requests YOUR VEHICLE If you list a number of items and you must have your vehicle by the end of the day, discuss the situation with Prepare For The Appointment the service advisor and list the items in order of priority.
Page 490: Chrysler Group Llc Customer Center
488 IF YOU NEED CONSUMER ASSISTANCE Warranty service must be done by an authorized dealer. Any communication to the manufacturer’s customer cen- We strongly recommend that you take the vehicle to an ter should include the following information: authorized dealer. They know your vehicle the best, and •...
Page 491: Chrysler Canada Inc. Customer Center
IF YOU NEED CONSUMER ASSISTANCE 489 Chrysler Canada Inc. Customer Center Customer Assistance For The Hearing Or Speech Impaired (TDD/TTY) P.O. Box 1621 To assist customers who have hearing difficulties, the Windsor, Ontario N9A 4H6 manufacturer has installed special TDD (Telecommuni- Phone: (800) 465–2001 English / (800) 387–9983 French cation Devices for the Deaf) equipment at its customer center.
Page 492: Service Contract
490 IF YOU NEED CONSUMER ASSISTANCE Service Contract The manufacturer will not stand behind any service contract that is not the manufacturer’s service contract. You may have purchased a service contract for a vehicle It is not responsible for any service contract other than to help protect you from the high cost of unexpected the manufacturer’s service contract.
Page 493: Warranty Information
IF YOU NEED CONSUMER ASSISTANCE 491 MOPAR® PARTS WARNING! MOPAR® fluids, lubricants, parts, and accessories are Engine exhaust, some of its constituents, and certain available from an authorized dealer. They are recom- vehicle components contain, or emit, chemicals mended for your vehicle in order to help keep the vehicle known to the State of California to cause cancer and operating at its best.
Page 494: In Canada
492 IF YOU NEED CONSUMER ASSISTANCE campaign. However, NHTSA cannot become involved in PUBLICATION ORDER FORMS individual problems between you, your authorized To order the following manuals, you may use either the dealer, and the manufacturer. website or the phone numbers listed below. Visa, Mas- To contact NHTSA, you may either call the Auto Safety tercard, American Express, and Discover orders are ac- Hotline toll free at 1–888–327–4236 (TTY: 1–800–424–...
Page 495: Department Of Transportation Uniform Tire Quality Grades
IF YOU NEED CONSUMER ASSISTANCE 493 Diagnostic Procedure Manuals Call toll free at: • 1–800–890–4038 (U.S.) Diagnostic Procedure Manuals are filled with diagrams, charts and detailed illustrations. These practical manuals • 1–800–387–1143 (Canada) make it easy for students and technicians to find and fix problems on computer-controlled vehicle systems and features.
Page 496: Traction Grades
494 IF YOU NEED CONSUMER ASSISTANCE Treadwear WARNING! The Treadwear grade is a comparative rating, based on The traction grade assigned to this tire is based on the wear rate of the tire when tested under controlled straight-ahead braking traction tests, and does not conditions on a specified government test course.
Page 497 IF YOU NEED CONSUMER ASSISTANCE 495 Vehicle Safety Standard No. 109. Grades B and A repre- sent higher levels of performance on the laboratory test wheel, than the minimum required by law. WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded.
Page 499: Index
INDEX...
Page 500 498 INDEX About Your Brakes ......328 Air Conditioning System ....278 ABS (Anti-Lock Brake System) .
Page 501 INDEX 499 Automatic Transmission ....303 Brake System ......450 Adding Fluid .
Page 502 500 INDEX Car Washes ......457 Compact Spare Tire ......354 Cellular Phone .
Page 503 INDEX 501 Points to Remember .....449 Dipsticks Pressure Cap ......447 Automatic Transmission .
Page 504 502 INDEX Electronic Stability Control (ESC) ....335 Flooded, Starting ..... . .300 Electronic Vehicle Information Center (EVIC) .
Page 505 INDEX 503 Exhaust System ......97 Replacement Parts ..... . .378 Exterior Lights .
Page 506 504 INDEX Ethanol ......371 Gasoline, Reformulated .....371 Filler Cap (Gas Cap) .
Page 507 INDEX 505 Hazard Warning Flasher ....398 Ignition ....... . .13 Headlights .
Page 508 506 INDEX Jacking Instructions ......402 Lead Free Gasoline ......370 Jack Location .
Page 509 INDEX 507 High Beam Indicator .....227 Voltage ......214 Illuminated Entry .
Page 510 508 INDEX Manual, Service ......492 Occupant Restraints ......67 Map/Reading Lights .
Page 511 INDEX 509 Synthetic ......433 Phone, Hands-Free (Uconnect®) ....112 Viscosity .
Page 512 510 INDEX Radio Remote Controls .....275 Replacement Bulbs ......468 Rear Cupholder .
Page 513 INDEX 511 Seat Belt Reminder ......59 Lumbar Support ......156 Seat Belts .
Page 514 512 INDEX Snow Chains (Tire Chains) ....360 Stuck, Freeing ......416 Snow Tires .
Page 515 INDEX 513 Chains .......360 Spinning ......356 Changing .
Page 516 514 INDEX Trailer and Tongue Weight ....387 Trunk Release Remote Control ....41 Wiring .
Page 517 INDEX 515 Vehicle Storage ......289 Window Fogging ......289 Vehicle Theft Alarm (Security Alarm) .
