The paper stock compartment becomes accessible when the
right-hand and front doors are swung open. Although the printer
is operable when the doors are left opened or completely
removed, you are strongly recommended to keep them closed
during normal operation, so as to prevent the printer mechanism
from being exposed to dust.

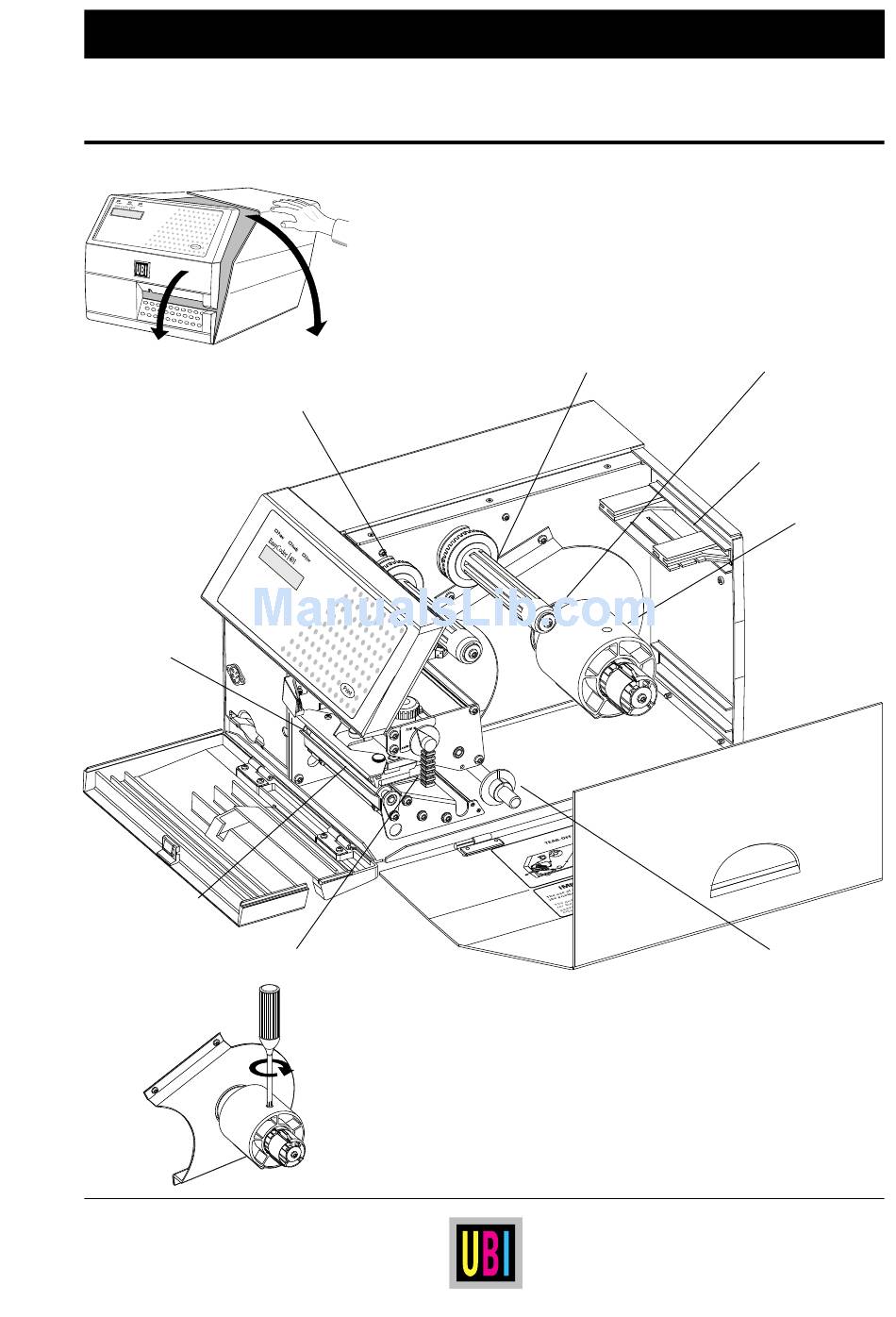

Transfer Ribbon Supply
Paper Supply Spool
Transfer Ribbon Take-Up
External Guides
(option)
3" Adapter
Thermal
Printhead
Dispenser Edge
Guide Ring
Printhead Lift Knob
The adapter for 76 mm (3") paper roll cores is included in the
delivery and can be fitted on the paper supply spool.
Lock the adapter by means of the screw, making sure that the
screw hits the evenly rounded plastic surface, rather than the leaf
spring or the cam.
