Chapter 4. Removing Of Major Parts; Removing Of Major Parts - Sharp LC-40D68UT Service Manual

LC-40D68UT
CHAPTER 4.
LC-40D68UT

REMOVING OF MAJOR PARTS

Service Manual
[1] REMOVING OF MAJOR PARTS

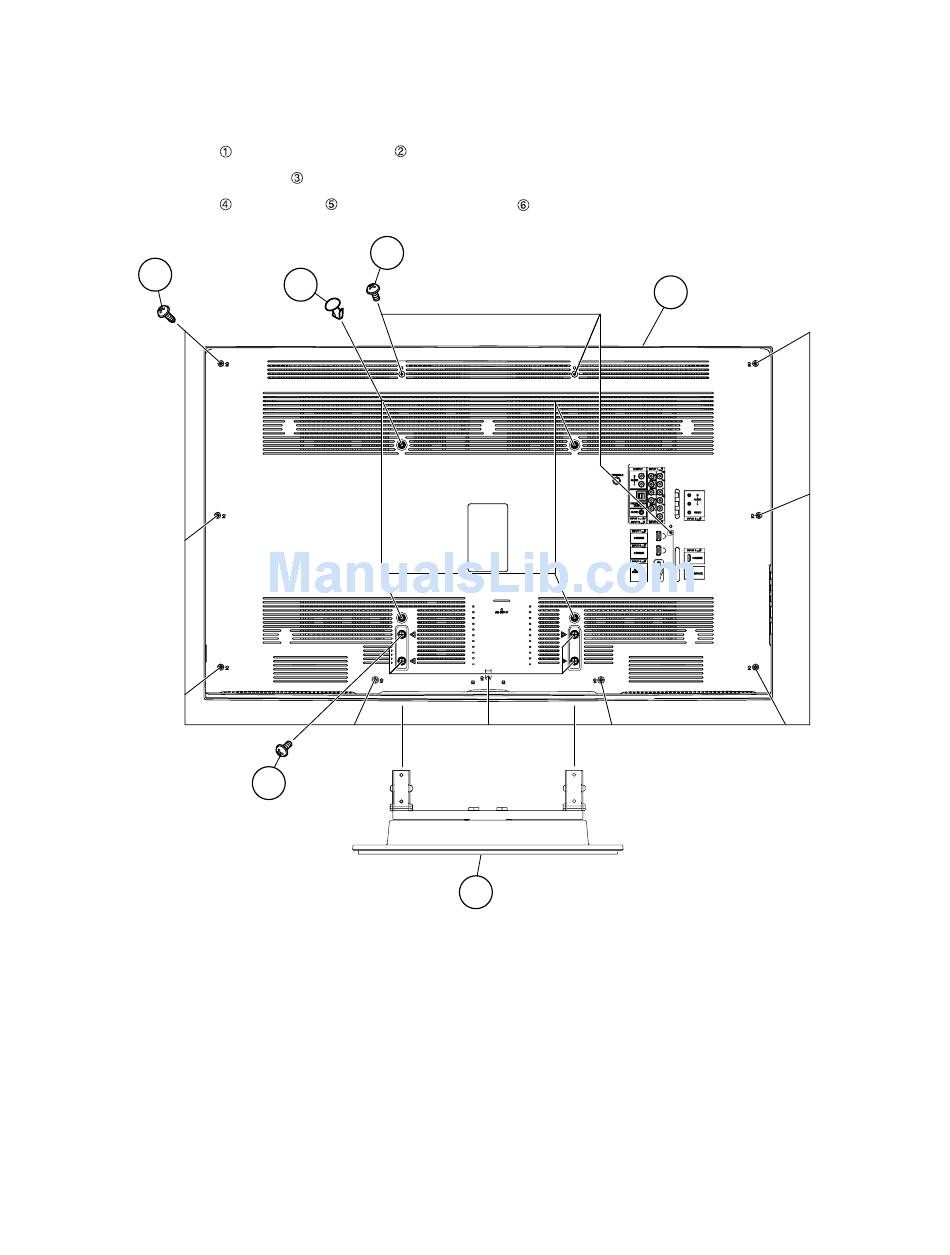

1. Removing of Stand Unit and Rear Cabinet.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Detach the 4 pieces VESA Hole Cover .
3. Remove the 3 lock screws , 9 lock screws and detach the Rear Cabinet .
4
5
3
6 Rear Cabinet
1
2 Stand Unit
4 – 1
