Summary of Contents for Clover B14A

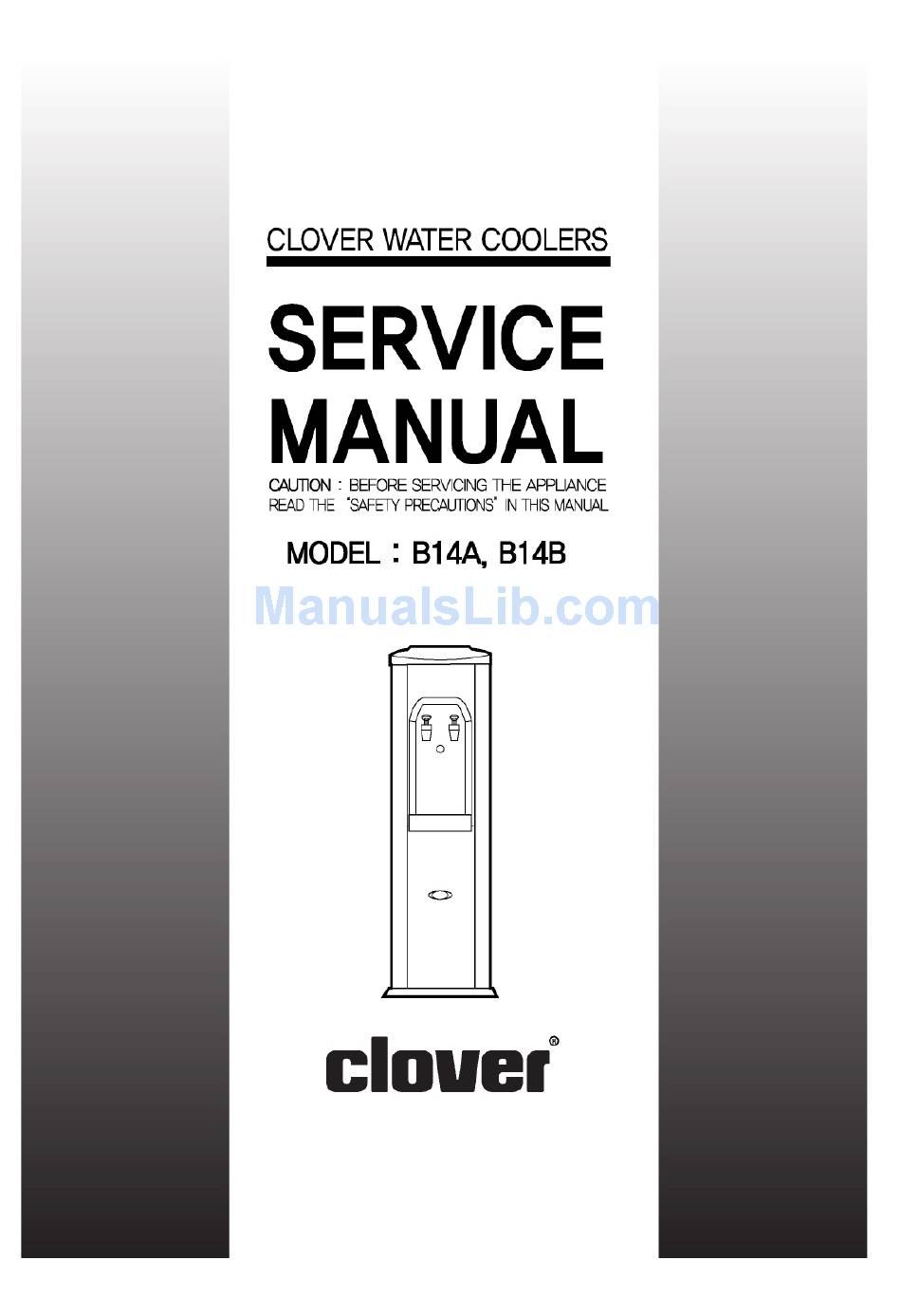

  • Page 1 1

...

  • Page 2: Table Of Contents

    6. CLEANING ....................…………………….6, 7. TROUBLESHOOTING GUIDE................………..…..7, WIRING DIAGRAM…………………………............………..……..9 9. EXPLODED VIEW & SERVICE PARTS LIST B14A..........................10, B. B14B..........................12, 13 FOR YOUR SAFETY Please read the following safety precaution before servicing the watercooler. 1) Check if an electric leakage occurs in the appliance.

  • Page 3: Identification

    6) When carrying or tilting the appliance, remove all the objects on it. 7) If the cooling cycle is out of order, contact nearest authorized service center for maintenance, repair and adjustment. 1. SPECIFICATION & PARTS IDENTIFICATION MODEL B14A(HOT & COLD) B14B(COOK & COLD) DIMENSION 313W×323D×963H(mm) WEIGHT...

  • Page 4: Parts

    2. OPERATION & FUNCTION OF PARTS 4

...

  • Page 5: Cooling Operation

    A. Cooling Operation The vapor refrigerants that compressed to high temperature & high pressure conditions in the compressor, turn into liquid refrigerant of high temperature and high pressure passing through the condenser, and then turn into the liquid refrigerants of low temperature and low pressure conditions by passing through the capillary tubes.

  • Page 6: Function Of Parts

    water is controlled by the hot control at a proper temperature. In case of overheating, the heat limiter will operate automatically. C. Function of Parts ① Compressor: Compresses the vapor refrigerant sucked from the evaporator and discharges it to condenser ②...

  • Page 7: Storage

    DISCHARGED. C. Put standardized bottle filled with water on top of the product. Use drinking water only. Filling the unit with any other type of beverages may cause significant problems. D. For hot water activation, stay holding down hot faucet handle until water flow is continuous and clear.

  • Page 8: Troubleshooting Guide

    E. Wash the faucets, drip tray with mild soap and water. Then, rinse them with clean water immediately. F. Cleanse interior of cold water tank with a clean dish towel. Do not use bleach or any cleaning agents containing bleach or chlorine. G.
  • Page 9 It is normal for the cooler to run The ambient temperature is high. continuously at high ambient temperatures. C. The cooler There has been a substantial loss in If refrigerant leak is suspected, return compressor runs the sealed system's charge of cooler to authorized service center or continuously, but I refrigerant.

  • Page 10: Diagram

    B. Leakage through inside or outside of The faucet is not completely connected. Properly connect the faucet. appliance. The dual float valves elbow union is Replace the dual float valves elbow defective. union. C. Water drips from The dual float valve’s packing is dual float valves Replace the dual float valves packing.
  • Page 11 11

...
  • Page 12 12

...
  • Page 13 13

...
  • Page 14 14

...
  • Page 15 15

...
