Using An Optional Power-Over-Ethernet Injector

The Power-Over-Ethernet Injector can be located at any point between the access point and the LAN access
port, wherever a convenient power outlet exists. If you supply your own Ethernet cable for connecting power,
be sure that it is standard category 5 straight-through (8-wire) cable that has not been altered in any way. Use of
nonstandard cable could damage the access point.

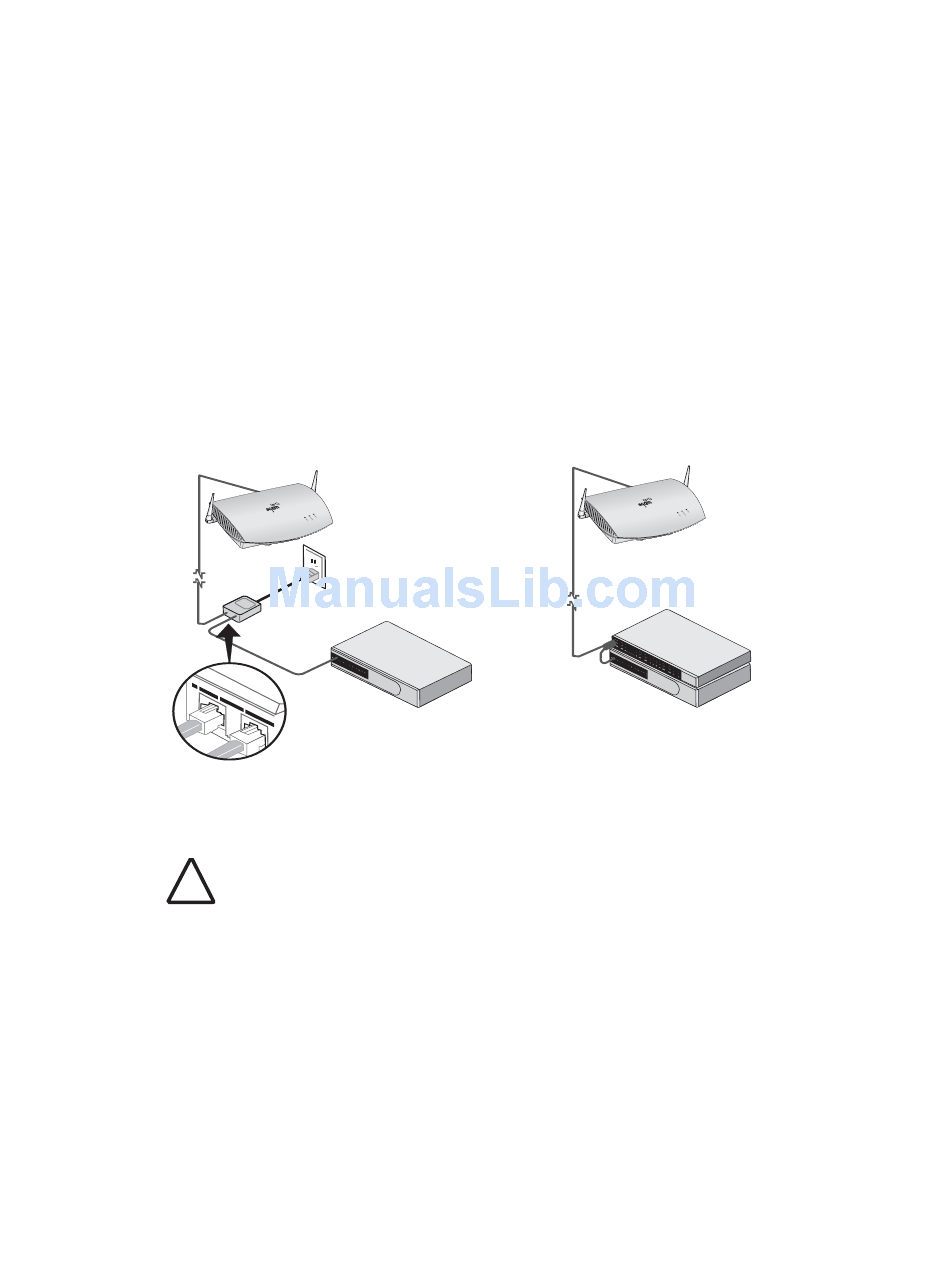

Refer to the illustration below, and follow these steps:
1
Connect one end of the Ethernet cable to the Ethernet port on the access point.
2
Connect the other end of the Ethernet cable to the port labeled To Access Point on the power
supply.
3
Connect the power cord to the power supply and plug the cord into a power outlet.
4
To link the access point to your Ethernet network, plug one end of another Ethernet cable into
the port labeled To Hub/Switch on the power supply, and plug the other end into a LAN port
(on a hub or in a wall).
Using an Optional Power-over-Ethernet Injector
CAUTION: To avoid damaging network equipment, make sure that the cables are connected
!
from access point to power supply to LAN as shown and described above.
Using an Optional Power-over-Ethernet
LAN port
4
