GEN2800 / GEN2800PUK / GEN2800BEU GENERATOR
ORIGINAL MANUAL
Please read instructions before operating this tool
www.evolutionpowertools.com
®
* Generic images shown to illustrate the Evo-System's functionality.
Engine and outputs may vary according to market destination.
CZ
®
DA
DE
EL
ES
FI
FR
GB
IT
NL
NO
PL
PT
RU
SK
SV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEN2800 and is the answer not in the manual?

Questions and answers

Related Manuals for Evolution GEN2800

Summary of Contents for Evolution GEN2800

  • Page 1 ® www.evolutionpowertools.com ® GEN2800 / GEN2800PUK / GEN2800BEU GENERATOR ORIGINAL MANUAL Please read instructions before operating this tool * Generic images shown to illustrate the Evo-System’s functionality. Engine and outputs may vary according to market destination.
  • Page 3 Download a FREE QR READER APP and scan the QR CODE (below). Instantly watch the HD Evo-System Video on your Smart Phone. Make sure the HD setting is on. If you don’t have a Smart Phone, you can also watch all Evolution’s videos online.

  • Page 4: Table Of Contents

    Venture One 12 Month Limited Warranty Sheffield S20 3FR General Safety Rules Declare that the products: Evolution UK Pro Generator (GEN2800) Engine Driven Generator Evolution UK DIY Generator (GEN2800PUK) Evolution EU Generator (GEN2800BEU) Additional Specific Safety Rules Part numbers: Symbols & Labels...

  • Page 5: Month Limited Warranty

    – for consumables. In no event shall tool. Keep cord away from heat, oil, sharp edges Evolution Power Tools be liable for loss or or moving parts. Damaged or entangled cords damage resulting directly or indirectly from the increase the risk of electric shock.

  • Page 6: Engine Driven Generator

    ® f. If operating a power tool in a damp location preventive safety measures reduce the risk of is unavoidable, use a residual current device starting the power tool accidentally. (RCD) protected supply. Use of an RCD reduces d. Store idle power tools out of the reach of the risk of electric shock.

  • Page 7: Additional Specific Safety Rules

    ® d. Do not tamper with components that ADDITIONAL SPECIFIC SAFETY RULES regulate the engines speed. You may alter the factory set running parameters. a. Never use the generator in wet conditions. e. Use only the type of fuel listed in the If using outdoors and rain is a possibility, Engine Instruction Manual.

  • Page 8: Specification

    ® WARNING: Do not operate this machine if SPECIFICATION warning and/or instruction labels are missing or damaged. Contact Evolution Power Tools for UK (PROFESSIONAL) GENERATOR (GEN2800): replacement labels. Type: Self-Exciting, 2-pole NOTE: All or some of teh following symbols may Rotating Field Type appear in the manual or on the product.

  • Page 9: Generator Application

    ® Advice on Generator Application Voltage Spike The Evolution Generator is suitable for powering 250V appliances up to a maximum load of 2400W (the Continuous Power Rating of the Generator). 245V The generator is a self exciting 2 pole generator,...

  • Page 10: Machine Overview

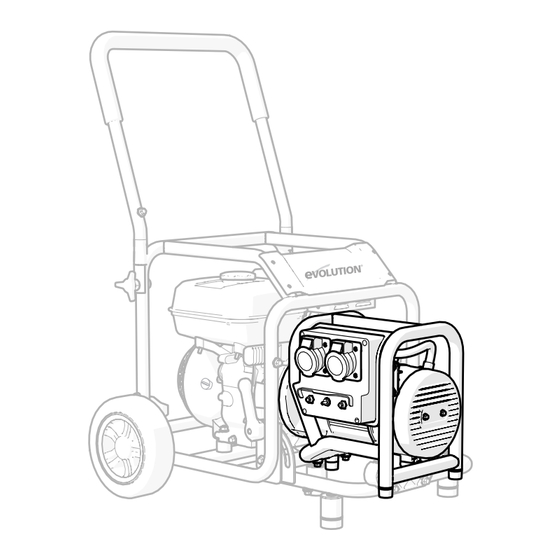

    ® Machine Overview General view of Generator connected to the engine unit. 1. Evo-System Engine 4. Circuit Breaker Reset Button(s) (some models also 110V/230V 2. Generator Selector switch) 3. Socket Outlets 5. Earth Connection Terminal (approved type for intended market) www.evolutionpowertools.com...
  • Page 11 ® Machine Overview General view of Generator connected to the engine unit. * Generic images shown to illustrate the Evo-System’s functionality. 5. Foot brake Engine and outputs may vary according to market destination. 6. Engine On/Off switch 7. Fuel tap switch www.evolutionpowertools.com...

  • Page 12: Assembly

    CONNECTING THE GENERATOR TO THE ENGINE UNIT Note: Your Evolution Generator is designed to be connected to and powered by the Evolution Evo-System Engine. Do not try to connect this machine to any other power source. Your Evolution Evo-System Engine has a unique coupling that enables a variety of Evolution accessories to be connected to and be driven by this machine.

  • Page 13: Operation

    Failure to use this equipment correctly could result in serious injury to the operator or others. 1. Siting the Equipment Note: The Evolution Evo-System Engine with the generator attached should be sited with reference to the instructions given in the Engine Instruction Manual (SAFETY INSTRUCTIONS FOR EVO- SYSTEM ENGINE).
  • Page 14 ® 2. Preparing the Evo-System Engine Note: Refer to the Instruction Manual for the Evolution Evo-System Engine. • Check the Fuel Level. • Check the Oil Level. • Visually check all fuel lines and electrical connections. 3. Starting the Engine Note: Refer to the Instruction Manual for the Evo-System Engine Fig.

  • Page 15: Maintenance

    ® Note: In an emergency situation the generator can be shut down by turning the ignition switch to the ‘OFF’ position. This is not advised in general use as it can damage the device if repeated often. MAINTENANCE Note: The maintenance schedule for the Evo-System Engine can be found in the dedicated Instruction Manual.
  • Page 16 ®...
