- Page 1 ™ Dual Channel SmarTube ™ Mic Preamp...
- Page 2 Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
-
Page 3: Microphone Preamplifier

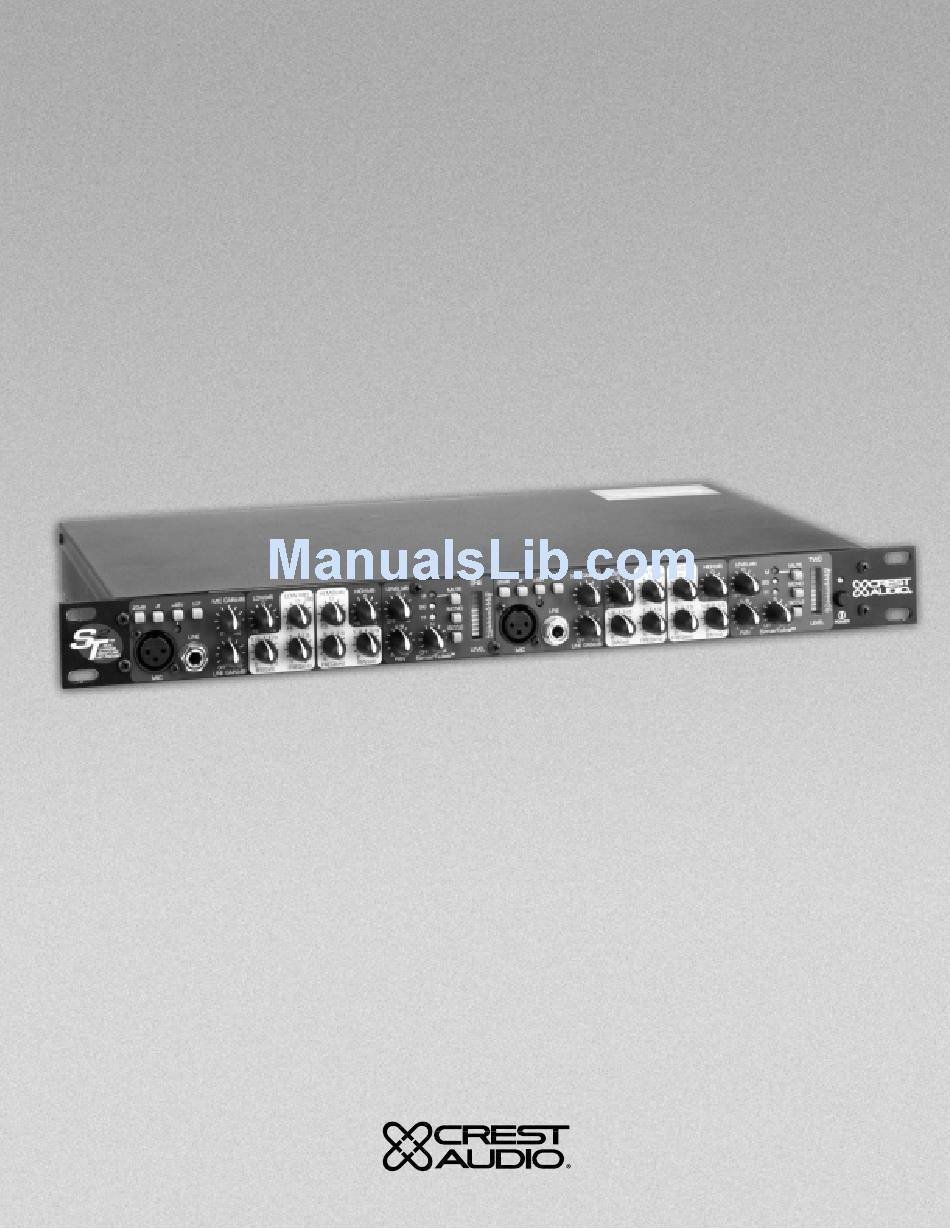

™ 2 – SMARTUBE ™ MICROPHONE PREAMPLIFIER OWNER’S MANUAL DESCRIPTION: ST2 is a two-channel, single rack space voice processor – channel strip. It is designed for direct recording with special attention to the logical signal-flow layout and added features. The main purpose is to get the signal from the input audio source to the recorder as clean and directly as possible. -
Page 4: Electrical Description
HIGHLIGHTS: • Two separate full channel strips in a single rack-space unit • Front panel Mic/Line jacks • Separate Insert Send and Return jacks • Solid-state tube-sound processor (SmarTube ™ • Expandability – Daisy-chaining of multiple units • Affordability • Multicolor LED meters •... -
Page 5: Control Functions
CONTROL FUNCTIONS: BALANCED MICROPHONE INPUT XLR, low impedance (2.2 k Ohm), balanced microphone input. Pin 2 is the positive and pin 3 – the negative phase. PAD SWITCH This pad switch attenuates the signal (reduces the sensitivity) on the microphone input with 20 dB. - Page 6 LINE GAIN This Gain control varies the gain of the Line input. The gain ranges from Off, 0 dB (center detent), to +10 dB. LOW EQ A shelving type of active tone control that varies the frequency range below 80 Hz by +/-15 dB. LOW MID A band pass (boost/cut) type of active tone control that varies the signals within the selected low-frequency range with +/-15 dB.
- Page 7 ST LED This bicolor LED is off when the SmarTube ™ circuit is off-line (full CCW position (20) - Off). It starts blinking in green as the amount of tube-effect increases until it reaches nominal level - around the center detent position (N) of 20. The color of this LED gradually turns red as the addition of tube-effect increases and gets closer to maximum (MAX).
- Page 8 LINE INPUT: This is a 1/4" (TRS) balanced line-level, high-impedance (200 k Ohm) input for high and instrument level signals. The tip is the positive phase and the ring – the negative. An unbalanced, (instrument), 1/4" (TS) connection can also be made at this input. This connector duplicates the front panel Line input.
-
Page 9: Input Specifications
™ 2 SPECIFICATIONS: Input Specifications Input Input pot Input Level, dBu* Bal/ Connector Input Imped. setting - Unbal Min** Nom. Max*** (Ohms) Gain, min. Microphone Max. Gain Balanced XLR: +60 dB Pin 1 Ground Min. Gain Pin 2 (+) 0 dB Pin 3 (-) Microphone Max. -
Page 10: Output Specifications
™ 2 SPECIFICATIONS: Output Specifications Nom/Min. Output Level, dBu* Bal/ Connector Input Load Impedance Unbal Nom. Max*** (Ohms) Master A/B Unbalanced 1/4" TRS Tip (+) Sleeve - Ground 2k / 600 +25 / +23 Balanced XLR: Pin 1 Ground Pin 2 (+) Pin 3 (-) Direct A or B Unbalanced 1/4"... - Page 11 THD: <0.005%@1 kHz (22 Hz – 80 kHz BW) Frequency Response: +0 dB/-1 dB, 20 Hz – 20 kHz (Mic @ max gain, EQ flat) Hum & Noise: (22 Hz – 22 kHz BW) EIN (Mic 150 Ohm):-129 dBu Direct Output: -97 dB, all controls OFF -86 dB, nominal settings, gains minimum LED Indicators:...
- Page 12 Audio will pay the return shipping charges. How To Get Warranty Service (1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Crest Audio Dealer or Authorized Crest Audio Service Center. OR (2) Ship the defective item, prepaid, to Crest Audio, 100 Eisenhower Dr., Paramus, NJ 07652.
-
Page 13: Important Safety Instructions
16. The user should not attempt to service this equipment. All service work should be done by a qualified service technician. 17. This product should be used only with a cart or stand that is recommended by Crest Audio, Inc. - Page 14 NOTES:...
- Page 15 NOTES:...
- Page 16 Features and specifications subject to change without notice. Crest Audio Inc. • 100 Eisenhower Drive • Paramus, NJ 07652 USA TEL: 201.909.8700 • FAX: 201.909.8744 • www.crestaudio.com ©2001 Printed in the U.S.A. 04/01 80304740...
