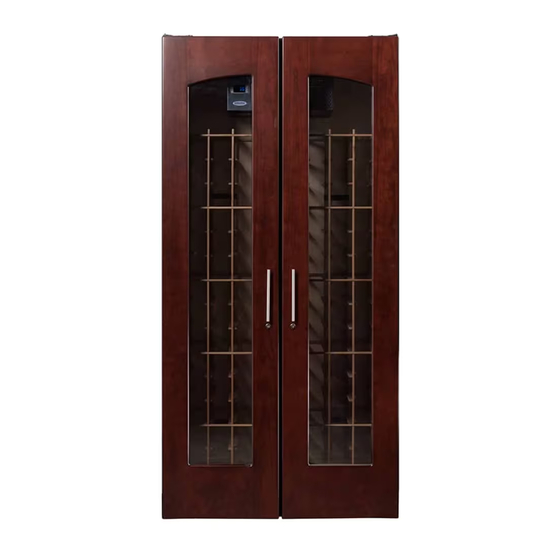

Summary of Contents for LE CACHE Contemporary 1400
- Page 2 C O N G R A T U L A T I O N S ! Thank you for choosing Le Cache Premium Wine Cabinets. Your handcrafted wine cabinet has been constructed from the finest materials and is designed to protect and preserve your valuable wine collection for many years.
-
Page 3: Table Of Contents
L E C A C H E P R E M I U M W I N E C A B I N E T S T A B L E O F C O N T E N T S Important Notes…………………………………………………. -
Page 4: Important Notes
L E C A C H E P R E M I U M W I N E C A B I N E T S I. I M P O R T A N T N O T E S ... -
Page 5: Delivery Overview
II. D E L I V E R Y O V E R V I E W DELIVERY If you purchased direct from Le Cache: Standard delivery fees include 2 men (4 men for the Model 3800 and 5200), lift gate-... -
Page 6: Inspection Procedure
DO NOT SIGN the paperwork if the delivery men write that there was HIDDEN or CONCEALED damage c. Call Le Cache at 1.877.532.2243 or your dealer immediately before the delivery men leave d. Save a copy of all freight documents, including the bill of lading with your... -
Page 7: Placement Of Your Wine Cabinet
The front vent hood can be used with all Le Cache wine cabinets that have CellarPro cooling units, as follows: o Contemporary, Loft and Vault wine cabinets can use our front-vent hood... - Page 8 L E C A C H E P R E M I U M W I N E C A B I N E T S o European Country and Mission wine cabinets can use our front-vent hood without the decorative grill (the grill will not fit with crown moldings.) ...
- Page 9 "X" indicates conditions that are beyond the capacity of our 1800XT cooling unit. Summary The following guidelines are designed to assist you in selecting the appropriate CellarPro wine cooling unit for your Le Cache (or similar size) wine cabinet. CellarPro 1800QTL...
- Page 10 If you will be placing your cabinet on thick carpeting, consider placing a carpet board underneath the wine cabinet. You can purchase a carpet board from Le Cache, or you can have your local hardware store cut a 3/4 inch plywood board to the following dimensions...
- Page 11 L E C A C H E P R E M I U M W I N E C A B I N E T S WEIGHT LOAD FACTOR After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet.
-
Page 12: Set-Up Instructions
L E C A C H E P R E M I U M W I N E C A B I N E T S V. S E T – U P I N S T R U C T I O N S OPENING THE DOORS When cabinets are shipped in hot or cold weather, the rubber gaskets can become tacky and stick to the cabinet. - Page 13 L E C A C H E P R E M I U M W I N E C A B I N E T S If cabinet is level, the lock should work freely without force. Also, the door(s) should be even (within 1/4 inch) with the top edge of the cabinet.
- Page 14 L E C A C H E P R E M I U M W I N E C A B I N E T S If the top corner of a door is sticking out more than 1/8 inch, you have "top torque". If the bottom corner of a door is sticking out more than 1/8 inch, you have "bottom torque".
- Page 15 L E C A C H E P R E M I U M W I N E C A B I N E T S UPRIGHT WINE CABINETS – CROWN AND BASE MOLDINGS For European Country wine cabinets, the crown and base moldings are shipped in a separate box.
- Page 16 L E C A C H E P R E M I U M W I N E C A B I N E T S CREDENZA WINE CABINETS – CREDENZA TOP AND BASE MOLDINGS For European Country and Mission credenzas, the moldings are shipped in a separate box. To attach the moldings, do the following: Adjust the leveling feet below the credenza until the doors are aligned Align the sides of the base molding with the tracks on the bottom of the wine...
-
Page 17: Operating Instructions
L E C A C H E P R E M I U M W I N E C A B I N E T S VI. O P E R A T I N G I N S T R U C T I O N S SOUND HOOD We created a sound hood that reduces the noise level of the cooling unit by 2-3 decibels. - Page 18 L E C A C H E P R E M I U M W I N E C A B I N E T S temperature (HY) differential from 4 degrees to 1 degree. Refer to our “Advanced Operation” instructions for further instructions how to change the HY differential. AIR FILTER All wine cabinets shipped after February 18, 2010, include an air filter that magnetically attaches to the rear of the cooling unit.
- Page 19 L E C A C H E P R E M I U M W I N E C A B I N E T S Minimum Set Point is 58°F and the Temperature Differential is 4°F, the cooling unit will turn on when the temperature inside the cellar rises above 62°F, and turn off when the temperature falls below 58°F.
- Page 20 L E C A C H E P R E M I U M W I N E C A B I N E T S Basic Operation Digital Display The temperature displayed on the control indicates the real-time air temperature as measured by Probe 1 (P1) located behind the front grill of the cooling unit, or the temperature (air or liquid) being measured...
- Page 21 L E C A C H E P R E M I U M W I N E C A B I N E T S Set Button The cooling unit is factory preset with a Minimum Point 58°F Temperature Differential of 4°F. This means that the cooling unit will turn on when the display rises above 62°F (58°F + 4°F), and turn off when the display falls below 58°F.
- Page 22 L E C A C H E P R E M I U M W I N E C A B I N E T S Advanced Operation CellarPro cooling systems can be programmed with advanced settings to achieve more control over conditions inside the cellar.
- Page 23 L E C A C H E P R E M I U M W I N E C A B I N E T S Alarms Alarm The control panel has an audible buzzer and an alarm indicator light Indicators* (Row 4) that turns on when an alarm is triggered.
-
Page 24: Bottle Storage Tips
L E C A C H E P R E M I U M W I N E C A B I N E T S VII. B O T T L E S T O R A G E T I P S To achieve the best results with your Le Cache wine cabinet, follow the recommendations below when loading and storing bottles: ... -
Page 25: Maintenance Instructions
L E C A C H E P R E M I U M W I N E C A B I N E T S VIII. M A I N T E N A N C E I N S T R U C T I O N S FURNITURE FINISH The finish on your wine cabinet is protected by two coats of high-grade lacquer. - Page 26 L E C A C H E P R E M I U M W I N E C A B I N E T S AIR FILTER All wine cabinets shipped after February 18, 2010, include an air filter that magnetically attaches to the rear of the cooling unit. To replace the filter, remove the filter frame from the top of the wine cabinet (see the image at right), and replace the filter when it becomes dirty (anywhere from 3 to 9 months depending on the...
-
Page 27: Troubleshooting Guide
L E C A C H E P R E M I U M W I N E C A B I N E T S IX. T R O U B L E S H O O T I N G G U I D E My wine cabinet is leaning forward. - Page 28 L E C A C H E P R E M I U M W I N E C A B I N E T S I’ve had the cabinet for some time, and the cabinet door(s) are no longer sealing properly against the cabinet.
- Page 29 L E C A C H E P R E M I U M W I N E C A B I N E T S 2. Check the ambient temperature in the space outside the condenser coils while the cooling unit is running, making sure that the difference between this temperature and the Minimum Set Point is no more than 25°F.
-
Page 30: Limited Warranty
FIVE YEAR COOLING UNIT LIMITED WARRANTY For five years from the date of original delivery, your Le Cache warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the cooling unit. Under the terms of this warranty, Le Cache will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to Le Cache. -
Page 31: Contact Information
L E C A C H E P R E M I U M W I N E C A B I N E T S XI. C O N T A C T I N F O R M A T I O N Le Cache Premium Wine Cabinets 531 Mercantile Drive Cotati, CA 94931 Toll Free: 1.877.532.2243...
