The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
1
Digital Day&Night Vandal Dome
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lorex NTSC
Summary of Contents for Lorex NTSC

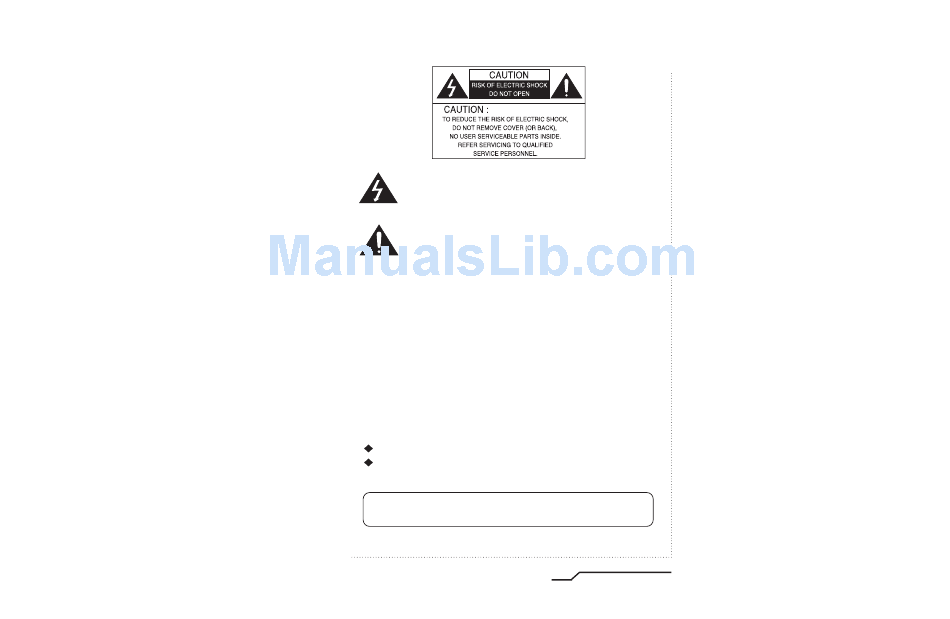

- Page 1 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
-
Page 2: Features
Features Warning The camera needs periodic inspection. Horizontal Resolution 540 TV High Sensitivity Contact an authorized technician for inspection. Lines The built-in high sensitivity SONY COLOR Clear image quality has been achieved by Stop using your camera when you find a malfunction. CCD enables a clear image even in employing a SONY CCD with 410,000 0.3Lux(0.1Lux B/W) or as low as 0.002Lux... -
Page 3: Table Of Contents
Contents Features Camera operation Menu Warnings and precautions Settings • LENS (selection) Components • SHUTTER (condition and speed control) Names and functions of parts • WHITE BALANCE control Lens • BACKLIGHT (Backlight Compensation) • AGC (Auto gain compensation) VBS-EXTRA • DNR (Digital Noise Reduction) 3Axis Bracket •... - Page 4 Precautions Do not install the camera in Do not install or use the camera in an Do not drop the camera or subject Never keep the camera face to extreme temperature conditions. environment where the humidity is high. it to physical shocks. strong light directly.
-
Page 5: Components
Components Names and Functions of Parts 1. COLOR DOME CAMERA 2. SCREWS 3. WRENCH 4. WIRE FOR VBS-EXTRA 5. INSTRUCTION GUIDE Digital Day&Night Vandal Dome Digital Day&Night Vandal Dome... -
Page 6: Lens
Names and Functions of Parts Names and Functions of Parts LENS : Vari-Focal Auto Iris Lens VBS-EXTRA FOR CONNECTING TO LCD Monitor (2.5mm ~ 6.0mm / F1.3, 2.9mm ~ 10mm / F1.2, Please use the supplied wire when connecting to LCD Monitor 3.8mm ~ 9.5mm / F1.2, 4.0mm ~ 9.0mm / F1.5) This enables installers to see the video output through a portable monitor at the sight . -
Page 7: Installation
Installation 1. Dome Base Mounting - Open the dome cover by unscrewing 3 screws using special wrench provided. - Mount the base of camera to a sturdy surface using 4 screws (1.5 inch) and 4 premade holes on the base of the dome. 2. -
Page 8: Camera Operation
Camera Operation Menu Settings Settings can be made using the 5 buttons located in the camera. SETUP menu LENS (selection) MANUAL SHUTTER MANUAL (condition and speed control) WHITE BALANCE control MANUAL BACKLIGHT MIDDLE (Backlight compensation) HIGH AGC (Auto Gain control) MIDDLE HIGH 1. - Page 9 Camera Operation MANUAL : Manual lens selection SETUP DC : Auto iris lens selection Select any function you LENS MANUAL Modes can be changed wish to operate by using the LEFT and SHUTTER using the UP and WHITE BAL. RIGHT buttons. DOWN buttons.
- Page 10 3. Please select 'MANUAL' mode if you wish to adjust the shutter manually. MANUAL : The manual adjustment mode enables finer adjustment. • You can select speed from ‘1/60’ to ‘1/120,000’sec (NTSC Models), ‘1/50’ Please select ATW or AWC first. Please change to manual adjustment mode to ‘1/120,000’sec (PAL Models).
- Page 11 Camera Operation BACKLIGHT(Backlight Compensation) AGC (Auto Gain Control) When there is a strong backlight behind the object, clear images of the 1. Please position the arrow to point to 'AGC' on the SETUP menu by using background as well as the object can still be obtained by using the the UP and DOWN buttons.
- Page 12 Camera Operation DNR (Digital Noise Reduction) The background noise in the low light level decreases automatically as the 1. Please position the arrow to point to 'SENS UP' on the SETUP menu by level of gain changes. using the UP and DOWN buttons. 2.
- Page 13 Camera Operation SPECIAL 1. Please position the arrow to point to 'SPECIAL' on the SETUP menu by 3) Please press the SETUP button. using the UP and DOWN buttons. 2. Please select the mode you wish to operate by pressing the UP or DOWN button.
- Page 14 6) Please select 'END' and then press the SETUP button to complete ID input. • When the power frequency is 50Hz, you can not use the line-lock mode (NTSC Models). • When the power frequency is 60Hz, you can not use the line-lock mode (PAL Models).
- Page 15 Camera Operation • Please select the area you do not wish to appear from the 4 areas in AREA SEL MOTION DETECTION: mode. This product has a feature that allows you to observe movements of objects • Please select ON mode for the chosen area. in 4 different areas on the screen, and the words 'MOTION DETECTED' •...
-
Page 16: Troubleshooting
• Please check the frequency of power supply monitor. available. (60Hz for NTSC, 50Hz for PAL). • If you have an intermediate device, set the 75 / Hi-z properly, and check the terminals. • Please check if an auto iris lens is being used COLOR mode is not •... -
Page 17: Specifications
Specifications MEMO Item NTSC AC24V/DC12V DC12V AC24V/DC12V DC12V Power Source 215mA(AC24V) / 250mA(DC12V) 160mA 215mA(AC24V) / 250mA(DC12V) 160mA Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Size 1/ 3 inch interline transfer CCD... - Page 18 MEMO...
- Page 20 Digital Day & Night Vandal Resistant Dome Camera Instruction Guide Digital Day & Night Vandal Resistant Dom Camera Printed in KOREA...
