ASSEMBLY   I NSTRUCTIONS

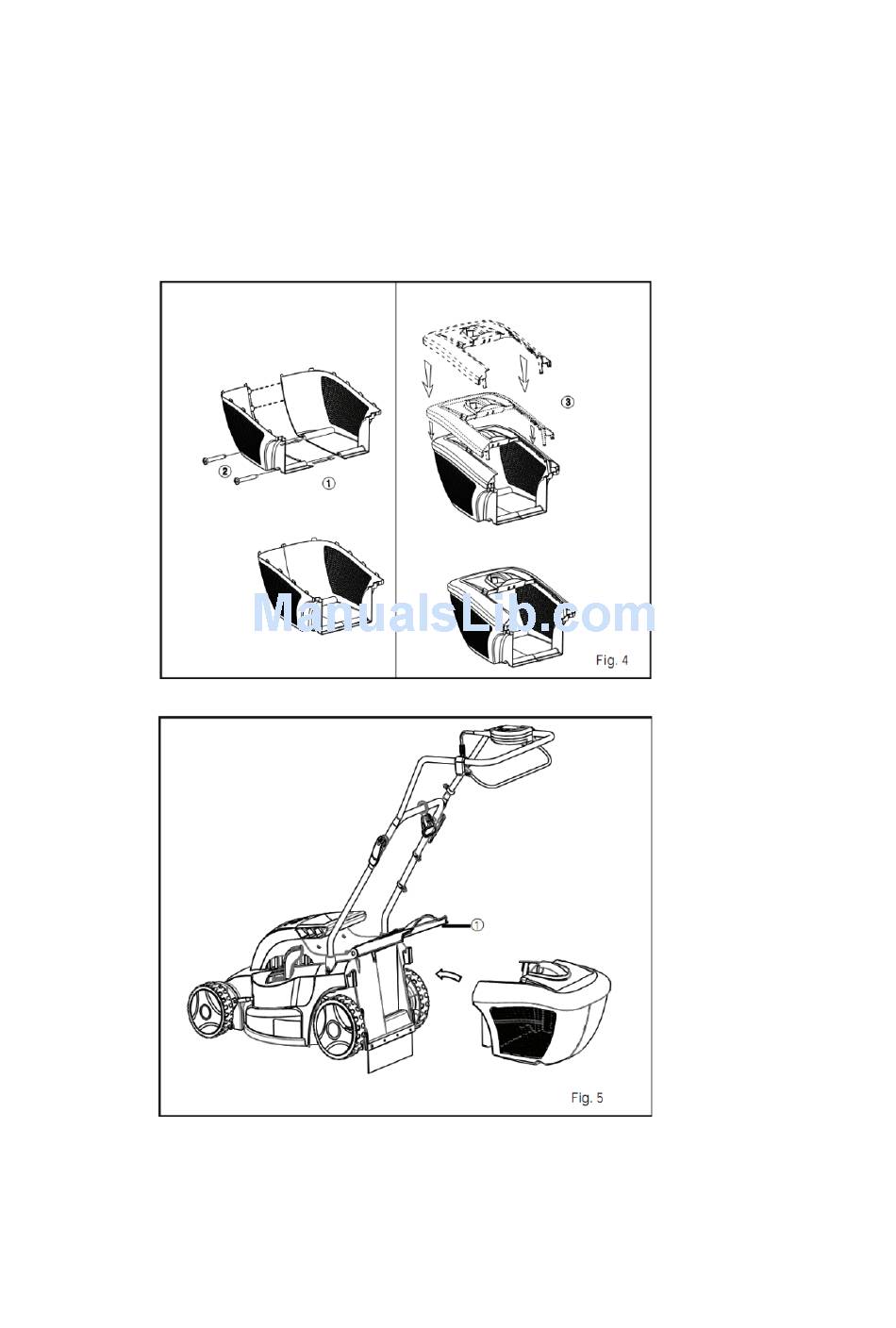

INSTALLING   T HE   G RASS   C OLLECTOR       (See   F igure   4 -­‐5)
Install   t he   l eft   a nd   r ight   b ottom   c over   o f   g rass   c ollector   t ogether   u sing   t he   s crews   p rovided.
Assemble   t he   t op   a nd   b ottom   c over   o f   g rass   c ollector   t ogether   a s   s hown   i n   ( Fig.   4 )
Before   y ou   f it   t he   g rass   c ollector   t o   t he   m ower   y ou   m ust   e nsure   t hat   t he   m otor   i s   s witched   o ff.

Lift   t he   r ear   c hute   c over   ( 1)   w ith   o ne   h and.   W ith   t he   o ther   h and,   h old   t he   g rass   c ollector   b y   t he   h andle   a nd   h ook   i t   o n
the   u nit   a s   s hown   i n   ( Fig.   5 )
