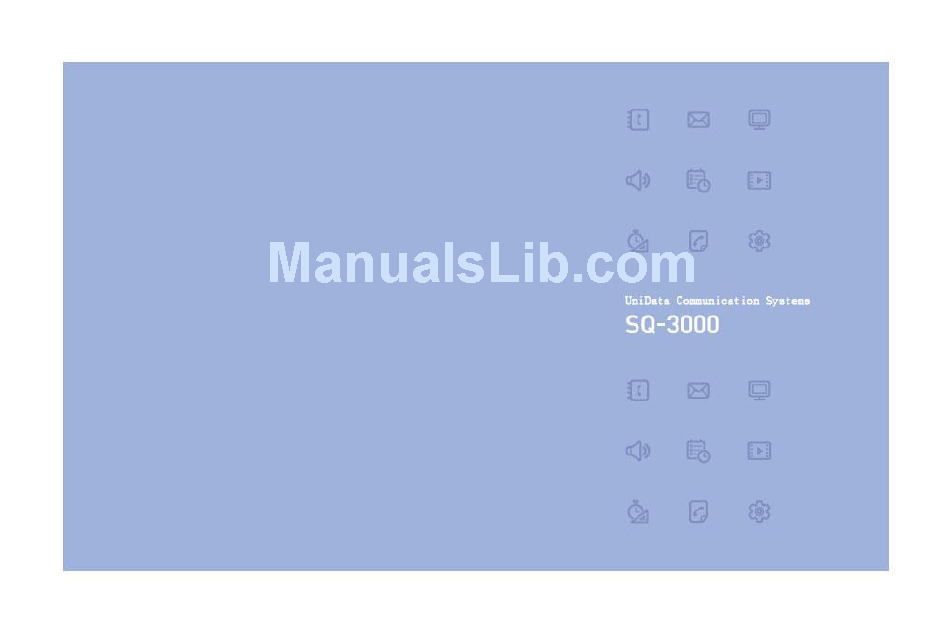

UniData Communication Systems SQ-3000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQ-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for UniData Communication Systems SQ-3000

Summary of Contents for UniData Communication Systems SQ-3000

  • Page 2 This manual includes product specifications and instructions for SQ-3000 phone operation. This manual must be read before operating the product. The SQ-3000 phone access point is required to use this product. Usage of the SQ-3000 access point provided in the full package is recommended.

  • Page 3: Safety Precautions

    Be sure to only use the designated batteries and accessories for the SQ-3000 provided by our company. If you use unauthorized batteries or accessories, it can reduce the life of the SQ-3000, cause explosions, or damage. If this occurs free servicing is avoid .
  • Page 4 Do not look at the infrared window in a direct way when using the remote control. this can cause visual impairment. Refrain from the use of SQ-3000, and leave the power cord for the charger unplugged when it is thundering and flashed lightning.

  • Page 5: Table Of Contents

    Index Safety Precautions………………………………………………………………………………..........1 Basic Components...…………………………………………………………………………………………….….…...…………4 Battery Replacement….……………………………………………………………………………………..….……………...5 Time Taking to Charge / Battery Life………………………………………………………………………….………………….6 Inserting / Removing a micro SD card…..…………………………………………………………………….…………………8 Power On/Off………………………………………………………………………………………..........10 Names & Function of Device Parts………………………………………………………………………………………………11 Display Indicators…………………………………………………………………………………………………………………..12 Calling Method………………………………………………………………………………………………………………………13 Phone Book………………………………………………………………………………………………………………………….20 Messaging……………………………………………………………………………………………………………………………27 Display………………………………………………………………………………………………………………………………..28 Sound…………………………………………………………………………………………………………………………………29 Tools…………………………………………………………………………………………………………………………………..30 Logs……………………………………………………….………………………………………………………..………………...31 System Settings…………………………….……………………………………………………………………..………………..32...

  • Page 6: Basic Components

    Basic Components The Basic Components as shown below may be different from the original. For safety in use, please purchase authentic products. If you want to purchase additional batteries or chargers, contact your dealer. Phone Cradle Battery Manual Adapter...

  • Page 7: Battery Replacement

    RISK OF EXPLOSION IF A BATTERY IS REPLACED WITH AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Battery installation method Battery removal If the battery is inserted upside down, the SQ-3000 phone will not work. Please turn off the power before removing the battery from the SQ-3000 phone. (a sudden power off can cause problems)

  • Page 8: Time Taking To Charge / Battery Life

    Time Taking to Charge / Battery Life Charge the battery Charge the battery after purchasing the product as it is not fully charged. Charging with the desktop charger Features Charging Charging Complete Charging Lamp GREEN ※ Lamp on the charger flickers? Separate the battery from the charger, and then re-fits into the charger.
  • Page 9 Time Taking to Charge / Battery Life Time Taking to Charge / Battery Life ※ Battery life varies with the environment temperature, Model Standard Model battery age and movement of the user. Charging time 3 hours 30 minutes -Battery life is not permanent Battery life Voice 6 hours...

  • Page 10: Inserting / Removing A Micro Sd Card

    Inserting / Removing the Micro SD card Inserting the micro SD card Use Only compatible micro SD cards approved by UniData for use with this device. UniData uses approved industry standards for memory cards, but some brands may not be fully compatible with this device. Incompatible cards may damage the card, the device and corrupt data stored on the card.

  • Page 11: Power On/Off

    Power On / Off If you want to turn on the power, If you want to turn off the power, keep pressing keep pressing for 3 seconds or more. for 3 seconds or more. If anything abnormal takes place, or if the power button does not work while using a Wi-Fi phone, start the phone after removing and inserting the battery.

  • Page 12: Names & Function Of Device Parts

    Names & Function of Device Parts Send Key Left Selection Key Used for receiving and making Right Selection Key calls End Key Mute Shortcut Used to end a call and to AP Search Key switch the power ON/OFF Alarm Shortcut Using Message function Clear Key Calendar...

  • Page 13: Display Indicators

    Display Indicators Signal strength Out of call coverage area Call trial or connection Call not available You have selected the sound setting Mute button, displayed when the volume is set to “0” Vibration Mode Silent Mode An Alarm is set You have one or more unread messages in the Inbox folder Setting to call forwarding service Remaining battery life...

  • Page 14: Calling Method

    Calling Method Voice Calls Call Connect In standby, enter the numeric keys and then press the ※ Call quality may be reduced at increased distance away from the access point.
  • Page 15 Calling Method Video Calls Call connect In standby, enter the numeric keys and then press ※ Call quality may be reduced at increased distance away from the access point.

  • Page 16: Call Logs

    Calling Method Call logs Redialing recently used numbers You can make voice or video calls by dialing recently used numbers (incoming, outgoing, missed, received/sent text messages). During stand-by, press the SEND key and then select the phone number you want to call. - Select VIDEO in the menu if you want to make a video call.
  • Page 17 Calling Method Number Auto-search Press a part of the number you want to call to auto- search the phonebook and display the results. Select a phone number and press the OK key. - Press the VIDEO key to make a video call.
  • Page 18 Using the Menu During a Voice Call Using the menu during a voice call Making a voice call •Refer to page 12. Convert to video call: Convert the current voice call to a video call without ending the call. Taking a voice call Contacts: Search the phone book.
  • Page 19 Using the Menu During a Voice Call Making a video call Using the menu during a video call •Refer to page 13. Convert to voice call: Converts the current video call to a voice call without ending it. Taking a video call Mute: This function stops your caller from hearing your voice Press the SEND key when the message “Incoming temporarily.
  • Page 20 Missed call If you have a missed call, press , and the last one of those calls will be answered. To see calls that have arrived in your absence from the call list, press or use the Left selection key Menu) >...

  • Page 21: Transferring A Call

    Call Transfer / Hold / Waiting Transferring a call When you are on a call, you can announce that you are transferring an active call to another party, or you can directly transfer the call. 1. Press the to put the call on HOLD. 3rd party numbers and place a new call 2.

  • Page 22: Phone Book

    Phone Book Right select key for shortcut Left selection key ( Menu > Contacts > Search contacts ) Enter a part of a name, phone number or e-mail address to search for a phone number. Search all: Search by a part (more than 1 character) of a name, phone number or e-mail address.
  • Page 23 Phone Book 1. Phone Number Search - Menu (for a saved number) 2. Phone number search – video call 1. Press the to make a video call from the phone book you have selected. - The phone number selected must be compatible with video calling.
  • Page 24 Phone Book 1. Phone Number Search - Menu (for a saved phone number) 4. Phone Number Search - Delete Press and select > Delete from Phone Book menu. Delete the selected number. 5. Phone Number Search – Delete All Press and select >...
  • Page 25 Phone Book Image Save a picture. (Press and select) 2. Add new contacts ( Menu > Contacts > Add contacts ) Name Save a name. (Up to 16 alphabet characters) Add a new phone number and other details. Group Assign a group. Use direction key to assign the group.
  • Page 26 Phone Book You can add new number in standby mode. Dial a phone number and press SAVE during stand-by to save phone numbers.
  • Page 27 Phone Book Phone Book 3. To set speed dial, select ( Menu > Contacts > Speed dial ) Set speed dial numbers for phone numbers saved in the phone book that are frequently called (up to 99 speed dial numbers can be saved). 1.
  • Page 28 Phone Book Group Settings ( Menu > Contacts > Group Settings )+ Edit a group to assign a phone number or add a new group. Select a group to edit and change the group name Group name: Enter a group name (12 Korean characters, 24 alphabet and ring tone.

  • Page 29: Messaging

    Messaging In messaging, you can read, write and send messages. The messaging service can only be used if it is supported by your network or service provider Left selection key ( Menu > Messaging ) or press the shortcut key Create a text message Select Menu >...

  • Page 30: Display

    Display Display settings Select the left selection Menu > Display There are 4 options included in Display Settings Wallpaper Select Menu > Display > Wallpaper This feature enables you to set a picture as a wallpaper image in your phone‟s stand -by screen. There are fifteen built-in pictures for you to change the background image Screen To define the clock type of the time format in stand-by screen, Select...

  • Page 31: Sound

    Sound Settings Bell settings Select left selection Menu > Sound settings > Bell to change the type of the bell Bell mode Select menu > Sound settings > Bell mode to choose how the phone notifies you of an incoming voice call. The alert type allows you to choose between Ringing(Ringtone), Vibrating and Silent.

  • Page 32: Tools

    Tools Alarm To set an alarm, Select left selection Menu > Tools > Alarm > Speed alarm. When an alarm is activated, the alarm indicator will be displayed. To dismiss the alarm and return to standby mode, press <CRL> or <Right selection Key >...

  • Page 33: Logs

    Logs Select left selection Menu > Logs > Call history Log information about the communication history of the device. The device registers missed , received calls and SMS history up to 100. To move to another tab press the <CRL> then use the <direction Key> Clogs info To view the total number of calls, Select Menu >...
  • Page 34 • If there is no registered Wi-Fi, a default profile will appear SayviewNet is a default profile. SQ-3000 can be registered Wi-Fi up to 4 Default Profile 1 + Registered from User 3 2. Display scanned AP list. (Bottom) •...
  • Page 35 WLAN Settings Wi-Fi Menu lists • Refresh: Refresh the scanned AP • Detail: Detail information of selected AP • Profile add: Add new profile. • Delete: Delete selected item ( It displays on the menu when you select the registered AP list ) •...
  • Page 36 User Settings Left selection key ( Menu) > Reset to default Settings > User settings > Reset to default ) To reset all preference settings and delete all personal data, such as contacts, message, WLAN and SIP information...
  • Page 37 You can use the SQ-3000 as a Digital Photo Frame when it’s on the cradle. To make a digital photo frame with the SQ-3000, copy images to the Micro SD card and insert Micro SD card into the SQ-3000. Left selection key ( Menu) >...
  • Page 38 Information Left selection key ( Menu) > Settings > Information) You can see the setting information of Wi-Fi phones. Network info. Basic Info. Displays the IP address, netmask, gateway and My phone number, Firmware version, MAC DNS address. address Wi-Fi Info. Displays the access point or wired/wireless router the Wi-Fi phone is connected to.

  • Page 39: System Settings

    System Settings SIP Settings Left selection key ( Menu) > Settings > System > SIP You can set the information of the SIP server. SIP Account. If you select SIP, the following options will appear: • Phone number – Enter your registered phone number from SIP server •...
  • Page 40 System Settings Language Settings To set the language used on the device display, Select Left selection key ( Menu) > Settings > System > Language Provision Settings To download the new firmware via our Auto Provisioning Sever, Select Left selection key ( Menu) >...
  • Page 41 Specification Product Specification Certified 2400MHz ~ 2483.5MHz 802.11b/g UniData Communication Systems, INC. Frequency Company 5150MHz ~ 5250MHz (A band) Band Wireless Data Communication system 802.11a Device Name 5725MHz ~ 5825MHz (D band) wireless appliance Ch1 ~ Ch 13 802.11b/g Model...
  • Page 42 Specification FCC ID: SQMSQ-3000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment.
