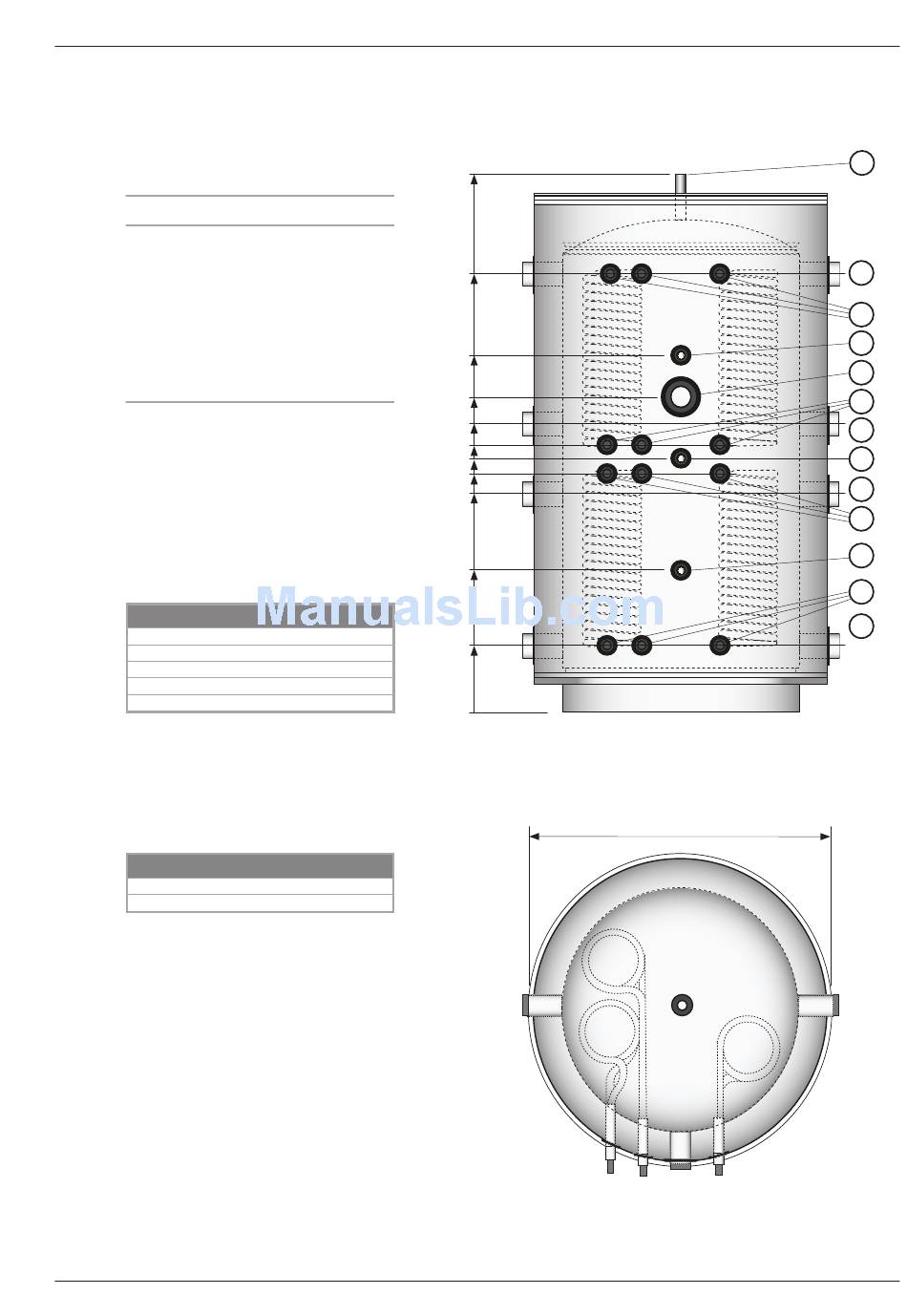

Connection WT-C 750

1 Expansion/Venting, DN25 ext.
2 Connections (8x), DN50 int.
3 Temperature sensor conn. DN20 int.
4 Immersion heater conn. DN50 int.
5 Hot water coil (3x12m), Ø22
6 Preheat coil/Hot water coil (3x12m), Ø22
Technical data
WT-C 750
Volume hot water accumulator
Test pressure
Working pressure
Rated temperature
Weight
Dimensions
WT-C 750
Height (mm)
Diameter (ømm)
Required ceiling height for tilting: min. 2085mm
