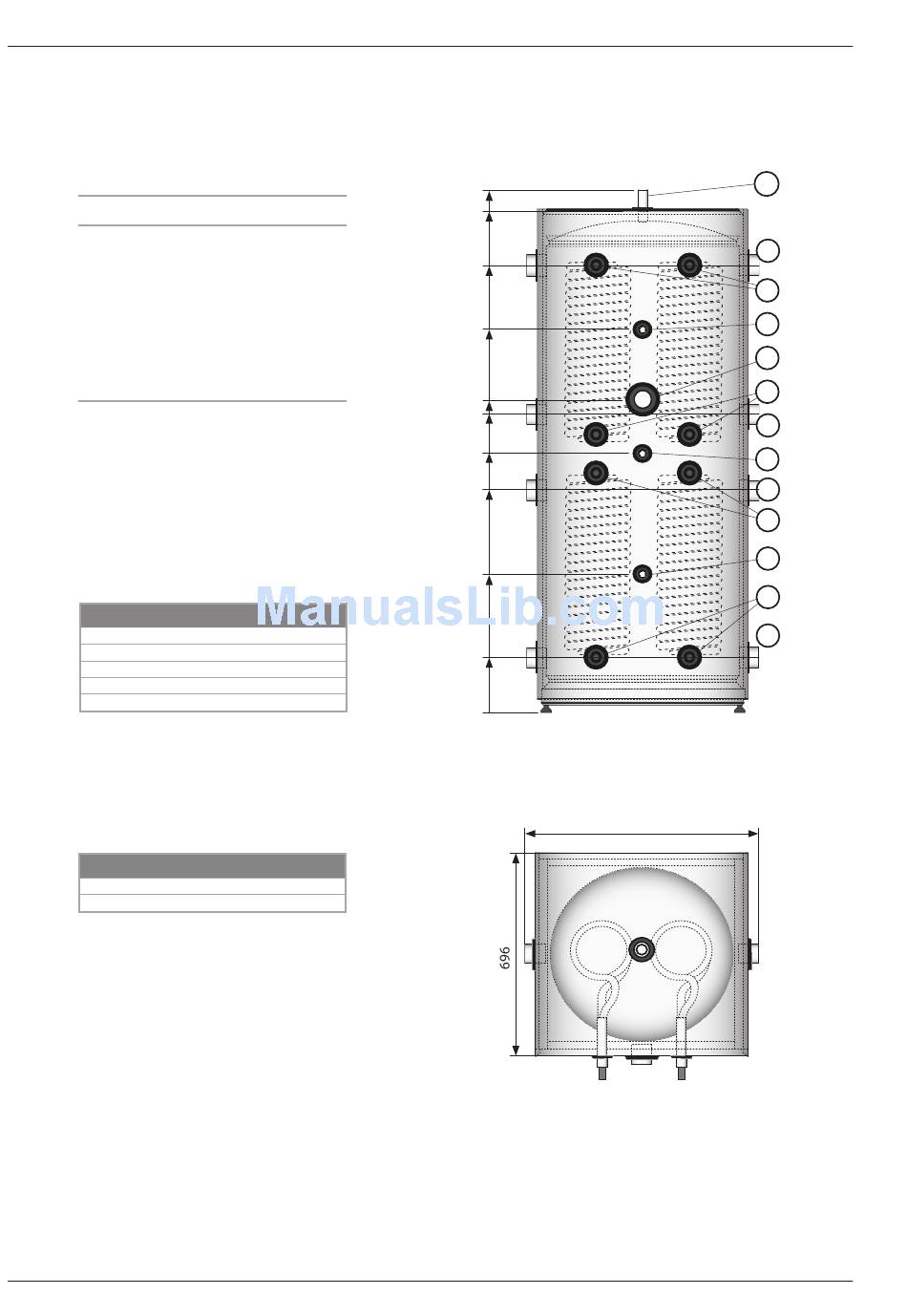

Connection WT-C 500

1 Expansion/Venting, DN25 ext.
2 Connections (8x), DN50 int.
3 Temperature sensor conn. DN20 int.
4 Immersion heater conn. DN50 int.
5 Hot water coil (2x12m), Ø22
6 Preheat coil/Hot water coil (2x12m), Ø22
Technical data
WT-C 500
Volume hot water accumulator
Test pressure
Working pressure
Rated temperature
Weight
Dimensions
WT-C 500
Height (mm)
Dimensions (mm)
Required ceiling height for tilting: min. 1840mm
6
1730
1666
1480
1205
1030
500 litres
4,3 bar
3 bar
100 °C
142 kg
1730
696 x 760
VIILD102
930
830
730
455
180
0
1
2
5
3
4
5
2
3
2
6
3
6
2
760
