- Page 1 PROFESSIONAL 2-WAY LCD REMOTE ALARM SYSTEM OPERATION MANUAL THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY Please register your product at www.encoreautomotivesystems.com E4 OP REV. A1...
-
Page 2: Battery Changing

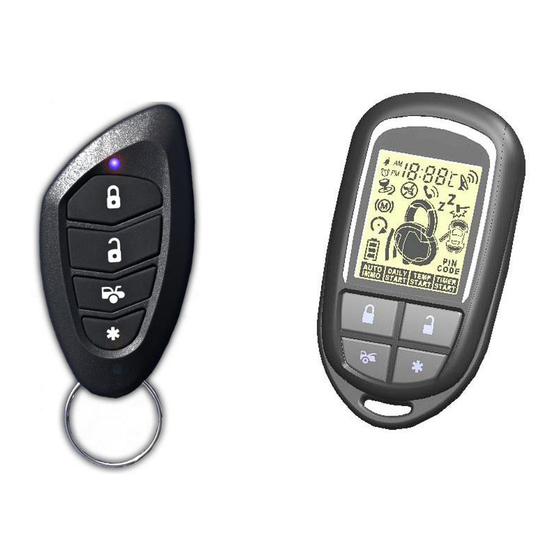

LCD REMOTE CONTROL TRANSCEIVER A. BATTERY CHANGING: Depending on the usage, the remote batteries should be changed at least once a year in the one way remote and once every 4-5 months for the two-way remote. The 1-way remote, (E-7s) is powered by a pair of 3V, CR2016 batteries. These batteries are available at most locations batteries are sold and can be replaced by the user. -
Page 3: Standard Lcd Icon Configurations
B. STANDARD LCD ICON CONFIGURATIONS: The lock icon will be displayed when The unlock icon will be displayed the door locked and the system is when the door unlock and the armed. system is Disarmed. Driver paging Valet Mode Someone is paging you in your vehicle Remote start and alarm functions temporarily disabled Trunk Trigger... -
Page 4: Remote Transmitter Operation
OPERATION: REMOTE TRANSMITTER OPERATION: Transmitter System Function Remark Button Lock Doors & Arm System Press and Hold for 3 seconds. Press Trunk Panic function button to stop panic function Car Locator Press when in armed mode Arm and Delete The 2 Stage Shock Press twice within 3 seconds. -
Page 5: Active Arming - Lock & Arm
7. Car Locator 6 Chirps 12 Flashes Locking E. ACTIVE ARMING – LOCK & ARM: button 1. Press on the transmitter. The siren will chirp once and parking light will flash once indicating that the system is now armed. The vehicle’s doors will lock upon arming if interfaced with the security system. -
Page 6: Disarming Without A Transmitter
TAMPER DISARMING: If the alarm is triggered, upon disarm the system’s siren will chirp 4 times, and the parking lights will flash 3 times telling you the alarm has been triggered during the last armed state. PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this feature will turn the parking lights “ON” for 30 seconds and for 10 seconds upon the lock signal. -
Page 7: Trigger The System
L. TRIGGER THE SYSTEM When armed, your vehicle is protected as follows: Light impact will trigger the warn-away signal. Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open / Turning on the ignition key will trigger the programmed sequence. The starter disable relay (if installed) prevents the vehicle’s starter from cranking. - Page 8 OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING: Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will stop and the system disarmed Note: If you use password pin code to double protect the vehicle security, you will need to use it to completely disarm the system.
- Page 9 Channel 5 is user-programmable timer output. You may program the built-in timer to send a ground signal for any time duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight, power window or sunroof. U.
- Page 10 sec. mode Enable (1 beep) / Disable (2 beeps, default = disable) Table 2: two beeps to confirm Transmitter button LCD Display System feature & remark clock time adjust Press & hold button button to decrease or increase “Hour” digit, 12 is flashing for 3 seconds adjust hour from 0 to 12.
- Page 11 Encore Automotive Systems LLC. WARRANTS that this new unit has been thoroughly inspected and tested at the factory prior to delivery. Your Encore equipment is guaranteed for “life” to the original purchaser/user of the equipment and the original vehicle in which it was installed by an authorized installer under the following conditions: If the product proves defective (according to Encore’s testing) within the first year, the defective unit may be exchanged or repaired free of charge.
- Page 12 Consequential damages of any kind; any inability of the purchaser to use the equipment. **IMPORTANT NOTE: Any damages resulting from an installation performed by anyone other than a professional installation technician authorized by Encore will void the product’s Limited Lifetime Warranty It is the purchaser’s responsibility to register this product for any future warranty...
