SECTION 5

5-1 PREPARATION

When you adjust the contents on pages 5-5 and 5-6, SOFT-
WARE ADJUSTMENT, the optional CS-400PRO ADJ
(Rev. 1.0 or later), *OPC-1122
ADJUSTMENT SOFTWARE
(modified OPC-1122
CABLE
below) are required.
I SYSTEM REQUIREMENTS
• IBM PC compatible computer with an RS-232C serial port
(38400 bps or faster).
• Microsoft Windows 95/98 or Windows ME
• Intel Pentium 100 MHz processor or faster
• At least 16 MB RAM and 10 MB of hard disk space
• 640×480 pixel display (800×600 pixel display recommend-
ed)
IBM is a registered trademark of International Business
Machines Corporation in the U.S.A. and other countries.
Microsoft and Windows are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
Screen shots produced with permission from Microsoft
Corporation. All other products or brands are registered
trademarks or trademarks of their respective holders.

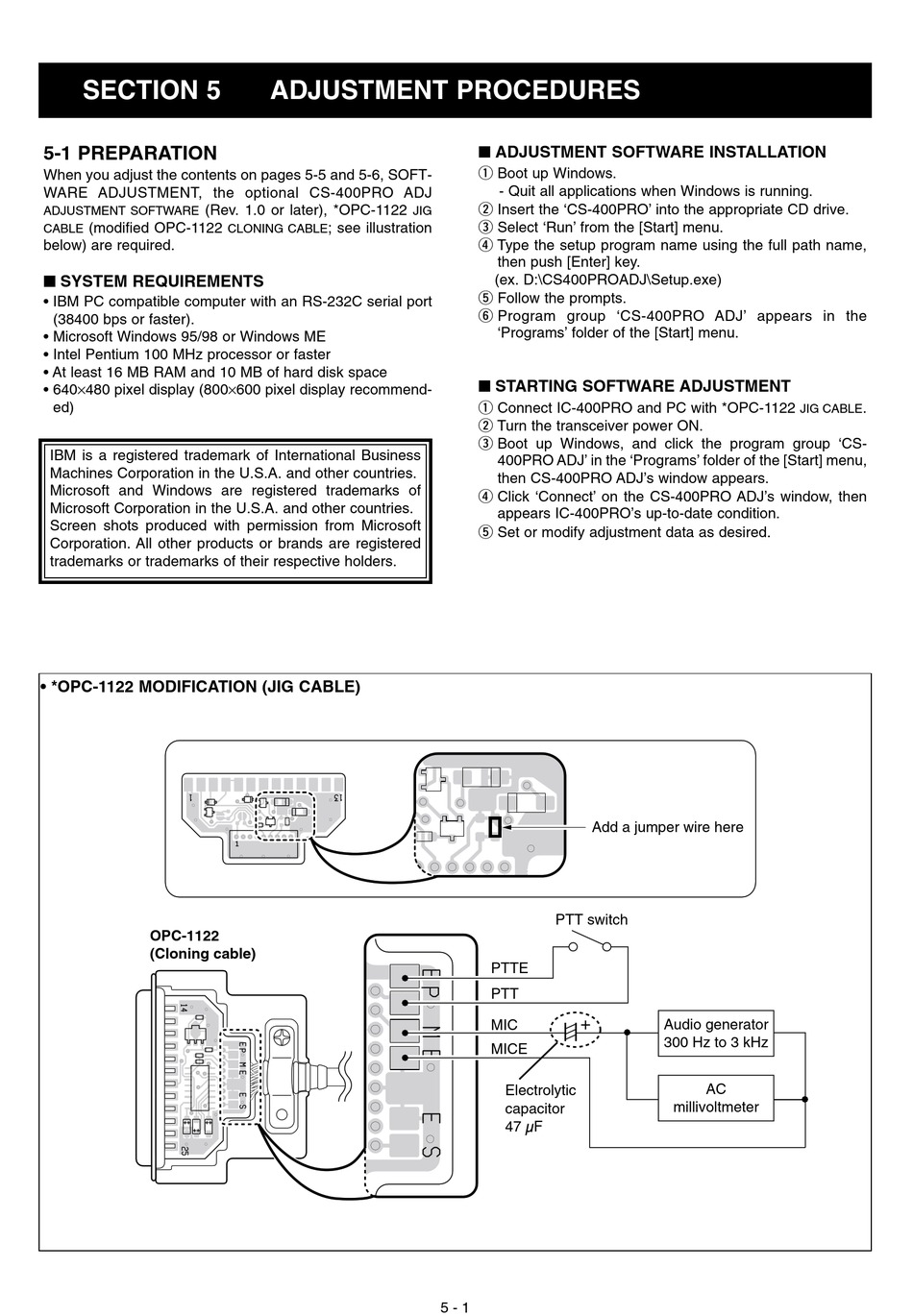

• *OPC-1122 MODIFICATION (JIG CABLE)
OPC-1122
(Cloning cable)

ADJUSTMENT PROCEDURES

; see illustration
CLONING CABLE
I ADJUSTMENT SOFTWARE INSTALLATION
q Boot up Windows.
- Quit all applications when Windows is running.
w Insert the 'CS-400PRO' into the appropriate CD drive.
JIG
e Select 'Run' from the [Start] menu.
r Type the setup program name using the full path name,
then push [Enter] key.
(ex. D:\CS400PROADJ\Setup.exe)
t Follow the prompts.
y Program group 'CS-400PRO ADJ' appears in the
'Programs' folder of the [Start] menu.
I STARTING SOFTWARE ADJUSTMENT
q Connect IC-400PRO and PC with *OPC-1122
w Turn the transceiver power ON.
e Boot up Windows, and click the program group 'CS-
400PRO ADJ' in the 'Programs' folder of the [Start] menu,
then CS-400PRO ADJ's window appears.
r Click 'Connect' on the CS-400PRO ADJ's window, then
appears IC-400PRO's up-to-date condition.
t Set or modify adjustment data as desired.
PTT switch
PTTE
PTT
+
MIC
MICE
Electrolytic
capacitor
47 F
5 - 1
Add a jumper wire here
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
.
JIG CABLE
