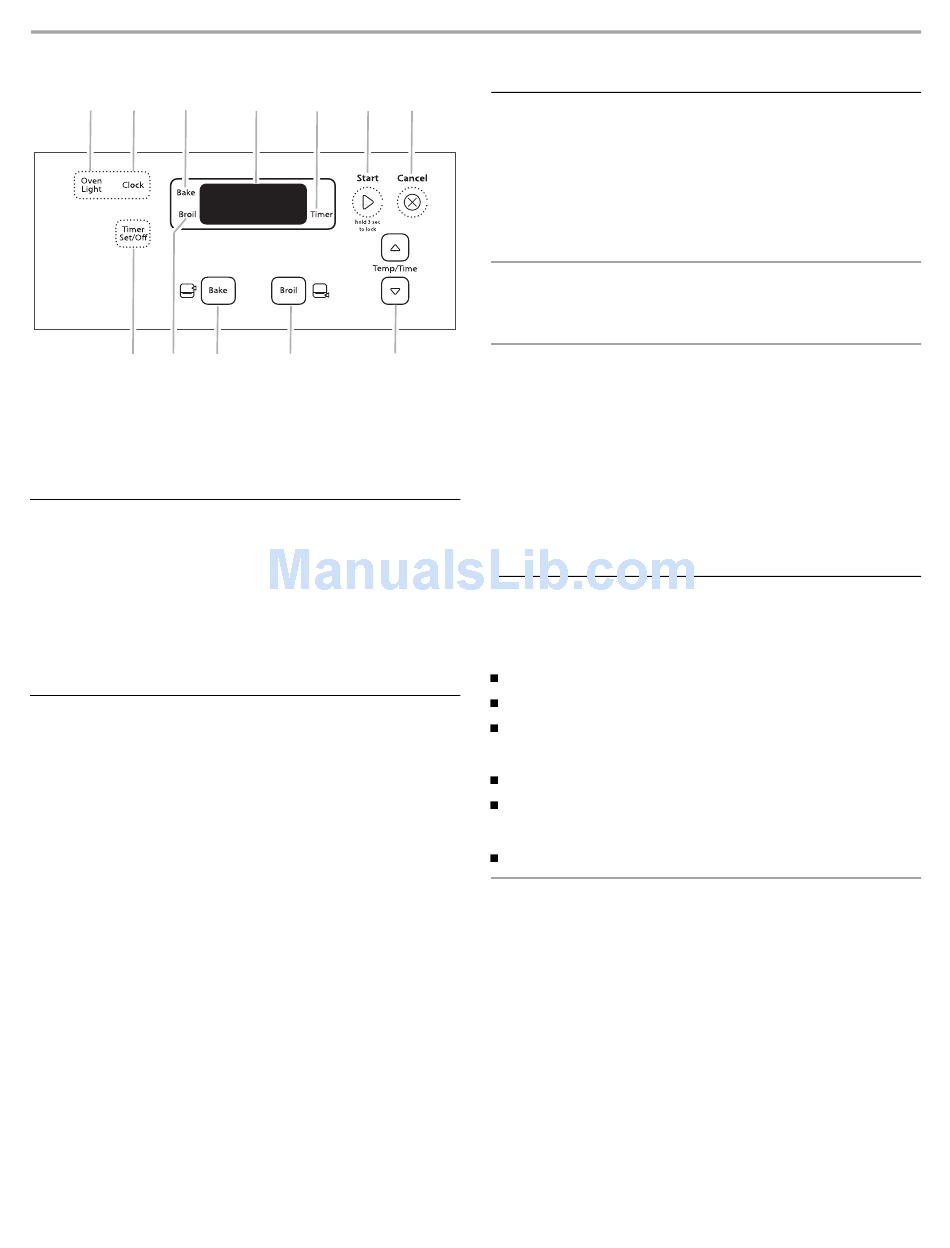

Electronic Oven Control; Display; Oven Indicator Lights; Start - Whirlpool STANDARD CLEANING GAS RANGE Use & Care Manual

B C
A
L K
A. Oven light
B. Clock
C. Bake indicator light
D. Display
E. Timer indicator light
F. Start (control lock)

Display

When power is first supplied to the appliance, a flashing time will
appear on the display. Press Cancel to clear flashing time from
the display.
If flashing time appears, a power failure has occurred. Press
Cancel and reset the clock if needed.
When the oven is not in use, the display shows the time of day.
When performing a cook or timer function, the display will show
either hours and minutes, or minutes and seconds.

Oven Indicator Lights

The indicator lights are located on both sides of the display. The
indicator lights light up or flash when the oven is in one of the
following modes: Bake, Broil or Timer.

ELECTRONIC OVEN CONTROL

D
E F
J
I H
G. Cancel
.
H Temp/time
I. Broil
J. Bake
K. Broil indicator light
L. Timer set/off
G
Start begins any oven function. If Start is not pressed within
5 seconds after pressing a function pad, the Push to Start
("PSH") indicator light will flash and the push to start tone will
sound as a reminder.
If Start is not pressed within 1 minute after pressing a function
pad, the oven display will return to the time of day mode and the
programmed function will be canceled.
Cancel stops any function except the Clock, Timer and Control
Lock.
This is a 12-hour clock and does not show a.m. or p.m.
To Set:
Before setting, make sure the oven and Timer are off. Press
Cancel to cancel the oven, and press TIMER SET/OFF twice to
cancel the timer.
1. Press CLOCK.
2. Press the TEMP/TIME "up" or "down" arrow pads to set the
time of day.
3. Press CLOCK or START.
Tones are audible signals, indicating the following:
One tone
Valid pad press
Oven is preheated (long tone)
Function has been entered
Three tones
Invalid pad press
Push to start reminder
Cycling tones
End of cycle

Fahrenheit and Celsius

The temperature is preset at Fahrenheit, but can be changed to
Celsius.
To Change: Press and hold BROIL for 5 seconds. A tone will
sound, and "C" will appear on the display. Repeat to change
back to Fahrenheit. To exit mode, press Cancel or wait
3 seconds.

Start

Cancel

Clock

Tones

7
