DIGITAL SNAKE DL32

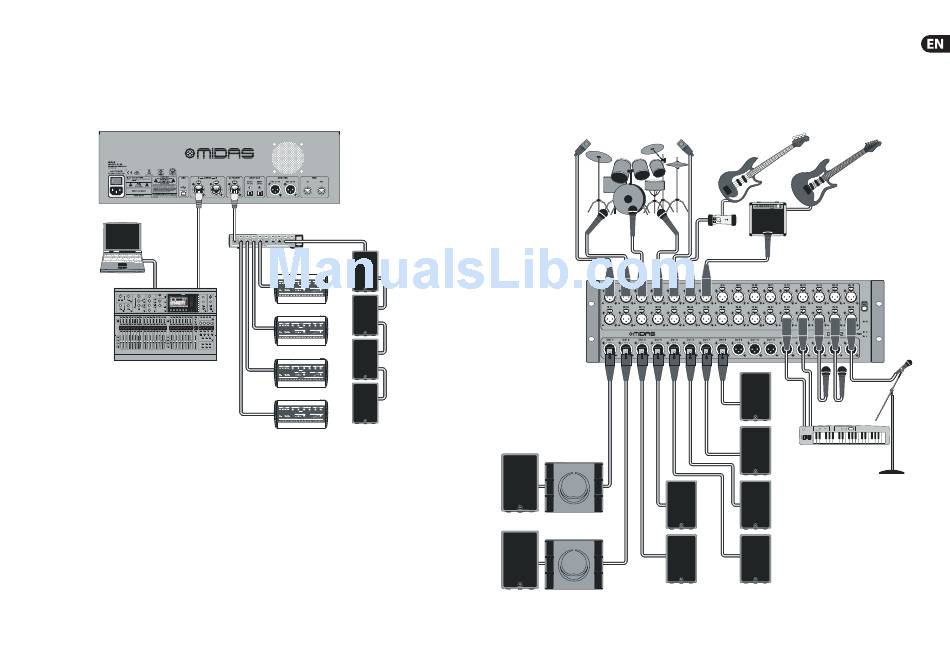

DIGITAL SNAKE DL32 Hook-up
Step 1: Hook-Up
Shielded CAT5
M32
Cabling for all AES50 connections between M32 and DL32 stageboxes:
• Shielded CAT-5e, Ethercon terminated ends
• Maximum cable length 100 meters (330 feet)
DL32 rear panel connections
P16-D
iQ12
P16-M
M15
M18B
Quick Start Guide
DL32 common connections
DI Box
Keyboard
M12
