Assembling the EG540
GENERAL SAFETY REMARKS
The EG540 must be assembled before use. A Phillips or slotted
screwdriver is required to assemble the parts.
CAUTION
The piano should be assembled by at least two
persons to avoid injury, due to its weight and bulky
parts.
NOTICE
During assembly, make sure you use the correct
parts and screws and assemble them in the
correct order.
Use only screws that are included with the unit
for assembly, otherwise the parts might get
damaged.
To disassemble the unit, follow the steps in reverse
order.

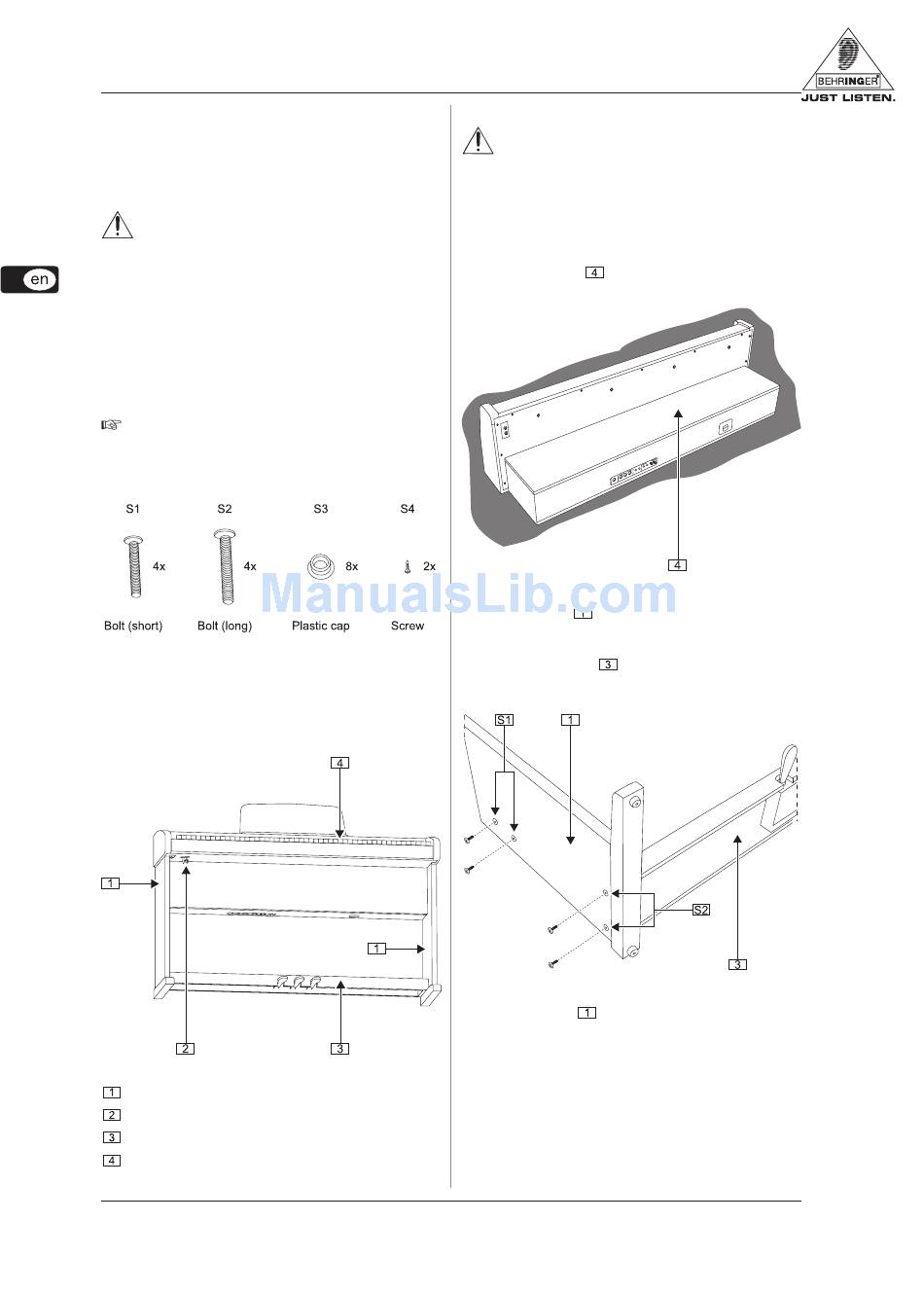

Fig. 1 shows the designations of the small parts supplied which
are required for assembling the digital piano.
Fig. 1: Small parts overview
The small parts are numbered consecutively (S1-S4). These
numbers can be found in the illustrations below as well as in the
text so that you know which screw is needed for which hole.
The illustration below identifies each part and shows how to
assemble the piano.
Fig. 2: Parts overview
legs
headphone hanger
pedal board
console
2
EG540 ASSEMBLY
CAUTION
Be careful not to hurt yourself during assembly
by accidentally dropping the unit.
NOTICE
Make sure that the music rest is raised before
assembling the piano to prevent damage to the
unit.
1) Place the console
back resting on the floor.
2) Hold the left leg
holes facing away from the console and secure it with two
short bolts (S1) at the recessed positions.
3) Hold the pedal board
the pedals facing up and secure it with two long bolts (S2) at
the recessed positions.
4) Hold the right leg
holes facing away from the console and secure it with two
short bolts (S1) at the recessed positions of the console and
with another two long bolts (S2) against the pedal board, as
already done on the left side.
5) Ensure that all bolts have been properly secured and use
the plastic caps (S3) to cover the bolts by pushing one into
each hole.
6) Pass the pedal cable through the cable clips inside the pedal
board to the back of the unit.
Process of assembly
on a soft carpet or blanket with the
Fig. 3: Assembly position
against the console with the recessed
against the foot of the left leg with
Fig. 4: Mounting the legs
against the console with the recessed
