Important safety and
assembly instructions
Version 1.0 December 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eurogrand EG2080-RW and is the answer not in the manual?

Questions and answers

Summary of Contents for Behringer Eurogrand EG2080-RW

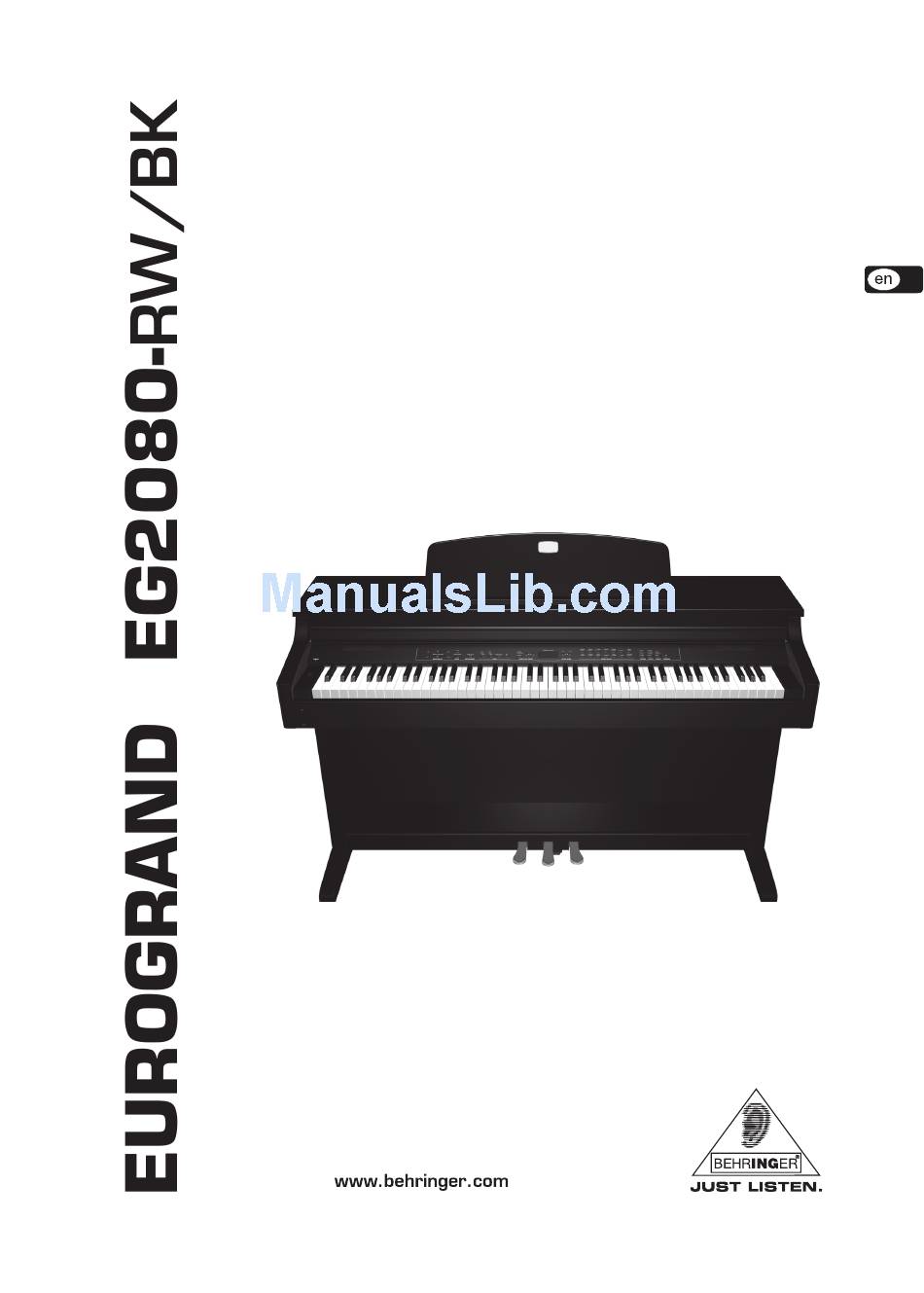

  • Page 1 Important safety and assembly instructions Version 1.0 December 2006...
  • Page 2 EG2080 ASSEMBLY EG2080 OVERVIEW Important Safety Instructions The EG2080 must be assembled before use. A Phillips or slotted screw driver is required to assemble the parts. During assembly make sure you use the correct components and screws and assemble them in the correct order.
  • Page 3 EG2080 ASSEMBLY 2. Side Panel and Pedal Box Assembly: 1. Position the Pedal Box against the Left Side Panel and then use two screws to fasten the side panel. Finally, attach a plastic cap to each screw. 2. Position the Pedal Box against the Right Side Panel and then use two screws to fasten the...
  • Page 4 EG2080 ASSEMBLY 3. Modesty Panel Assembly: 1. Position the holes of the Modesty Panel against the holes of the side panel brackets and then use two screws with attached washers to fasten the top of the Modesty Panel. 2. Use three screws with attached washers to fasten the bottom of the Modesty Panel.
  • Page 5 Their use neither constitutes a claim of the trademarks by BEHRINGER nor affiliation of the trademark owners with BEHRINGER. BEHRINGER accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein.
