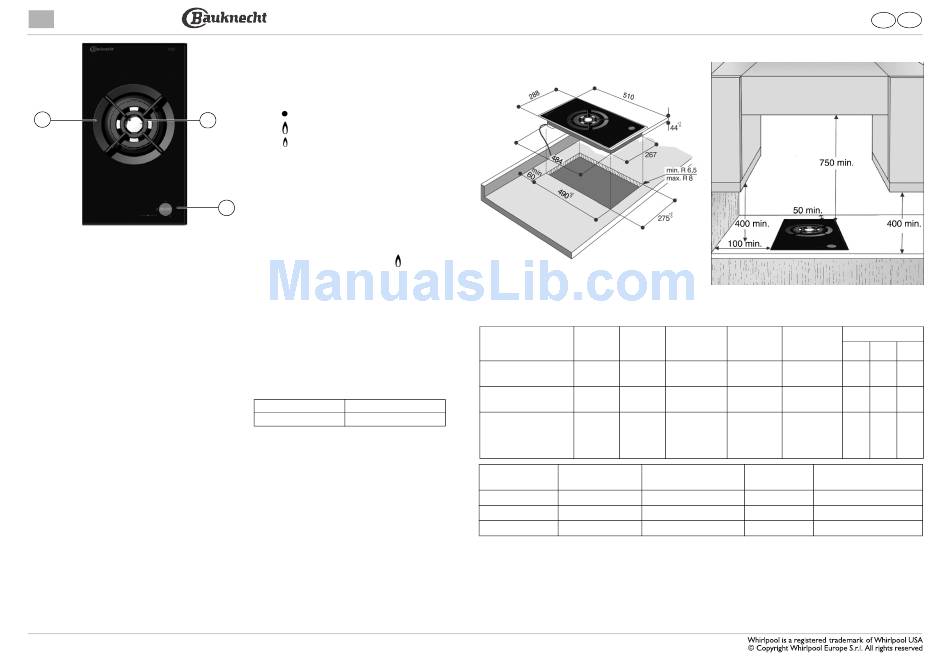

Bauknecht TGV 6160 Product Sheet

TGV 6160
GB
1 2
LIGHTING THE BURNERS
• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting
• Press the knob against the control panel to ignite the burner.
• After the burner has ignited, keep the knob pressed for about 5 seconds to allow the thermocouple to warm up.
This safety device shuts off the gas if the flame goes out accidentally (draughts, interruption of gas, liquids boiling over,
etc.).
• The device must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not
remain lit, wait at least one minute before trying to light it again.
- The burner might go out when the knob is released. This means that the thermocouple has not warmed up enough.
In this case, repeat the operations described above.
PRATICAL ADVICE FOR USING THE BURNERS
For optimum burner performance, observe the following
rules:
- Use pots and pans that fit the burners
(see table on the right).
- Only use flat-bottomed pots and pans.
- Use the correct amount of water for cooking foods and
keep the pot covered.
5019 419 01119
Removable grid(s)
1.
4 crowns burner
2.
4 crowns burner control knob
3.
SYMBOLS
tap closed
Maximum flame
Minimum flame
3
Burner Pot Ø
4 crowns burner from 24 to 26 cm
To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.
PRODUCT SHEET
DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)
.
NOTE: In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct
distance.
INJECTORS TABLE
Type of gas used Type of
burner
NATURAL GAS
4 crowns
(Methane) G20
*NATURAL GAS
4 crowns
(Methane) G25
LIQUEFIED PETROLEUM
GAS
4 crowns
(Butane) G30
(Propane) G31
Type of gas used Model configuration Nominal heating capacity
G20 20 mbar 1 burner
*G25 20 mbar 1 burner
G30/G31 50 mbar 1 burner
* NOT FORSEEN FOR AUSTRIA
ELECTRIC SUPPLY: 230 V ~ 50 Hz
CATEGORY II2H3B/P (AT)
Injector
Nominal heating Nominal Reduced
capacity consumption heating capacity
marking
kW kW
139 3.50 333 l/h
150 3.50 389 l/h
85 3.50 254 g/h
Total nominal
kW consumption
3.50 333 l/h
3.50 389 l/h
3.50 254 g/h
DE AT
II2ELL3B/P (DE)
Gas pressure
(mbar)
min. nom. max.
1.55 17 20 25
1.55 18 20 25
1.90 42.5 50 57.5
3
Air necessary (m ) for the
3
combustion of 1 m of gas
9.52
8.187
30.94
