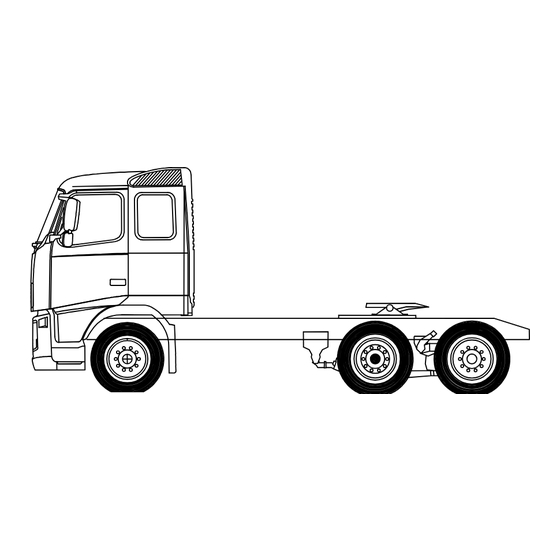

Volvo FH 6X2 Specifications

FH 6X2
FH 390-520 HP 6x2 High tractor A-ride
946
1362
Chassis Dimensions [mm]
WB Wheelbase
A Overall Chassis Length
D Centre of rear axle to back of cab
T Theoretical Wheelbase
Chassis Weights [kg]
Front Axle
Rear Bogie
Kerb Weight
Turning Diameter [mm]
Turning Circle Diameter Kerb to Kerb
Turning Circle Diameter Wall to Wall
Plated Weights [kg]
Gross Vehicle Weight
Gross Combination Weight
Front Axle
Rear Bogie
Important Notes
Chassis Dimensions
Cab Height: -115 mm for L1EH1, +404 mm for L2H2, +542 mm for L2H3.
Front Axle to Back of Cab: -436 mm for L1EH1.
D-measure includes a front clearance of 50 mm and for rigid trucks also a
subframe of 100 mm.
Height can vary ± 20 mm for leaf and ± 10 mm for air suspension.
All dimensions are for unladen chassis and any tag axles down.
Weight and dimensions are based upon the following tyres:
Front Axle Tyres:
Drive Axle Tyres:
Trailing/Pusher Axle Tyres:
A
D
WB 1365 810
T
3400
6937
2404
4006
4895
3570
8465
14000
15700
315/80R22.5
315/80R22.5
315/80R22.5
1319
1109
Design
27000
56000
8000
19000
Chassis weight includes oil, water, 70 litres fuel and without driver. Kerb weight
can vary ± 1.5%.
Turning diameters are theoretically calculated.
Legal weights can differ from country to country.
For more detailed weight information, including optional equipment weights, ask
your Volvo sales contact to enter your specification into the Volvo Weight
Information system (WIS).
Do NOT use this drawing for bodybuilding. Refer to Volvo Bodybuilder
Instructions and chassis assembly drawing 3199940.
Model Code: FH 62T B3HJ
3325
Cab 2495
