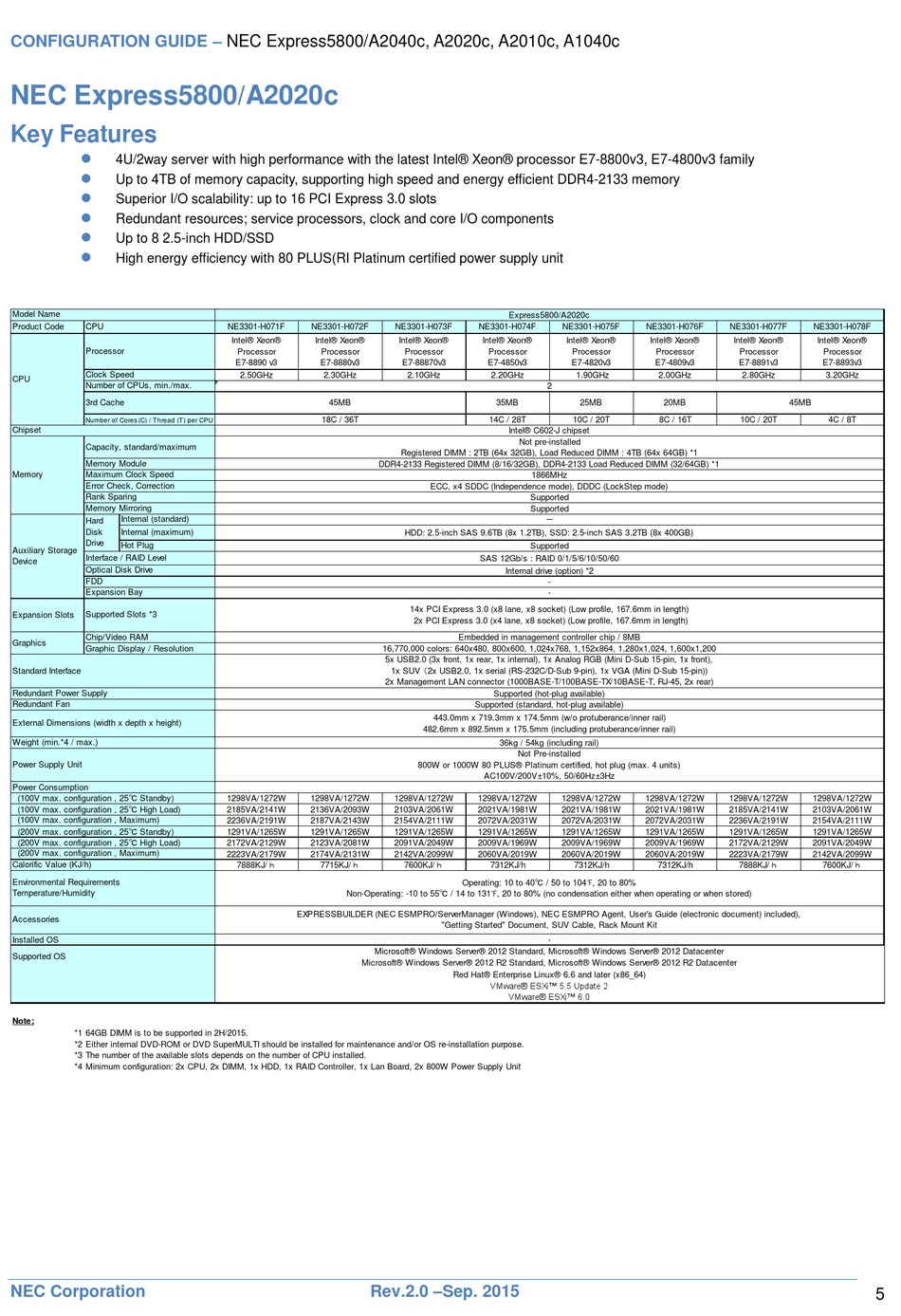

CONFIGURATION GUIDE

NEC Express5800/A2020c

Key Features
4U/2way server with high performance with the latest Intel® Xeon® processor E7-8800v3, E7-4800v3 family
Up to 4TB of memory capacity, supporting high speed and energy efficient DDR4-2133 memory
Superior I/O scalability: up to 16 PCI Express 3.0 slots
Redundant resources; service processors, clock and core I/O components
Up to 8 2.5-inch HDD/SSD
High energy efficiency with 80 PLUS(RI Platinum certified power supply unit
Model Name
Product Code
CPU
Processor
Clock Speed
CPU
Number of CPUs, min./max.
3rd Cache
Number of Cores (C) / Thread (T) per CPU
Chipset
Capacity, standard/maximum
Memory Module
Memory
Maximum Clock Speed
Error Check, Correction
Rank Sparing
Memory Mirroring
Internal (standard)
Hard
Disk
Internal (maximum)
Drive
Hot Plug
Auxiliary Storage
Interface / RAID Level
Device
Optical Disk Drive
FDD
Expansion Bay
Expansion Slots
Supported Slots *3
Chip/Video RAM
Graphics
Graphic Display / Resolution
Standard Interface
Redundant Power Supply
Redundant Fan
External Dimensions (width x depth x height)
Weight (min.*4 / max.)
Power Supply Unit
Power Consumption
(100V max. configuration , 25℃ Standby)
(100V max. configuration , 25℃ High Load)
(100V max. configuration , Maximum)
(200V max. configuration , 25℃ Standby)
(200V max. configuration , 25℃ High Load)
(200V max. configuration , Maximum)
Calorific Value (KJ/h)
Environmental Requirements
Temperature/Humidity
Accessories
Installed OS
Supported OS
Note;
*1 64GB DIMM is to be supported in 2H/2015.
*2 Either internal DVD-ROM or DVD SuperMULTI should be installed for maintenance and/or OS re-installation purpose.
*3 The number of the available slots depends on the number of CPU installed.
*4 Minimum configuration: 2x CPU, 2x DIMM, 1x HDD, 1x RAID Controller, 1x Lan Board, 2x 800W Power Supply Unit
NEC Corporation
NEC Express5800/A2040c, A2020c, A2010c, A1040c
NE3301-H071F
NE3301-H072F
Intel® Xeon®
Intel® Xeon®
Processor
Processor
E7-8890 v3
E7-8880v3
2.50GHz
2.30GHz
45MB
18C / 36T
DDR4-2133 Registered DIMM (8/16/32GB), DDR4-2133 Load Reduced DIMM (32/64GB) *1
1298VA/1272W
1298VA/1272W
2185VA/2141W
2136VA/2093W
2236VA/2191W
2187VA/2143W
1291VA/1265W
1291VA/1265W
2172VA/2129W
2123VA/2081W
2223VA/2179W
2174VA/2131W
7888KJ/h
7715KJ/h
Non-Operating: -10 to 55℃ / 14 to 131℉, 20 to 80% (no condensation either when operating or when stored)
EXPRESSBUILDER (NEC ESMPRO/ServerManager (Windows), NEC ESMPRO Agent, User's Guide (electronic document) included),
Microsoft® Windows Server® 2012 Standard, Microsoft® Windows Server® 2012 Datacenter
Microsoft® Windows Server® 2012 R2 Standard, Microsoft® Windows Server® 2012 R2 Datacenter
Rev.2.0 –Sep. 2015
Express5800/A2020c
NE3301-H073F
NE3301-H074F
Intel® Xeon®
Intel® Xeon®
Processor
Processor
E7-88870v3
E7-4850v3
2.10GHz
2.20GHz
2
35MB
14C / 28T
Intel® C602-J chipset
Not pre-installed
Registered DIMM : 2TB (64x 32GB), Load Reduced DIMM : 4TB (64x 64GB) *1
1866MHz
ECC, x4 SDDC (Independence mode), DDDC (LockStep mode)
Supported
Supported
HDD: 2.5-inch SAS 9.6TB (8x 1.2TB), SSD: 2.5-inch SAS 3.2TB (8x 400GB)
Supported
SAS 12Gb/s : RAID 0/1/5/6/10/50/60
Internal drive (option) *2
-
-
14x PCI Express 3.0 (x8 lane, x8 socket) (Low profile, 167.6mm in length)
2x PCI Express 3.0 (x4 lane, x8 socket) (Low profile, 167.6mm in length)
Embedded in management controller chip / 8MB
16,770,000 colors: 640x480, 800x600, 1,024x768, 1,152x864, 1,280x1,024, 1,600x1,200
5x USB2.0 (3x front, 1x rear, 1x internal), 1x Analog RGB (Mini D-Sub 15-pin, 1x front),
1x SUV (2x USB2.0, 1x serial (RS-232C/D-Sub 9-pin), 1x VGA (Mini D-Sub 15-pin))
2x Management LAN connector (1000BASE-T/100BASE-TX/10BASE-T, RJ-45, 2x rear)
Supported (hot-plug available)
Supported (standard, hot-plug available)
443.0mm x 719.3mm x 174.5mm (w/o protuberance/inner rail)
482.6mm x 892.5mm x 175.5mm (including protuberance/inner rail)
36kg / 54kg (including rail)
Not Pre-installed
800W or 1000W 80 PLUS® Platinum certified, hot plug (max. 4 units)
AC100V/200V±10%, 50/60Hz±3Hz
1298VA/1272W
1298VA/1272W
2103VA/2061W
2021VA/1981W
2154VA/2111W
2072VA/2031W
1291VA/1265W
1291VA/1265W
2091VA/2049W
2009VA/1969W
2142VA/2099W
2060VA/2019W
7600KJ/h
7312KJ/h
Operating: 10 to 40℃ / 50 to 104℉, 20 to 80%
"Getting Started" Document, SUV Cable, Rack Mount Kit
-
Red Hat® Enterprise Linux® 6.6 and later (x86_64)
VMware® ESXi™ 5.5 Update 2
VMware® ESXi™ 6.0
NE3301-H075F
NE3301-H076F
NE3301-H077F
Intel® Xeon®
Intel® Xeon®
Processor
Processor
E7-4820v3
E7-4809v3
1.90GHz
2.00GHz
25MB
20MB
10C / 20T
8C / 16T
1298VA/1272W
1298VA/1272W
1298VA/1272W
2021VA/1981W
2021VA/1981W
2185VA/2141W
2072VA/2031W
2072VA/2031W
2236VA/2191W
1291VA/1265W
1291VA/1265W
1291VA/1265W
2009VA/1969W
2009VA/1969W
2172VA/2129W
2060VA/2019W
2060VA/2019W
2223VA/2179W
7312KJ/h
7312KJ/h
NE3301-H078F
Intel® Xeon®
Intel® Xeon®
Processor
Processor
E7-8891v3
E7-8893v3
2.80GHz
3.20GHz
45MB
10C / 20T
4C / 8T
1298VA/1272W
2103VA/2061W
2154VA/2111W
1291VA/1265W
2091VA/2049W
2142VA/2099W
7888KJ/h
7600KJ/h
5
